Part Location Diagram of W10341820 Whirlpool Fan Switch - Black
See part 5 in the diagram

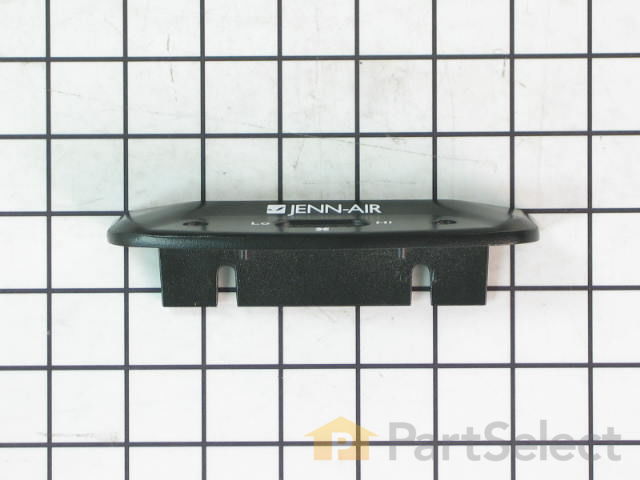

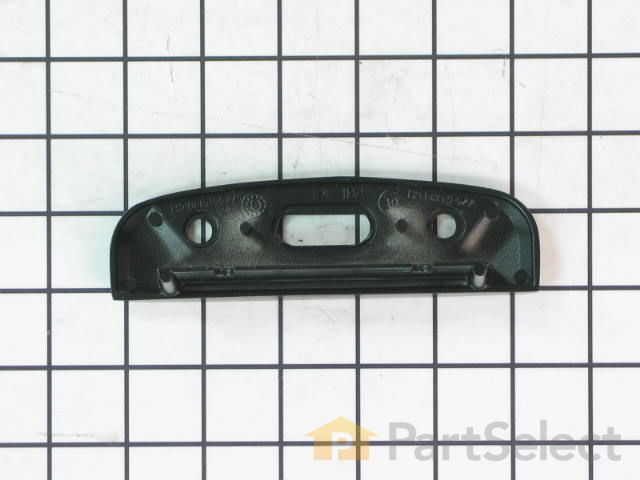

( Grid squares measure 1x1 inch )

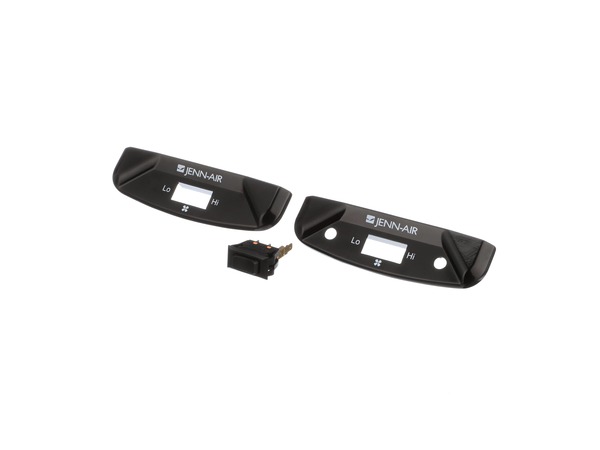

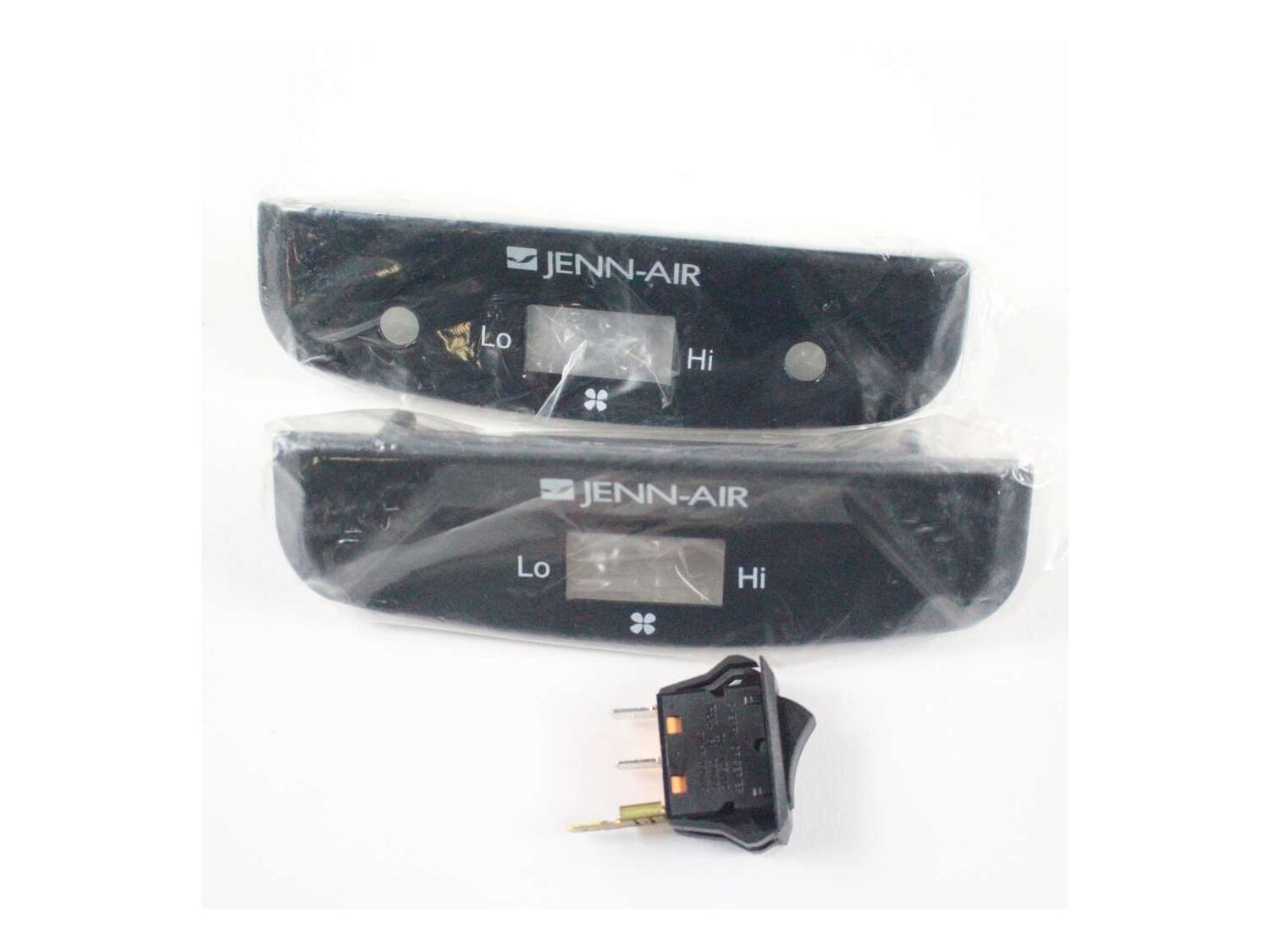

Fan Switch - Black W10341820

Manufactured by:
Whirlpool
ERP Number:
ERP3408226
Part Number:
W10341820
Original Equipment Manufacturer ?
$211.50
In Stock
Delivers in 3-5 Business Days!

Does this part fit my model?

Need help finding your model number?

Product Description

?

This range fan switch is designed to control the operation of the cooktop or range ventilation system, allowing the downdraft or blower fan to start, stop, or regulate airflow as needed to manage heat and steam during cooking. By ensuring proper fan operation, it helps protect internal components from overheating while supporting effective ventilation. Replacement may be necessary if the fan will not turn on, will not shut off, operates intermittently, or if the switch feels loose or unresponsive. The black switch is intended as a functional replacement for older or failed designs and may require minor mounting adjustments during installation, making it a practical solution for restoring reliable ventilation control.

Troubleshooting

This part fixes the following symptoms:
  • Will Not Start
This part works with the following brands:
  • Jenn-Air
This part works with the following products:
  • Cooktop
Part# W10341820 replaces these:
AP4588582, 1617280, 71001563, 71001564, 74005805, 74005806, 74006145, 74006146, 7403P428-60, 7403P429-60, 7744P357-60, 7744P388-60, 7744P389-60, 7744P391-60, W10341819, W10341820,

Model Cross Reference

This part works with the following models:
ERP Number: ERP3408226
Manufacturer Part Number: W10341820
Brand Model Number Description
Jenn-Air CVE1400B Cooktop - Electric
Jenn-Air CVE1400B-C Cooktop - Electric
Jenn-Air CVE1400W Cooktop - Electric
Jenn-Air CVE1400W-C Cooktop - Electric
Jenn-Air CVE4180B Cooktop - Electric
Jenn-Air CVE4180B-C Cooktop - Electric
Jenn-Air CVE4180S Cooktop - Electric
Jenn-Air CVE4180S-C Cooktop - Electric
Jenn-Air CVE4180W Cooktop - Electric
Jenn-Air CVE4180W-C Cooktop - Electric
Jenn-Air CVE4270B Cooktop - Electric
Jenn-Air CVE4270B-C Cooktop - Electric
Jenn-Air CVE4270S Cooktop - Electric
Jenn-Air CVE4270S-C Cooktop - Electric
Jenn-Air CVE4270W Cooktop - Electric
Jenn-Air CVE4270W-C Cooktop - Electric
Jenn-Air CVE4370B Cooktop - Electric
Jenn-Air CVE4370W Cooktop - Electric
Jenn-Air CVG4100B Cooktop - Gas
Jenn-Air CVG4280B Cooktop - Gas
Jenn-Air CVG4280S Cooktop - Gas
Jenn-Air CVG4280W Cooktop - Gas
Jenn-Air CVG4380B Cooktop - Gas
Jenn-Air CVG4380W Cooktop - Gas
Jenn-Air JED8130ADB Cooktop
Jenn-Air JED8130ADB15 Cooktop - 30" ELECTRIC DOWNDRAFT COOKTOP
Jenn-Air JED8130ADB16 Cooktop - 30" ELECTRIC DOWNDRAFT COOKTOP
Jenn-Air JED8130ADW Cooktop
Jenn-Air JED8130ADW15 Cooktop - 30" ELECTRIC DOWNDRAFT COOKTOP
Jenn-Air JED8130ADW16 Cooktop - 30" ELECTRIC DOWNDRAFT COOKTOP
