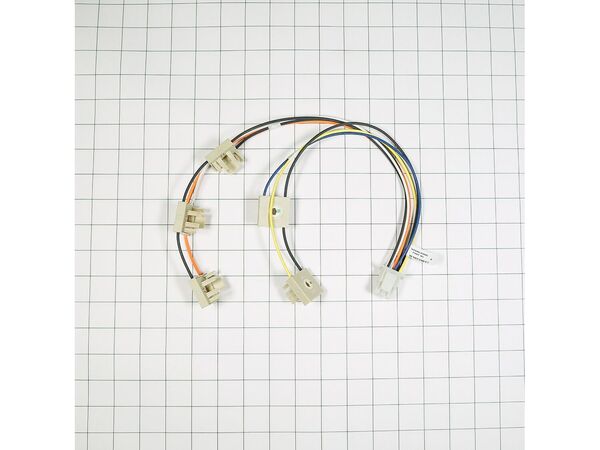

11750852-1-M-Whirlpool-WPW10239017-Wiring Harness
Part Location Diagram of WPW10239017 Whirlpool Wiring Harness
See part 24 in the diagram

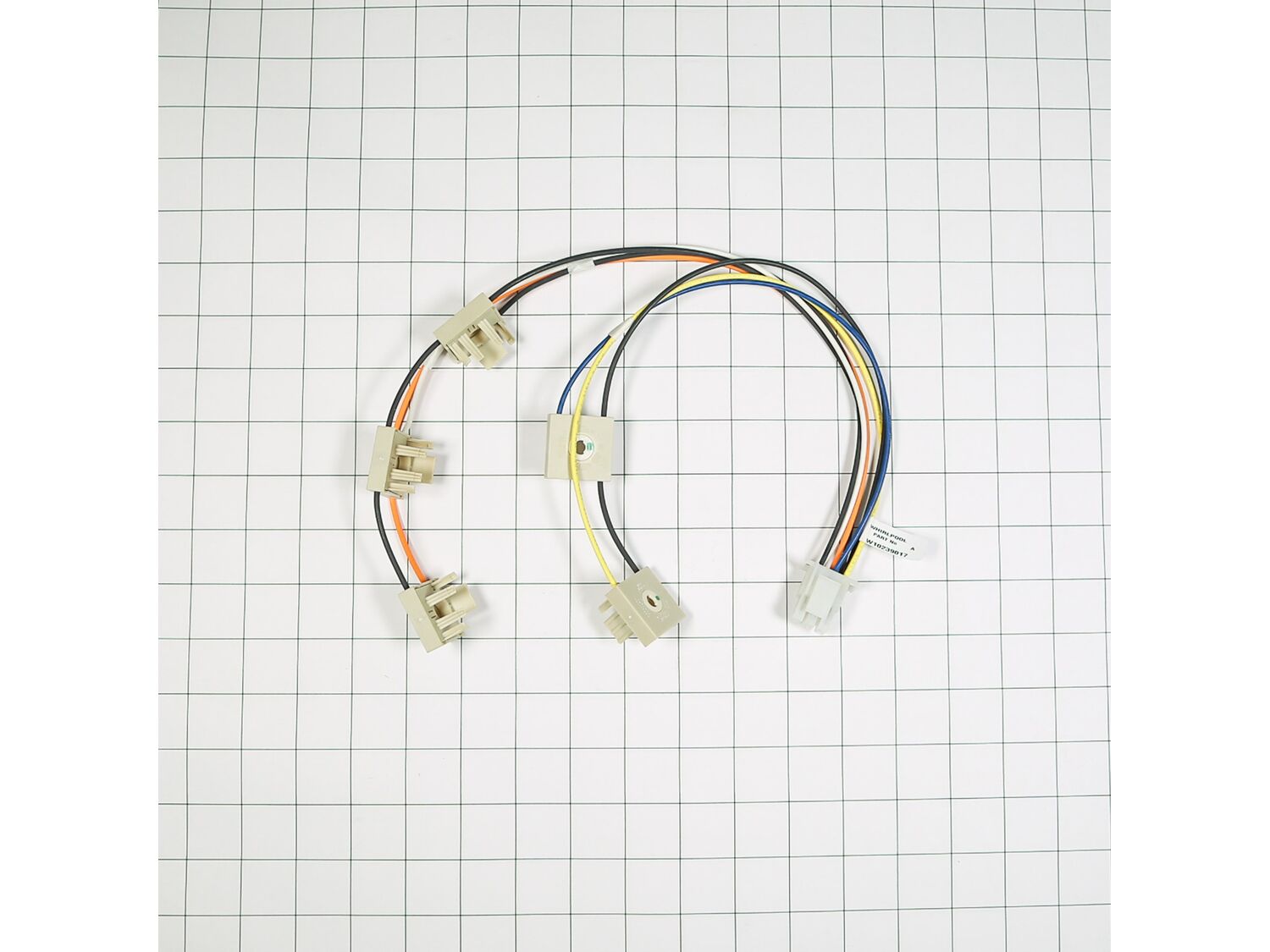

( Grid squares measure 1x1 inch )

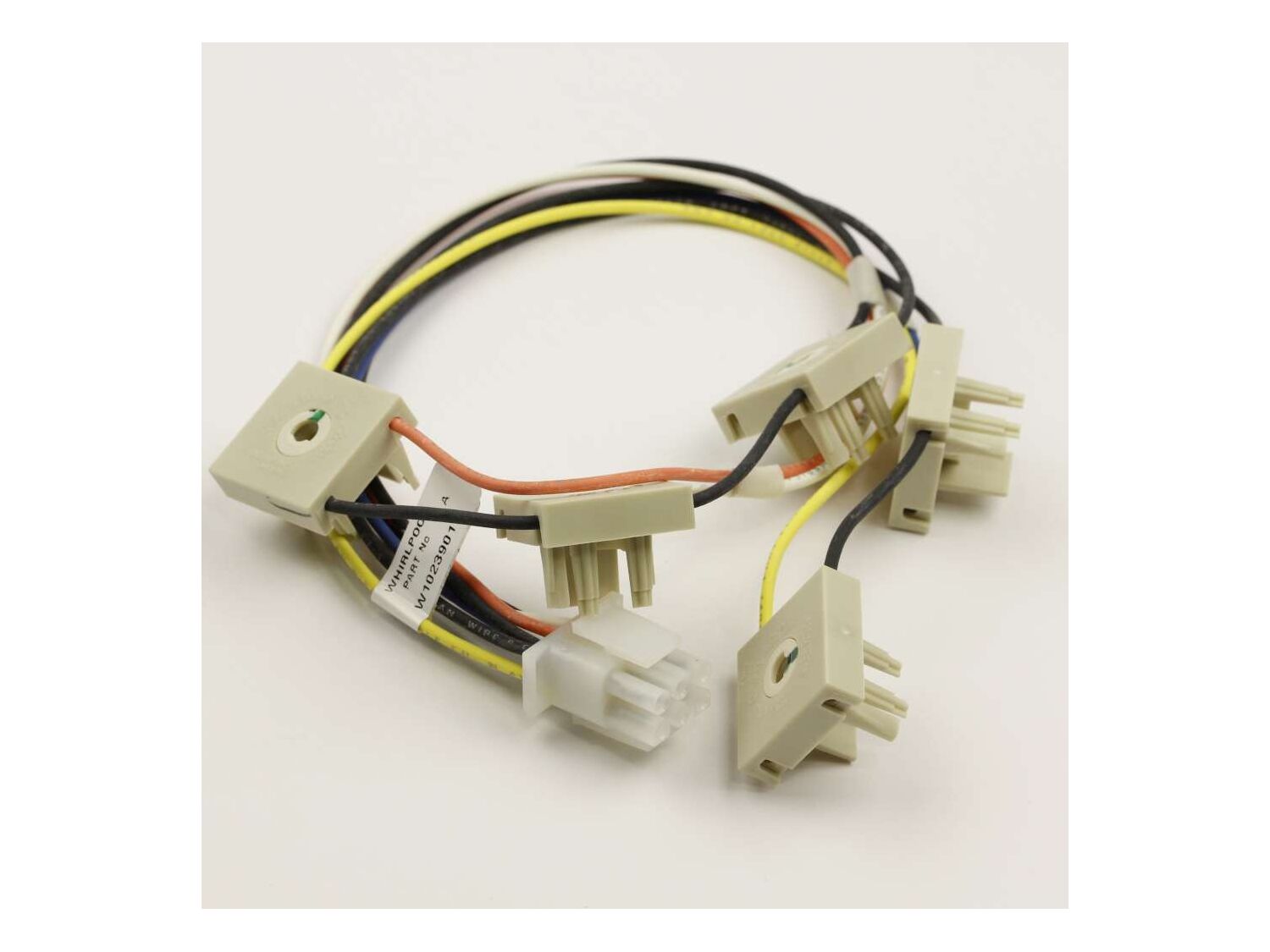

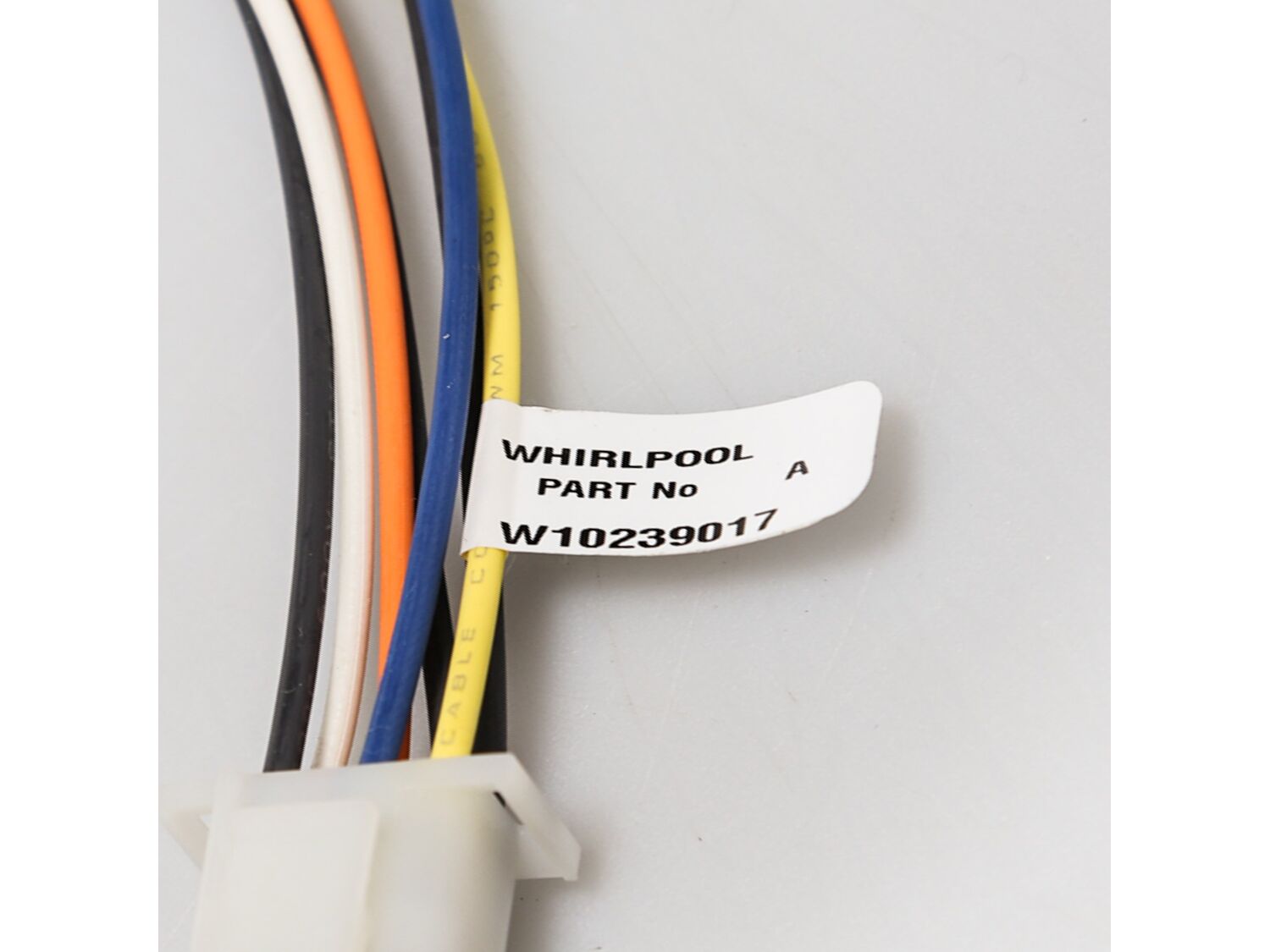

11750852-1-S-Whirlpool-WPW10239017-Wiring Harness 11750852-2-S-Whirlpool-WPW10239017-Wiring Harness 11750852-3-S-Whirlpool-WPW10239017-Wiring Harness Part Location Diagram of WPW10239017 Whirlpool Wiring Harness

Wiring Harness WPW10239017

Manufactured by:
Whirlpool
ERP Number:
ERP11750852
Part Number:
WPW10239017
Original Equipment Manufacturer ?
$116.91
Special Order

Does this part fit my model?

Need help finding your model number?

Jump to:

Troubleshooting Model Cross Reference

Troubleshooting

This part works with the following brands:
  • Jenn-Air
This part works with the following products:
  • Cooktop
Part# WPW10239017 replaces these:
W10239017,

Model Cross Reference

This part works with the following models:
ERP Number: ERP11750852
Manufacturer Part Number: WPW10239017
Brand Model Number Description
Jenn-Air JGD3536BB00 Cooktop - 36" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air JGD3536BS00 Cooktop - 36" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air JGD3536BW00 Cooktop - 36" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air JGD3536WB00 Cooktop - 36" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air JGD3536WB01 Cooktop - 36" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air JGD3536WS00 Cooktop - 36" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air JGD3536WS01 Cooktop - 36" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air JGD3536WW00 Cooktop - 36" GAS BUILT-IN DOWNDRAFT COOKTOP
Jenn-Air JGD3536WW01 Cooktop - 36" GAS BUILT-IN DOWNDRAFT COOKTOP
Wiring Harness
$ 116.91
Special Order
✖
Stock Status
✖
Mail-In Recycling Rebate

Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.

✖
