Part Location Diagram of 10NPF Shimano Spool Assembly
See part 531 in the diagram

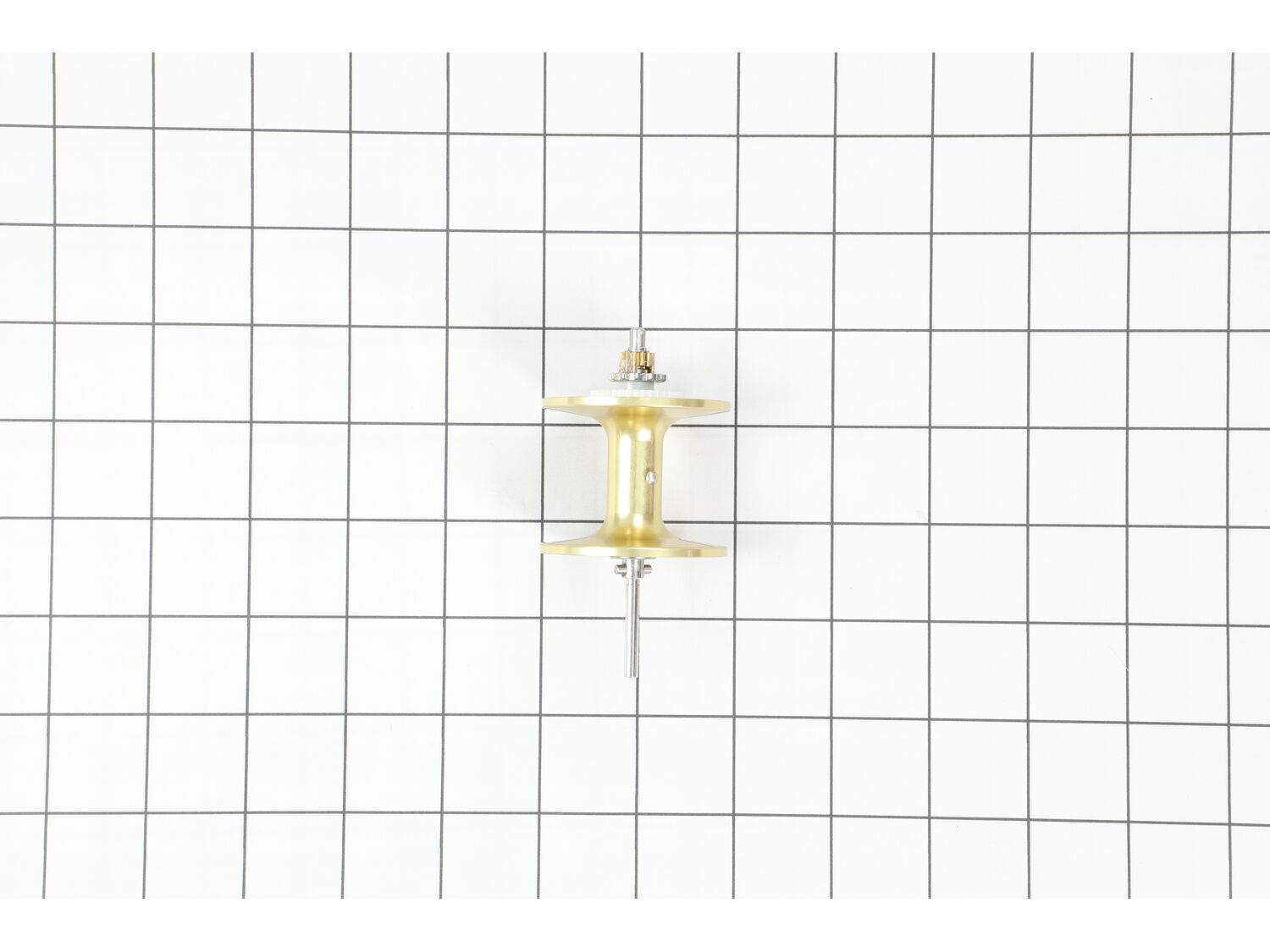

( Grid squares measure 1x1 inch )

Spool Assembly 10NPF

Manufactured by:
Shimano
ERP Number:
ERP18254369
Part Number:
10NPF
Original Equipment Manufacturer ?
$56.72
Special Order

Easy

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Shimano
This part works with the following products:
  • Conventional Reels

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

spool fit perfect

Terry from RAYMOND, Washington

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Wrench set
Parts Used:
10NPF
spool had bad bearing just replaced spool.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP18254369
Manufacturer Part Number: 10NPF
Brand Model Number Description
Shimano TEK-500LC Conventional Reels - Tekota Drag Reel
Shimano TEK500 Conventional Reels - Star Drag Reel Tekota
