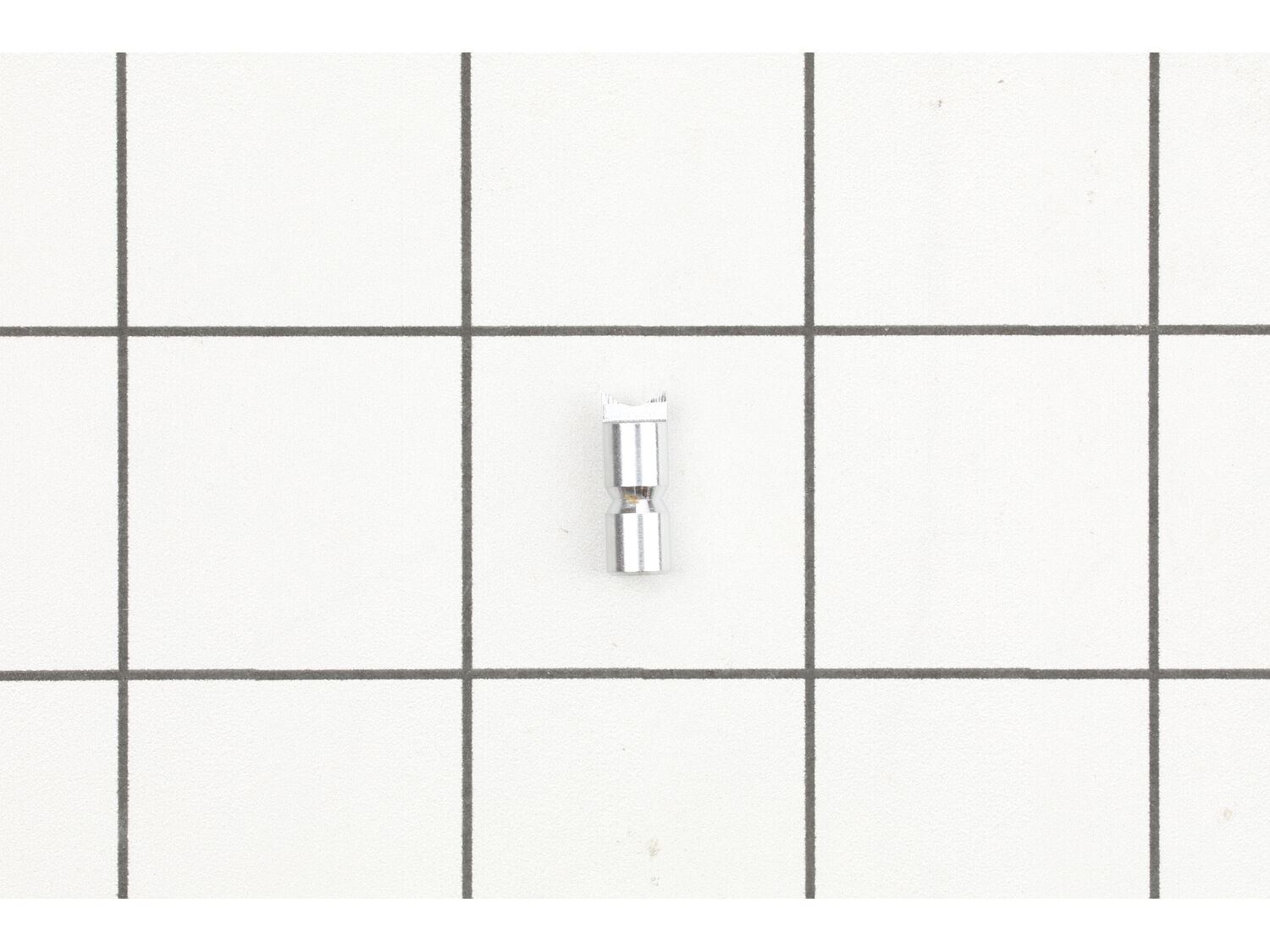

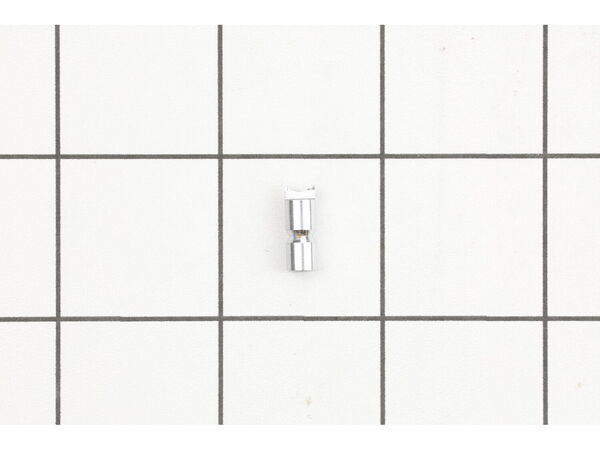

18252194-1-M-Shimano-10FJA-Line Guide Pawl

( Grid squares measure 1x1 inch )

18252194-1-S-Shimano-10FJA-Line Guide Pawl

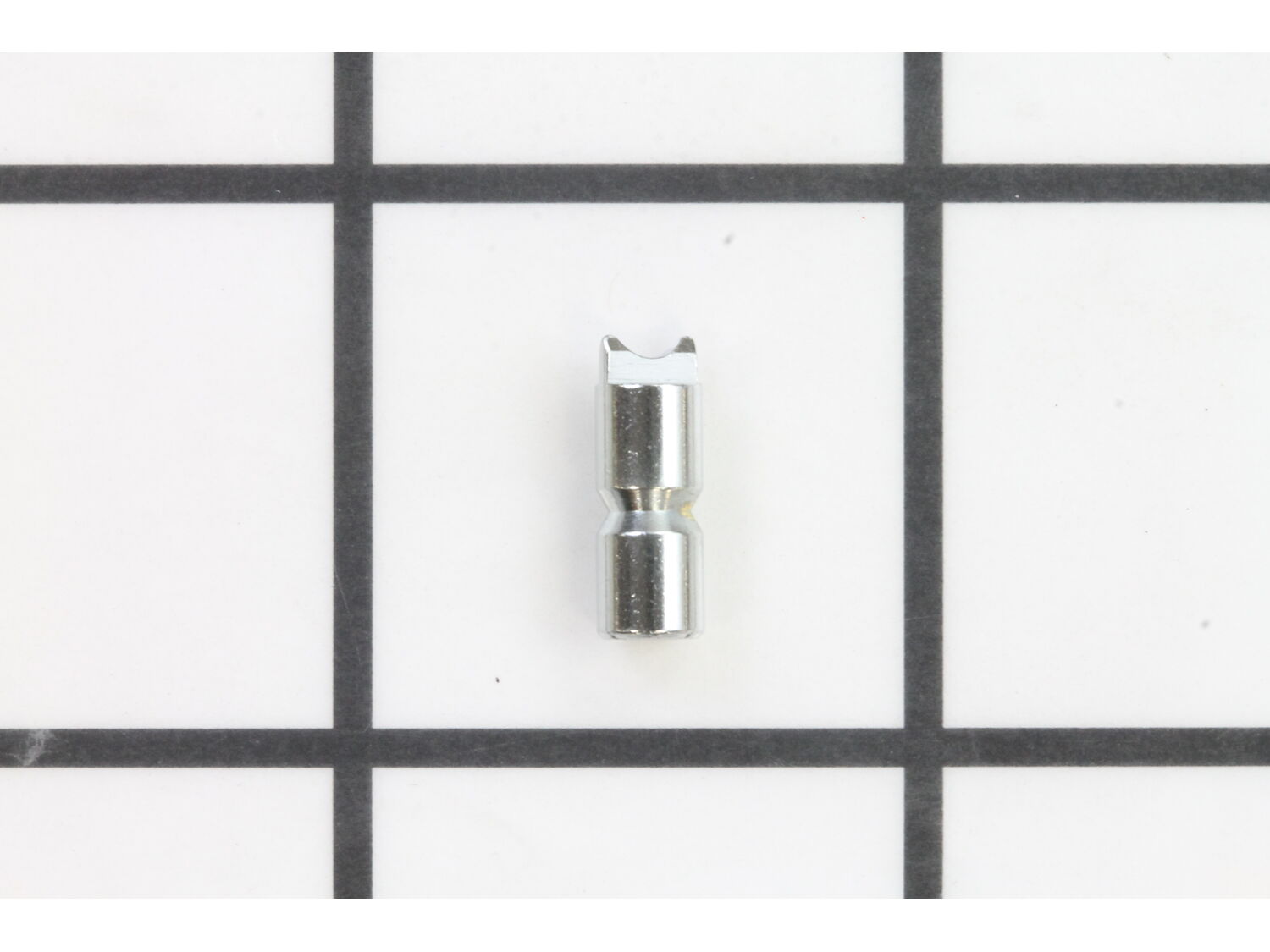

18252194-2-S-Shimano-10FJA-Line Guide Pawl

Line Guide Pawl 10FJA

Manufactured by:: Shimano
ERP Number:: ERP18252194
Part Number:: 10FJA

$8.68

Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:

Shimano

This part works with the following products:

Conventional Reels

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?

< Prev
1
Next >

Sort by:

Worm shaft broke, several screws worn out

Randy from Burlington, Washington

0 of 1 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers, Wrench set
Parts Used:: 10QG5, 10NVJ, 10M2Q, 10FJA, 10468

Disassembled reel, removed the worm shaft, replaced with new, replaced several screws, cleaned and re-lubed all internal gears and pivot points, as good as new ...

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP18252194
Manufacturer Part Number: 10FJA

Brand	Model Number	Description
Shimano	TR1000LD	Conventional Reels - Charter Special Drag Reel
Shimano	TR2000	Conventional Reels - Charter Special Conventional Reel
Shimano	TR2000LD	Conventional Reels - Charter Special Drag Reel
