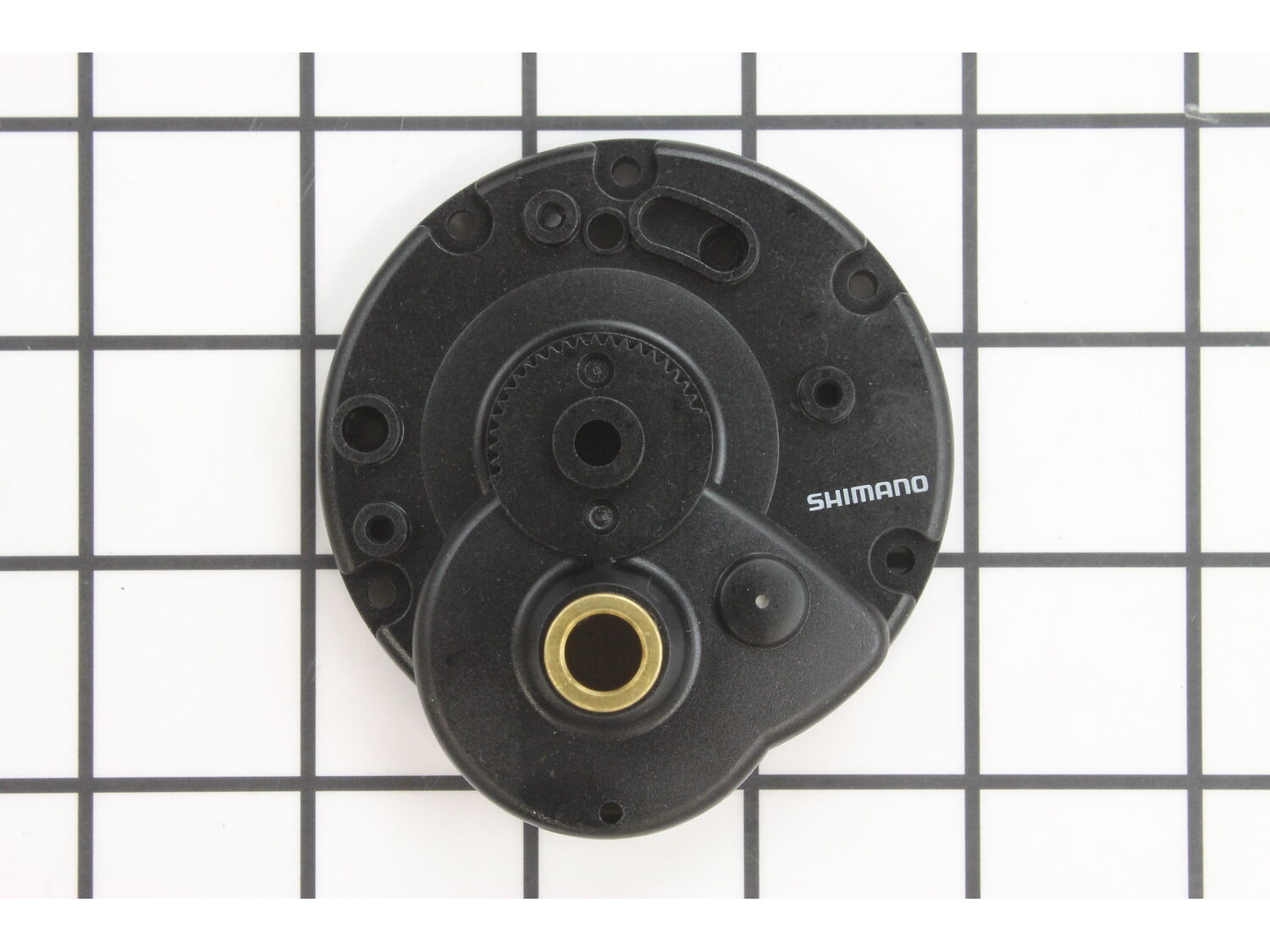

18250817-1-M-Shimano-10BJB-Right Side Plate

( Grid squares measure 1x1 inch )

18250817-1-S-Shimano-10BJB-Right Side Plate

Right Side Plate 10BJB

Manufactured by:: Shimano
ERP Number:: ERP18250817
Part Number:: 10BJB

$17.15

Difficult

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Troubleshooting Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:

Shimano

This part works with the following products:

Conventional Reels

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Difficult

15 - 30 mins

(1 rated repair) ?

< Prev
1
Next >

Sort by:

Plastic post that holds anti reverse spring broke. Post is part of side plate

MATTHEW from Andover, Massachusetts

1 person found this instruction helpful.

Difficulty Level:: Difficult
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers
Parts Used:: 10BJB

1. Removed old side plate.
2. Remove 2 spring retainers and 2 spring loaded buttons from old side plate
3. Remove anti reverse spring retainer
4. Install 2 buttons and retainers
5. Install anti reverse spring
6. Insert gear handle post
7. Reassemble

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP18250817
Manufacturer Part Number: 10BJB

Brand	Model Number	Description
Shimano	TR1000LD	Conventional Reels - Charter Special Drag Reel
Shimano	TR2000	Conventional Reels - Charter Special Conventional Reel
Shimano	TR2000LD	Conventional Reels - Charter Special Drag Reel
