Part Location Diagram of 109WT Shimano Drive Gear B
See part 510 in the diagram

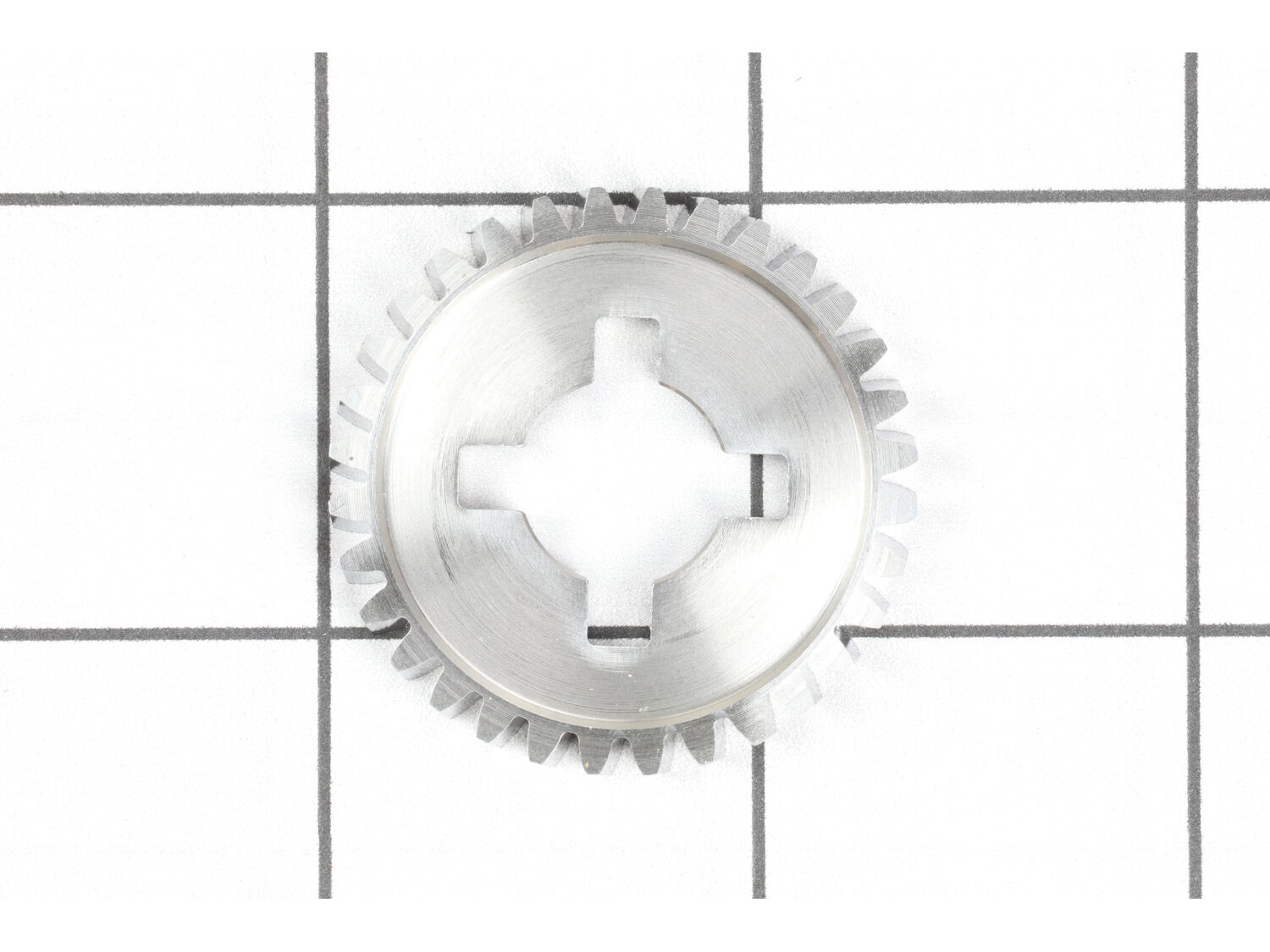

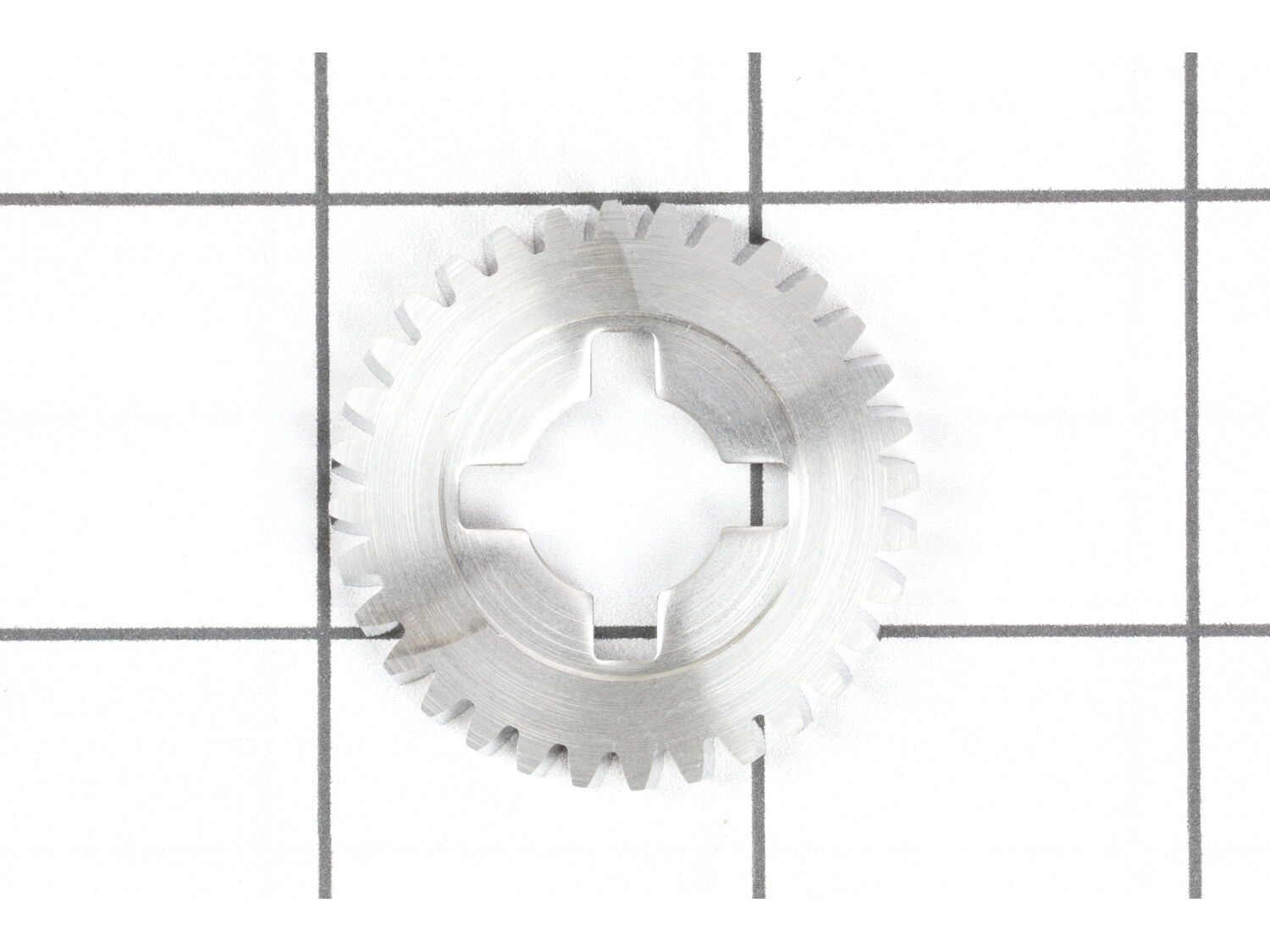

( Grid squares measure 1x1 inch )

Drive Gear B 109WT

Manufactured by:
Shimano
ERP Number:
ERP18250266
Part Number:
109WT
Original Equipment Manufacturer ?
$33.98
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Shimano
This part works with the following products:
  • Conventional Reels

Model Cross Reference

This part works with the following models:
ERP Number: ERP18250266
Manufacturer Part Number: 109WT
Brand Model Number Description
Shimano TI-20A Conventional Reels - Tiagra Lever Drag Reel
Shimano TI-30A Conventional Reels - Tiagra Lever Drag Reel
Shimano TI-30WLRSA Conventional Reels - Tiagra Lever Drag Reel
