Part Location Diagram of 109LC Shimano Pressure Release Spring
See part 1004 in the diagram

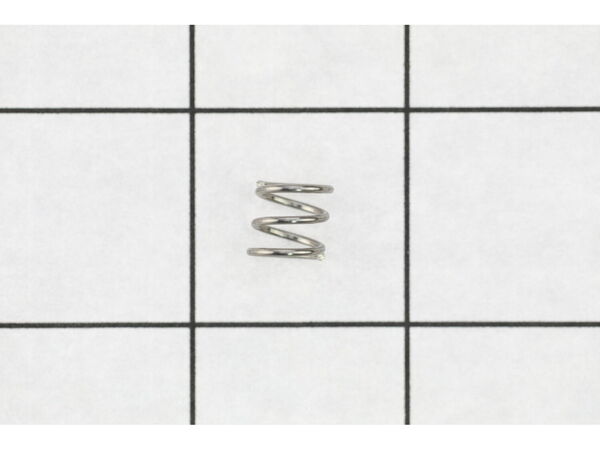

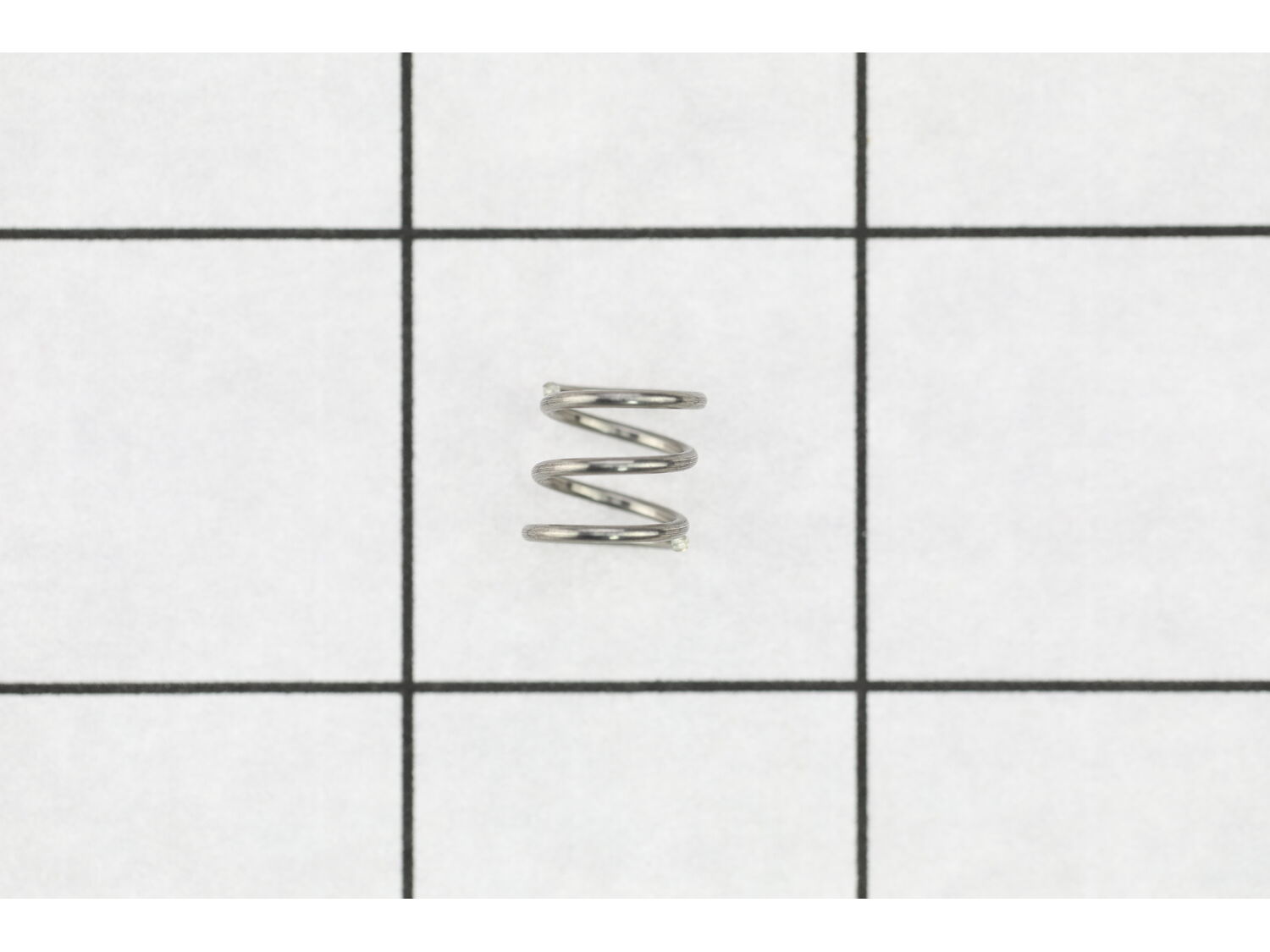

( Grid squares measure 1x1 inch )

Pressure Release Spring 109LC

Manufactured by:
Shimano
ERP Number:
ERP18250196
Part Number:
109LC
Original Equipment Manufacturer ?
$6.16
Special Order

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Shimano
This part works with the following products:
  • Conventional Reels

Model Cross Reference

This part works with the following models:
ERP Number: ERP18250196
Manufacturer Part Number: 109LC
Brand Model Number Description
Shimano TYR-30II Conventional Reels - Lever Drag Tyrnos 2-Speed
Shimano TYR20II Conventional Reels - Lever Drag Tyrnos 2-Speed
