Part Location Diagram of 1128053 Abu Garcia Pinion Gear
See part 85 in the diagram

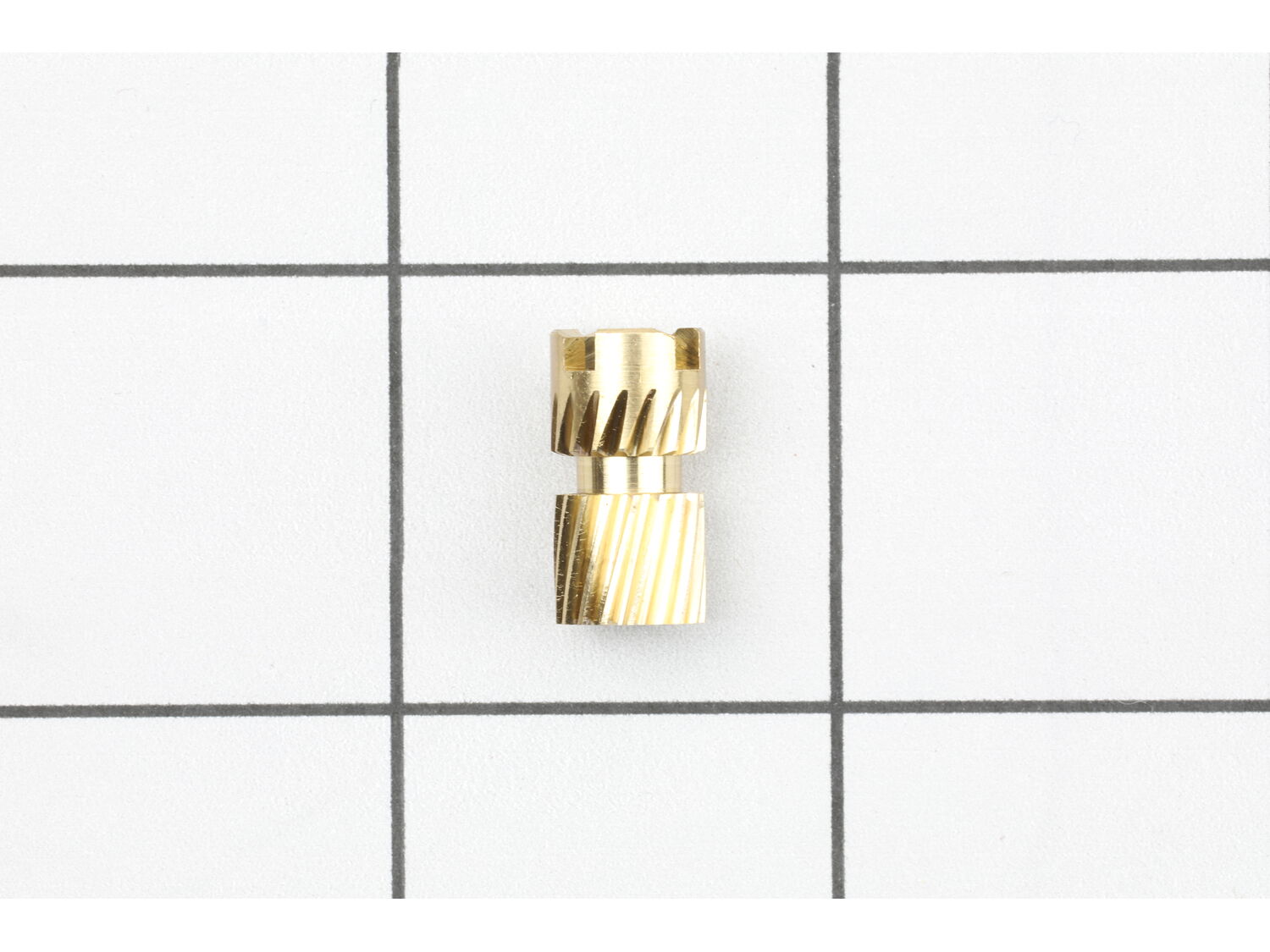

( Grid squares measure 1x1 inch )

Pinion Gear 1128053

Manufactured by:
Abu Garcia
ERP Number:
ERP18258356
Part Number:
1128053
Original Equipment Manufacturer ?
$23.08
Special Order

Easy

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Abu Garcia
This part works with the following products:
  • Conventional Reels

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Pinion Gear worn out

James from SEDALIA, Missouri

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
1128053
Took reel apart, removed bad pinion gear and installed new one. oiled and lubed reel. Ready to Catch Fish!!!
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP18258356
Manufacturer Part Number: 1128053
Brand Model Number Description
Abu Garcia 7000I Conventional Reels - Ambassadeur
Abu Garcia 7000IC3 Conventional Reels - Ambassadeur
Abu Garcia 7000ICS Conventional Reels - Ambassadeur
Abu Garcia 7000ILC Conventional Reels - Ambassadeur
Abu Garcia 7000ISYNCRO Baitcast Reels - Ambassadeur
Abu Garcia AGSEVEN Conventional Reels - Ambassadeur
