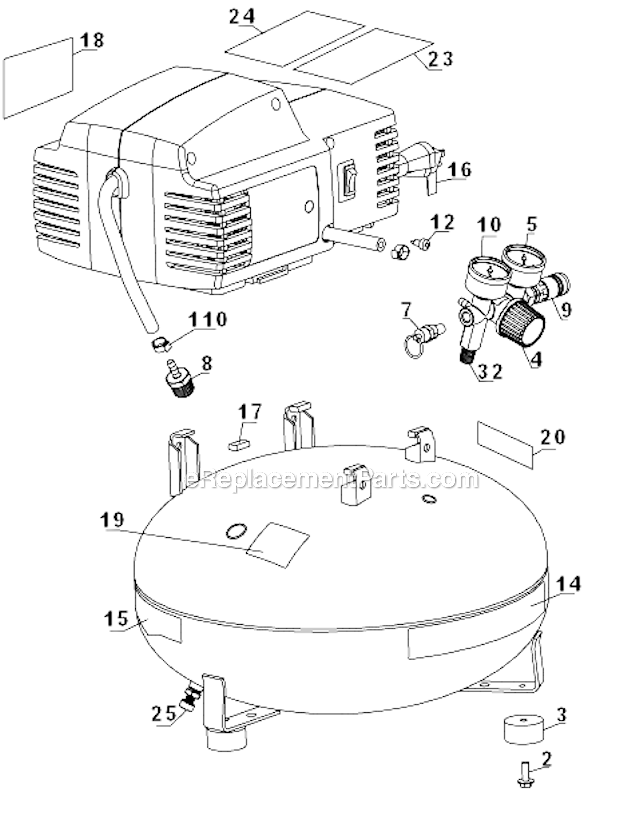

18993348-1-M-DeWALT-N246884-ASSY MINI MANIFOLD LOW FLOW

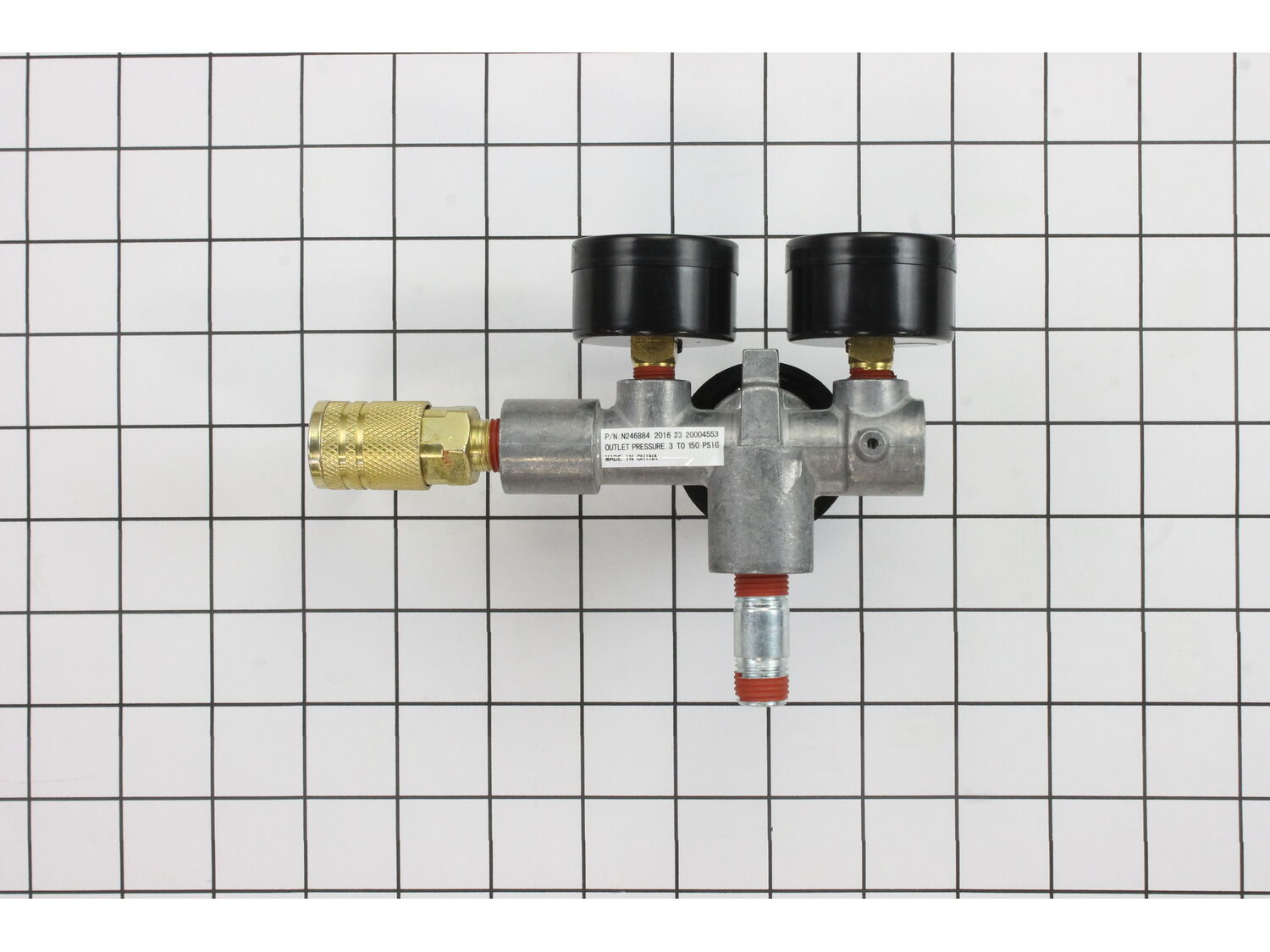

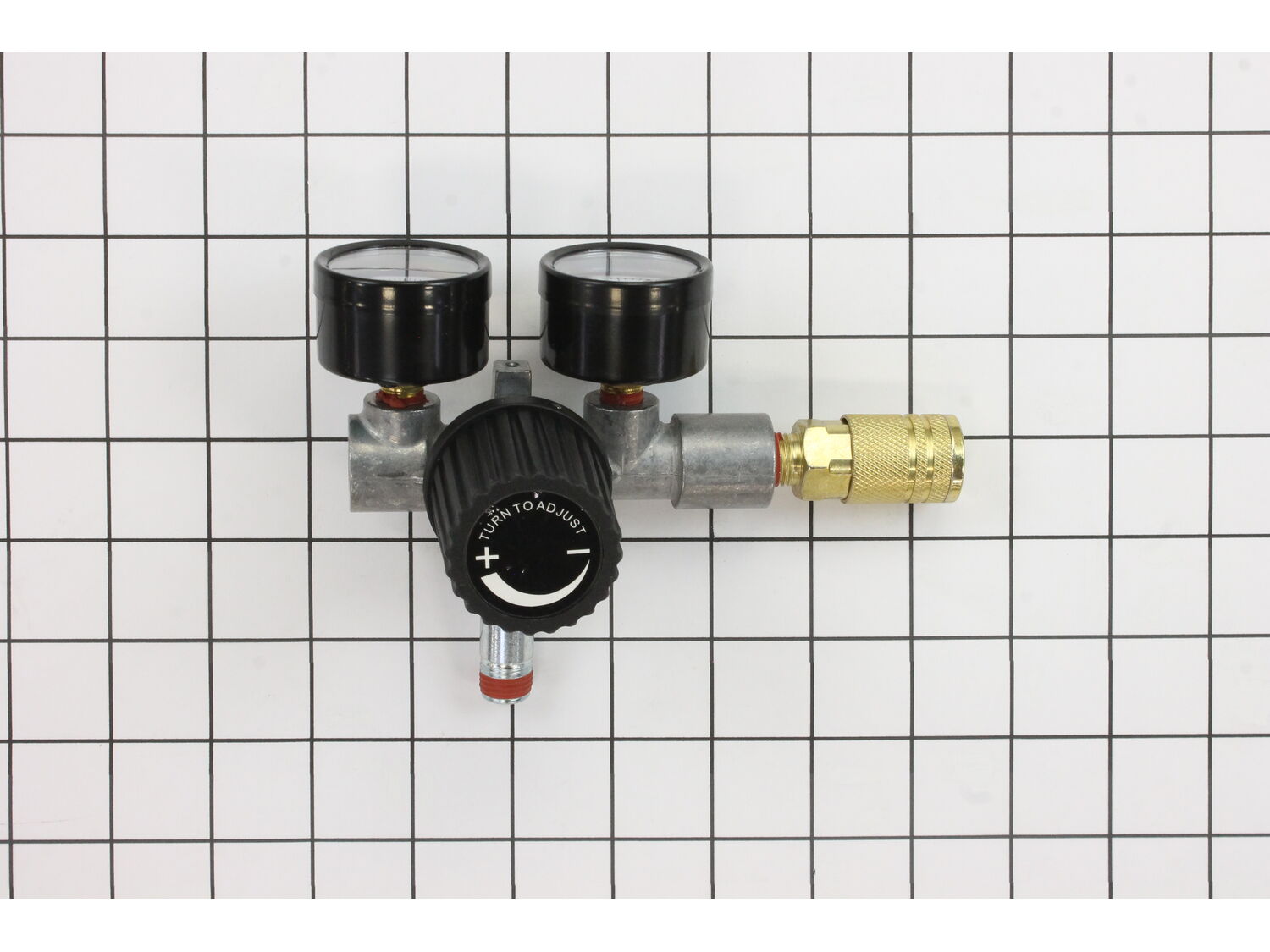

( Grid squares measure 1x1 inch )

18993348-1-S-DeWALT-N246884-ASSY MINI MANIFOLD LOW FLOW

18993348-2-S-DeWALT-N246884-ASSY MINI MANIFOLD LOW FLOW

ASSY MINI MANIFOLD LOW FLOW N246884

Manufactured by:: DeWALT
ERP Number:: ERP18993348
Part Number:: N246884

$44.20

★★★★★

20 Reviews

Delivers in 3-5 Business Days!

Easy

30 - 60 mins

(22 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Description Troubleshooting Reviews Questions & Answers Repair Instructions Model Cross Reference

Product Description

This is a genuine manufacturer sourced replacement regulator/manifold. It is specially designed for Porter Cable air compressors. This part adjusts the pressure of the air coming from the tank to the desired level. Includes regulator body, two (2) gauges, two (2) brass quick connect fittings and a regulator knob. Replacing this assembly you will need a screwdriver, set of wrenches and pliers. • Depressurize the tank • Remove the manifold cover • Remove the pressure hose • Remove the pump assembly from the tank • Remove the manifold. • Remove the manifold nipple • Transfer the safety valve • Install the new manifold kit • Reassemble and test

Troubleshooting

This part fixes the following symptoms:

Air leak

This part works with the following brands:

Porter Cable
Craftsman
Stanley

This part works with the following products:

Compressor

Part# N246884 replaces these:

N246884
PN246884

★

Customer Part Reviews

4.1

Average Rating (out of 5):

★★★★★

(20 Reviews)

Click to filter by ratings:

5 stars

14
4 stars

1
3 stars

1
2 stars

1
1 star

3

< Prev
1
2
Next >

Sort by:

★★★★★

Arrived very quickly and product look of good quality

Great

Guest - September 4, 2019

Verified Purchase

★★★★★

Easy repair, since the part was an exact part.

Prompt delivery. Was nice to get the right part the first time. I surely use them again.

Guest - October 4, 2019

Verified Purchase

★★★★★

Exactly the part I ordered and it works great.

No problems installing this part.

Guest - November 5, 2019

Verified Purchase

★★★★★

Great part worked as expected.

Arrived quickly. Had to remove the motor assy to install the new manifold assy. Works like a champ!

Guest - November 5, 2019

Verified Purchase

★★★★★

Perfect fit

The part was a exact replacement of my broken part.

Guest - November 6, 2019

Verified Purchase

★★★★★

Just as pictured!

Same as original. Worked great!

Guest - November 6, 2019

Verified Purchase

★★★★★

Worked as expected.

Part was in great condition. Saved me from having to buy a new compressor.

Guest - December 16, 2019

Verified Purchase

★★★★★

Easy repair, exact fit

Porter cable pancake compressor up and running. Fast shipping and perfect part

Guest - January 13, 2020

Verified Purchase

★★★★★

Shipped quickly and was a direct replacement

Received part in 3 days with standard shipping. Was a direct replacement for the failed manifold. Had my compressor up and running in 30 minutes.

Guest - May 29, 2019

Verified Purchase

★★★★★

Easily changed

Part was worth waiting for now my compressor is working like new!

Guest - August 11, 2020

Verified Purchase

< Prev
1
2
Next >

Questions & Answers

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

< Prev
1
Next >

Sort by:

will this repair kit work on porter cable type 5 compressor

Richard For model number C2005 - May 20, 2022

Hello Richard, thank you for your question. No, the correct Regulator part for your model is all inclusive of the Manifold Assembly N246884. If you need help placing an order, customer service is open 7 days a week. Please feel free to give us a call. We look forward to hearing from you.

eReplacementParts Team

May 20, 2022

Did this question help you?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

30 - 60 mins

(22 rated repairs) ?

< Prev
1
2
3
Next >

Sort by:

Compressor would not build up pressure. Regulator portion had a broken internal part.

Rick from Universal City, Texas

17 of 17 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Pliers, Screw drivers, Wrench (Adjustable), Wrench set
Parts Used:: N246884

With power cord and air hose disconnected, remove two Phillips head screws under compressor case to enable the case to slide out of mounts. Do not separate case halves. Be careful not to lose rubber cushions. Using a small screwdriver or similar tool, pry open the crimped hose clamp. Remove hose from manifold. Remove pressure relief v ... Read more

Read less

Did you find this story helpful?

Manifold assembly would not hold or adjust out bound air pressure

reg from flagstaff, Arizona

6 of 6 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers, Wrench set
Parts Used:: N246884

Removed the pump plastic housing (2 screws).
Removed the old manifold.
Installed the new manifold.
Replaced the housing.
Started the compressor & check for leaks ( soap and water )
Adjusted then air pressure
DONE

Did you find this story helpful?

Regulator would not allow air to flow to the hose

Eckbert from Franklin, Tennessee

5 of 5 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 30 - 60 mins
Tools:: Screw drivers, Wrench set
Parts Used:: N246884

I had to remove the plastic housing on my Porter-Cable compressor because there was not enough room to unscrew the manifold.This was not a big problem but took some patience to figure out where all the screws were located. Also this required \"Torx\" screwdrivers which not everyone has in their toolbox. After that replacing the manifold ... Read more

Read less

Did you find this story helpful?

Compressor would not shut off - bad regulator.

Richard from Kissimmee, Florida

3 of 3 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Wrench set
Parts Used:: N246884

1. Remove the fittings from the old manifold.
2. Slide the pump out of the way by loosening two Phillip screws at the base.
3. Remove the old manifold/regulator assembly.
4. Install the new assembly and add the fittings using Teflon tape.

Did you find this story helpful?

Broken regulator adjustment.

Joe from Harrison Twp, Michigan

3 of 3 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 30 - 60 mins
Tools:: Pliers, Screw drivers, Wrench (Adjustable)
Parts Used:: N246884

Took old one off put new one on.

Did you find this story helpful?

Could not adjust pressure

Eldon from Augusta, Kansas

1 person found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 30 - 60 mins
Tools:: Pliers, Screw drivers
Parts Used:: N246884

1. Let pressure of tank
2. Unhook two air lines
3. Unscrew the two screws that hold motor in place
4. Slide motor out of slots
5. Unscrew manifold assembly
6. Reverse the assembly operation
7. Done

Did you find this story helpful?

Pressure regulator on manifold assembly was broken.

Nickolas from Tucson, Arizona

1 person found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Pliers, Screw drivers, Wrench set
Parts Used:: N246884

1. Removed compressor hose from manifold assembly.
2. Removed compressor from tank.
3. Removed manifold assembly from tank.
4. Removed pressure release valve from old assembly and placed on new assembly.
5. Installed new manifold assembly on tank.
6. Installed old compressor on tank.
7. Replaced compres ... Read more

Read less

Did you find this story helpful?

Air pressure control

Charles from Chula, Georgia

1 person found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers, Wrench (Adjustable)
Parts Used:: N246884

Removed 2 Phillips head screws underneath motor and pump assembly. Removed 2 hoses from pump to tank. Slid assembly off to gain enough room to unscrew manifold assembly. Installed new manifold assembly and reinstalled motor/pump assembly and secured with the 2 screws (1 on each side) underneath.

Did you find this story helpful?

Broke manifold

Jacob from Tijeras, New Mexico

0 of 1 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Pliers, Wrench set
Parts Used:: N246884

Screwd manifold to compressor and attached pressure relief valve. Gauges & quick connect came assembled.

Did you find this story helpful?

Air gauge manifold broke off at tank due to defective casting.

Greg from Trinity, North Carolina

0 of 1 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 1- 2 hours
Tools:: Wrench (Adjustable), Wrench set
Parts Used:: N246884

Removed pipe threads from air tank.
Removed compressor cover, and compressor.
Cut off half off hose nipple, drilled & tapped hole for 6-32 thread. Installed screw with thread locker/sealer.
Cut off excess mounting boss to clear cover.
Installed manifold to air tank with thread sealer.
Installed relief valve ... Read more

Read less

Did you find this story helpful?

< Prev
1
2
3
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP18993348
Manufacturer Part Number: N246884

Brand	Model Number	Description
Porter Cable	C2005	Compressor - Compressor
Craftsman	CMCC2520M1	Compressor - 20v Max Compressor
Porter Cable	PCFP02003	Compressor - Compressor
Stanley	STFP12799	Compressor - 1 Tool Combo Kit - Swk185
