Part Location Diagram of N022307 DeWALT FILTER ASY
See part A-23 in the diagram

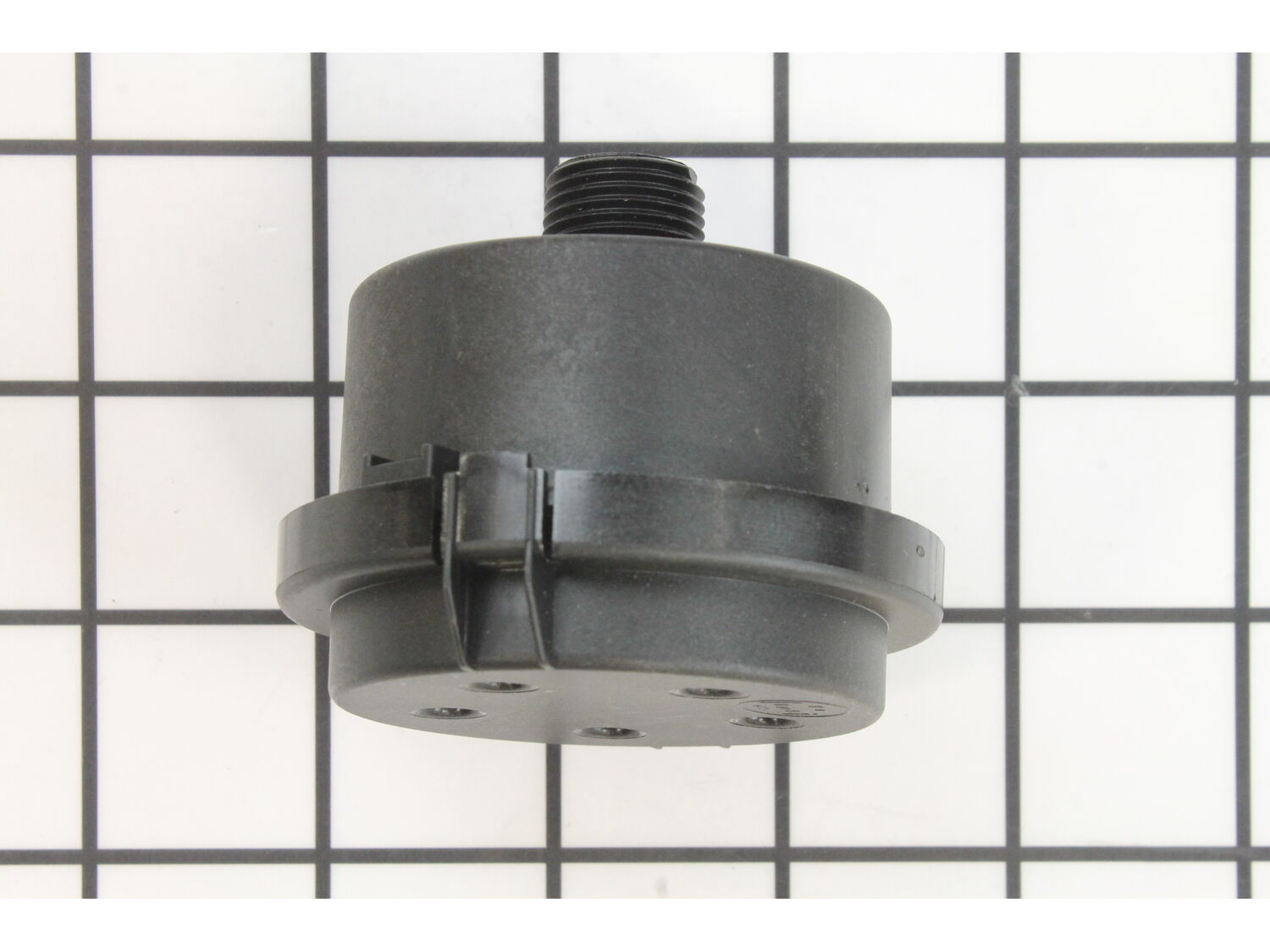

( Grid squares measure 1x1 inch )

FILTER ASY N022307

Manufactured by:
DeWALT
ERP Number:
ERP18993141
Part Number:
N022307
Original Equipment Manufacturer ?
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

30 - 60 mins

(5 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Product Description

?

It is an authentic item that is supplied by the original manufacturer for use with air compressors. The inlet filter helps to ensure that the air that goes through the unit is free of dust and other harmful contaminants. After some time it will get clogged and will need to be replaced to ensure a good and clean air flow. Replacing it is a simple task that should not require any tools, simply unscrew the old one and secure the new one. This filter and housing are sold as an individual component.

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Porter Cable
  • DeWALT
  • Craftsman
  • Black and Decker
  • Bostitch
  • Stanley
This part works with the following products:
  • Compressor
Part# N022307 replaces these:
N022307, PN022307,

Customer Part Reviews

?
3.8
Average Rating (out of 5):
★★★★★
★★★★★
(4 Reviews)
Click to filter by ratings:
  • 5 stars
    2
  • 4 stars
    1
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    1
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(5 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Piston and cylinder worn out.

Richard from Anniston, Alabama

8 of 8 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set, Wrench (Adjustable)
Parts Used:
N022307, N230717, N038785
1. Remove the covers.
2. Remove the lines.
3. Remove the head and the reed valves.
4. Remove the piston and the cylinder.
5. Install the new piston and cylinder.
6. Install the new gaskets.
7. Install the new air filter.
8. Install the lines.
9. Install the covers.
10. Start and run, c heck pressures, operating and tank.
Did you find this story helpful?
Thank you for voting!

Compressor was not building pressure over 89 lbs.

Mike from RICHWOOD, Ohio

3 of 4 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Screw drivers, Socket set
Took apart and put new cylinder sleeve in, re-installed the piston and rod, put o-ring on cylinder plate, o-ring on head and re-installed them. Then hooked up air line to tank. Intallled filter and plugged in. Watched for pressure building. Worked well.
Did you find this story helpful?
Thank you for voting!

Head Bolts Broken off

Earl from Bloomer, Wisconsin

2 of 2 people found this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers, Socket set
Parts Used:
N022307, AC-0798, A03856, ACG-45
Two head bolts were broken off so I had to drill them out and clean up all of the threads in order to put the unit back together, this was the hard part. Once that was done all I had to do was reassemble the unit back together and clean up some wire problems. Then after that did a test run and also found the pressure switch was turned up to full so that the compressor would not shut off yet at 200 lbs, so I turned that down so that the unit would turn off at 160 lbs and on at 120 lbs, then set the regulator to deliver air to the tools at 100 lbs. unit now runs great.
Did you find this story helpful?
Thank you for voting!

Compressor was not secured and bouncing around. Replaced isolators and air filter - runs good

Dave from China Spring, Texas

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Socket set
Parts Used:
N022307, AC-0716
Pulled 5-6 casing screws and removed outer casing. Removed feed pipe and installed mounting pads and and re-secured front mount with bolt. Re-installed feed tube and outer case and reinstalled case screws. installed new air cleaner - job finished!
Did you find this story helpful?
Thank you for voting!

Old Air compressor ail filter was broken

John from Colorado City, Colorado

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Parts Used:
N022307
Removed broken piece from Air compressor
Installed the new part on the compressor.
Wiped my hands DONE!!
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP18993141
Manufacturer Part Number: N022307
Brand Model Number Description
Craftsman 919-16755 Compressor - Compressor
Black and Decker 919-16760 Compressor - Compressor
Black and Decker 919-16761 Compressor - Compressor
Black and Decker 919-16762 Compressor - Compressor
Black and Decker 919-16763 Compressor - Compressor
Craftsman 919-16770 Compressor - Compressor
Craftsman 919-16771 Compressor - Compressor
Craftsman 919167600 Compressor - Air Compressor
Craftsman 919167610 Compressor - Air Compressor
Craftsman 919167620 Compressor - Air Compressor
Craftsman 919167621 Compressor - Air Compressor
Craftsman 919167630 Compressor - Air Compressor
Craftsman 91916770 Compressor - Compressor
Craftsman 919167700 Compressor - Air Compressor
Craftsman 919167710 Compressor - Air Compressor
Porter Cable C2150 Compressor - 150 PSI 4 Gallon Oil-Free Portable Air Compressor
Porter Cable C2550 Compressor - 4 Gallon Air Compressor
Porter Cable C2555 Compressor - A 2.5HP 4G PC DL 1STG 120 Compressor
Porter Cable C3101 Compressor - Type 0 3.5HP 4.5G Air Compressor
Porter Cable C3150 Compressor - 3.5HP 4.5G Air Compressor
Porter Cable C3151 Compressor - 2.5HP 4.5G Air Compressor
Porter Cable C3550 Compressor - 2.5HP 4.5G Air Compressor
Porter Cable C3551 Compressor - 2.0HP 6g Air Compressor
Porter Cable C3555 Compressor - A 2.5HP 4.5G BD DL 1STG 1 Compressor
Bostitch CAP1615-OF Compressor - C 15G Vp Ehp Of 200Psi B
Bostitch CAP1645-OF Compressor - C 4.5G Jb Ehp Of 200Psi B
Porter Cable CFFC350A Compressor - A 3HP 4G SS PL 1STG 120 Compressor
Porter Cable CFFC350B Compressor - A 3HP 4.5G BD PL 1STG 1 Compressor
Porter Cable CFFR350A Compressor - A 3.0hp 4g Ss Pl 1stg 120
Porter Cable CFFR350B Compressor - A 3HP 4.5G BD PL 1STG 1 Compressor
