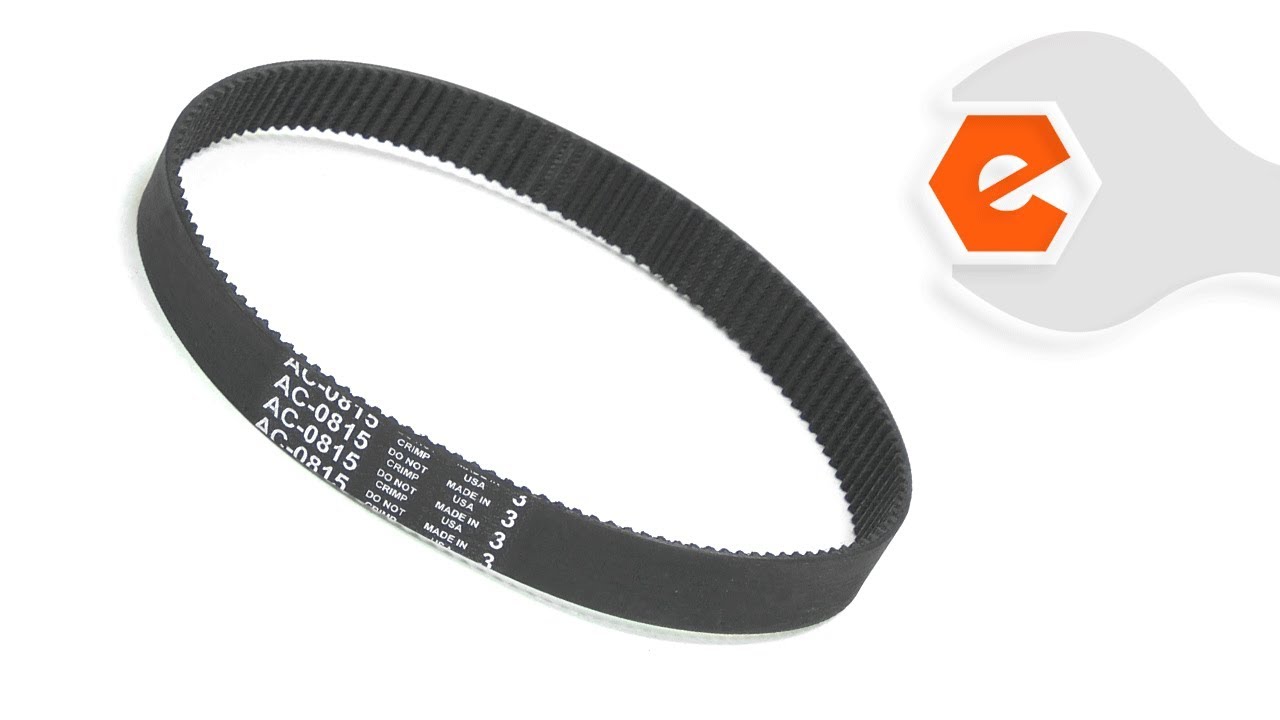

This is an OEM part sourced directly from the manufacturer. The belt is commonly found in Craftsman air compressors. This part is made of flexible rubber, and is used to transfer power between the piston and the pump assembly. Over time, it may become cracked and brittle, requiring replacement. You may need an Allen wrench or hex key when replacing this part. This item is sold individually.
First, remove the engine cover. Loosen screw on rocker arm to move out of the way. Install new belt, roll with the gear to engage belt properly, put back together. Pretty easy, the hardest part was holding the gear still to loosen the screw.
Remove the screws that hold the housing for the motor.
Remove the screws that hold the carrier handle
Separate the housing to get to the motor .
I used a t-45 torx bit ,which is what my compressor has ,along with a screwdriver to remove the screw on the connecting rod to be able to install the new belt . A screw driver
... Read more was used to wedge in between the connecting rod and the pulley to keep it from rotating as I removed the screw from the connecting rod . It is on there tight ,so use some force.
Once the connecting rod was separated installing the belt was easy ,start installing the belt on the small pulley and rotate the large pulley to allow the belt to slide/rotate on. The belt on my compressor was already shredded so I didn\'t have to remove the old one for the new one .I reassembled the housing shell and the handle . Works perfects now
1. Removed compressor housing
2. Remove counterbalance gear with Allen wrench
3. Slip drive belt into position
4. Reinstall counterbalance and mount drive belt on gears
4. Run out by hand to verify full stoke on compressor piston without restriction.
5. Reinstall housing making sure stabilizer in socket point
... Read more to prevent gears from rubbing.
6. Plug in unit and verify compressor fully compressed to set pressure.
7. Not as hard as it sounds, once you take off the housing you will immediately see that anyone with common sense can make this repair. Good luck to all
Read less
Did you find this story helpful?
Thank you for voting!
Belt broke
Albert from Greensboro, North Carolina
1 personfound this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Nutdriver, Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Removed compressor housing.
Disconnected the air line to the tank.
Removed the compressor motor and disconnected the piston from the pulley
Replaced the belt
Reassembled the motor and housing
1. Went on-line to view a \"How To Repair an Air Compressor\", that would not fill even though motor was running\"
2. Followed directions learned from DIY video.
3. Worked great. Like a new air compressor.
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP12497302
Manufacturer Part Number: AC-0815
