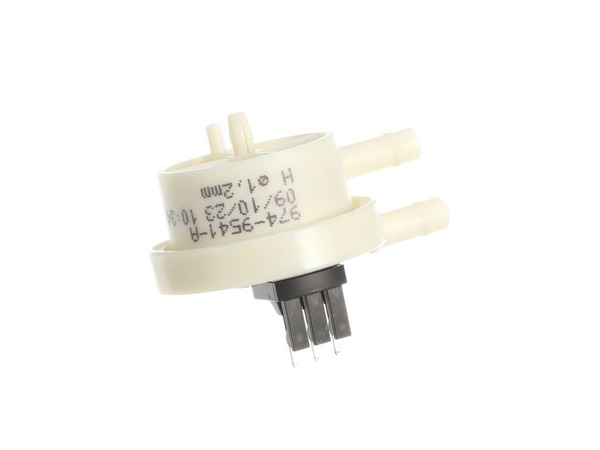

DeLonghi has made these part to be used with many different models of espresso makers. The Flowmeter is used to detect and measure the flow of water for brewing coffee or frothing milk. This part is normally replaced if it no longer reads the flow correctly, a read error has occurred, or if it has become physically damaged and leaks. Tools Used: • Philips Head Screwdriver • Flat Head Screwdriver • Needle Nose Pliers
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
This one small part fixed the espresso supply for the entire office
Installation was a snap: just pulled off the sides and back of the machine, eased the hoses off of the old meter and disconnected the plug. Slid the hoses on to the new meter and attached the plug, and everything was golden (just remember to run some water through the steamer to get the air bubbles out of the line!).
Guest - June 28, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair
This was in great condition part and fit just like the old one. Great service
Iglobal - September 6, 2019
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed back and side covers from coffee pot.
Flow meter was a \"press\" fit so simply rocked and pulled the flow meter free from machine base.
Slipped off water lines from old flow meter and slipped on to the new one.
Pushed flow meter into machine base location.
Replaced covers.
No more \"out of water\" mes
... Read moresages.
1: Turn off remove covers
2: Followed you tube video on replacing pump and gaskets
3: With covers off do a deep cleaning
4: Install covers
5: Run de-calsify cleaning
6: Enjoy coffee time !!!!!
1. Unplugged the coffeemaker.
2. Removed the back and the sides.
3. Removed the wires and the hoses connected to the pump and the flow meter.
4. Replaced the pump and the flow meter by pressing into place.
5. Replaced the wires and the hoses.
6. Replaced the back and the side panels.
7. Plugged in and m
... Read moreade the coffee.
UNPLUG THE MACHINE
1. Remove six screws holding the back and sides of the machine to the body of the machine.
2.Remove the sides and than the back of the machine.
3. Remove the rubber cover on the electrical socket attached to the flowmeter.
4. Remove the 3 wire connector from the electrical socket.
5. Pull o
... Read moreff the flowmeter which is held in place by two molded pins on the bottom of the flowmeter.
6. Pop off the two hose from there restraining catches.
7. Pull the two hoses from the flowmeter paying attention to where on the flowmeter they came from.
8.Put the two hoses on the new flowmeter and then press it in place, and press the two hoses into their catches, replace the connector and the rubber cover.
PLUG IN THE MACHINE AND
Test machine before replacing the sides and back.
1. Removed the back screws (next to watertank)
2. Removed bottom tamper-proof screws
3. Unscrewed pipes that were hold in place where watertank connects
4. Removed top cover by sliding it out horizontally
5. Removed screws that hold the pipe/wires that go to coffee filter socket (from the top)
6. Remove any o
... Read morether visible screw at the top that holds the entire inner assemble in place. No need to disassemble the inside.
7. Slowly slide down the assembly inside the cover. Flowmeter was now accessible, performed the repair.
