Part Location Diagram of 760476004 Ryobi Switch
See part 30 in the diagram

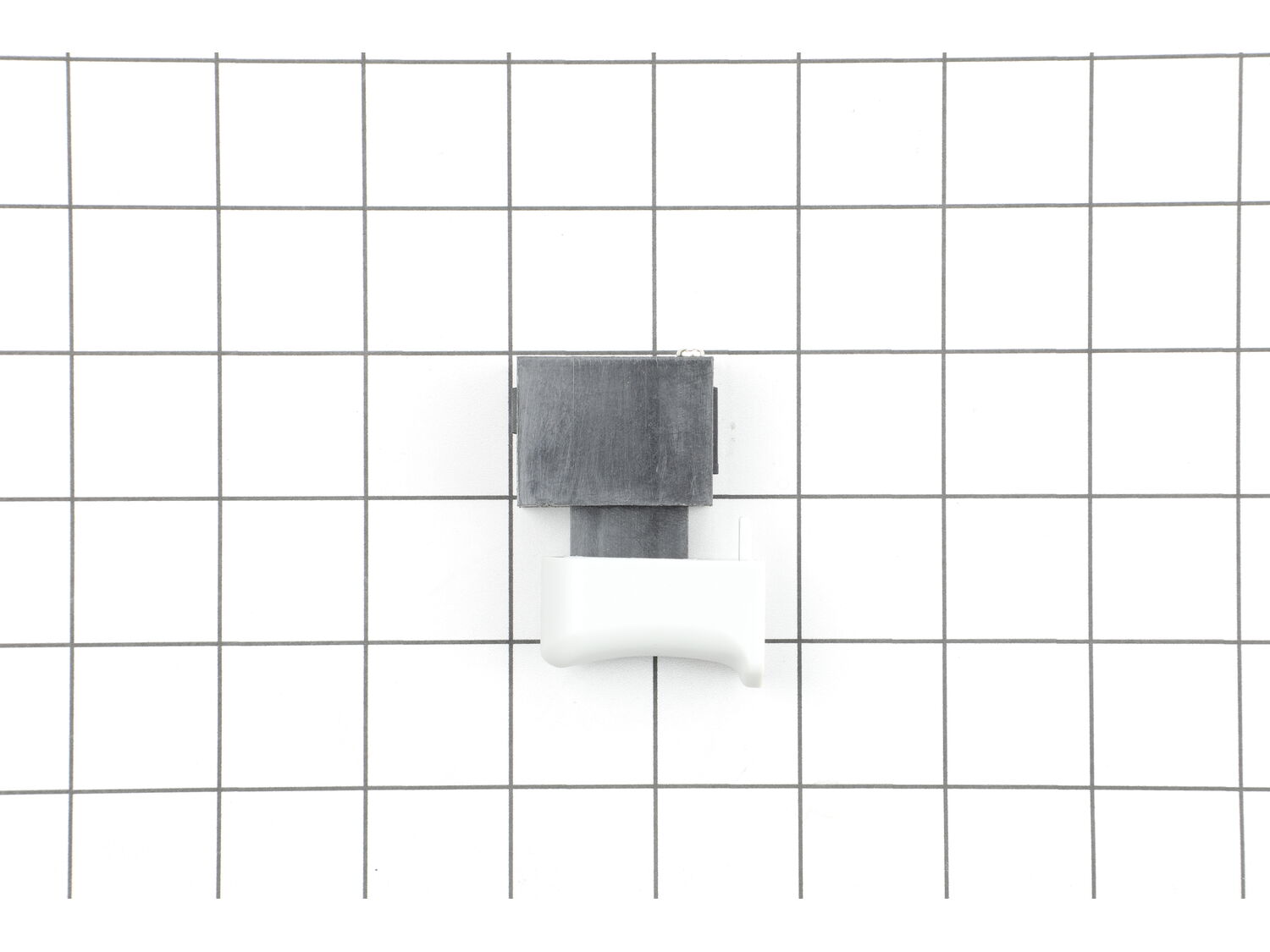

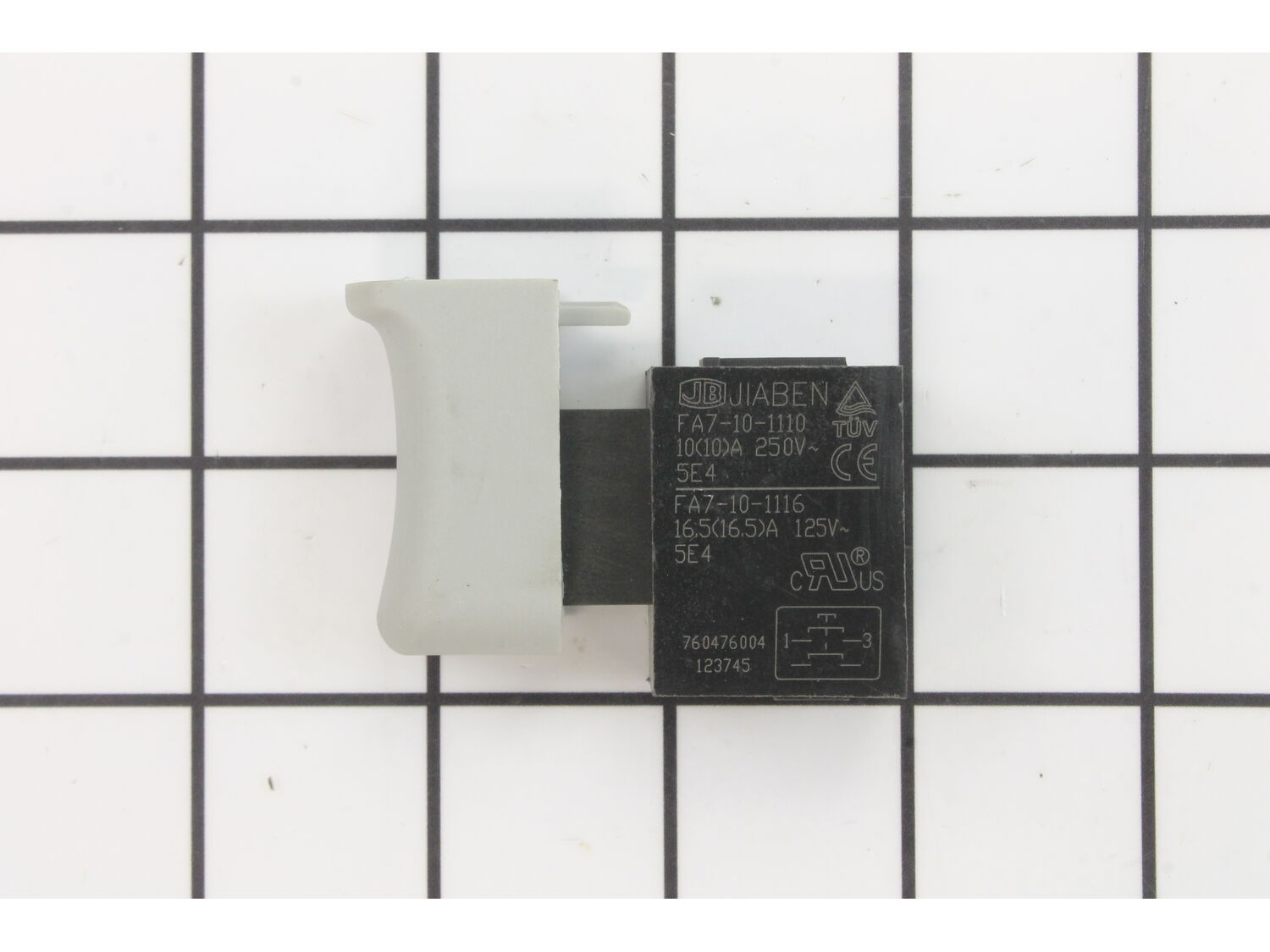

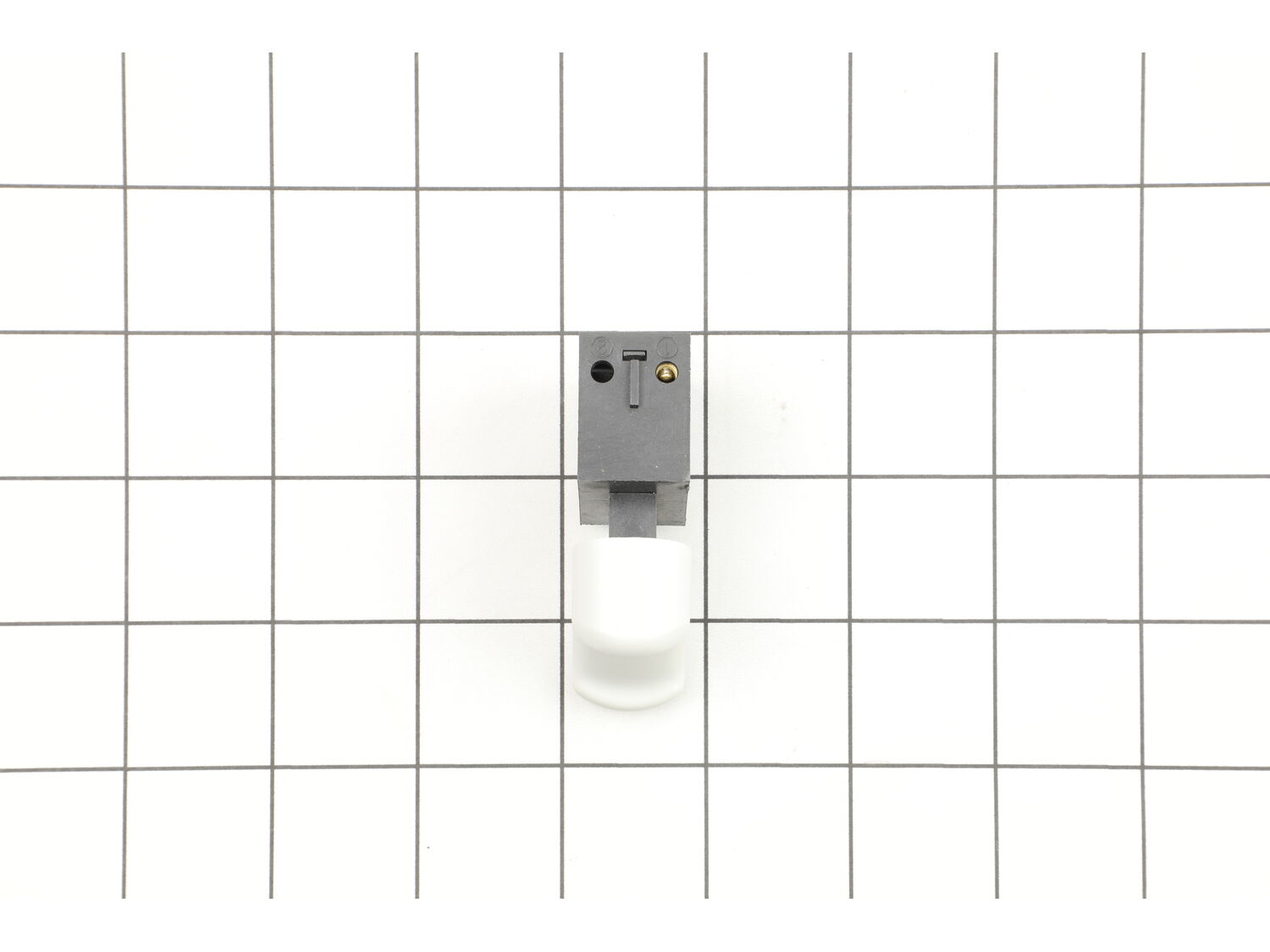

( Grid squares measure 1x1 inch )

Switch 760476004

Manufactured by:
Ryobi
ERP Number:
ERP11858937
Part Number:
760476004
Original Equipment Manufacturer ?
  Works with your model  CSB124!
In Stock
Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(2 rated repairs) ?
  Works with your model   CSB124!

Troubleshooting

This part works with the following brands:
  • Ryobi
This part works with the following products:
  • Circular Saw
Part# 760476004 replaces these:
760476003,

Customer Part Reviews

?
4.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
  • 5 stars
    0
  • 4 stars
    1
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(2 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

No power to motor

Gregory from Corpus Christi, Texas

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
760476004
Removed trigger cover removed the faulty trigger replaced with new switch.
Did you find this story helpful?
Thank you for voting!

Circular saw switch and wire overheated

Lawrence from Sanford, Florida

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
760476004
Disassembled saw handle to access switch and power wiring.
Section of power wire attached to switch had overheated, insulation was melted.
High temperature caused structural failure of the switch body at the screw terminal.
Replaced switch.
Replaced section of wire that had bad insulation using insulated crimp-type connector and slightly larger gauge wire.
Reassembled and tested saw.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP11858937
Manufacturer Part Number: 760476004
Brand Model Number Description
Ryobi CSB124 Circular Saw - 7-1/4-In. Circular Saw
Ryobi CSB124G Circular Saw - 7-1/4-In. Circular Saw
Ryobi CSB125 Circular Saw - 7-1/4-In. Circular Saw
Ryobi CSB134L Circular Saw - 7-1/4-In. Circular Saw
Ryobi CSB135L Circular Saw - 7-1/4-In. Circular Saw
Ryobi CSB143LZK Circular Saw - 7-1/4-In. Circular Saw
Ryobi CSB144LZ Circular Saw - 7-1/4-In. Circular Saw
