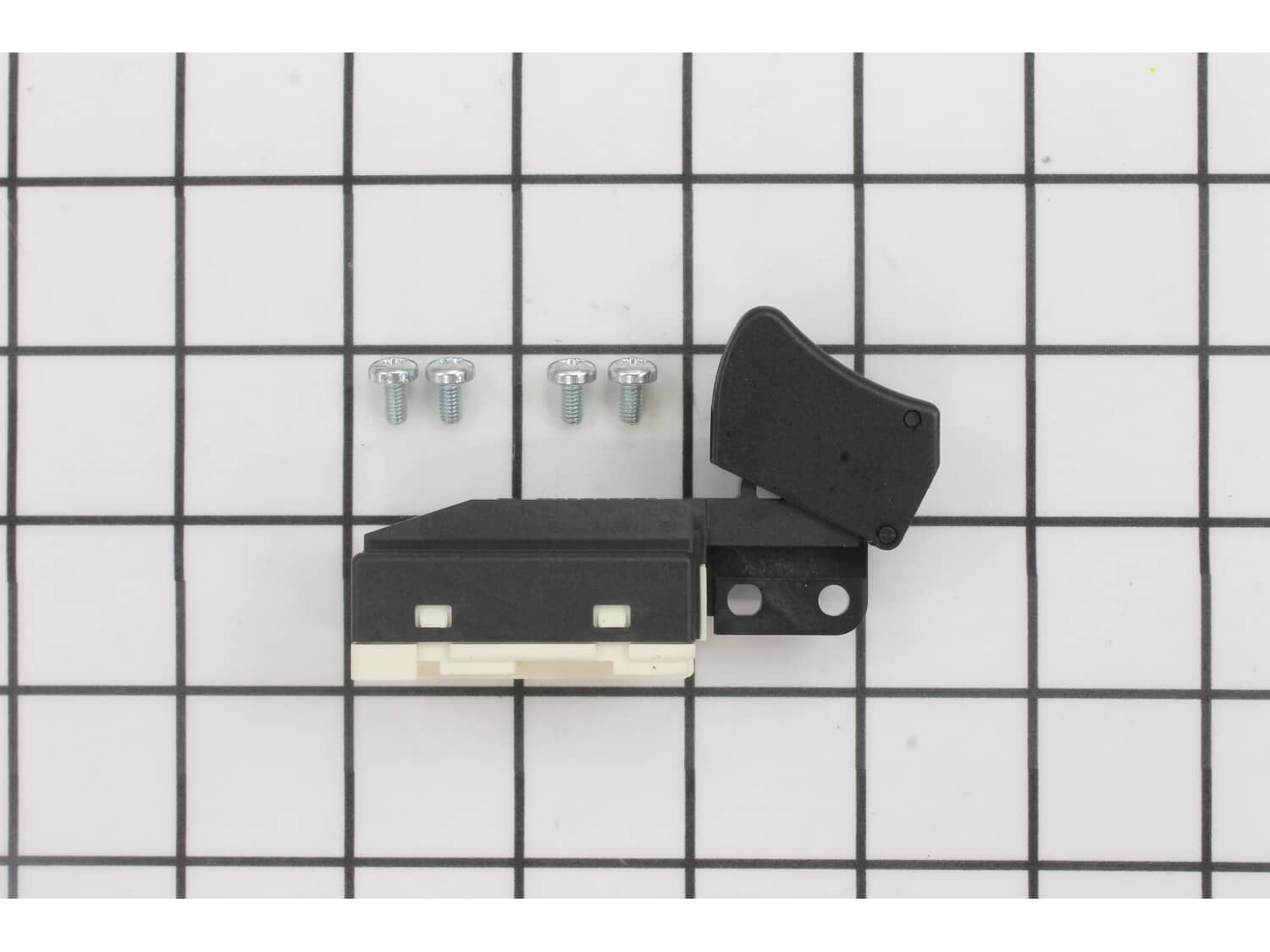

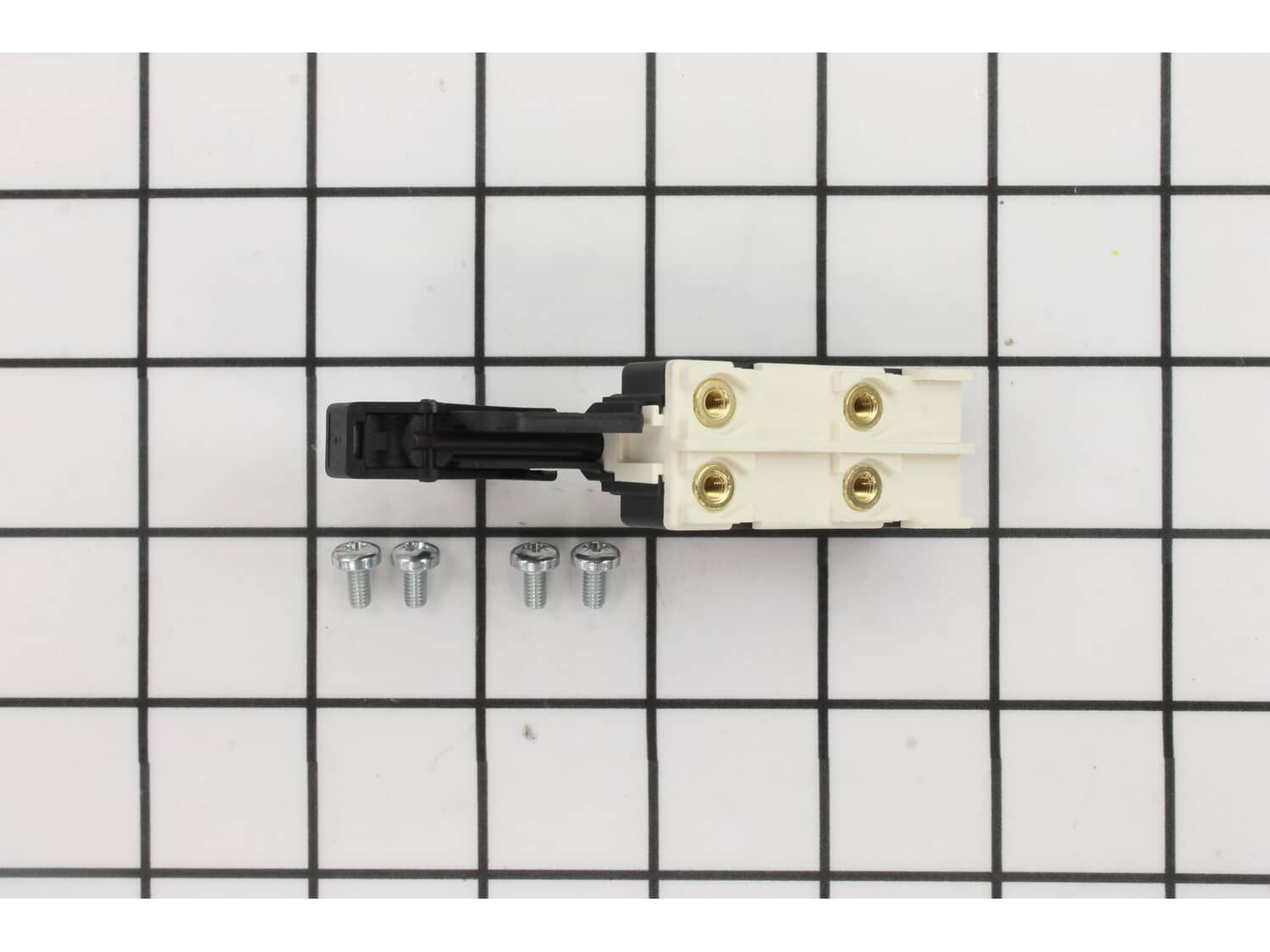

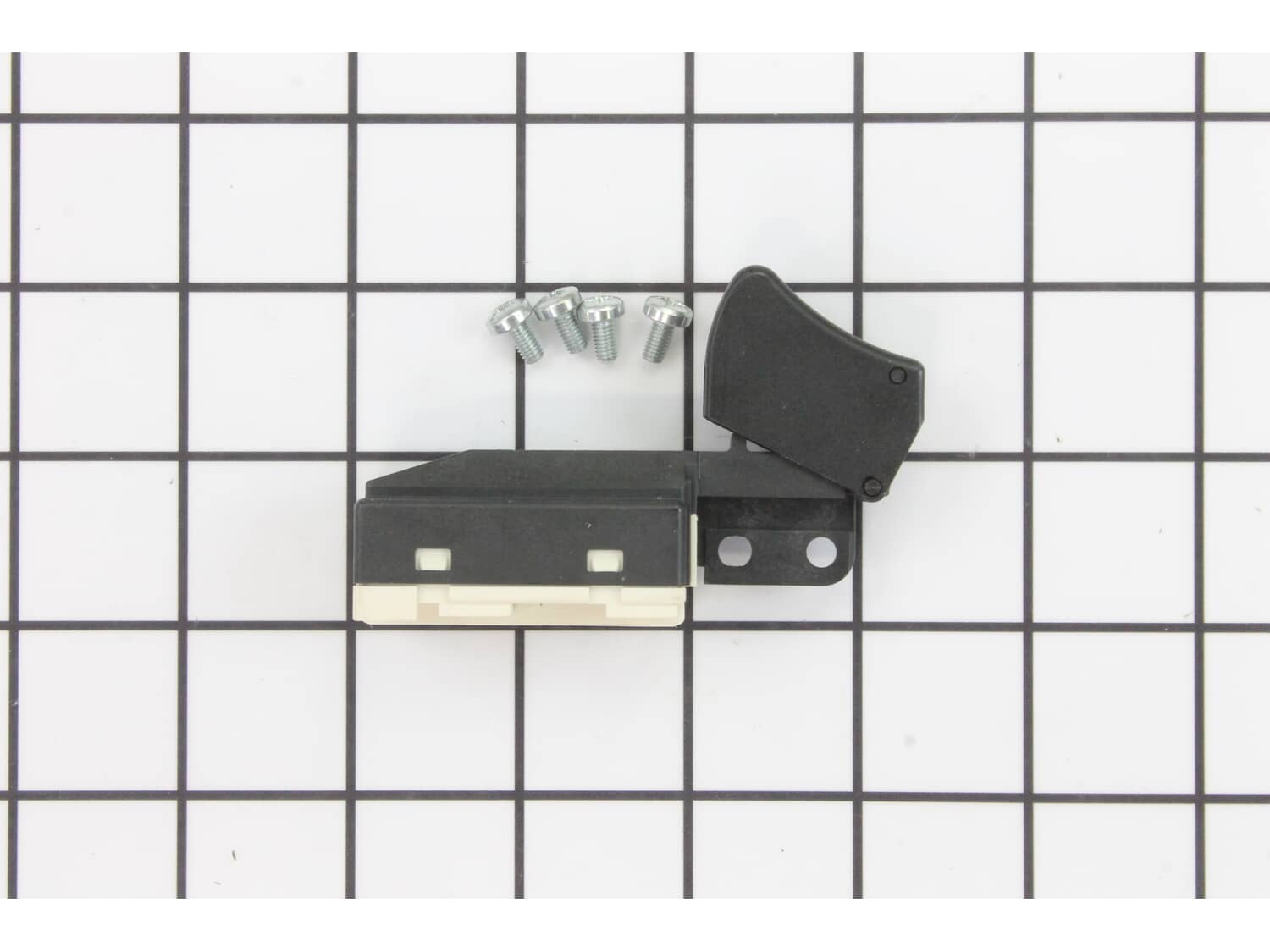

This is an on/off switch for various models of circular saws. This switch is located near the main handle assembly of the saw and responsible for toggling the power to the saw. This switch is made of durable black plastic and features a single toggle that the user presses to turn the saw on. Over time and through extended use, this switch can wear out and fail, at which point it needs to be tested with a multimeter, and/or replaced. To remove this switch for testing and replacement, you will need to first disconnect it from power, and then disassemble one half of the main handle with a drill or screwdriver. Once the securing screws are removed, you can pull the plastic shell of the handle off to expose its internal components. Pull the switch out of the housing and remove the wires connected to it, noting their location for the future installation. With the switch removed, you can test it with a multimeter to see if it has continuity, and if it does not, it will need to be replaced. With the new switch in-hand, install the wires with a screwdriver, starting with the motor wires (usually black first, and then white) and then the cord wires. Now place the switch into the housing and make sure the switch and wires are all flush, before reassembling the handle and securing it together.
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Hi Brice, Thank you for your question. This would not be the correct trigger switch for your circular saw. The part number listed under your model number for the trigger switch is 23-66-2635. If you need help placing an order for it, customer service is open 7 days a week and anyone will be happy to assist you. Please feel free to give us a call. We look forward to hearing from you!
Hello Charles, thank you for writing in. The most common part that is the issue for it not to start is the Switch 23-66-2635. If the blades are not turning, you should check your Inner and Outer Blade Flanges, parts 43-34-0790 and 43-34-0795 respectively. We hope this helps.
Hello Jethro, thank you for writing. To be sure, please ensure the correct parts are used. The Switch is part 2127441 and the Switch Lock-Out Button is part 42-42-0345. Yes, the diode 23-38-2840 is the correct next assumption. This is shown by reading a past customers testimonial " took plenty of photos before removing switch and diode. Special attention to wire colors and position before replacing cover. T25 and t15? Needed. Minimum 2 inches on some screws. Easy really, just take photos and take your time. Probably never have to replace again. Buy both parts. Switch and diode. One or both can be bad."
Hello John, Thank you for your inquiry. Researching your model, we show the compatible on/off switch as part# 23-66-2635. We hope this helps.
All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.
Intermittent operation when pulling trigger
Michael from Spring, Texas
Bad switch
Andrew from Dickson , Tennessee
On/ off switch broke
Ronald from Cheboygan, Michigan
Would not always work when trigger pulled
James from CHULA VISTA, California
No power when the switch was engaged
Bart from LA CROSSE, Wisconsin
Hard to get the saw to run smoothly. It just switched on and off about 3-4 times a second and sometime run smooth
Royall from Keaau, Hawaii
Saw would not turn on.
dan from NETCONG, New Jersey
Crushed wire to switch...probably didnGÇÖt need new switch
Perry from FREMONT, Michigan
| Brand | Model Number | Description |
|---|---|---|
| Milwaukee | 2631-20 | Circular Saw - M18 Bl 7-1/4 Inch Circ Bare |
| Milwaukee | 2730-059 | Saw - Milwaukee 2730-059-(F70a) Parts |
| Milwaukee | 2730-20 | Circular Saw - Cordless M18 Fuel Circular Saw |
| Milwaukee | 2730-21 | Circular Saw - Cordless M18 Fuel Circular Saw |
| Milwaukee | 2730-22 | Saw - Milwaukee 2730-22-(F31a) Parts |
| Milwaukee | 2731-059 | Saw - Milwaukee 2731-059-(G20a) Parts |
| Milwaukee | 2731-20 | Saw - Milwaukee 2731-20-(F95a) Parts |
| Milwaukee | 2731-21 | Circular Saw - Cordless M18 Fuel 7-1/4" Circular Saw |
| Milwaukee | 2731-22 | Circular Saw - Cordless M18 Fuel 7-1/4" Circular Saw |
| Milwaukee | 2782-20 | Circular Saw - M18 Fuel Metal Circ - Bare |
