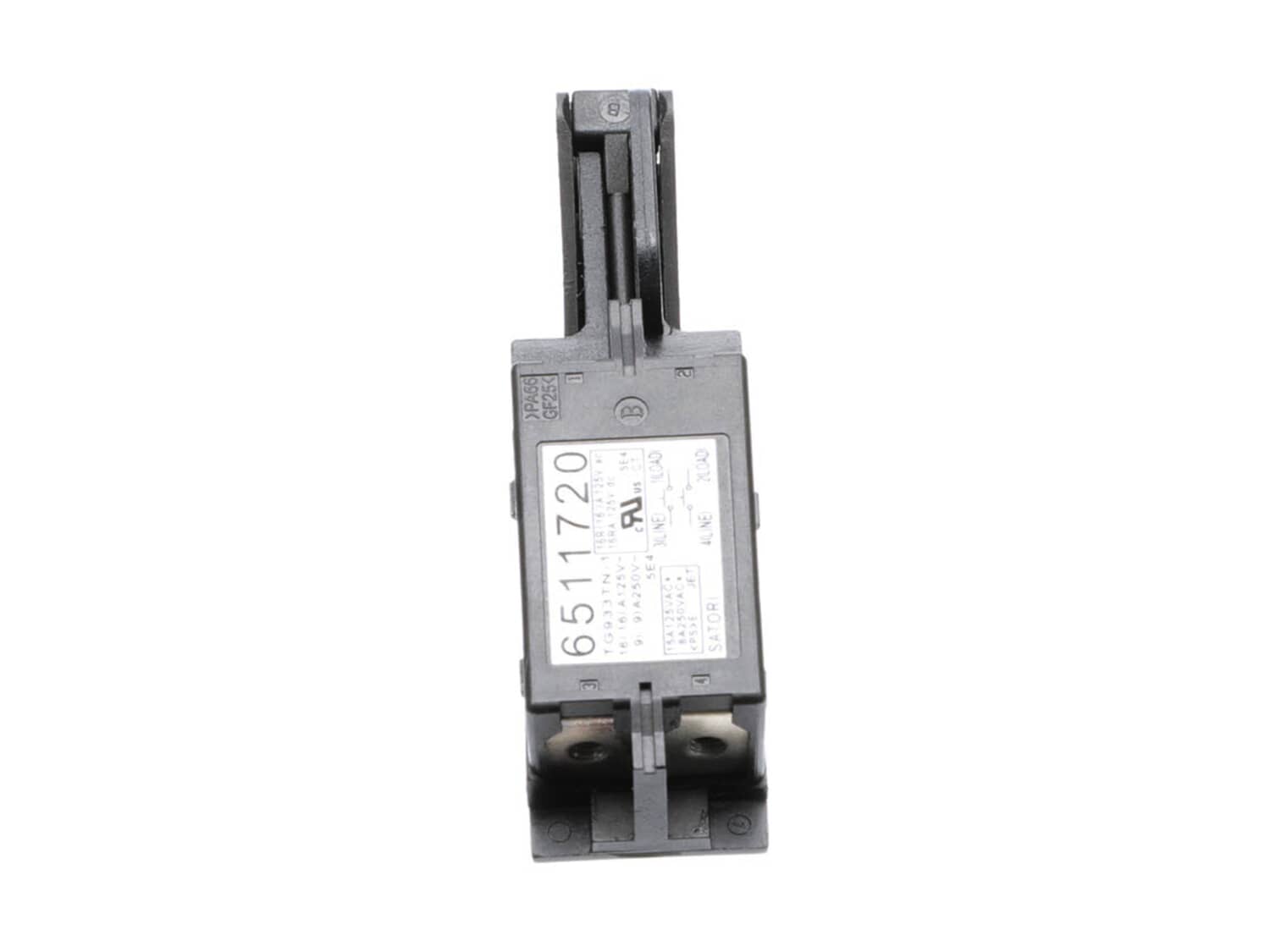

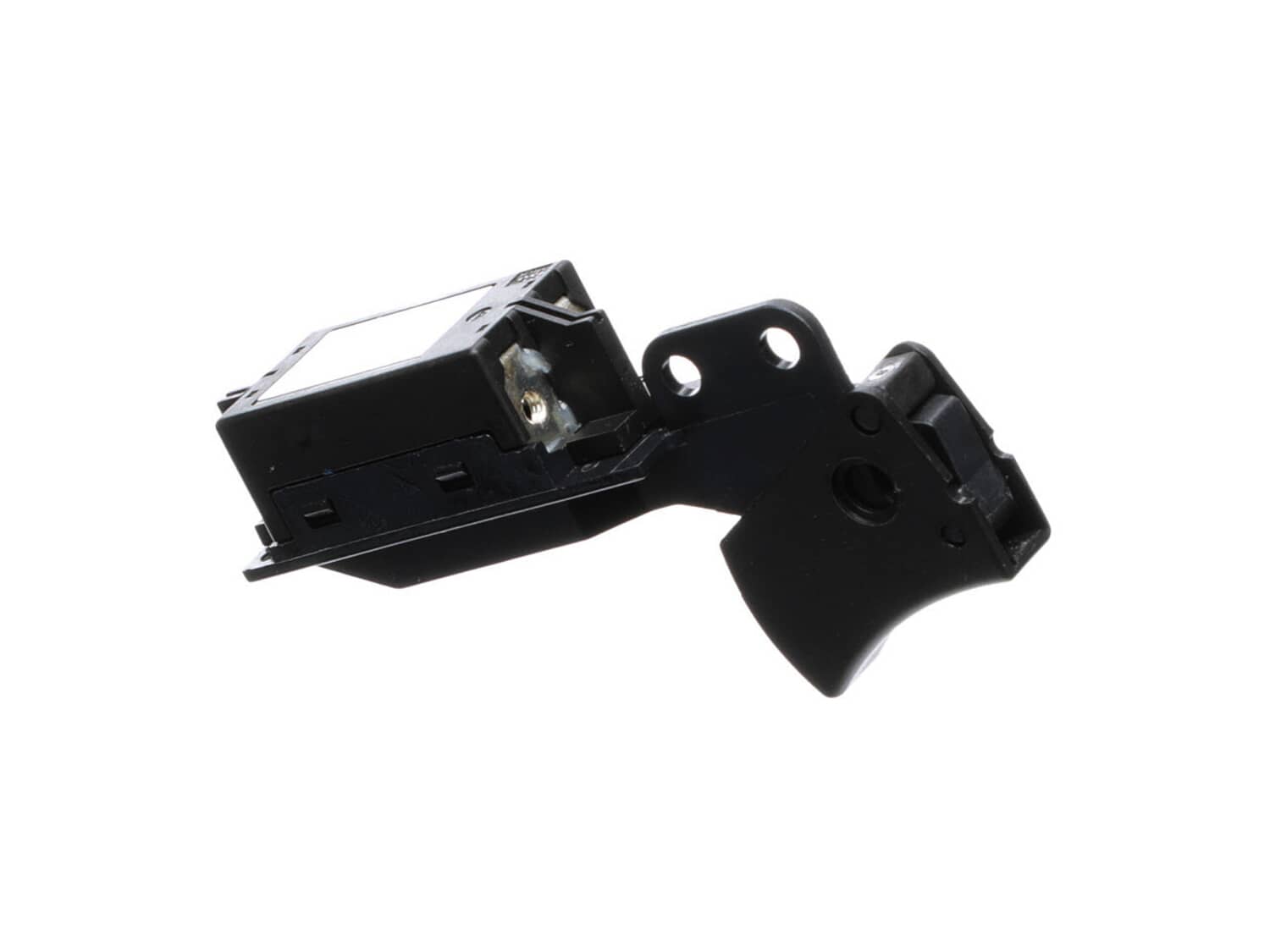

This trigger switch is for circular saws.
Trigger switch starts and stops the circular saw.
Unplug the circular saw before installing this part. Wear work gloves to protect your hands.
1. Removed screws from saw handle and removed the cover.
2. Removed old switch from the handle.
3. Disconnected the wires from the old switch and attached each to the new switch (disconnecting and attaching the wires one at a time to insure their proper placement on the new switch).
4. Put the new switch back into the ha
... Read morendle
5. Replaced cover on the handle and reattached the screws.
The whole story: Makita circular saw. Initially, it would take several presses of the trigger to get it going. Over time it took more \"trigger presses\" and eventually it simply died. I took it apart in search of something obvious but found nothing. Upon reassembly, as soon as I plugged it in it would run (almost lost a finger or two)
... Read morecontinuously until I unplugged it. I bought a new switch, replaced it, and it now functions like new. ereplacementParts is an awesome website as it guided me to the correct part quickly at a fair price.
I removed the handle cover and the cord clamp. Made a wiring diagram of the switch wires, then removed the wires. Connected the wires to the new switch, tightened down the cord clamp and installed the handle cover. Thank again!
1- Remove screws from handle half
2- Remove switch from housing
3- Remove cord clamp
4- Make a wiring diagram and remove the wires from the switch
5- Install the wires into the new switch
6- Screw switch into housing and install the cord clamp
7- Install the handle half
Pretty simple, I think it took longer to find the part on the web. Flat head screw drive or a phillips Take the screws out of handle around trigger. No need to take any other scews out until you pry the handle apart, it is slotted has come straight out, then unscrew the cord, pop the old trigger out Remove screws in electrical connection
... Read mores . then put it back together.
Read less
Did you find this story helpful?
Thank you for voting!
the switch was bad and the electrical cord was broken
Disassembled the handle.
Removed the swiitch.
Attached the new cord and cord guard.
Re-installed the switch.
Reassembled the handle.
Saw works perfect.
I already had removed my old parts while waiting for my new parts to arrive. There are 2 screws on the switch and 2 for the cord. Both parts were installed within 15 minutes. My favorite saw is new again.
Remove screws in saw handle ,cord restraint, and last screws in switch. Remove screws from motor leads. I had to obtain terminal ends for the cord before proceeding. After reattaching motor leads and cord with new cord guard it was an easy job to reassemble switch and cord into saw handle.
1. Took apart the housing.
2. Disconnected and removed the old faulty switch.
3. Connected the wires to the new switch.
4. Secured the new switch in the housing.
5. Reassembled and tested.
