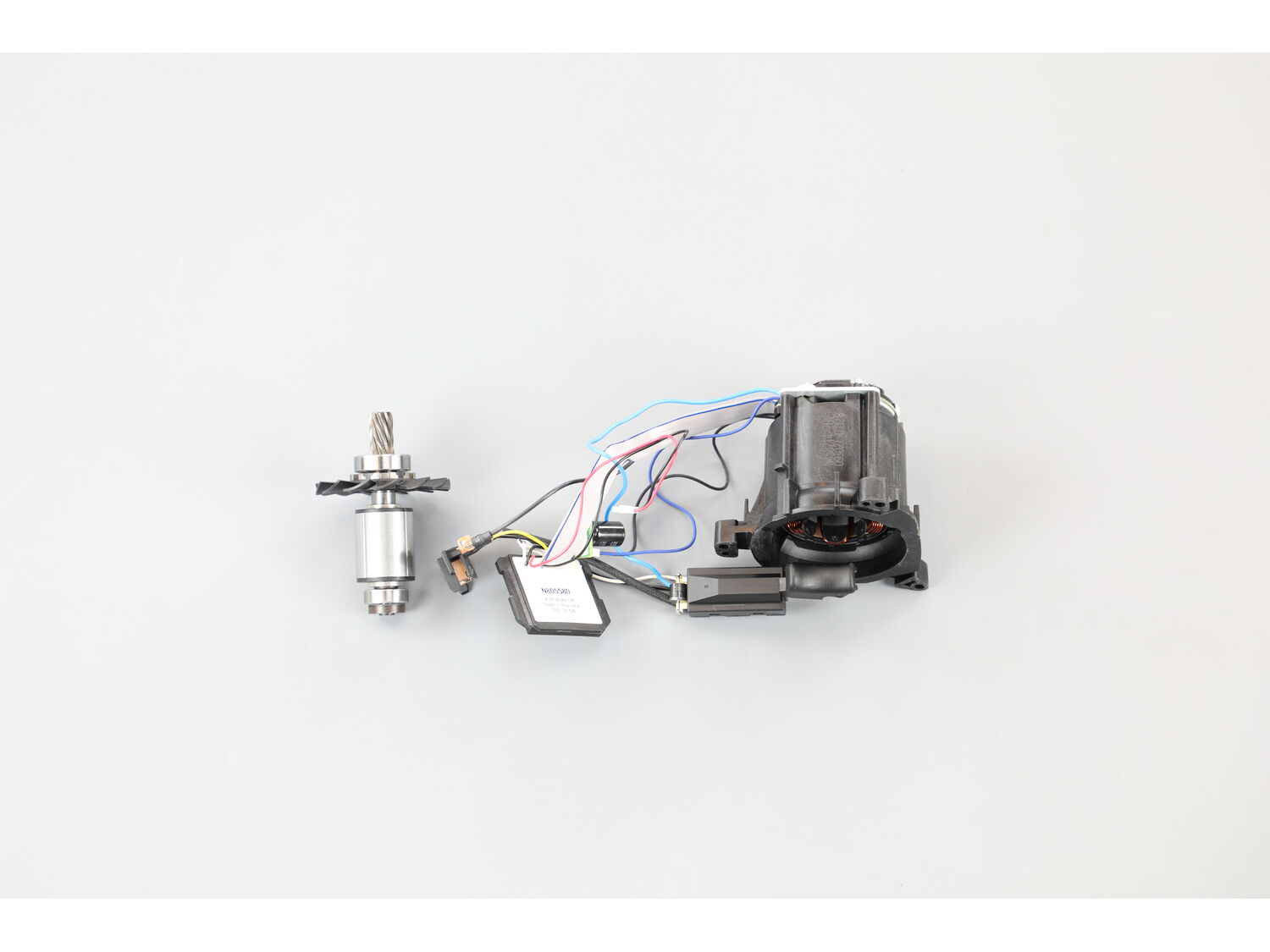

Part Location Diagram of N863843 DeWALT MOTOR / MODULE ASSY.
See part 42 in the diagram
( Grid squares measure 1x1 inch )

MOTOR / MODULE ASSY. N863843

Manufactured by:
DeWALT
ERP Number:
ERP17061150
Part Number:
N863843
Original Equipment Manufacturer ?
$197.63
Special Order

Does this part fit my model?

Need help finding your model number?

Product Description

?

Designed to power and control the saw's brushless drive system, this motor and control module assembly combines the motor components and electronic controls into a single unit for reliable operation and efficient power management. It helps deliver consistent cutting performance, smooth startup, and stable speed under load while protecting the tool's electrical system. Manufactured to original equipment standards, this assembly is an ideal replacement for worn, damaged, or failed motor electronics, helping restore performance and extend the service life of your cordless circular saw.

Troubleshooting

This part works with the following brands:
  • DeWALT
This part works with the following products:
  • Circular Saw

Model Cross Reference

This part works with the following models:
ERP Number: ERP17061150
Manufacturer Part Number: N863843
Brand Model Number Description
DeWALT DCS574B Circular Saw - Shell 20v Xrp 7 1/4 Circu
DeWALT DCS574BR Circular Saw - Cordless Circular Saw
DeWALT DCS574W1R Circular Saw - Cordless Circular Saw
