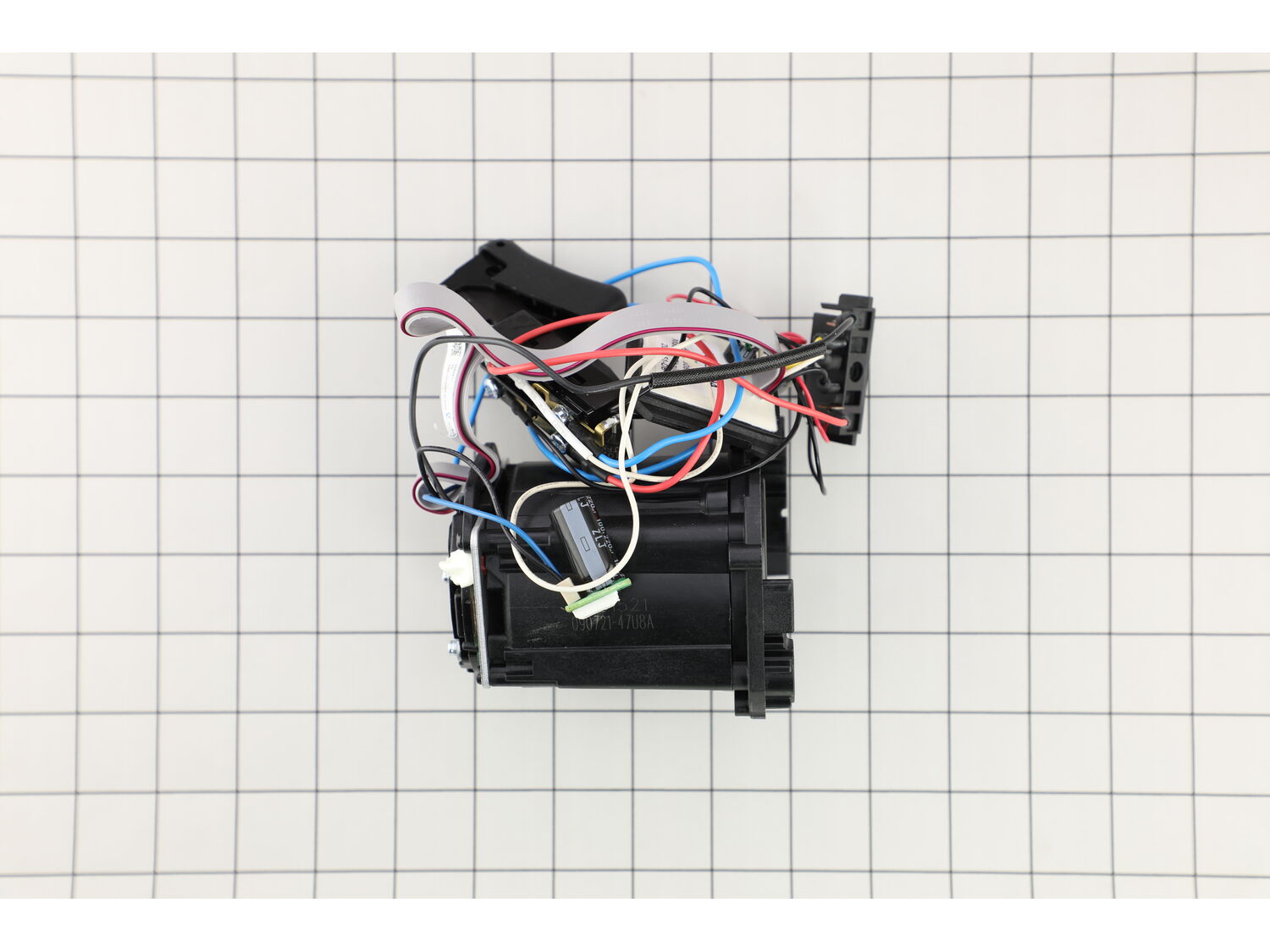

( Grid squares measure 1x1 inch )

Module & Stator Assy, Dcs690 N569142

Manufactured by:
DeWALT
ERP Number:
ERP16688045
Part Number:
N569142
Original Equipment Manufacturer ?
$211.05
Special Order

Does this part fit my model?

Need help finding your model number?

Product Description

?

This replacement module and stator assembly is a critical motor component that combines the stator and electronic control module into a single integrated unit, helping deliver the power and performance required for demanding cutting applications. The stator generates the magnetic field that drives the motor, while the integrated electronics help regulate power delivery and maintain efficient operation under load. Manufactured to original equipment standards, this assembly is designed to restore performance in tools experiencing motor or electrical issues, helping ensure consistent power output, reliable operation, and long service life. Ideal for replacing worn, damaged, or malfunctioning motor components, it helps

Troubleshooting

This part works with the following brands:
  • DeWALT
This part works with the following products:
  • Circular Saw

Model Cross Reference

This part works with the following models:
ERP Number: ERP16688045
Manufacturer Part Number: N569142
Brand Model Number Description
DeWALT DCS690B Circular Saw - 9in 60v Construction Saw
DeWALT DCS690X2 Circular Saw - 9in 60v Construction Saw
