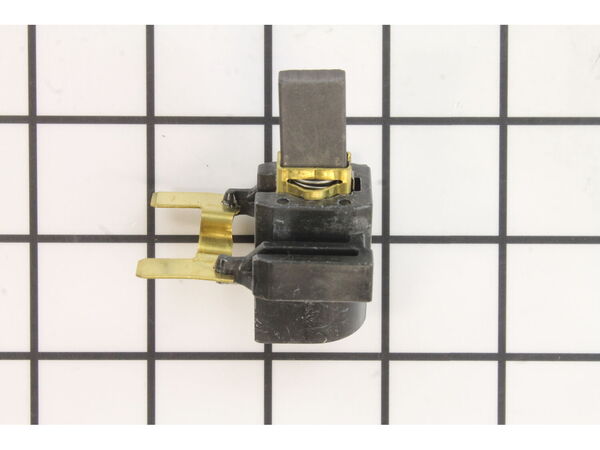

This brush and holder assembly is a genuine Dewalt replacement part, not aftermarket or generic. _b_This item is sold individually_/b_. As pictured, this item includes everything you need to replace a brush in your power tool. The brush, holder, terminals, and spring are included and ready for installation. If you only need the carbon brush and not this entire holder assembly, you can purchase the brush separately (see the 'Related Items' section below). This brush and holder is compatible with the tools listed below, but it is not guaranteed to fit any other power tools. It is advised that you replace both brushes only if you think all you need is one.
Troubleshooting
This part works with the following brands:
DeWALT
Black and Decker
Craftsman
DeVilbiss
This part works with the following products:
Circular Saw
Miter Saw
Table Saw
Part# 147097-09 replaces these:
147097-09,
★
Customer Part Reviews
?
4.6
Average Rating (out of 5):
★★★★★
★★★★★
(14 Reviews)
Click to filter by ratings:
5 stars
11
4 stars
2
3 stars
0
2 stars
0
1 star
1
< Prev
1
2
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Worked Great
Arrived very fast and works like a charm!
Guest - April 30, 2019
Verified Purchase
★★★★★
★★★★★
Great part fast shipping very happy
Parts diagrams are very helpful.
Jason - May 28, 2019
Verified Purchase
★★★★★
★★★★★
Easy to install.
The part fit perfectly and works great
Guest - June 11, 2019
Verified Purchase
★★★★★
★★★★★
Great part and worked as expected.
The part was exactly what I needed and arrived quickly. Lawn mower running again. Thanks
Paul - June 19, 2019
Verified Purchase
★★★★★
★★★★★
Fast service
Fast service
James - August 15, 2019
Verified Purchase
★★★★★
★★★★★
worked great
fast shipping good value
Guest - October 21, 2019
Verified Purchase
★★★★★
★★★★★
Replacement parts
The parts fit perfect!
Guest - February 11, 2020
Verified Purchase
★★★★★
★★★★★
Great replacement parts!
Worked out perfectly. Thank you
Guest - December 8, 2020
Verified Purchase
★★★★★
★★★★★
I have yet to receive my parts
I have yet to receive my parts
Roger - January 18, 2021
Verified Purchase
★★★★★
★★★★★
Fast and easy!
The parts arrived quickly as promised. Very easy install to my miter saw- works like new.
Guest - May 19, 2021
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed the brush holder to find a section of the brass burned away.
2. Replaced with two new holders.
3. Saw started fine, but brake was not working.
After attempting the Dewalt suggested remedies, short of replacing the armature and or field winding, I rechecked both holders. Found one of the brass spade lugs
... Read more, on one of the holders, had passed by, instead of into the receiving connector. This particular lug was part of the brake circuit, had it been the other lug, the saw would not have started at all. Make sure the two lugs on each holder are lined up and watch that both mate properly with the field connections. The saw is now working like new.
1. Removed the brush cover piece.
2. Removed the brushes wires.
3. Pulled out the old brushes and holder out.
4. Cleaned all the dust out of the brushes cavity.
5. Pushed the new brushes holders in.
6. Pushed the new brushes into the brush holder.
7. Screwed the brush holder cap into place to hold
... Read more the spring tension.
8. Placed the cover piece back on the saw.
1. Remove motor end cap with star drive big (after unplugging saw)
2. Remove brush access cap (plug) with large flat screwdriver
3. Remove brush
4. Pull out assembly with pliers
5. Push in new assembly all the way
6. Push in new brush; push in and screw brush cap with large flat screwdriver.
7. Plug in
... Read more saw.
8. Start up saw. While holding trigger down, clean built up carbon off armature with stone by touching it to armature and sliding it back and forth across top of armature. This will make the brush seat evenly.
9. Replace motor end cap
10. Happy sawing.
I tested the switch ,it was ok. I found that I had trouble with the brushes. I ordered both brush assemblies. I found that one of the brass tabs was burned thru. I removed the brush and holders with needle nose pliers. It works fine. I used for two hours today.
Did you find this story helpful?
Thank you for voting!
DeWalt miter saw (15 years old) needed new brushes
