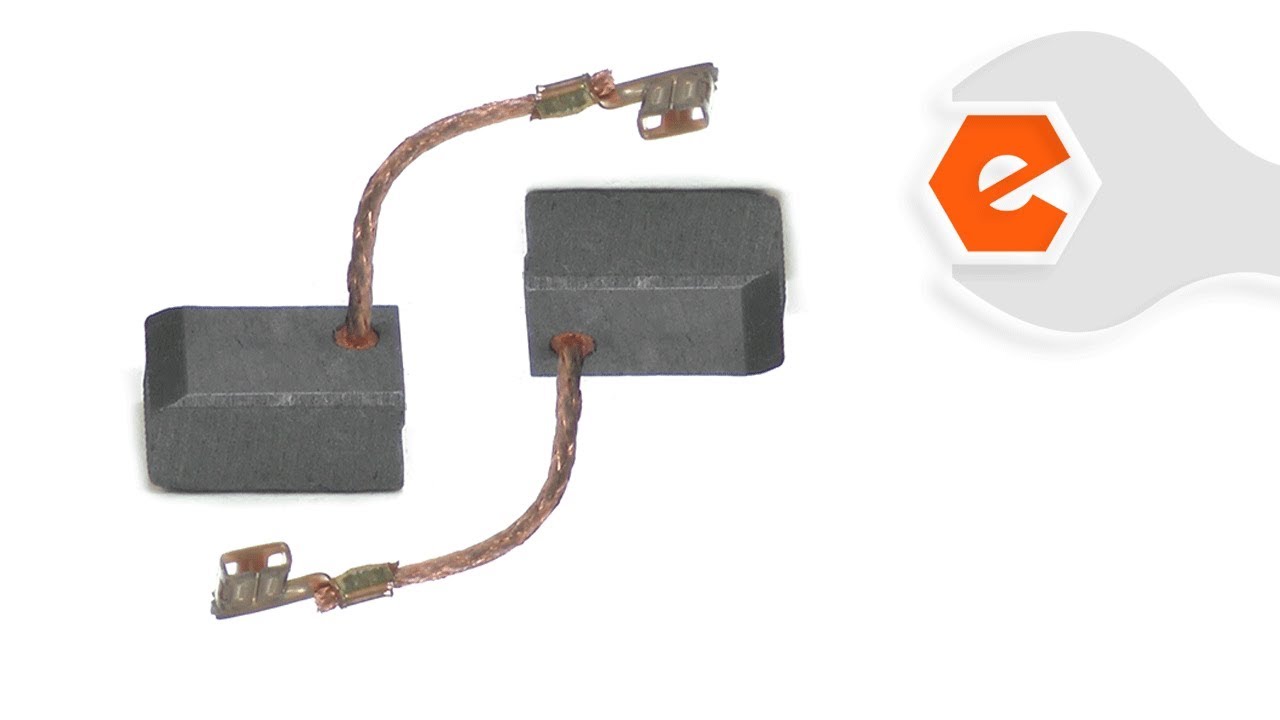

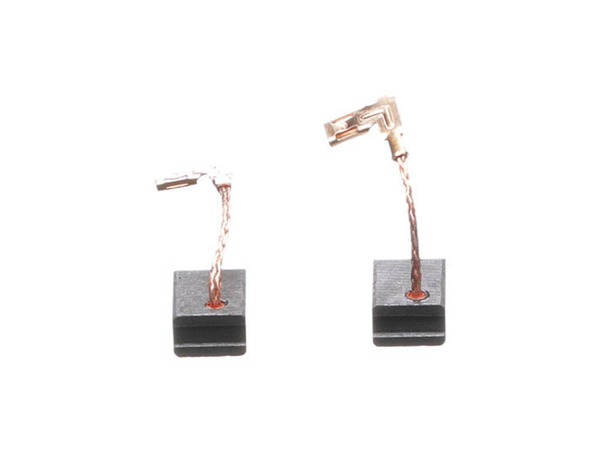

Genuine Makita replacement part Set of 2 Carbon Brushes with wire lead attached. • Worn brushes are often the cause of a poorly running motor • Replacing brushes can fix an intermittent motor • New brushes can restore a motor's electric braking Carbon motor brushes are one of the most commonly replaced power tool components. Because carbon brushes are wear items, meaning that through friction and use they will gradually wear away, they will eventually require replacement. Worn brushes are common causes of intermittent motor function, reduced electric braking, and reduced motor power. A worn out brush will often be worn down near the wire lead and may be cracked, pitted, or burned. When replacing carbon brushes, be sure to also inspect your armature for burns, cracks, or other damage which indicates a larger motor problem.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Makita Brushes
Great service!
Iglobal - June 5, 2019
Verified Purchase
★★★★★
★★★★★
Very easy repair and new brushes worked great in conjunction with the new armature I ordered at the same time.
Brushes and worked great and on this makita grinder was easy to install.
Jimmy - September 5, 2019
Verified Purchase
★★★★★
★★★★★
Very easy to replace and fit perfectly!
These appear to be the correct carbon brush and the removal of the old ones was easy and installing the new ones was too! A lot cheaper than buying another $90 grinder!
Terry - November 23, 2019
Verified Purchase
★★★★★
★★★★★
Easy repair
My grinder works like new again. A friend told me about replacement parts. Thanks
Brent - February 24, 2020
Verified Purchase
★★★★★
★★★★★
They are brushes
Parts as ordered
Guest - April 18, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Remove grinder head, remove brush cover, (1 screw at cord end) remove 10mm nut from head end. Remove both brushes. Install new armature, install grinder head, install new brushes, install brush cover. After all that, I turned on and it jerked 2 times, tried to start. But failed. I then removed brush cover & inspected brushes. I could see
... Read more the brush holders were bent, possibly from hitting the old armature section. Slightly adjusted brush holders so brushes would contact armature all the way. Reinstalled & it worked great!
1. Opened up Makita grinder.
2. Removed 10mm but to separate armature from drive gear.
3. Removed both brush hold down springs with pick.
4. Removed both brushes.
5 Removed armature.
6. Installed new armature.
7. Installed brushes and placed hold down springs onto brushes.
8. Installed drive gear
... Read more and nut on new armature.
9. Closed up grinder housing.
10. Tested grinder which worked great.
Removed handle this is held on by 4 screws and it allowed me to see burnt armature . Removed 4 more screw to separate head and gear assembly. Removed nut at the top of armature to release gear and pull top of armature through head assembly. Released spring tension on brushes disconnected brush wire contact and pulled brushes out and repla
... Read moreced installed armature back into head assembly reinstalled gear nut and put handle back on then released brushes installed 4 screws.
Read less
Did you find this story helpful?
Thank you for voting!
The grinder motor quit running or was running sparatically.
1. Remove the motor cover over the carbon brushes.
2. Gently pry up the coil spring that holds pressure on the brush.
3. Unplug and remove the old brush.
4. Replace with an new brush.
5. Release the spring on to the new brush.
6. Plug in the brush wire.
7. Repeat for the 2nd carbon brush.
8. Rep
... Read morelace the motor cover.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP10156666
Manufacturer Part Number: CB458
