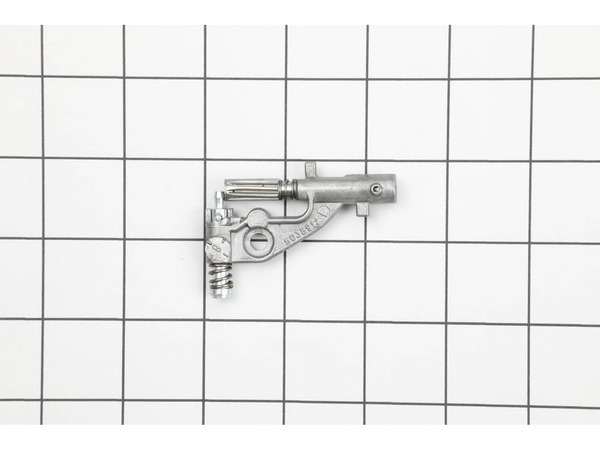

9029887-1-M-Husqvarna-544180103-Oil Pump Assembly
Part Location Diagram of 544180103 Husqvarna Oil Pump Assembly
See part D-14 in the diagram
9029887-1-S-Husqvarna-544180103-Oil Pump Assembly 360 view
( Grid squares measure 1x1 inch )
9029887-1-S-Husqvarna-544180103-Oil Pump Assembly 9029887-1-S-Husqvarna-544180103-Oil Pump Assembly 360 view
Part Location Diagram of 544180103 Husqvarna Oil Pump Assembly

Oil Pump Assembly 544180103

Manufactured by:
Husqvarna
ERP Number:
ERP9029887
Part Number:
544180103
Original Equipment Manufacturer ?
  Works with your model  CS2152!
$38.02
In Stock
Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(1 rated repair) ?
  Works with your model   CS2152!

Jump to:

Description Troubleshooting Questions & Answers Repair Instructions Model Cross Reference

Product Description

?

This is an OEM part sourced directly from the manufacturer. The oil pump assembly is designed for use in Husqvarna chainsaws. This part is made of metal, and is used to lubricate the bar to prevent the chain from overheating. You may require a screwdriver and wrench when replacing this part. This item is sold individually.

Troubleshooting

This part works with the following brands:
  • Husqvarna
  • Jonsered
  • RedMax
This part works with the following products:
  • Chainsaw
Part# 544180103 replaces these:
503891701, 503891702, 537105501, 537105503, 544180101, 544180103,

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Bar oiler adjustment missing

Darryl from Stockbridge, Michigan

1 person found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Socket set
Parts Used:
544180103
Removed bar and chain cover, then removed bar and chain. Remove sprocket while blocking piston travel with small rope in spark hole, then removed shield covering oiler assembly. Removed oiler saving rubber oil channel then replaced oil pump mechanism with new one then reversed entire operation to completion. Of coarse all this was done af ter careful cleaning of every part as these parts get very dirty because of their function and operation. After all this is done start saw and check to see if oiler is working by directing end of bar towards a flat surface such as a section of plywood or cut wood.
Read less
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP9029887
Manufacturer Part Number: 544180103
Brand Model Number Description
Jonsered 2141 Chainsaw - Chain Saw
Jonsered 2145 Chainsaw - Chain Saw
Jonsered 2149 Chainsaw - Chain Saw
Jonsered 2150 Chainsaw - Chain Saw
Husqvarna 340 Chainsaw - Chainsaw
Husqvarna 340E Chainsaw - Chainsaw
Husqvarna 340EPA Chainsaw - Chainsaw
Husqvarna 345 Chainsaw - Chainsaw
Husqvarna 345E Chainsaw - Chainsaw
Husqvarna 345EPA Chainsaw - Chainsaw
Husqvarna 346 Chainsaw - Chainsaw
Husqvarna 346XP Chainsaw - Chainsaw
Husqvarna 346XPEPA Chainsaw - Husqvarna Chainsaw Model 346XPEPA Parts
Husqvarna 350 Chainsaw - Chainsaw
Husqvarna 350EPA Chainsaw - Chainsaw
Husqvarna 351 Chainsaw - Chainsaw
Husqvarna 351EPA Chainsaw - Chainsaw
Husqvarna 353 Chainsaw - Chainsaw
Husqvarna 353-353G Chainsaw - 353 / 353g / 353e-Tech / 353g E-Tech
Husqvarna 353EPA Chainsaw - Chainsaw
Husqvarna 540IXPG Chainsaw - 540i Xp® G
Husqvarna 540XP Chainsaw - 540 Xp® Mark Iii
Husqvarna 542IXP Chainsaw - 542i Xp®
Husqvarna 542IXPG Chainsaw - 542i Xp® G
Jonsered CS2141 Chainsaw - Chain Saw
Jonsered CS2141EPA Chainsaw - Chain Saw
Jonsered CS2145 Chainsaw - Chain Saw
Jonsered CS2145EPA Chainsaw - Chain Saw
Jonsered CS2147 Chainsaw - Chain Saw
Jonsered CS2147EPA Chainsaw - Chain Saw
