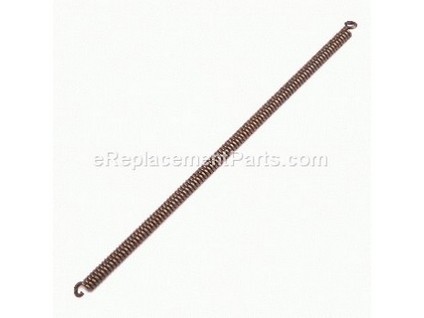

It is an authentic item that is supplied directly from the original equipment manufacturer for use with Husqvarna chainsaws. This is an identical replacement for a missing or a faulty spring that helps to apply tension on the clutch, please make sure to refer to the appropriate diagrams of your model for the correct location and application of this hardware. Keep in mind this high-quality spring is made of durable metal and is sold individually.
Troubleshooting
This part works with the following brands:
Husqvarna
This part works with the following products:
Chainsaw
Trimmer
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
5 stars
1
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
easy to order, came as you said. u-tubed it and it worked well.
It came as described, U-Tubed it and installed it. It works great.
Guest - May 7, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1) Took the clutch off (left handed thread)
2) Pulled spring out
3) Put new spring in, put clutch in vise to hold stable while clipping spring together
4) Install clutch. careful not to put to much torque on the recoil. Clutch will tighten over time because of rotation
Did you find this story helpful?
Thank you for voting!
Clutch spring broke on chainsaw, has to be installed under pressure/prying
(1) These are always reverse threaded on crankshaft, remove sparkplug, put piston all the way down, start putting 1/4 inch rope down spark plug hole (use a non fiber-type, non coated rope that won\'t shed fibers, start filling cylinder until it won\'t take any more rope.
(2) hopefully you have a hex nut welded to the center
... Read moreof the clutch, or you have to buy the tool for your exact brand. Use a breaker bar and correct socket, turn clockwise easily until it stops.
(3) Use a wooden mallet and strike the breaker bar lightly until the clutch un-threads, spin it off and screw one side to a 2 foot 2x4, so you can pry the slider apart to remove spring, clean all parts, do not lube anything, clutch will slip.
(4) Put the spring together and put it on one side with the joined section between the two clutch halves (not on either half). Use a small finishing nail between the halves to give space to put spring on, gently pry spring around that half (screwdrivers), do not kink spring, pull nail out so clutch closes around spring.
(5) Have some one help you with these things, unscrew 2x4 jig, use breaker bar counter clockwise until it stops-careful, you can do serious damage if you apply extreme pressure. When tight, remove rope, put everything back together and cut some wood!!
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP8984132
Manufacturer Part Number: 501456101
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
