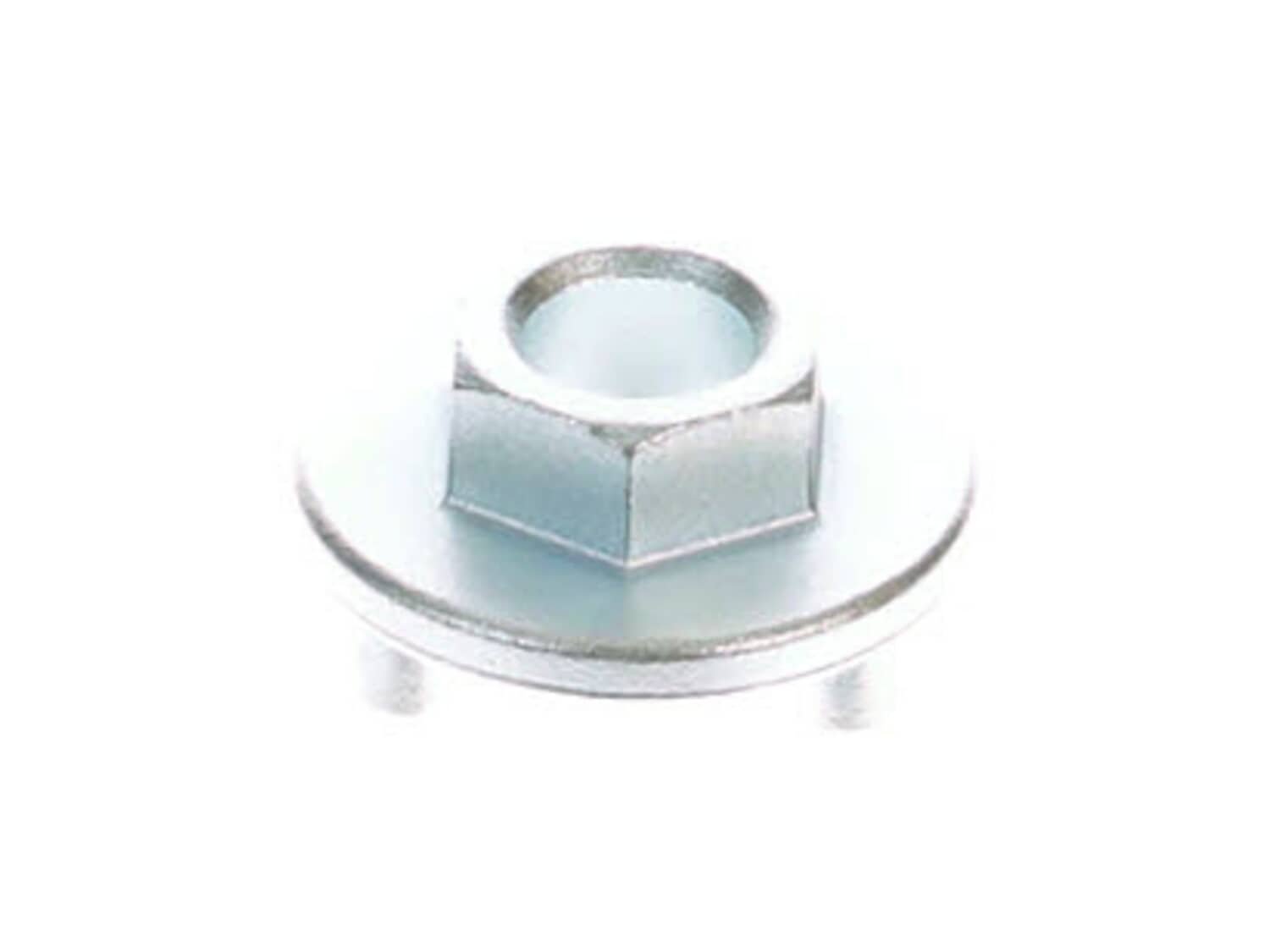

This item has been sourced from the original manufacturer to ensure a high level of quality. The metal tool is used to remove the clutch from the crankshaft. This item fits over the clutch and a wrench or ratchet is used to put leverage on the clutch to remove or install it. This item is sold as an individual item.
Troubleshooting
This part works with the following brands:
Echo
This part works with the following products:
Chainsaw
★
Customer Part Reviews
?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(4 Reviews)
Click to filter by ratings:
5 stars
4
4 stars
0
3 stars
0
2 stars
0
1 star
0
< Prev
1
Next >
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Worked perfectly
I used it on my Echo cs400. It worked great.
Guest - July 16, 2019
Verified Purchase
★★★★★
★★★★★
it worked!
I ordered this tool from 4 other sites each one sending the wrong one assuming it would fit my model chainsaw. these folks sent the right one the first time for my model chainsaw. thank you. I have ordered ice makers, ice maker parts, washing machine parts, chainsaw parts all with success from here. I look here first now.
Scott - August 15, 2019
Verified Purchase
★★★★★
★★★★★
Right part right price,
Clutch removal tool was exactly what I needed. It was shipped quickly and in a secure package.
Guest - November 27, 2019
Verified Purchase
★★★★★
★★★★★
Tool was what I needed to remove clutch
arrived quickly after ordering.
Guest - September 3, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
Be the first to ask our experts a question about this part!
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
1. Removed cover plate on sprocket.
2. Removed chain and bar.
3. Removed spark plug and air filter cover
4. Removed spark plug wire and spark plug.
5. Rotated motor until piston at bottom.
6. Put piece of rope in spark plug hole to allow clutch to be removed.
7. Put clutch removal tool on clutch and use
... Read mored adjustable wrench to turn clockwise to loosen.
8. Removed clutch and sprocket bearing (sprocket was gone already)
9. Lubed sprocket bearing and put new roller sprocket on inside of clutch.
10. Replaced clutch assembly with new roller sprocket.
11. Used sprocket tool to tighten counter clockwise.
12. Removed rope from cylinder.
13. Replaced spark plug and put plug wire back on.
14. Replaced spark plug cover.
15. Put bar and chain and sprocket cover back on.
16. Adjusted chain and started saw. (did not need carb kit, filed for future use).
Read less
Did you find this story helpful?
Thank you for voting!
Clutch drum/sprocket, bearing and brake shoes excessively worn.
1. Removed air filter/spark plug cover by unscrewing cover thumbscrew (no tool required).
2. Removed spark plug connector from spark plug. Cleaned dirt and debris away from spark plug base using electronics spray cleaner (expensive but really does a good job without damage to any of the plastic parts on the chainsaw). Removed spark
... Read moreplug.
3. Removed clutch cover/brake band assembly from chainsaw using 13 mm socket and removed guide bar and chain. Cleaned all exposed parts with spray cleaner.
4. Using clutch sprocket removal tool, 19 mm socket and 1/2\" drive ratchet, rotated engine crank to put the piston in the bottom position of the cylinder. Stuffed 1/4\" nylon rope into cylinder to prevent piston from moving too far (the rope serves as a stop for loosening the clutch assembly without damaging the engine internals.
5. The clutch assembly is screwed onto the chainsaw shaft with left hand threads. Using the tools listed in 4. above, loosen and unscrew clutch assembly from chainsaw. An extra hand is helpful if available to help hold things while loosening. Be careful to not lose the washers and bearing assembly during removal. Cleaned everything for inspection.
6. Lubricated the new bearing assembly with grease and installed new clutch parts and followed the above steps in reverse order to complete the job. (Based on inspection, you may have found other parts to replace while you have some of the chainsaw parts removed but this is not discussed in this procedure.) Use care to be sure that the anti-kickback finger on the clutch/brake cover is positioned properly on the anti-kickback lever.Most of the time spent was used for cleaning and inspection.
Read less
Did you find this story helpful?
Thank you for voting!
Chain was locking up and was raised up on the bar a bit close to the engine end.
haven\'t finished yet cause I can\'t get the worm gear pressed onto the shaft also it was incredibly difficult to remove same. As for the cs352 that the branch fell on repairs on that went well. On the cs400 oiler repair I would not recommend trying to replace the worm gear unless it is obviously damaged the oiler can be switched out with
... Read moreout removing it.
1. Removed Cover to Clutch and removed chain and chain bar.
2. Used impact wrench and removal tool to loosen Clutch.
3 Removed Clutch and clutch drum
4. Replaced needle and clutch drum [greased bearing needle]
5 Re-installed Clutch and tightened with removal tool and impact wrench.
6. Re-installed bar an
... Read mored chain
7 re-installed cover and tightened chain with adjusting screw.
1. Removed chain cover
2. removed chain and the bar. Cleaned up saw.
3.used special tool to remove left handed screw.
4.puted on new parts, tightened.
5.Put chain & bar back on
6. Put cover back on.
7. reset chain to proper tension.
Did you find this story helpful?
Thank you for voting!
chain adjustment was worn, and clutch needed replacment
Ron from GALLATIN, Tennessee
0 of 1 peoplefound this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers, Socket set, Wrench (Adjustable), Wrench set
Adjuster was replaced easily. The clutch tool keeps slipping away from old clutch and I\'ve not gotten it off yet to replace it. I am going to try again and may get another set of hands to help. I do know it goes on reverse.
THanks
Did you find this story helpful?
Thank you for voting!
Carburetor ran poorly, diaphragm helped along with the new park plug. Also changed out grip starter.
