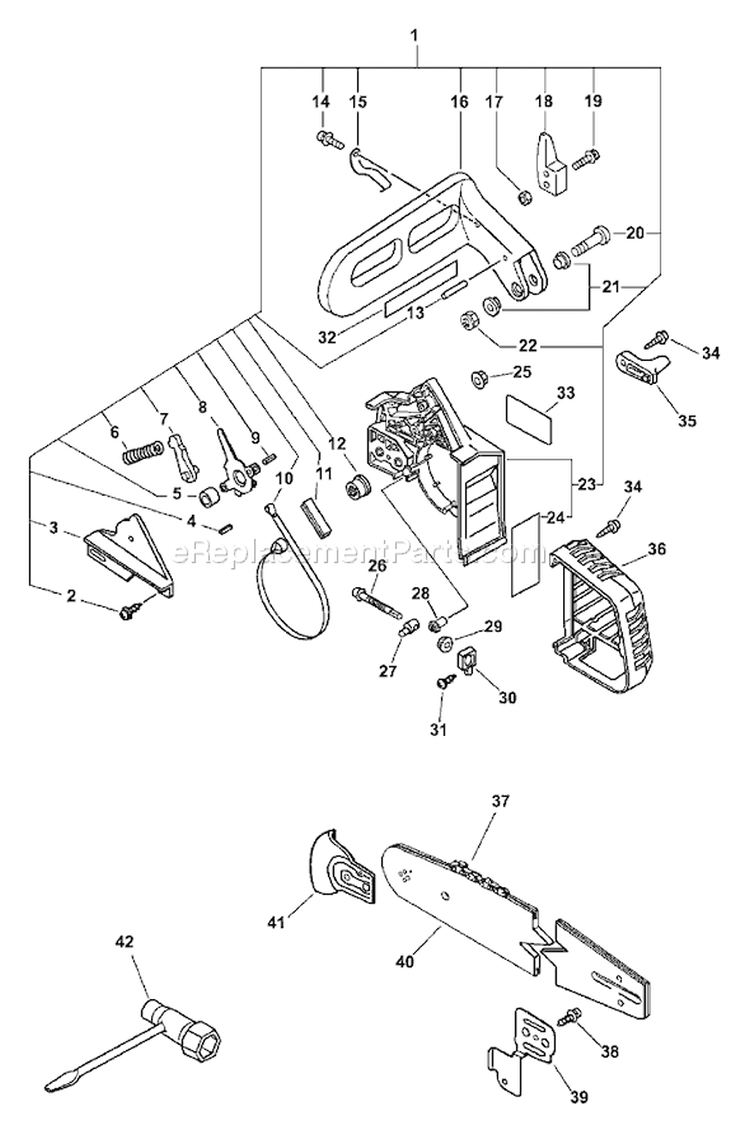

Part Location Diagram of 43312235430 Echo Spring-Brake
See part B-6 in the diagram
( Grid squares measure 1x1 inch )

Spring-Brake 43312235430

Manufactured by:
Echo
ERP Number:
ERP8970844
Part Number:
43312235430
Original Equipment Manufacturer ?
  Works with your model  CS-5000!
$5.95
In Stock
Delivers in 3-5 Business Days!
Minimum Quantity of 2 required

Easy

15 - 30 mins

(1 rated repair) ?
  Works with your model   CS-5000!

Troubleshooting

This part works with the following brands:
  • Echo
This part works with the following products:
  • Chainsaw

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

The sprocket guard was broken, so the chain would not tension properly and the chain brake was not functioning.

John from Wamego, Kansas

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers, Wrench set
1. Remove sprocket guard assembly from the chainsaw.
From this assembly, remove the following:
2. Remove the metal chain/bar guide
3. Remove chain tensioning system
4. Remove chain brake guard
5. Remove chain brake system cover
6. Remove chain brake system, don\'t forget the metal bushing
