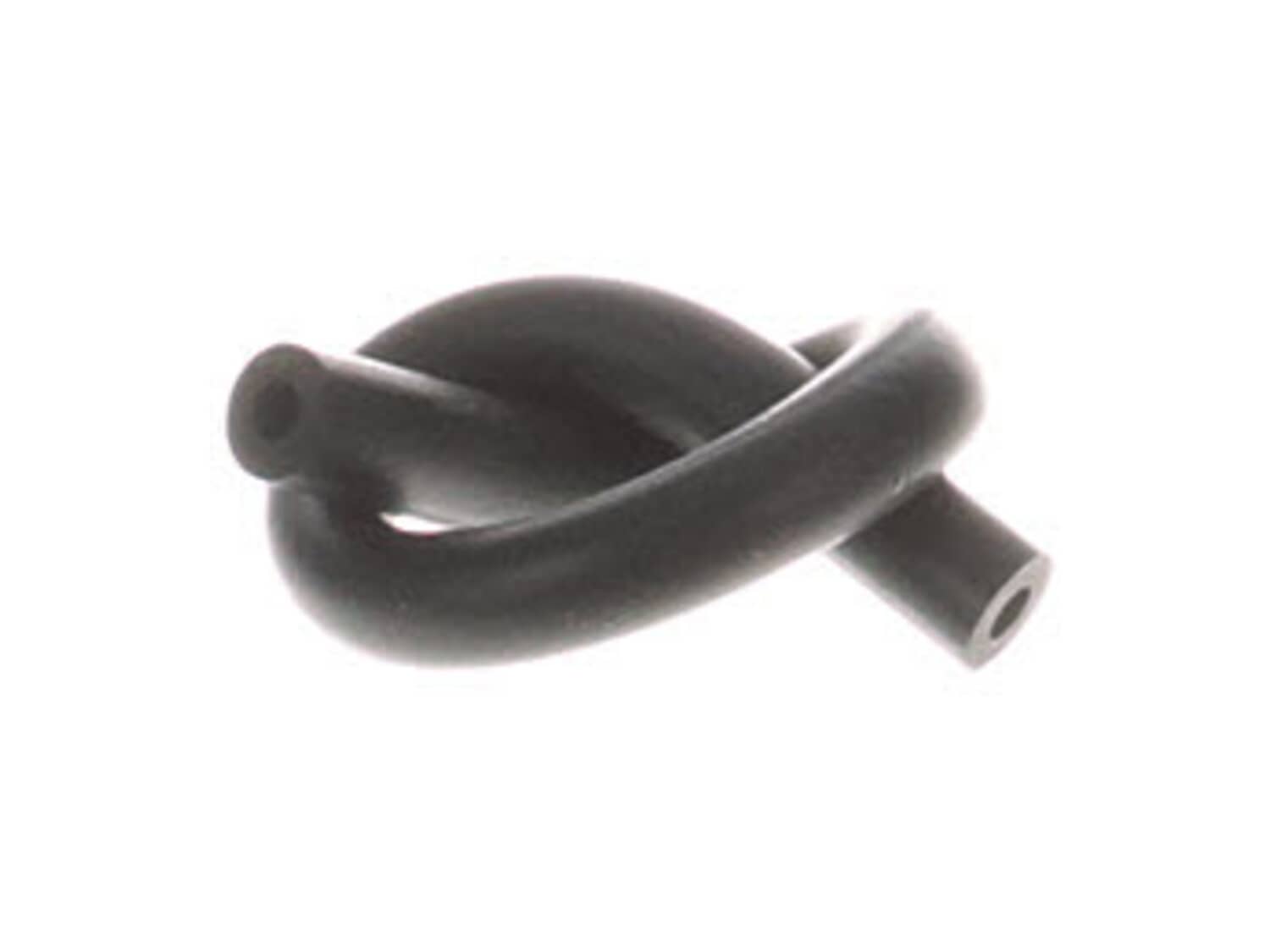

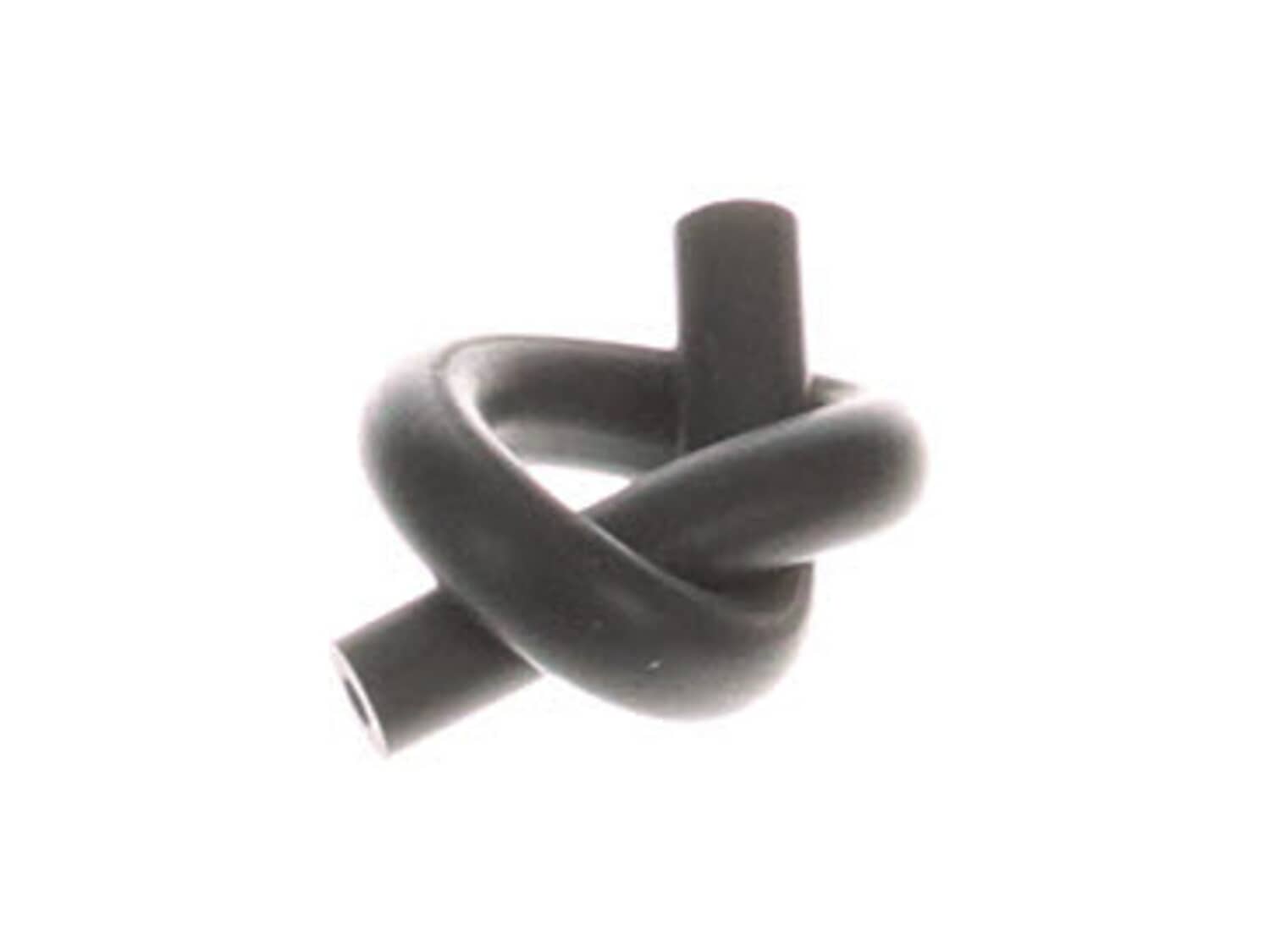

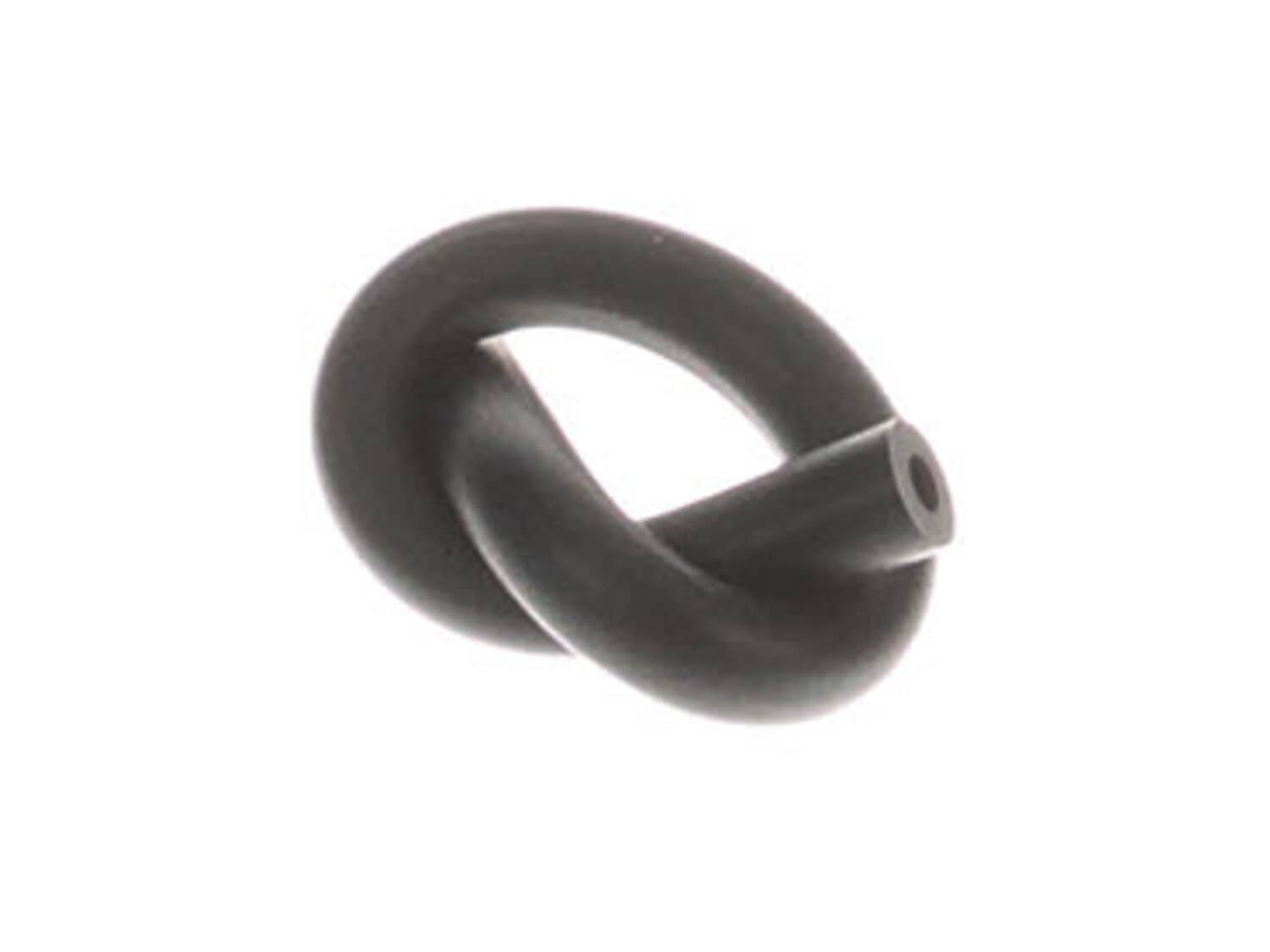

This is a genuine OEM sourced replacement part designed for use with Echo power equipment. The purpose of a vent pipe is to allow air in the fuel tank. It is made out of plastic material and it is sold individually. Over time plastic lines will deteriorate and become brittle so they would need to be replaced.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
String trimmer repair
Part arrived on time, as ordered.
Guest - June 24, 2019
Verified Purchase
★★★★★
★★★★★
Right part. Quick delivery.
Nicely done. Typical interaction with ereplacement parts. Online diagrams helped.
Guest - February 2, 2021
Verified Purchase
★★★★★
★★★★★
Echo fuel system parts
Echo edger fuel system parts arrived as promised and fit perfectly. Fast repair. Edger runs great now...no leaks. (Knock-off Chinese parts installed previously didn’t seal fuel tank properly.)
Guest - May 31, 2021
Verified Purchase
★★★★★
★★★★★
great part
arrived fast with all parts ordered
Ronald - August 28, 2021
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed the cover over the gas tank.
Disconnected the fuel lines from the carburetor.
Removed the gas tank from the edger and was able to see the gas tank was OK.
My problem was the fuel return tube. The tube is vinyl and was loose in the grommet.
The new grommet has metal sleeves that the old grommet doesn\'t. Bec
... Read moreause of the metal sleeves, the hoses were hard to install. Finally on the last hose, I put some light grease on it and the last hose went in a whole lot easier. I wish I had thought of that sooner. Actually, I should have used some of the oil you mix with the gas. I\'m not a full time mechanic.
I installed the grommet in the new tank (might as well use the new tank) and reinstalled the tank.
I reconnected the fuel lines to the carburetor.
I reinstalled the cover.
I filled the tank with gas and the edger started right up and I no longer have a gas leak.
If you experience a gas leak, try sliding all 3 hoses up and down. They shouldn\'t move. If they do, you might have an old grommet like I did without the metal sleeves. My vinyl fuel return hose was also deformed were it went thru the grommet causing my gas leak and the edger harder to start.
I hope some of this is helpful to somebody else. I\'m not an author either.
Read less
Did you find this story helpful?
Thank you for voting!
Fuel hoses hardened and fuel began to leak from gromet
1. Removed fuel tank guard.
2. Removed fuel tank and hoses.
3. Removed fuel lines from carburetor.
4. Removed rubber grommet from fuel tank.
5. Cleaned tank and guard.
6. Inserted new hoses in new grommet with a little grease.
7. Inserted grommet into tank with the help of a screw driver to push grommet
... Read more through.
8. Attached new hoses to carburetor.
9. Re-installed tank and guard.
Removed fuel tank. Removed all fuel and return lines from carb and tank. Used all new fuel lines as old lines were swollen from age and would have been a real problem getting them into new fuel line grommet. As it was I needed wd40 and a small flat blade screwdriver to get new grommet back into the tank and wd40 to get lines into the grom
... Read moremet. Describing it makes it sound like more work than it was. Simple and straight forward.
Read less
Did you find this story helpful?
Thank you for voting!
Tune up, and leaking gas out of carburetor and fuel tank grommet.
1. Removed the old spark plug, gap new one, and installed.
2. Removed throttle cable from carb., and disconnected both kill wires from the pull-a-part connector.
3. Removed air filter cover, threw out the old air filter, removed two screws holding air filter base.
4. Removed fuel and return lines from the carburetor, and
... Read more removed the carburetor from the trimmer.
5. Removed 4 screws holding primer bulb, threw the old bulb out. Removed single screw from plastic primer spacer, and discarded gaskets underneath. Removed both screws underneath carburetor the for fuel pump, cleaned and blew out carburetor thoroughly with carb. cleaner, and compressed air. Installed new gaskets from kit, installing everything in reverse order. During cleaning, made sure to clean mini screen of all contaminants. installed new primer bulb.
6. Removed 3 screws holding fuel tank protector, and 2 screws holding fuel tank on. Fully drained fuel tank. Removed rubber grommet, and used it as a template for new fuel lines and grommet. Trimmed fuel lines to original lengths, reinstalled breather to new pipe, installed new fuel filter, and carefully installed new fuel lines in new grommet. Then carefully installing grommet into fuel tank. Installed tank in reverse order, followed by installing carburetor in reverse order, with new air filter installed.
7. Filled fuel tank with fresh fuel, primed carburetor, and started trimmer.
8. Runs excellent, like new, with no more fuel leaks!! Ready to take my Echo SRM-230, and trim up some weeds!! It\'s been about 5 years or more, and I couldn\'t be anymore pleased to see it running like new.
Easy disassembly of the air cleaner and carb. Removed blocked pick up filter and replace fuel supply line. Blocked passages in carb blown free with carb cleaner and compressed air. Replaced spark plug, engine ran like a top. Too easy!
Rebuilt carburetor. Replaced: fuel vent line and vent; fuel supply line; fuel return line; fuel tank grommet; inlet gasket; primer. Procedure wasn\'t difficult due in large part to the availability of the training videos on this website and youtube. The only issue I had was that I tried to put the fuel jet hold down bracket on upside d
... Read moreown. I reviewed the video and caught my error. It was fun for me as I had never (successfully) rebuilt this type of carb before.
1. Pour remaining premixed fuel out of fuel tank back into a fuel can
2. Remove cover over fuel tank using allen wrench.
3. Removed fuel tank. While this wasn\'t absolutely necessary it made things easier and allowed all of the oil and dirt to be cleaned from the area.
4. Pull or pry the old grommet out of the tank. Make
... Read more sure the area around the opening is cleaned of crud so it doesn\'t fall into the tank.
5. Remove a tube to be replaced from the old grommet and install a new one. They\'re a tight fit so lubricating the tube with a bit of oil or dishwashing detergent makes it easier to slide through the grommet. There was a small wire band over the tubing at the fuel filter. Slide it up the old tube using needle nose pliers to remove the filter then install the wire band onto the new tube. Do the reverse when installing the filter onto new tube.
6. Make certain that enough tubing extends into the tank to allow the filter / clunk to reach all areas of the tank as the unit is rotated into different positions. This ensures that all of the fuel will be emptied during operation.
7. Install the grommet with new tubing into the tank and reassemble all parts in reverse order to complete the repair.
Read less
Did you find this story helpful?
Thank you for voting!
< Prev
1
Next >
Model Cross Reference
This part works with the following models:
ERP Number: ERP16761076
Manufacturer Part Number: V471000111
This part is in stock in our warehouse and will ship out within 1 business day of the order being placed.
New stock is on the way! On order parts usually ship within 7 business days.
Item is not in stock and usually ships 10-15 business days from the time you place your order.
This item is no longer being made by the manufacturer, and cannot be added to your shopping cart.
✖
Mail-In Recycling Rebate
Some of the parts we sell are eligible for mail-in rebates since we can recycle them. We will display any applicable rebates in your shopping cart. To redeem your rebate, contact Customer Service after you have received your part.
✖
