Part Location Diagram of 406131320002 Delta Scale
See part 158 in the diagram

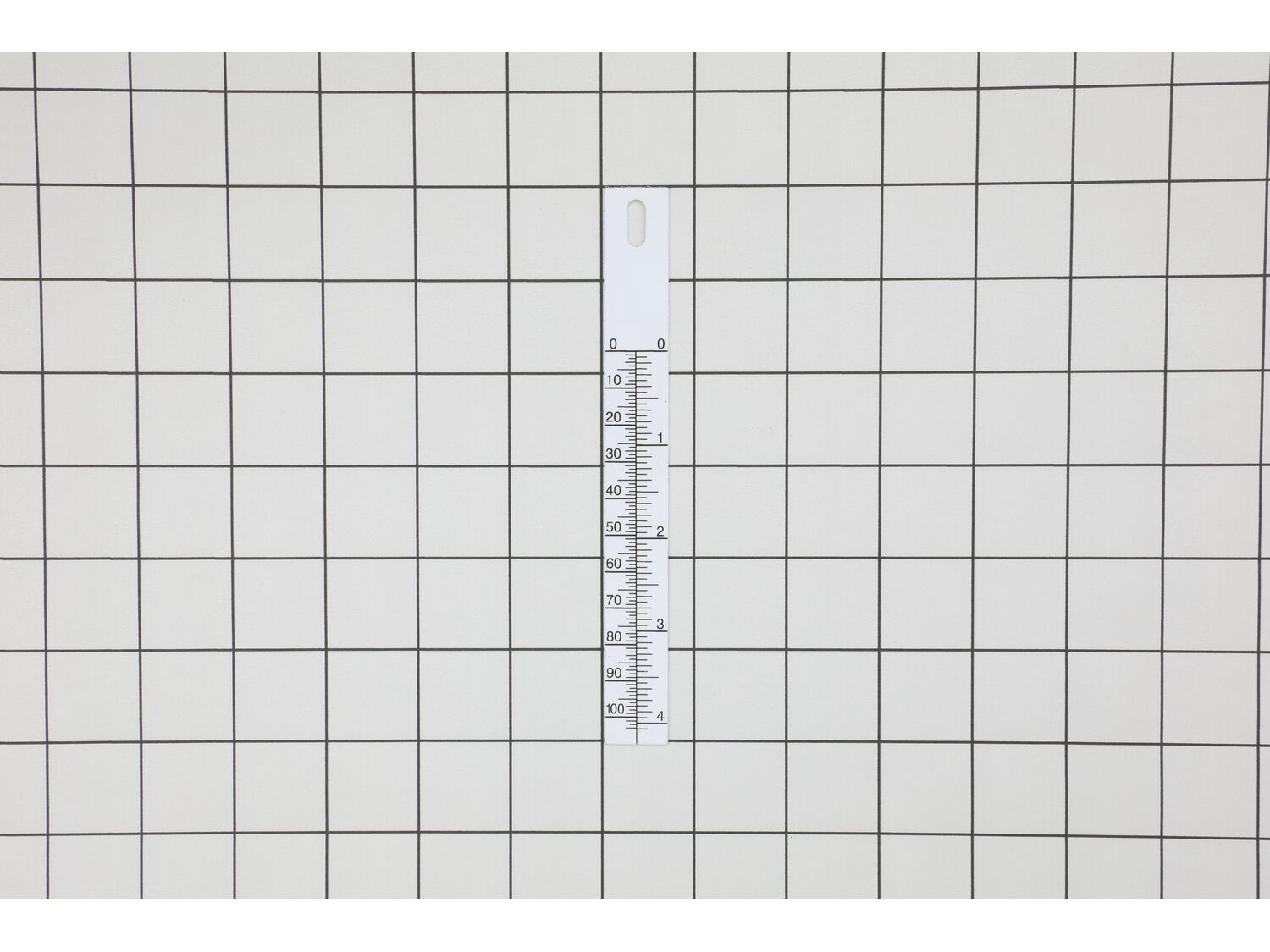

( Grid squares measure 1x1 inch )

Scale 406131320002

Manufactured by:
Delta
ERP Number:
ERP10322226
Part Number:
406131320002
Original Equipment Manufacturer ?
  Works with your model  31-252!
$6.16
Special Order

Easy

Less than 15 mins

(1 rated repair) ?
  Works with your model   31-252!

Troubleshooting

This part works with the following brands:
  • Delta
This part works with the following products:
  • Belt or Drum Sander

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Drum sander scale was missing

Robert from Rochester, New York

0 of 1 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
406131320002
Installed new scale, simple.
Did you find this story helpful?
Thank you for voting!
  • 1

Model Cross Reference

This part works with the following models:
ERP Number: ERP10322226
Manufacturer Part Number: 406131320002
Brand Model Number Description
Delta 31-250 Belt or Drum Sander - Drum Sander
Delta 31-252 Belt or Drum Sander - Drum Sander
Delta 31-255X Belt or Drum Sander - Drum Sander
