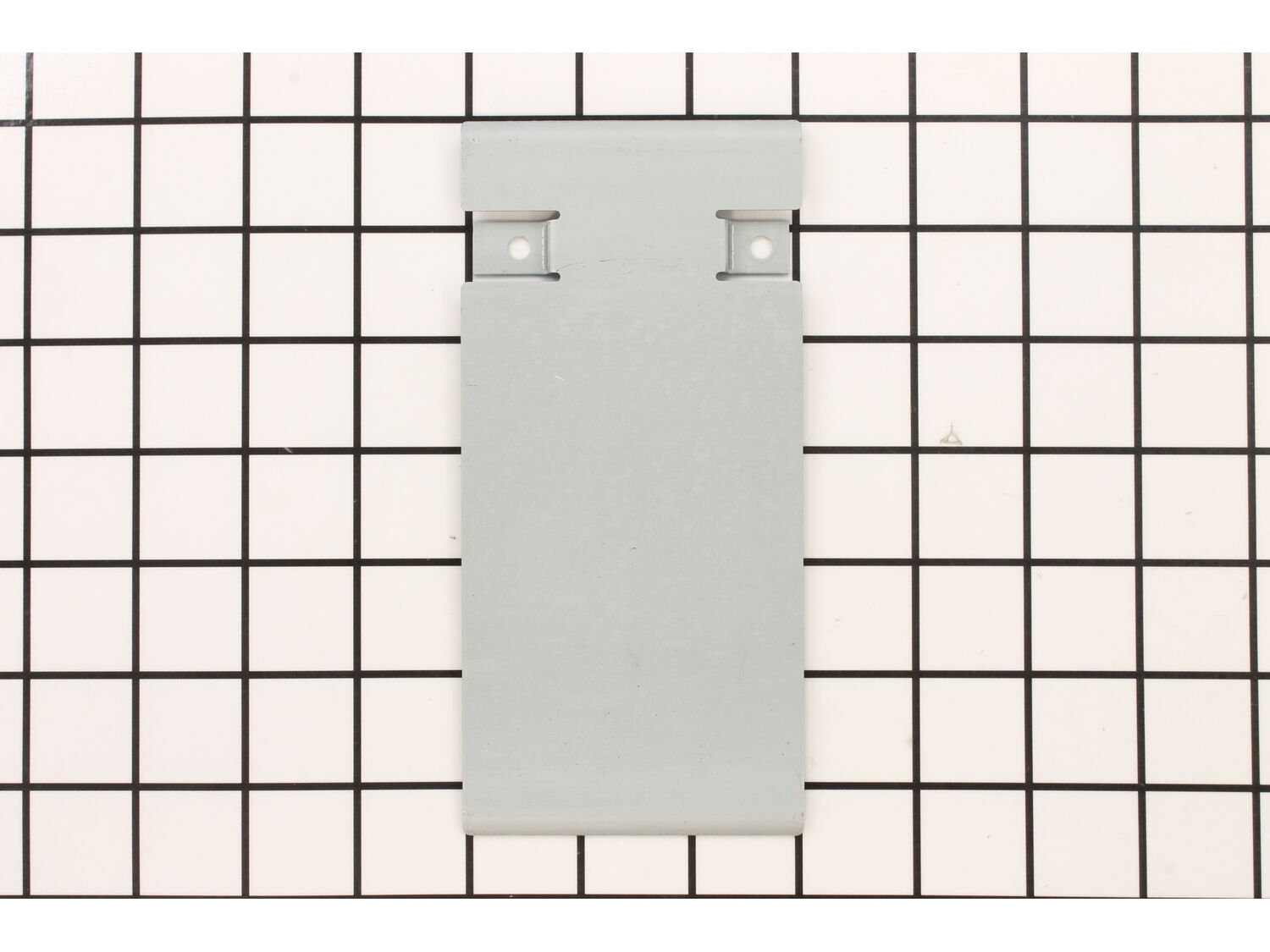

19508268-1-M-Bosch Tool-2601098040-BASE PLATE

( Grid squares measure 1x1 inch )

19508268-1-S-Bosch Tool-2601098040-BASE PLATE

BASE PLATE 2601098040

Manufactured by:: Bosch Tool
ERP Number:: ERP19508268
Part Number:: 2601098040

$14.94

★★★★★

5 Reviews

Delivers in 3-5 Business Days!

Easy

Less than 15 mins

(3 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Enter your model number

Jump to:

Frequently Purchased Together Troubleshooting Reviews Repair Instructions Model Cross Reference

Frequently Purchased Together

SLIDING PLATE

★★★★★

(14)

$9.76

DUST BAG

★★★★★

(3)

$39.61

CHEESE HEAD SCREW

$6.16

Minimum Quantity of 2 required

Troubleshooting

This part works with the following brands:

Bosch

This part works with the following products:

Belt or Drum Sander

Part# 2601098040 replaces these:

2601098040,

★

Customer Part Reviews

5.0

Average Rating (out of 5):

★★★★★

(5 Reviews)

Click to filter by ratings:

5 stars

5
4 stars

0
3 stars

0
2 stars

0
1 star

0

< Prev
1
Next >

Sort by:

★★★★★

Great original OEM parts

Great fast serivce

Guest - October 26, 2019

Verified Purchase

★★★★★

perfection

Ordered item, it shipped almost the first day and I received it quickly. Great job. Will use you in future and recommend you to friends.

Guest - June 10, 2021

Verified Purchase

★★★★★

quick , great price and just what I needed

kept my belt sander going without a delay

Guest - September 28, 2021

Verified Purchase

★★★★★

Super easy to replace, received the parts quickly!

This base plate along with the rear drive drum, and the main metal housing eliminated the belt tracking issue. Happy to have my Bosch 1274DVS belt sander back to fully functional again!

Mark - January 20, 2022

Verified Purchase

★★★★★

Old sander gets more life

Ordering was easy and fit perfectly!!!

Guest - June 28, 2023

Verified Purchase

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

Less than 15 mins

(3 rated repairs) ?

< Prev
1
Next >

Sort by:

Slide plate worn out Base plate rusted

Al from Reisterstown, Maryland

3 of 3 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 2601098040, 2601098037

Put the new parts on easy.

Did you find this story helpful?

Nothing

steve from Livonia , Michigan

0 of 1 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: Less than 15 mins
Tools:: Screw drivers
Parts Used:: 2601098040, 2601098037

Removed old pieces with screws and replaced new pieces. Exact fit. Quick and easy.

Did you find this story helpful?

Sander handle was broken and base plate was worn

Dwight from Westminster, Colorado

0 of 1 people found this instruction helpful.

Difficulty Level:: A Bit Difficult
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers
Parts Used:: 2601098040, 2601098037, 1605133036

1. Remove the screw holding the handle
2. Remove the broken handle
3. Replace the new handle
4. Return the screw
5. Unscrew the base plate
6. Remove the base plate
7. Replace the base plate
8. Replace the screws

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP19508268
Manufacturer Part Number: 2601098040

Brand	Model Number	Description
Bosch	0601274739	Belt or Drum Sander
Bosch	1274DVS	Belt or Drum Sander - 3" x 21" Belt Sander
Bosch	GBS75AE	Belt or Drum Sander - Belt Sander
Bosch	PBS75A	Belt or Drum Sander - Belt Sander
Bosch	PBS75AE	Belt or Drum Sander - Belt Sander
