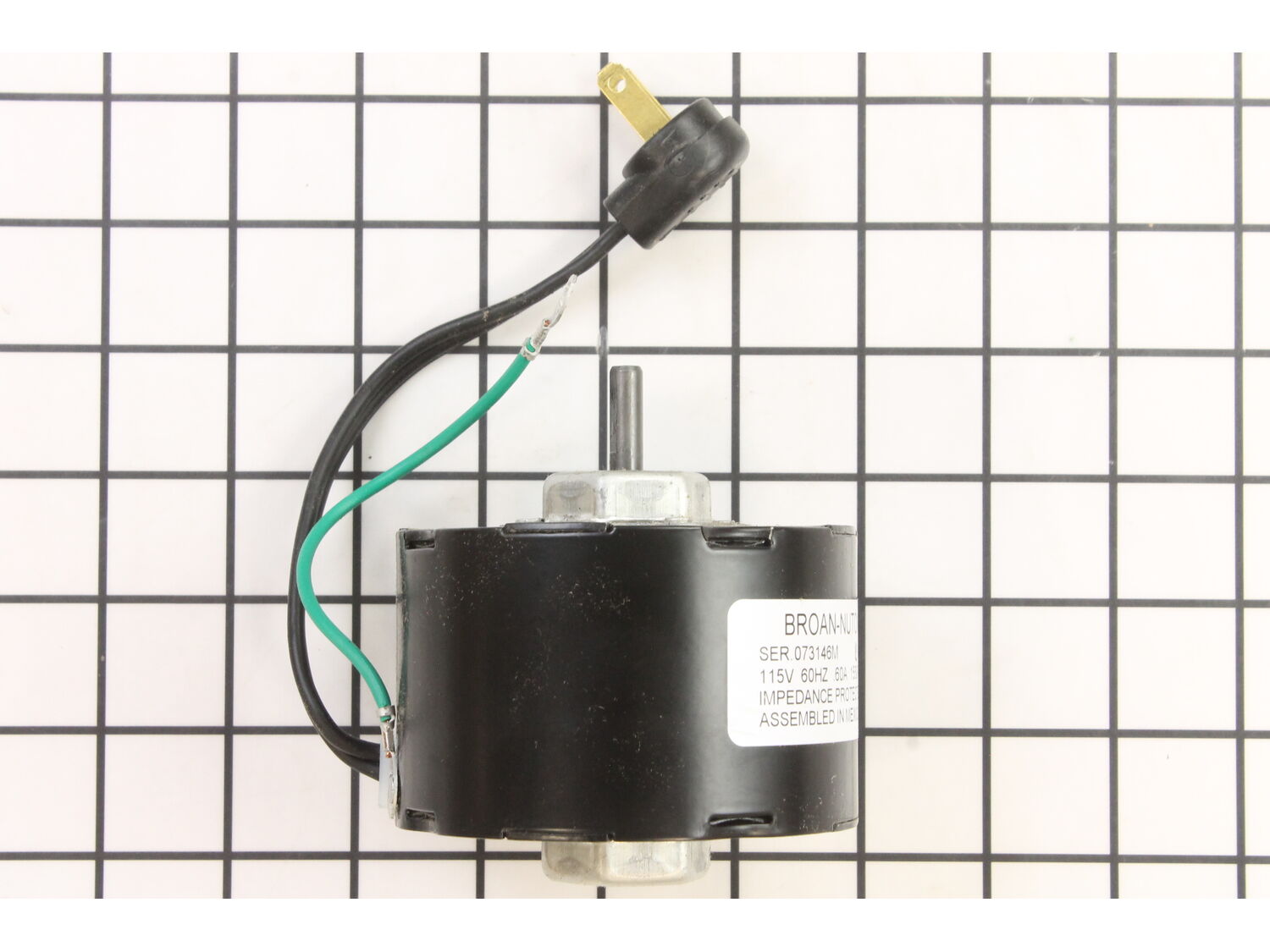

( Grid squares measure 1x1 inch )

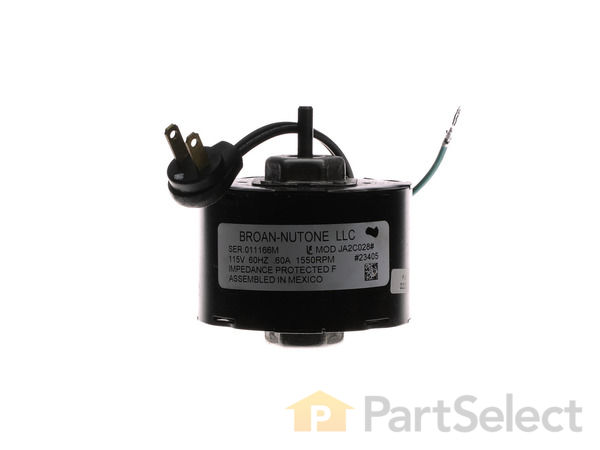

Nt Srv Asm Indvd Packed Motor S23405SER

Manufactured by:
Broan
ERP Number:
ERP10279905
Part Number:
S23405SER
Original Equipment Manufacturer ?
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

1- 2 hours

(3 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Troubleshooting

This part works with the following brands:
  • Nutone
  • Broan
This part works with the following products:
  • Bath & Ventilation Fan

Customer Part Reviews

?
4.8
Average Rating (out of 5):
★★★★★
★★★★★
(4 Reviews)
Click to filter by ratings:
  • 5 stars
    3
  • 4 stars
    1
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

1- 2 hours

(3 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Original Nutone bathroom ventilation fan that no longer worked but was installed in ceramic tile

Sally from Sarasota, Florida

4 of 4 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
S23405SER
I found that although it was extremely old and filthy I was easily able to remove all parts to find that it still had a model number attached on a sticker. I went to eReplacement parts and quickly and easily found a replacement motor. Although a bit pricey, I felt worth the investment. Received the motor quickly, and after cleaning up the other parts, installed the new motor on the motor clamp and mount assembly. Then realized that I needed the fan cover as well as a tiny fitting was needed and missing from the original. I then looked that part up, and ordered. Needless to say all is working well, and I appreciate eReplacement parts !!!!!
Did you find this story helpful?
Thank you for voting!

Bathroom vent fan

NORMAN from CARLISLE, Pennsylvania

2 of 2 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers
Parts Used:
S23405SER
removed the light and glass dome.
turn off the electric service.
unplugged the light and motor.
removed the motor and brackets.
removed the fan from the old motor stem (not easy but necessary to be able to salvage the motor mounting brackets with rubber shocks) keep the round clip on the motor stem to be used with the new motor stem after sliding the fan onto the motor stem.
reinstall the motor into the existing brackets and shocks and install the fan on the motor
reinstall the motor assembly. Plug the motor and lights into the electric service.
turn on the electric to test the motor and lights.
reinstall the vent shroud and lights and glass dome.
clean at each step.
Did you find this story helpful?
Thank you for voting!

Broke the fan cage trying to remove it from the motor

Dave from LOWELL, Indiana

0 of 1 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers
Parts Used:
S23405SER
Replaced the cage with a old fan cage from another old motor.Worked perfectly!
