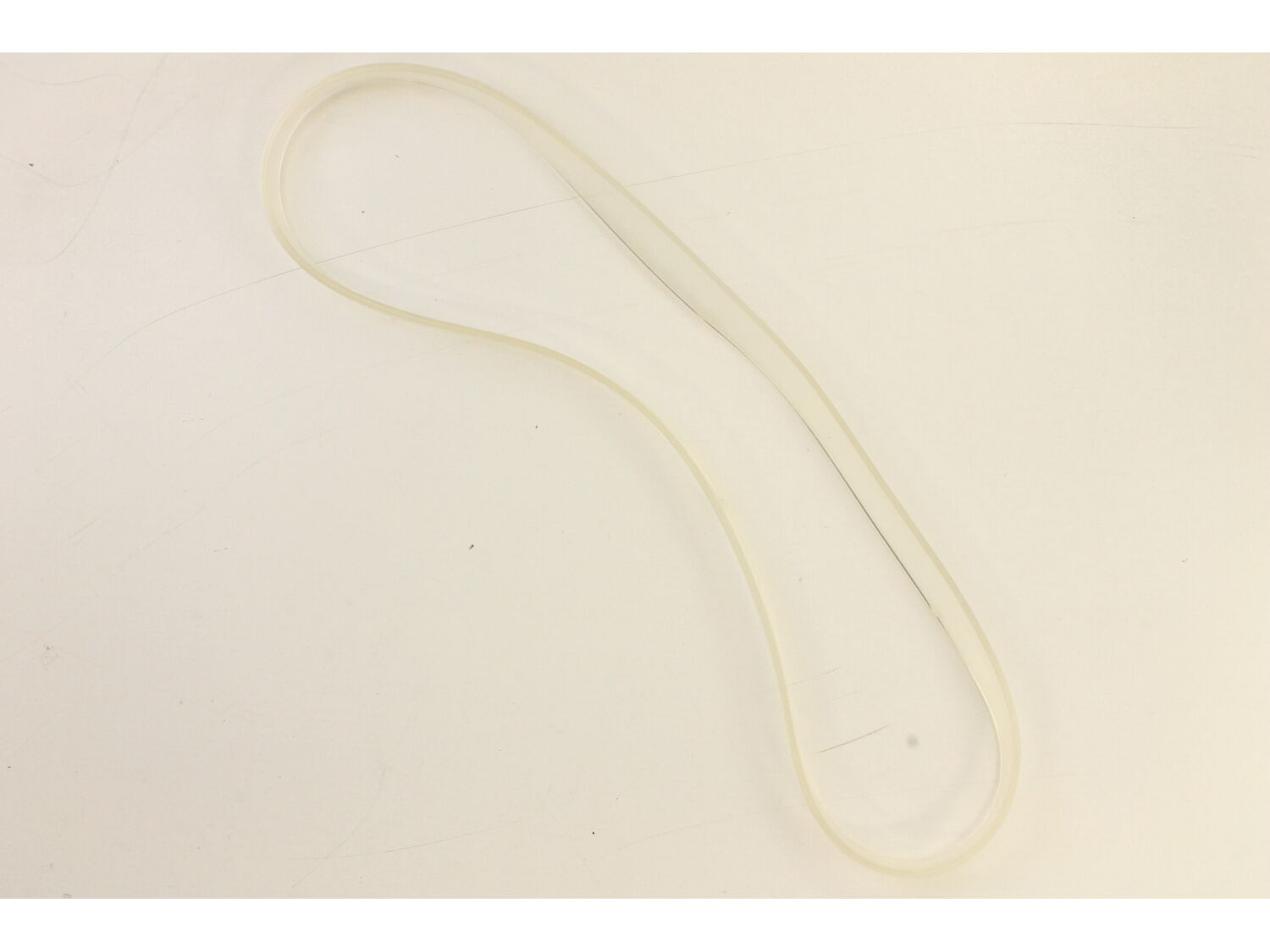

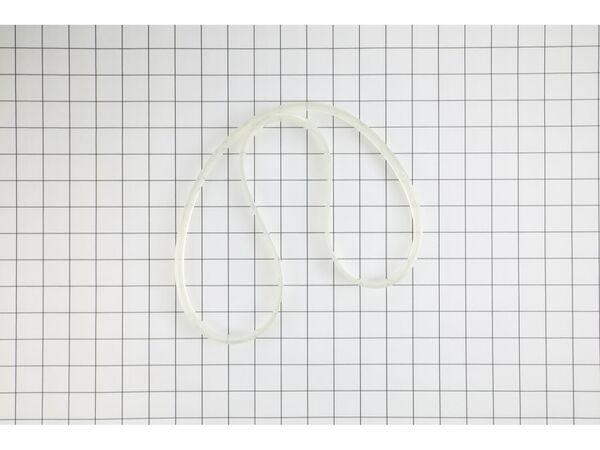

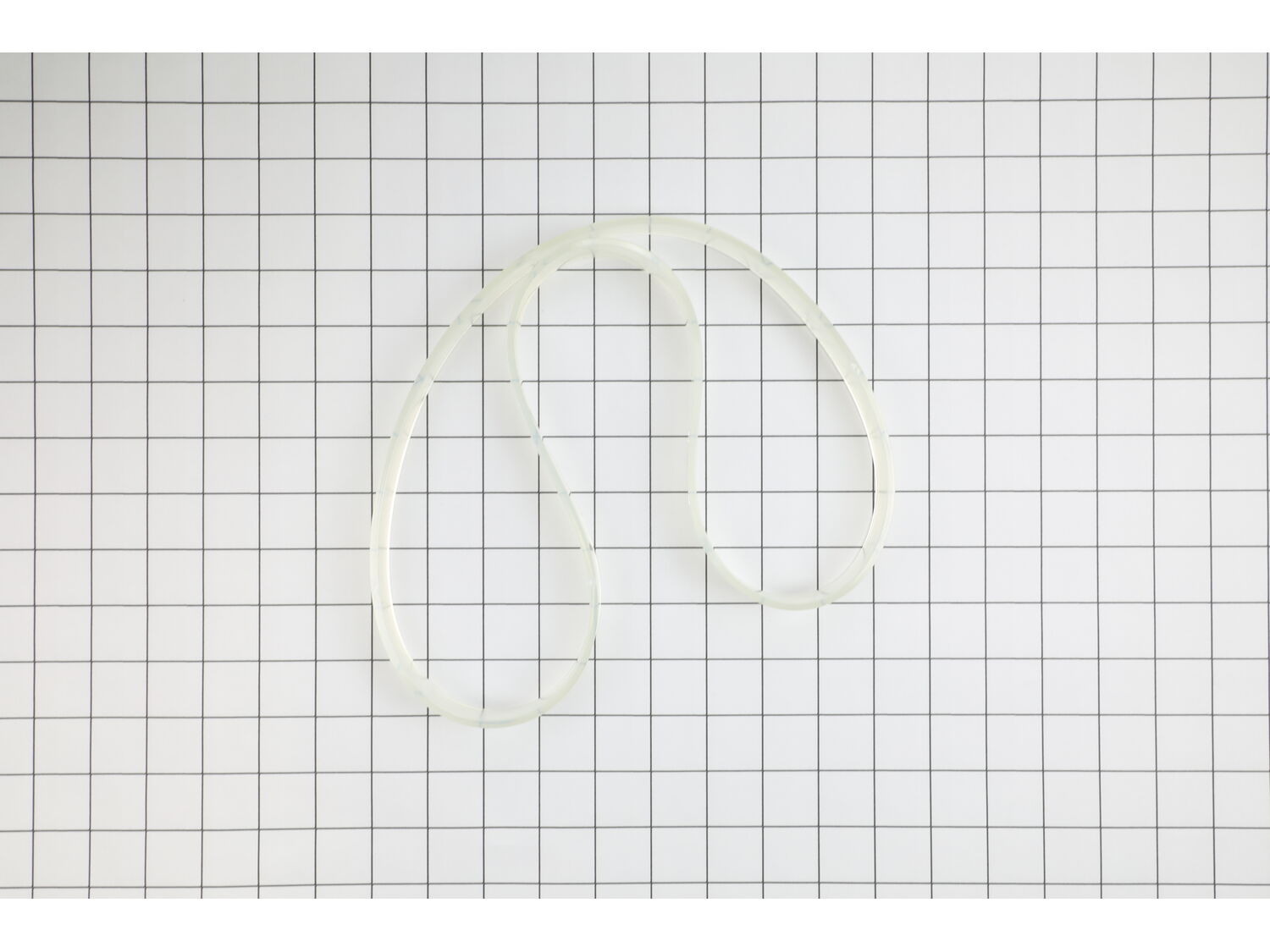

Genuine Porter Cable Wheel Tire for Band Saw. This part is made out of Rubber and is Sold Individually. When putting the tire on a band saw Wheel, it may seem too small but it is not. Band saw Tires will typically come approximately 2 or more inches smaller than the Tire you're replacing. The old Tire stretches over time thus becoming less effective and eventually will break. Also, as Tire ages the rubber hardens and allows the Blade to slip. You would need to put the New Tire in Hot/Warm Water to heat the tire enough to make it pliable enough to stretch. Its preferred to use two people in the stretching process.
Removed top pulley after releasing tension and blade. stretched new tire a few times and the worked it onto wheel.
For the bearing I removed the bearing and shaft. I used a set of snap ring pliers to remove old bearing and after putting a couple of drops of oil on shaft I put the new bearing on and set the snap ring back in place..
... Read morereassembled everything thing and set tension and spacing. Works like new.
Read less
Did you find this story helpful?
Thank you for voting!
Band saw fell down, broke the bracket that supports the table.
1. Unbolted the old broken pieces from the saw and table.
2. Bolted the new bracket in place, added grease on the slides.
3. Bolted the new brackets to the table
4. Installed the table and handwheels.
Remove the old tires from the wheels. Soak the tires in very hot water for a few minutes. Then stretch them on to the wheels, it does help to have an extra pair of hands to help with this.
1. Remove wheel from saw
2. Heat tires till they are more pliable
3. Apply tires to wheel using a pry tool to get it started
4. Reinstall wheel and put blade back on
Removed both band saw blade drive pulleys installed tire on each, reinstalled drive pulls. Tire was difficult to mount, but after soaking in warm water, and adding liquid detergent, mounting was accomplished.
Loosen the band saw blade,
Remove the band saw wheel
Place the wheel flat on the edge of a work bench or table.
Place the new wheel tire on the bottom of the wheel.
Clamp a small piece of wood on both edges of the wheel at 45 degree angle, to the wheel will stay in place and the rubber tire will not come off.
... Read more>Stretch the tire over the top of the wheel.
Simple if you do it this way, any other way is an absolute nightmare.
Soaked tire in boiling water to stretch over the wheel.
Did you find this story helpful?
Thank you for voting!
