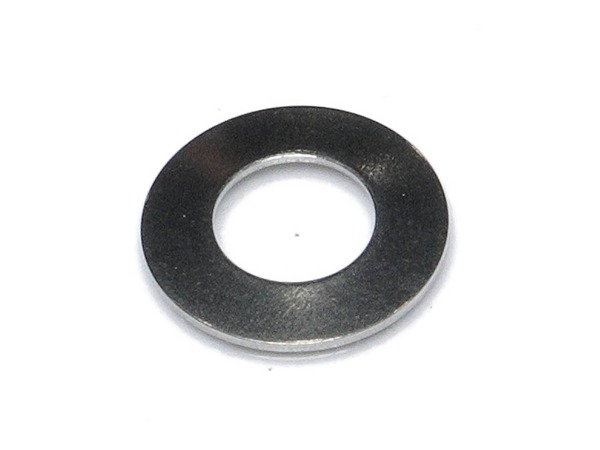

This is a genuine manufacturer-sourced replacement washer which is specially designed for use with Shimano fishing reels. It helps to distribute the pressure evenly and provide a tight seal between connected pieces. The washer is utilized to adjust the drag of the reel, please make sure to check appropriate diagram of your model for correct location and use of this hardware. Keep in mind this part is made of high-quality material and is sold individually.
Removed handle nut and retainer...removed handle...removed star drag....removed washers, one by one, and laid them out in order of removal...added new washers and seal to the set per the Shimano schematic...replaced all washers and parts to the reel as shown in the Shimano schematic..
Removed handle, removed washers and replaced. The parts diagram didn\'t show which direction the washers faced as they are beveled washers. I put the concave sides together so there was a space between the washers. This creates a spring action that the drag needs.
