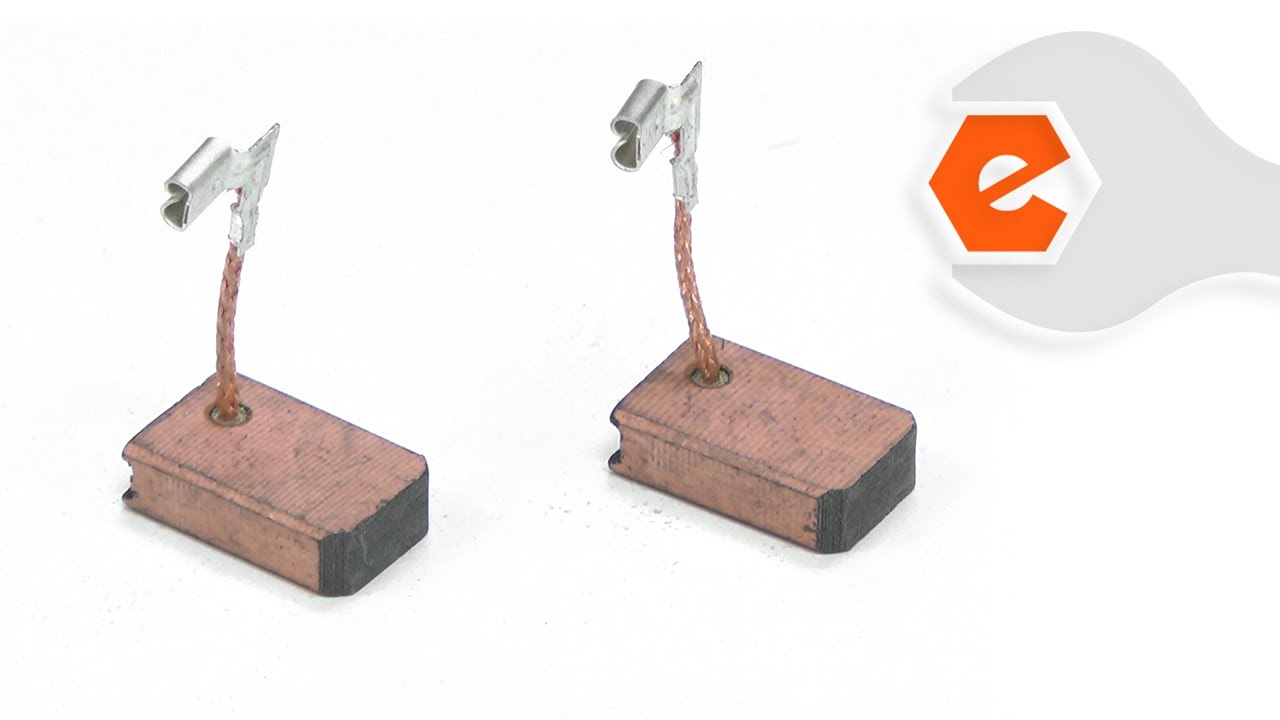

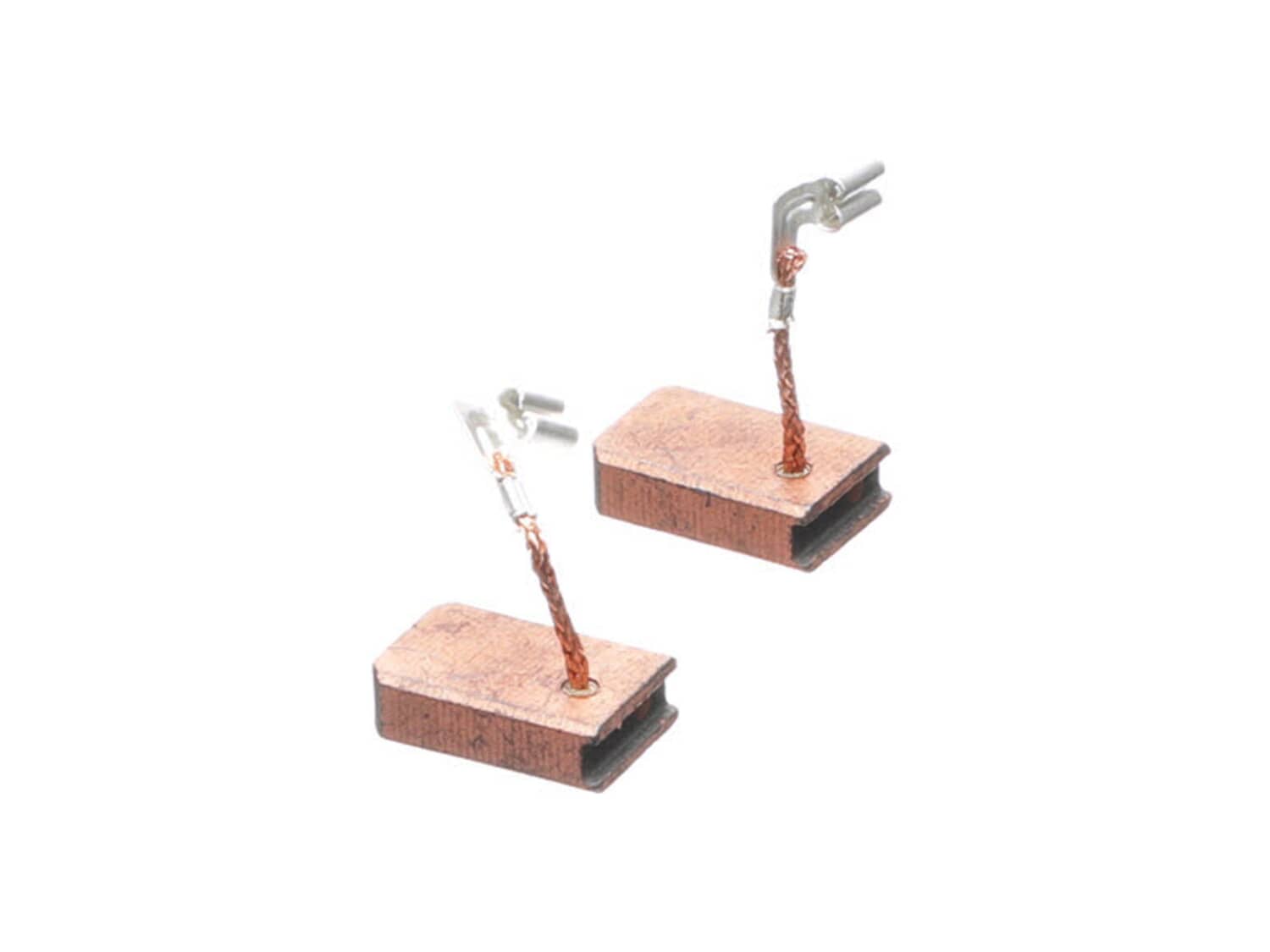

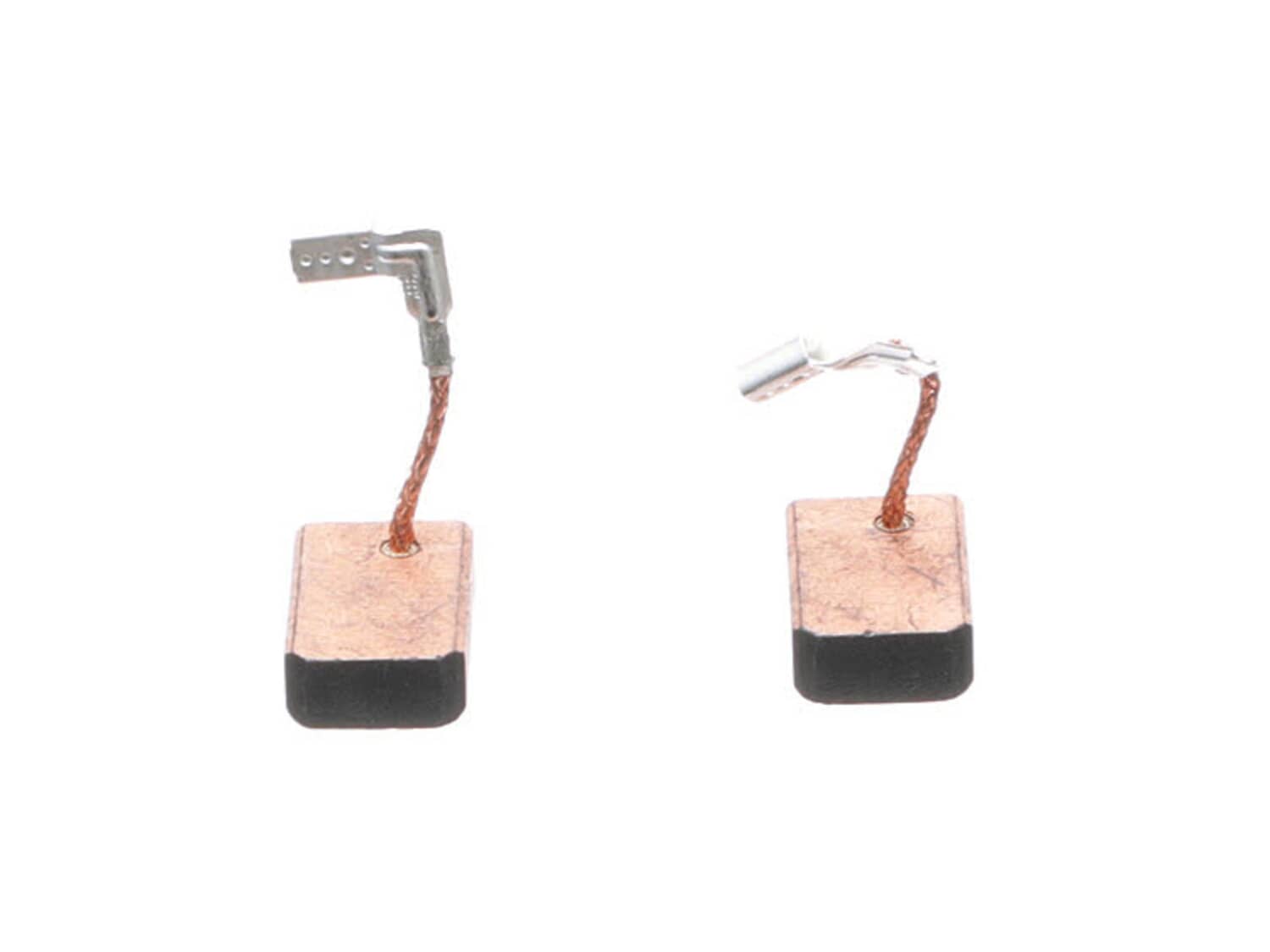

Set of 2 Carbon Brushes with wire leads and brush springs attached. The set contains genuine Makita replacement parts, and comes packaged in a Makita retail box. rnThis brush set will fit the Makita tools listed at the bottom of the page.
• Worn brushes frequently are the cause behind a motor running poorly.
• Replacing brushes can fix a motor that’s operating intermittently.
• New brushes can restore a motor’s electric braking.
Carbon brushes are one of the most commonly replaced power tool parts. This is because carbon brushes are wear items, meaning that through friction and use they will gradually wear away until they need replacing. Worn brushes are a common causes of intermittent motor function, reduced electric braking and reduced motor power. A worn-out brush will often be worn down near to the wire lead and can be cracked, pitted, or burned. When replacing carbon brushes, be sure to inspect your armature for burns, cracks, or other damage which can indicate larger motor problems.
Pulled cover off the back..
pulled brushes off carefully moving the spring to side
Then on the angle head, removed the 4 screws and pulled the head off after first marking the orientation of head
Blew out the stator of dust
Put the rotor in the vise carefully and sanded down the Commutator.
Then take a h
... Read moreardened tool and clean and bevel back the edges of each of the copper plates on comm
Blow
Off and polish comm
Pull old baffle out. Clean fan on rotor
And then reassemble in reverse
Very simple. Removed the housing screw at the base of the grinder. Slipped off the vented housing. Lifted the brush retainer arms off the old brushes and slipped in the new ones. Your repair video made that easy!
Remove rear cover. Remove brushes leads with needle nose pliers and replace them. Replace cover.
