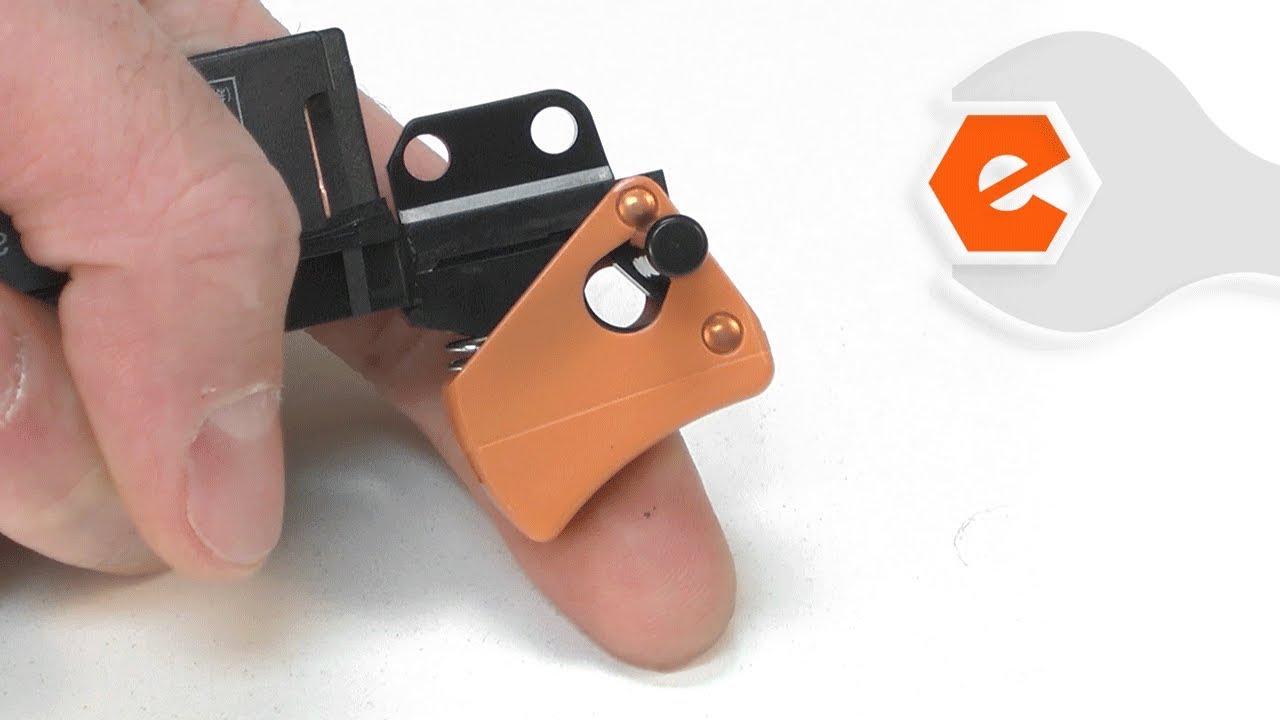

This Trigger switch has 4 terminals and a locking mechanism for the switch. This genuine Makita replacement part is sold individually. Switches are commonly replaced parts in tools. A switch handles on/off and variable speed operations. They also have a role in electric breaking; they can momentarily reverse electrical polarity. Because switches use mechanical internals, they will degrade and wear out over time, eventually needing replacement. Some common signs of a broken or failing switch are as follows: • The tool has completely stopped functioning • it will not start. • The tool operates intermittently, requiring multiple tries to turn on, until eventually it won't start at all. • The variable speed function and electric braking aren't working properly.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Easy repair
Arrived quickly
Guest - June 13, 2019
Verified Purchase
★★★★★
★★★★★
right part and fast
good service
Maurice - August 20, 2019
Verified Purchase
★★★★★
★★★★★
Grinder switch
I had been looking for this switch for quite awhile, remembered your web page and after a few minutes found it. It was a perfect fit for a grinder that is 40 plus years old if you need parts check Replacement Parts first they probably will have it
Guest - September 23, 2019
Verified Purchase
★★★★★
★★★★★
Exact replacement for long over-worn part.
Exceptional service and user friendly web site.delivery within one week.
Guest - October 24, 2019
Verified Purchase
★★★★★
★★★★★
parts for grinders
I run a welding shop at our high school. I have used them to replace parts at home on my appliances, now I use them to replace parts at school. They are wonderful to work with. They also made it easy for me to include my tax-exempt number on my orders.
Scott - January 14, 2020
Verified Purchase
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
I removed 5 screws to remove cover. Remove 2 screws that hold down the cord to the other side of the cover. Remove 2 screws that hold the electrical clips on the trigger, slide the new cord guard onto the new power cord.Replace old cord by installing the new electrical cord and attaching the 2 electrical clips to the new trigger. Attach t
... Read morehe 2 screws that hold down the electrical cord to the cover. Align the electrical cords to fit so they will not interfere with placement of the other side of the cover. Install the 5 screws and I am done.
Removed side cover and screws to switch , replaced switch and installed side cover. Makita 9005B grinder easy to repair, had this grinder for 15 years. Wayne T.
1. Took the grinder handle apart.
2. Removed the broken switch.
3. Installed the new one.
4. Put on the new cord while replacing the switch.
5. Just had to crimp the new wire connectors on the new power cord.
Removed the handle to expose the switch, removed the two screws holding the switch in place. Removed the four wires connected to the old switch. Began to wire the new switch, but found the new switch and the old one used different screws. I ended up going to the hardware store to find four metric screws that would fit the switch.
Did you find this story helpful?
Thank you for voting!
Trigger switch would not function easily, also the brushes were worn down to where there there was no spring pressure.
Remove the screws from the handle
Remove the switch and cord clamp
Make a wiring diagram, if needed
Disconnect the wires from the old switch
Connect the wires to the new switch
Install the new switch and cord clamp
Install the handle assembly
Remove the handle halves
Remove the switch and cord clamp
Remove the wires from the old switch
Connect the wires to the new switch
Attach the switch to the handle
Install the cord clamp
Replace the handle halves
Removed 6 screws from housing
Removes wires from switch
Replaced wires
Replaced housing with 6 screwswent to work grinding
