Part Location Diagram of 418727-2 Makita Switch Lever A
See part 53 in the diagram

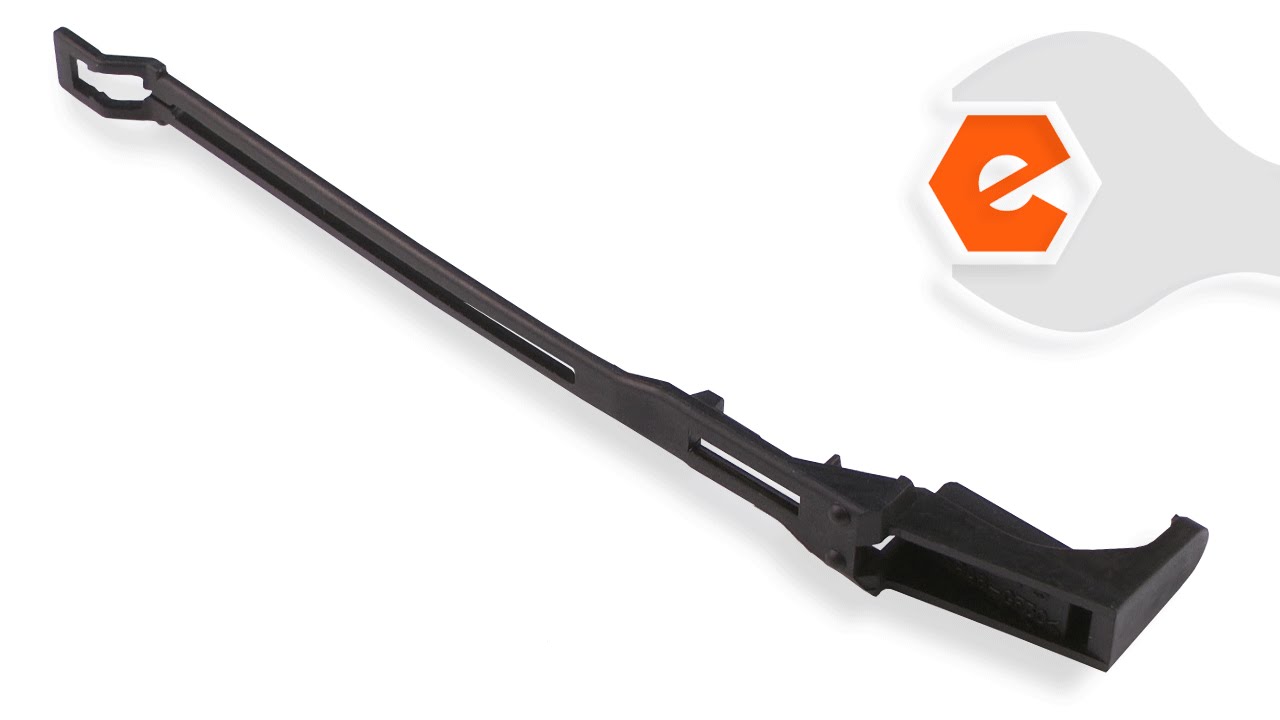

Replacing your Makita Angle Grinder Switch Lever A

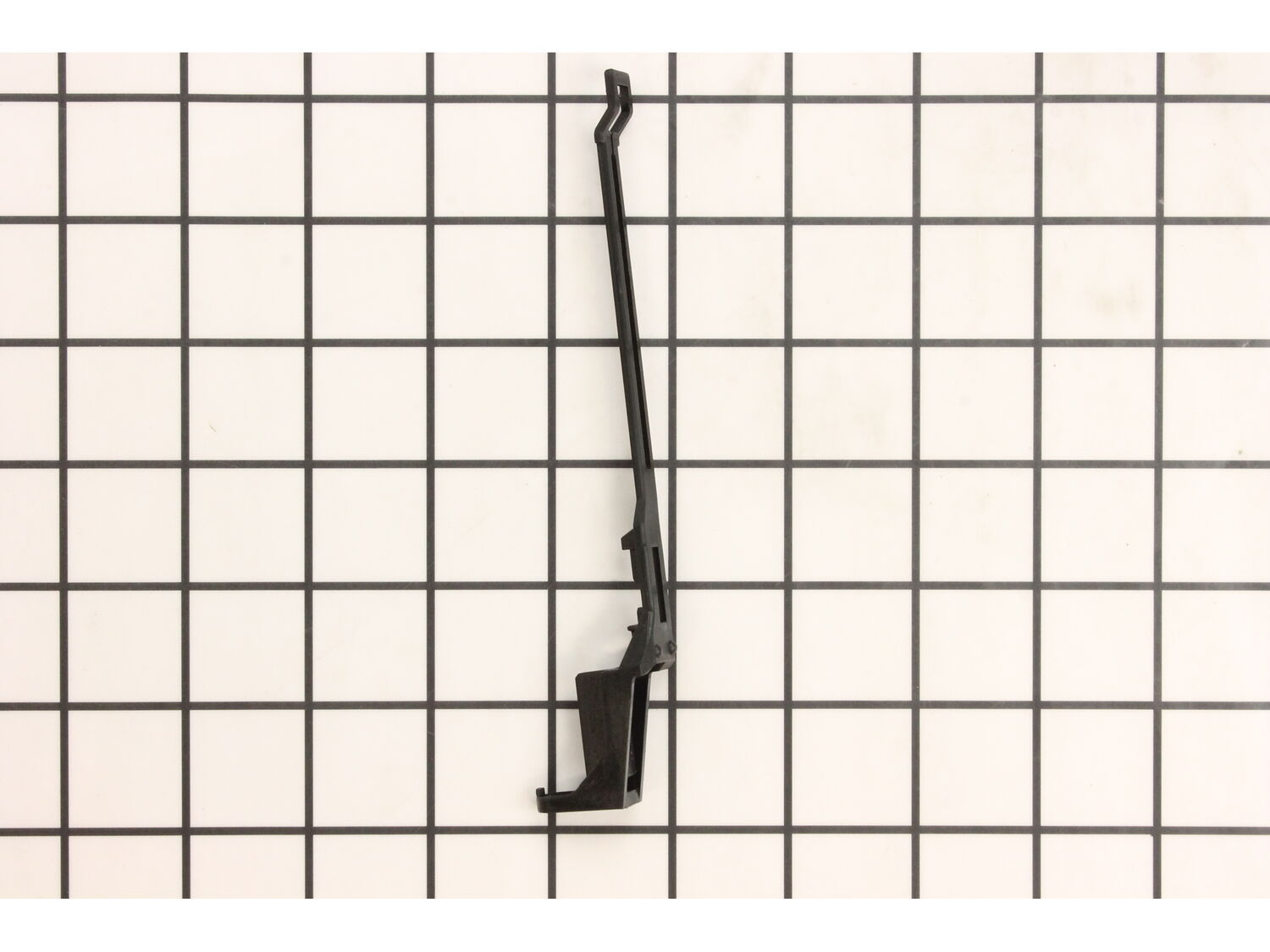

( Grid squares measure 1x1 inch )

Switch Lever A 418727-2

Manufactured by:
Makita
ERP Number:
ERP10150703
Part Number:
418727-2
Original Equipment Manufacturer ?
In Stock
Delivers in 3-5 Business Days!

A Bit Difficult

30 - 60 mins

(5 rated repairs) ?

Does this part fit my model?

Need help finding your model number?

Product Description

?

This plastic switch lever is specially designed for Makita angle grinders. It connects to the switch and allows user to turn the grinder on and off. Please note this item is sold individually. Please note the switch and switch button are both sold separately. Replacing this switch lever is a pretty simple task that can be done using a screwdriver. • Remove the rear cover • Disconnect the switch and the button • Remove old lever • Secure new lever in place • Reassemble and test the unit

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Makita
This part works with the following products:
  • Angle Grinder
  • Grinder
  • Die Grinder
Part# 418727-2 replaces these:
4187272,

Videos For installing this part.

?
Replacing your Switch Lever A

Customer Part Reviews

?
5.0
Average Rating (out of 5):
★★★★★
★★★★★
(1 Review)
Click to filter by ratings:
  • 5 stars
    1
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
  • 1
Sort by:
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

30 - 60 mins

(5 rated repairs) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Broken switch slider

kurt from Glendale, Arizona

5 of 5 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
418727-2
Removed cord housing and switch. Removed thumb slider then switch slider. Reinstalled new part.
Did you find this story helpful?
Thank you for voting!

Power switch button and switch lever broke

Thomas from Chicago, Illinois

4 of 4 people found this instruction helpful.
Difficulty Level:
Easy
Total Repair Time:
Less than 15 mins
Tools:
Screw drivers
Parts Used:
419566-3, 418727-2, 233121-5
1. Removed the rear motor housing shell.
2. Slid the plastic switch lever out of the main motor housing.
3. Cleaned the switch lever chanel with pipe cleaner.
4. Inserted the compression spring in the switch lever.
5. Lubed the switch lever with a silicon gel.
6. Inserted the switch lever into the main motor housing.
7. Pressed the power switch button into the switch lever.
8. Attached the rear motor housing.
9. Finished the grinding job that I started 4 days before when the switch broke.
Did you find this story helpful?
Thank you for voting!

SWITCH WAS NOT TURNING ON THE GRINDER

thomas from KINGMAN, Arizona

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
Parts Used:
418727-2
LUBRICATED THE SWITCH LEVER
Did you find this story helpful?
Thank you for voting!

Unit began by not turning off without being banged on a hard surface. Then eventually it wouldn\'t start at all.

Robert from BAKERSFIELD, California

1 person found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Pliers, Screw drivers
Parts Used:
418727-2
1. (Before removing any part if you are not familiar with the equipment make sure you mark the parts on both sides with a unique identifier and place and label all fasteners in separate plastic bags or containers.)
Removed the handle held in place with four Philips screws.
2. lifted the brush springs to one side to remove tens ion on the brushes.
3. lifted the brushes to clear the armature or rotor.
4. removed the gear box held with four Philips screws.
5. removed the baffle held in place with two Philips screws.
6. removed the armature or rotor.
7. lifted the plastic retainer holding the stator in place and taped hard on a concrete surface to jog the stator out of position.
8. Once the stator was flush with the housing I used two spacers and continued to encourage the stator to clear the housing.
9. Removed the switch button by pushing the button forward until it clicked free of the switch mechanism.
10. With the switch button removed the switch mechanism slide almost all the way out but had to be rotated 90 degrees to clear the retention mechanism.
11. installation was the reverse of disassembly with the exception of pressing the stator back into place. At this point a piece of 2\" PVC 4\" long was used to avoid damaging the stator windings. Smaller or larger diameter PVC may be needed for different models using a similar design.
Did you find this story helpful?
Thank you for voting!

Switch assy. broke on my Makita Grinder

Glenn from Grapeview, Washington

0 of 1 people found this instruction helpful.
Difficulty Level:
Difficult
Total Repair Time:
1- 2 hours
Tools:
Screw drivers
Parts Used:
418727-2
Unscrew all torques screws & disassemble unit to install 2 pcs.
Did you find this story helpful?
Thank you for voting!
