Part Location Diagram of 256459-1 Makita Pin
See part 57 in the diagram

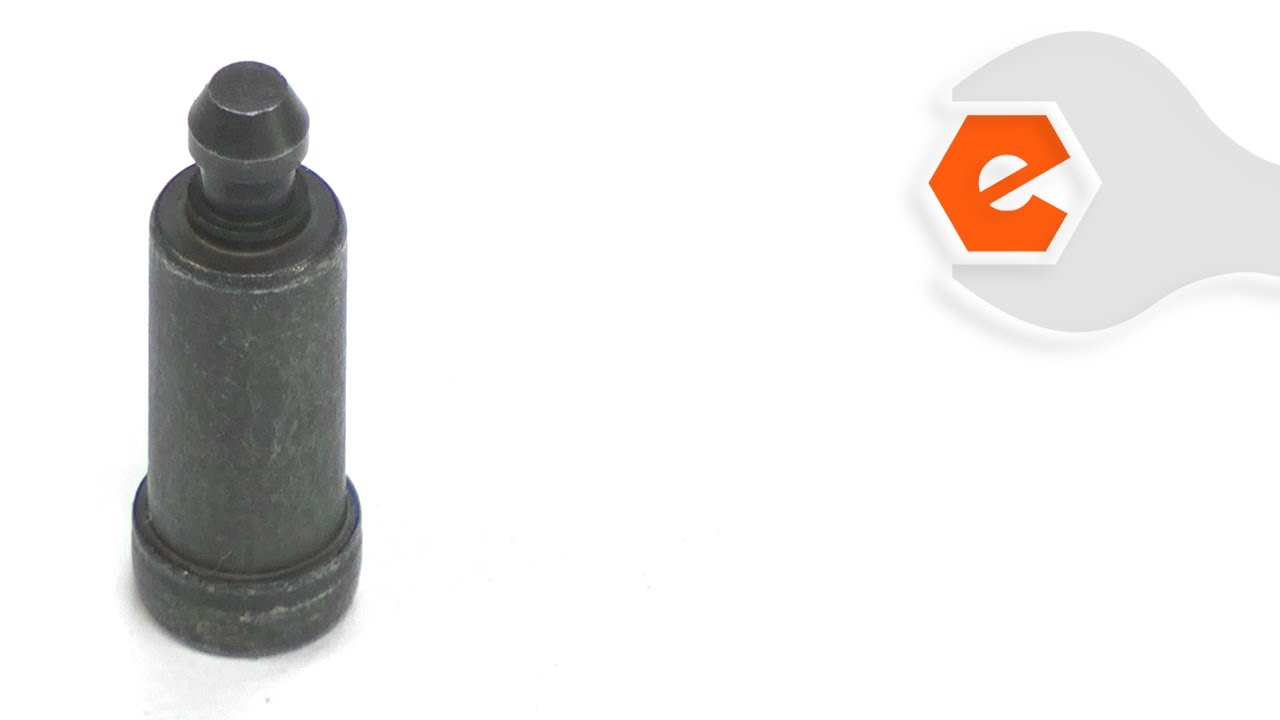

Replacing your Makita Angle Grinder Pin
( Grid squares measure 1x1 inch )

Pin 256459-1

Manufactured by:
Makita
ERP Number:
ERP10144598
Part Number:
256459-1
Original Equipment Manufacturer ?
$5.95
Special Order
Minimum Quantity of 2 required

A Bit Difficult

15 - 30 mins

(1 rated repair) ?

Does this part fit my model?

Need help finding your model number?

Product Description

?

This is an authentic Makita replacement part that has been sourced from the original manufacturer to be used with angle grinders. The pin fits into the gearcase and is used to stop the spindle from rotating when changing the grinding disc. the bearing box, spindle, and bevel gear will need to be removed to install this item. A hex driver, small pick, and small-nose pliers may be needed to install this item. The pin is priced as a single item.

Frequently Purchased Together

?

Troubleshooting

This part works with the following brands:
  • Makita
This part works with the following products:
  • Angle Grinder

Videos For installing this part.

?
Replacing your Pin

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

A Bit Difficult

15 - 30 mins

(1 rated repair) ?
  • 1
Sort by:
Sorry, we couldn't find any existing installation instruction that matched.

Spindle lock pin broke

Marty from Rochester, New York

2 of 2 people found this instruction helpful.
Difficulty Level:
A Bit Difficult
Total Repair Time:
15 - 30 mins
Tools:
Screw drivers
1) Remove plastic cover from head
2) Remove four screws
3) Remove top cover
4) Put o-ring on pin and insert through hole
5) Put spring over pin (from top side )
6) Press cap onto pin
7) Reassemble
