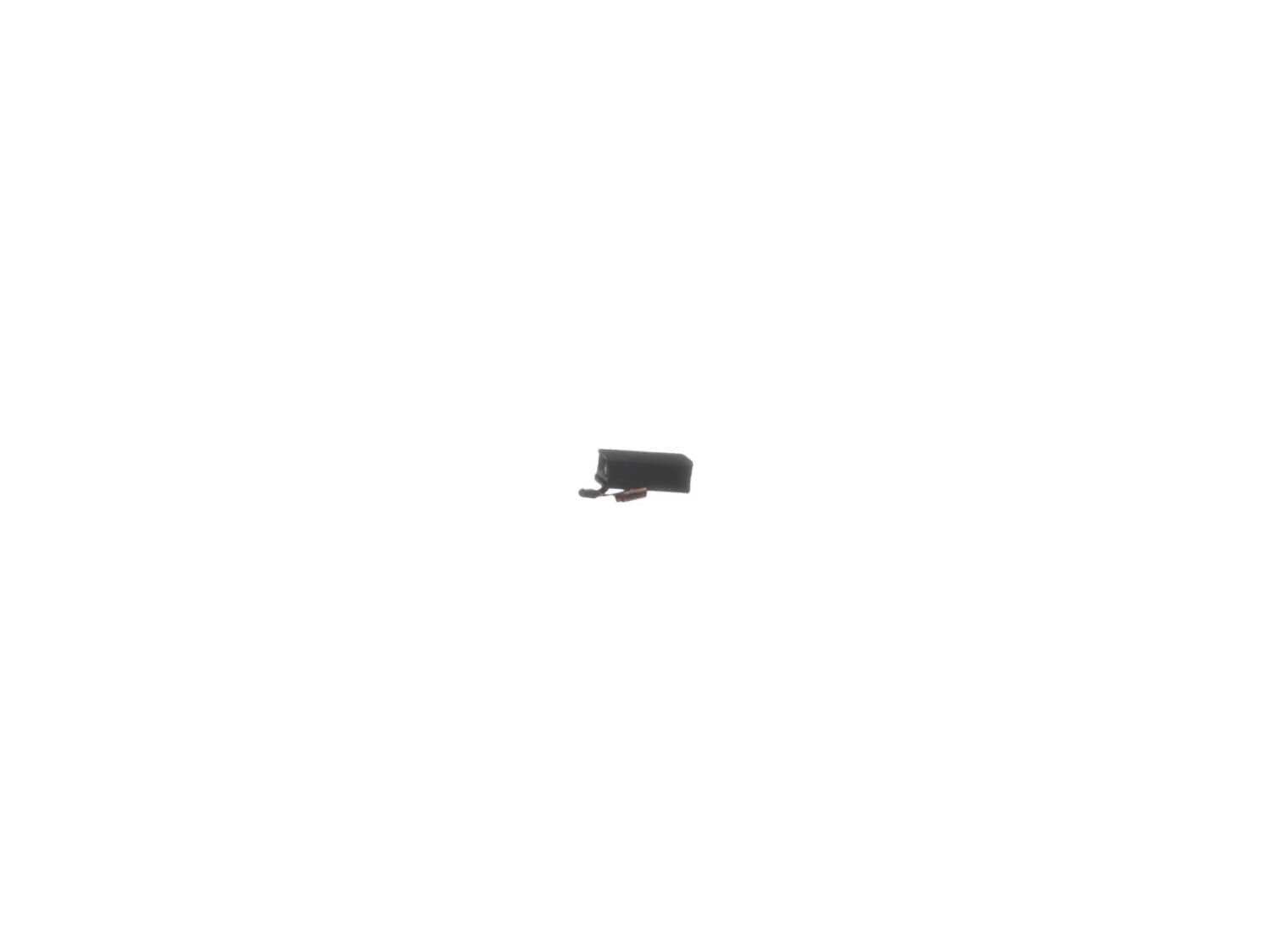

Genuine Dewalt replacement part This brush is sold individually, 2 are needed for the tools shown below It is always best to replace both brushes, even if only one is worn. Worn brushes frequently are the cause behind a motor running poorly. Replacing brushes can fix a motor that's operating intermittently. New brushes can restore a motor's electric braking. Carbon brushes are one of the most commonly replaced power tool parts. This is because carbon brushes are wear items, meaning that through friction and use they will gradually wear away until they need replacing. Worn brushes are a common causes of intermittent motor function, reduced electric braking and reduced motor power. A worn-out brush will often be worn down near to the wire lead and can be cracked, pitted, or burned. When replacing carbon brushes, be sure to inspect your armature for burns, cracks, or other damage which can indicate larger motor problems.
Sorry, we couldn't find any existing reviews that matched. Try using some different or simpler keywords.
★★★★★
★★★★★
Keeping good tools working
Price, delivery, fit & function all great. Put a good tool back in service!!!
Guest - September 10, 2019
Verified Purchase
★★★★★
★★★★★
Parst
Arrived quickly and fit perfectly., exactly the parts that I needed, its not expensive.
Guest - October 1, 2019
Verified Purchase
★★★★★
★★★★★
Works like new .
My grinder is working like new again . Parts got here fast an a good price . Will order again when needed .
Guest - February 15, 2023
Verified Purchase
★★★★★
★★★★★
Worked as expected
The brushes fit the original application. The tool now works like new.
Guest - December 1, 2023
Verified Purchase
★★★★★
★★★★★
brushes
good repair
Wesley - October 12, 2025
Verified Purchase
★★★★★
★★★★★
Fit perfect, easy to install.
Parts were easy to find, order was easy to place, and they came quickly.
Guest - October 15, 2019
Verified Purchase
★★★★★
★★★★★
Quick delivery, correct parts
Parts fit and functioned as they should.
Guest - March 23, 2020
Verified Purchase
★★★★★
★★★★★
The carbon brushes fit properly into the grinder
They came in good condition and it’s exactly what I ordered thank you
Guest - April 22, 2021
Verified Purchase
★★★★★
★★★★★
simple repair, parts fit perfectly
As usual, the brushes were exactly what I needed for the repair. I thought the price was a little high, but in today's times, the repair was a lot more cost effective than buying a new tool. My order came sooner than I expected which was great.
Ron - April 26, 2021
Verified Purchase
★★★★★
★★★★★
Dewalt grinder parts
Arrived quickly. Easy to find the part on line.
Guest - January 12, 2022
Verified Purchase
< Prev
1
2
Next >
Questions & Answers
?
Our customer Service team is at the ready daily to answer your part and product questions.
We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.
Ask our Team
We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
Removed the back housing. Pulled the brush springs out and rested it on the brush holders. Disconnected the brush terminals and removed the brushes, installed the new brushes, connected the terminals and placed the spring on the back of the brushes. Then installed the back housing.
Removed cover, unplugged old brush, removed old brush, installed new brush.
Removed old switch, installed new switch.
Installed new switch, replaced cover.
Remove back cover, pull end of the brush retaining spring out and rest it on the brush holder. Remove brush leads from the terminals and from brush holders. Install the new brushes. Then assemble in reverse order. Now it runs like a new one, thanks again for parts and service you guys provide
I took the unit apart on both end and removed the brush\'s first and then pulled the Armature out and put in the new parts and then replaced the cord last
Remove screw holding back of grinder body on, with star driver.
Remove both (two) brush holders, using star driver.
Pull wire spade connector loose, and use small flat screw driver to hold spring back that maintains pressure on brush. Remove old brush, and install new. Make sure spring is back in place, putting pressure on bru
... Read moresh. Reinstall spade connector.
Put brush holder back in place, and reinstall star screw. Repeat process on second brush holder.
Once both brushes are replaced, reinstall rear portion of the grinder body, and reinstall screw.
Spin spindle of grinder, while unplugged, to check for any unnatural noises or issues. Once satisfied that brushes are making the proper contact with the armature, plug cord in and turn on the grinder. Should run like it was new.
Took screw out on back of the grinder.
Took brushes out set aside
Removed 4 screws to off right angle gear box
Pulled out armature and replaced with new armature
Put grease on gear and pinion
Put gear box back on and installed screws
Installed new brush set
Put housing back together and installed
... Read morescrew
Made sure everything was turning freely and plugged into wall and pushed on the switch and everything ran great.
