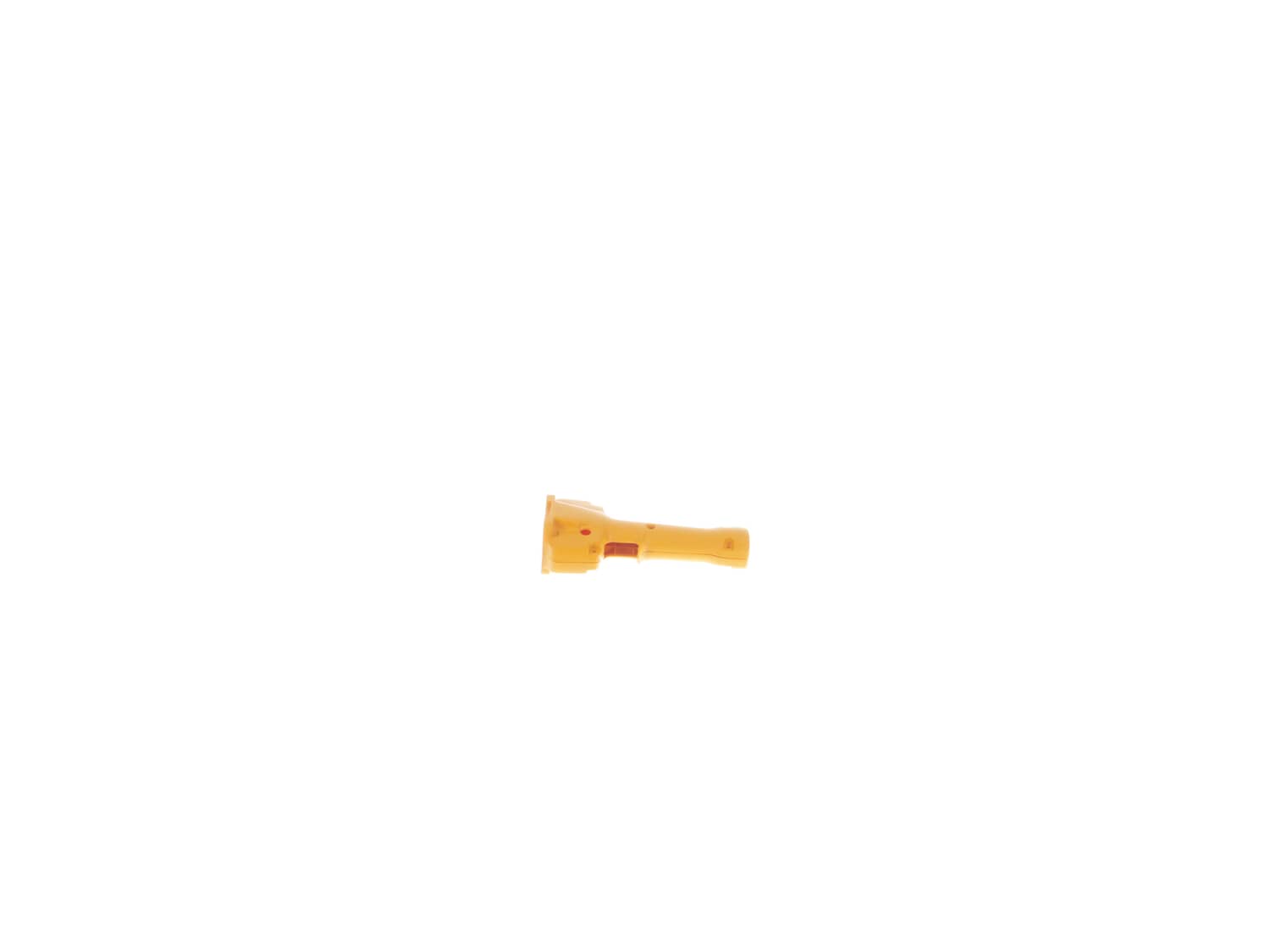

10165705-1-M-DeWALT-131527-02-Switch Hndl.asy

( Grid squares measure 1x1 inch )

10165705-1-S-DeWALT-131527-02-Switch Hndl.asy

10165705-2-S-DeWALT-131527-02-Switch Hndl.asy

10165705-3-S-DeWALT-131527-02-Switch Hndl.asy

10165705-1-S-DeWALT-131527-02-Switch Hndl.asy 360 view

Switch Hndl.asy 131527-02

Manufactured by:: DeWALT
ERP Number:: ERP10165705
Part Number:: 131527-02

Works with your model DW488!

$31.70

Delivers in 3-5 Business Days!

Easy

15 - 30 mins

(1 rated repair) ?

Works with your model DW488!

Jump to:

Troubleshooting Questions & Answers Repair Instructions Model Cross Reference

Troubleshooting

This part works with the following brands:

DeWALT
Black and Decker

This part works with the following products:

Angle Grinder
Chop Saw

Questions & Answers

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

Does this fit my product?

Customer Repair Instructions

All our customer repair instructions are solicited directly from other customers just like you who have purchased and replaced this exact part.

Easy

15 - 30 mins

(1 rated repair) ?

< Prev
1
Next >

Sort by:

Handle broken, cord protector worn

John from Bedford, Virginia

0 of 1 people found this instruction helpful.

Difficulty Level:: Easy
Total Repair Time:: 15 - 30 mins
Tools:: Screw drivers
Parts Used:: 62300-00, 131527-02

Remove the screws from the handle assembly and separate
Remove the cord wires from the switch
Remove the cord clamp and remove the cord
Slide the new cord protector on the cord
Connect the wires back into the switch
Install the cord clamp
Place the housings together and install the screws

Did you find this story helpful?

< Prev
1
Next >

Model Cross Reference

This part works with the following models:

ERP Number: ERP10165705
Manufacturer Part Number: 131527-02

Brand	Model Number	Description
Black and Decker	3912	Chop Saw - 12 Cut Off Machine
DeWALT	DW488	Angle Grinder - Sander/Grinder
DeWALT	DW493	Angle Grinder - Sander/Grinder
DeWALT	DW494	Angle Grinder - Sander/Grinder
DeWALT	DW494-220	Angle Grinder - Sander/Grinder
DeWALT	DW866	Chop Saw - Cut Off Machine
