Whirlpool Parts

Whirlpool Beverage Center Wine and Beverage Cooler Replacement Parts For Model WUB50X24HV02

We Sell Only Genuine Whirlpool Parts

Find Whirlpool WUB50X24HV02 Parts By Symptom

Will Not Start

100%

Popular Parts for WUB50X24HV02

Refrigerator Start Relay Combination – Part Number: WP2262181 Refrigerator Start Relay Combination
In Stock
$71.35
PLATE – Part Number: W11263339 PLATE
Special Order
$14.65
DRIER-TUBE – Part Number: W11109499 DRIER-TUBE
In Stock
$34.97
CONTROL – Part Number: W11311792 CONTROL
In Stock
$131.92
CONTRL-BOX – Part Number: W11312540 CONTRL-BOX
In Stock
$104.95
LEVELER – Part Number: W11106296 LEVELER
Special Order
$15.70
Handle Stud – Part Number: W11179356 Handle Stud
Special Order
$16.75
THERMISTOR – Part Number: W11266076 THERMISTOR
In Stock
$60.13

Search Within Model

Questions & Answers for Whirlpool WUB50X24HV02
Browse all Parts Search by Area
Cabinet Parts Diagram and Parts List for Whirlpool Wine and Beverage Cooler
Cabinet Parts
Door Parts Diagram and Parts List for Whirlpool Wine and Beverage Cooler
Door Parts
Unit Parts Diagram and Parts List for Whirlpool Wine and Beverage Cooler
Unit Parts
Previous Showing All Parts Next

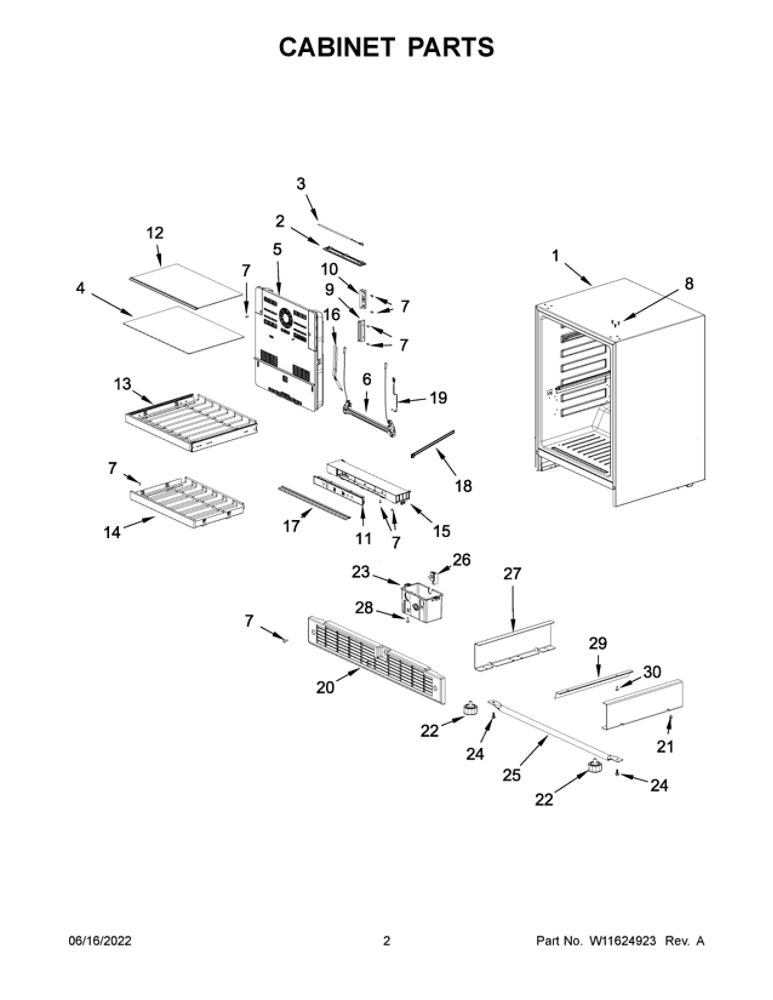

Cabinet Parts
Cabinet Parts Diagram and Parts List for Whirlpool Wine and Beverage Cooler
  • 1
    NOT AVAILABLE – Part Number: N/P
    NOT AVAILABLE
    Part Number: N/P
      No Longer Available
  • 2
    LENS-LIGHT – Part Number: W11312450
    LENS-LIGHT
    Part Number: W11312450
      Special Order
    $50.42
  • 3
    LENS-LIGHT – Part Number: W11263841
    LENS-LIGHT
    Part Number: W11263841
      Special Order
    $74.63
  • 4
    SHELF-GLAS – Part Number: W11311791
    SHELF-GLAS
    Part Number: W11311791
      Special Order
    $144.83
  • 5
    COVER-EVAP – Part Number: W11312455
    COVER-EVAP
    Part Number: W11312455
      In Stock
    $155.21
  • 6
    USE WPL W11265415 – Part Number: W11263842
    USE WPL W11265415
    Part Number: W11263842
      No Longer Available
  • 7
    SCREW – Part Number: W11675284
    SCREW
    Part Number: W11675284
      Special Order
    $17.80
  • 8
    Screw (Stainless) – Part Number: 4344796
    Screw (Stainless)
    Part Number: 4344796
      Special Order
    $20.95
  • 9
    SUPPORT – Part Number: W11311388
    SUPPORT
    Part Number: W11311388
      Special Order
    $125.95
  • 10
    SUPPORT – Part Number: W11311389
    SUPPORT
    Part Number: W11311389
      Special Order
    $125.95
  • 11
    CONTROL – Part Number: W11311792
    CONTROL
    Part Number: W11311792
      In Stock
    $131.92
  • 12
    SHELF-GLAS – Part Number: W11266373
    SHELF-GLAS
    Part Number: W11266373
      Special Order
    $144.83
  • 13
    SHELF-WINE – Part Number: W11312493
    SHELF-WINE
    Part Number: W11312493
      Special Order
    $153.33
  • 14
    SHELF-WINE – Part Number: W11312494
    SHELF-WINE
    Part Number: W11312494
      Special Order
    $153.33
  • 15
    CONTRL-BOX – Part Number: W11312540
    CONTRL-BOX
    Part Number: W11312540
      In Stock
    $104.95
  • 16
    Temperature fuse – Part Number: W11476539
    Temperature fuse
    Part Number: W11476539
      No Longer Available
  • 17
    TRIM – Part Number: W11312550
    TRIM
    Part Number: W11312550
      In Stock
    $60.13
  • 18
    Cable Tie – Part Number: 4344829
    Cable Tie
    Part Number: 4344829
      Special Order
    $19.90
  • 19
    THERMISTOR – Part Number: W11266076
    THERMISTOR
    Part Number: W11266076
      In Stock
    $60.13
  • 20
    GRILLE – Part Number: W11700300
    GRILLE
    Part Number: W11700300
      In Stock
    $51.97
  • 21
    SCREW – Part Number: W11371101
    SCREW
    Part Number: W11371101
      Special Order
    $20.95
  • 22
    LEVELER – Part Number: W11106296
    LEVELER
    Part Number: W11106296
      Special Order
    $15.70
  • 23
    COVER – Part Number: W11476540
    COVER
    Part Number: W11476540
      Special Order
    $54.01
  • 24
    SCREW – Part Number: W11371100
    SCREW
    Part Number: W11371100
      Special Order
    $20.95
  • 25
    BRACE – Part Number: W11265575
    BRACE
    Part Number: W11265575
      Special Order
    $91.69
  • 26
    SWITCH – Part Number: W11266082
    SWITCH
    Part Number: W11266082
      Special Order
    $27.76
  • 27
    SUPPORT – Part Number: W11313093
    SUPPORT
    Part Number: W11313093
      Special Order
    $125.95
  • 28
    SCREW – Part Number: W11371097
    SCREW
    Part Number: W11371097
      Special Order
    $20.95
  • 29
    SEAL – Part Number: W11265577
    SEAL
    Part Number: W11265577
      Special Order
    $28.79
  • 30
    SCREW – Part Number: W11371103
    SCREW
    Part Number: W11371103
      Special Order
    $20.95

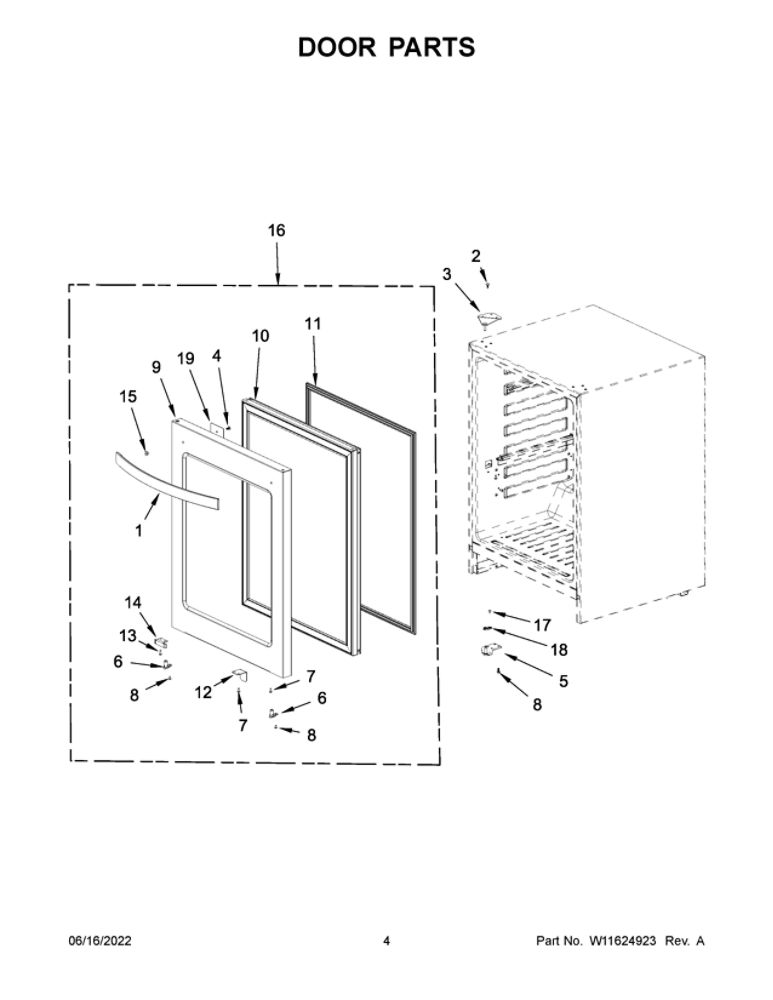

Door Parts
Door Parts Diagram and Parts List for Whirlpool Wine and Beverage Cooler
  • 1
    HANDLE – Part Number: W11685317
    HANDLE
    Part Number: W11685317
      In Stock
    $74.41
  • 2
    Screw (Stainless) – Part Number: 4344796
    Screw (Stainless)
    Part Number: 4344796
      Special Order
    $20.95
  • 3
    HINGE-DOOR – Part Number: W11264668
    HINGE-DOOR
    Part Number: W11264668
      In Stock
    $55.03
  • 4
    SCREW – Part Number: W10319186
    SCREW
    Part Number: W10319186
      No Longer Available
  • 5
    HINGE-DOOR – Part Number: W11312624
    HINGE-DOOR
    Part Number: W11312624
      In Stock
    $54.01
  • 6
    CLOSER – Part Number: W11266079
    CLOSER
    Part Number: W11266079
      Special Order
    $14.65
  • 7
    SCREW – Part Number: W11371097
    SCREW
    Part Number: W11371097
      Special Order
    $20.95
  • 8
    SCREW – Part Number: W11371100
    SCREW
    Part Number: W11371100
      Special Order
    $20.95
  • 9
    DOOR-SKIN – Part Number: W11476533
    DOOR-SKIN
    Part Number: W11476533
      Special Order
    $435.80
  • 10
    Foam, door – Part Number: W11614591
    Foam, door
    Part Number: W11614591
      No Longer Available
  • 11
    GASKET-DOR – Part Number: W11315259
    GASKET-DOR
    Part Number: W11315259
      In Stock
    $127.95
  • 12
    BRACKET – Part Number: W11264669
    BRACKET
    Part Number: W11264669
      Special Order
    $47.33
  • 13
    SCREW – Part Number: W11371345
    SCREW
    Part Number: W11371345
      Special Order
    $20.95
  • 14
    Stopper, Door – Part Number: W11312648
    Stopper, Door
    Part Number: W11312648
      No Longer Available
  • 15
    Handle Stud – Part Number: W11179356
    Handle Stud
    Part Number: W11179356
      Special Order
    $16.75
  • 16
    DOOR – Part Number: W11476529
    DOOR
    Part Number: W11476529
      Special Order
    $542.02
  • 17
    SCREW – Part Number: W10243123
    SCREW
    Part Number: W10243123
      Special Order
    $20.95
  • 18
    WASHER – Part Number: W11265406
    WASHER
    Part Number: W11265406
      Special Order
    $20.95
  • 19
    PLATE – Part Number: W11263339
    PLATE
    Part Number: W11263339
      Special Order
    $14.65

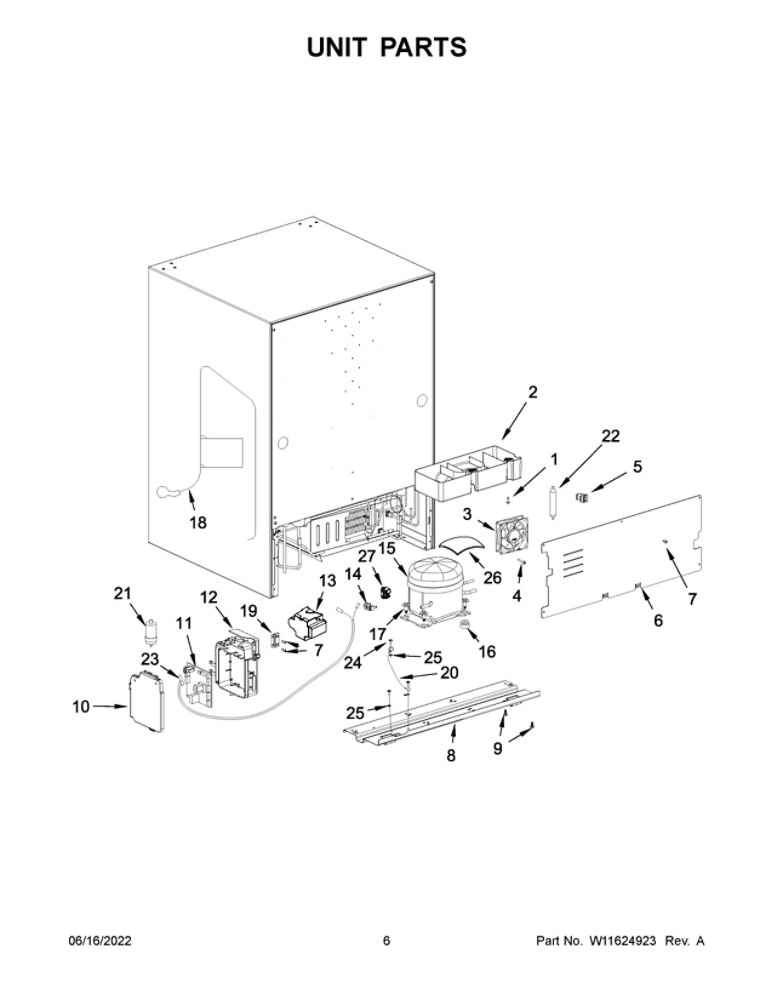

Unit Parts
Unit Parts Diagram and Parts List for Whirlpool Wine and Beverage Cooler
  • 1
    SCREW – Part Number: W11375763
    SCREW
    Part Number: W11375763
      Special Order
    $20.95
  • 2
    PAN-DRIP – Part Number: W11538057
    PAN-DRIP
    Part Number: W11538057
      Special Order
    $60.13
  • 3
    MOTOR-EVAP – Part Number: W11266081
    MOTOR-EVAP
    Part Number: W11266081
      In Stock
    $95.87
  • 4
    SCREW – Part Number: W11371341
    SCREW
    Part Number: W11371341
      Special Order
    $20.95
  • 5
    CLAMP – Part Number: W11266075
    CLAMP
    Part Number: W11266075
      Special Order
    $22.00
  • 6
    COVER-BACK – Part Number: W11264703
    COVER-BACK
    Part Number: W11264703
      Special Order
    $83.23
  • 7
    SCREW – Part Number: W11371097
    SCREW
    Part Number: W11371097
      Special Order
    $20.95
  • 8
    Plate, base – Part Number: W11614599
    Plate, base
    Part Number: W11614599
      No Longer Available
  • 9
    SCREW – Part Number: W11371100
    SCREW
    Part Number: W11371100
      Special Order
    $20.95
  • 10
    COVER – Part Number: W11313206
    COVER
    Part Number: W11313206
      Special Order
    $50.42
  • 11
    CNTRL-ELEC – Part Number: W11629251
    CNTRL-ELEC
    Part Number: W11629251
      In Stock
    $189.83
  • 12
    CONTRL-BOX – Part Number: W11313209
    CONTRL-BOX
    Part Number: W11313209
      Special Order
    $104.95
  • 13
    COVER – Part Number: W11579581
    COVER
    Part Number: W11579581
      Special Order
    $43.21
  • 14
    OVERLOAD – Part Number: W11683120
    OVERLOAD
    Part Number: W11683120
      Special Order
    $42.18
  • 15
    COMPRESSOR – Part Number: W11538055
    COMPRESSOR
    Part Number: W11538055
      In Stock
    $249.43
  • 16
    Grommet, Compressor – Part Number: WP4344779
    Grommet, Compressor
    Part Number: WP4344779
      Special Order
    $9.40
  • 17
    SCREW – Part Number: W10772873
    SCREW
    Part Number: W10772873
      Special Order
    $49.39
  • 18
    CORD-POWER – Part Number: W11618463
    CORD-POWER
    Part Number: W11618463
      Special Order
    $73.39
  • 19
    CLAMP – Part Number: W11579515
    CLAMP
    Part Number: W11579515
      Special Order
    $22.00
  • 20
    WIRE – Part Number: W11265588
    WIRE
    Part Number: W11265588
      Special Order
    $70.33
  • 21
    CAPACITOR – Part Number: W11538053
    CAPACITOR
    Part Number: W11538053
      Special Order
    $50.42
  • 22
    DRIER-TUBE – Part Number: W11109499
    DRIER-TUBE
    Part Number: W11109499
      In Stock
    $34.97
  • 23
    HARNS-WIRE – Part Number: W11263876
    HARNS-WIRE
    Part Number: W11263876
      Special Order
    $51.45
  • 24
    Screw, Lower Hinge (Quantity 3 – Part Number: 4344797
    Screw, Lower Hinge (Quantity 3
    Part Number: 4344797
      Special Order
    $19.90
  • 25
    WASHER – Part Number: W10322070
    WASHER
    Part Number: W10322070
      No Longer Available
  • 26
    INSULATION – Part Number: W11596025
    INSULATION
    Part Number: W11596025
      Special Order
    $26.20
  • 27
    Refrigerator Start Relay Combination – Part Number: WP2262181
    Refrigerator Start Relay Combination
    Part Number: WP2262181
      In Stock
    $71.35
  • NI
    NOT AVAILABLE – Part Number: N/P
    NOT AVAILABLE
    Part Number: N/P
      No Longer Available
