Jenn-Air BEVERAGE CENTER Wine and Beverage Cooler Replacement Parts For Model JUW24FLECX00

We Sell Only Genuine Jenn-Air Parts

Popular Parts for JUW24FLECX00

SCREW – Part Number: W11380570 SCREW
In Stock
$20.95
Seal – Part Number: 4344823 Seal
In Stock
$48.36
Service Cord Clamp – Part Number: 549193 Service Cord Clamp
Special Order
$16.75
Refrigerator Power Cord – Part Number: WPW10204676 Refrigerator Power Cord
Special Order
$64.21
PLATE – Part Number: W11263339 PLATE
Special Order
$14.65
LEVELER – Part Number: W11106296 LEVELER
Special Order
$15.70
SCREW – Part Number: W10780349 SCREW
In Stock
$49.39
SENSOR – Part Number: W10780359 SENSOR
Special Order
$64.21

Search Within Model

Questions & Answers for Jenn-Air JUW24FLECX00
Browse all Parts Search by Area
Cabinet Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Cabinet Parts
Cover Sheet Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Cover Sheet
Door Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Door Parts
Shelf Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Shelf Parts
Unit Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Unit Parts
Previous Showing All Parts Next

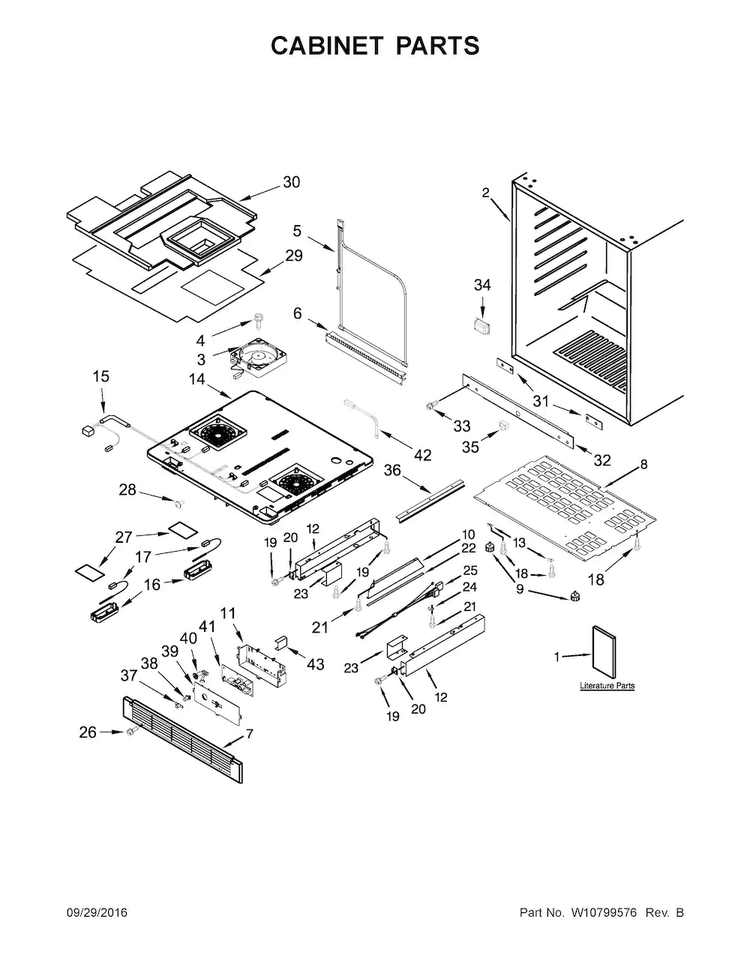

Cabinet Parts
Cabinet Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
  • 1
    USE & CARE GUIDE – Part Number: W10741581
    USE & CARE GUIDE
    Part Number: W10741581
      No Longer Available
  • 1A
    ENERGY GUIDE – Part Number: W10804437
    ENERGY GUIDE
    Part Number: W10804437
      No Longer Available
  • 3
    MOTOR-EVAP – Part Number: W10854409
    MOTOR-EVAP
    Part Number: W10854409
      In Stock
    $176.95
  • 4
    SCREW – Part Number: W10205061
    SCREW
    Part Number: W10205061
      Special Order
    $45.27
  • 5
    BIMETL-DEF – Part Number: W10292475
    BIMETL-DEF
    Part Number: W10292475
      Special Order
    $142.95
  • 6
    SHIELD – Part Number: 4344747
    SHIELD
    Part Number: 4344747
      Special Order
    $45.27
  • 7
    GRILLE – Part Number: W10780351
    GRILLE
    Part Number: W10780351
      Special Order
    $60.13
  • 8
    BASE-CABNT – Part Number: W10772863
    BASE-CABNT
    Part Number: W10772863
      In Stock
    $57.07
  • 9
    LEVELER – Part Number: W11106296
    LEVELER
    Part Number: W11106296
      Special Order
    $15.70
  • 10
    BASE-CABNT – Part Number: W10778959
    BASE-CABNT
    Part Number: W10778959
      Special Order
    $75.95
  • 11
    CONTRL-BOX – Part Number: W10772866
    CONTRL-BOX
    Part Number: W10772866
      Special Order
    $51.45
  • 12
    SUPPORT – Part Number: W10621526
    SUPPORT
    Part Number: W10621526
      Special Order
    $56.05
  • 12A
    SUPPORT – Part Number: W10621525
    SUPPORT
    Part Number: W10621525
      Special Order
    $57.07
  • 13
    Bracket, Grille – Part Number: 4344771
    Bracket, Grille
    Part Number: 4344771
      Special Order
    $49.39
  • 14
    COVER-EVAP – Part Number: W10804443
    COVER-EVAP
    Part Number: W10804443
      Special Order
    $112.95
  • 15
    HARNS-WIRE – Part Number: W10780364
    HARNS-WIRE
    Part Number: W10780364
      Special Order
    $72.37
  • 16
    COVER – Part Number: W10775535
    COVER
    Part Number: W10775535
      Special Order
    $59.11
  • 17
    THERMISTOR – Part Number: W11238391
    THERMISTOR
    Part Number: W11238391
      In Stock
    $62.17
  • 18
    Screw – Part Number: 4344826
    Screw
    Part Number: 4344826
      In Stock
    $20.95
  • 19
    SCREW – Part Number: W10780355
    SCREW
    Part Number: W10780355
      Special Order
    $49.39
  • 20
    CLIP – Part Number: W10204640
    CLIP
    Part Number: W10204640
      Special Order
    $45.27
  • 21
    Screw – Part Number: 4344825
    Screw
    Part Number: 4344825
      Special Order
    $20.95
  • 22
    Seal – Part Number: 4344823
    Seal
    Part Number: 4344823
      In Stock
    $48.36
  • 23
    Frame, Support (Right) – Part Number: 4344821
    Frame, Support (Right)
    Part Number: 4344821
      Special Order
    $62.17
  • 23A
    Frame, Support (Left) – Part Number: 4344820
    Frame, Support (Left)
    Part Number: 4344820
      Special Order
    $97.82
  • 24
    CLAMP – Part Number: 7111P002-60
    CLAMP
    Part Number: 7111P002-60
      Special Order
    $11.50
  • 25
    Wire Harness – Part Number: W10772870
    Wire Harness
    Part Number: W10772870
      Special Order
    $77.95
  • 26
    SCREW – Part Number: W10319184
    SCREW
    Part Number: W10319184
      No Longer Available
  • 27
    CONTRL-BOX – Part Number: W10204948
    CONTRL-BOX
    Part Number: W10204948
      Special Order
    $45.27
  • 28
    SCREW – Part Number: W10774183
    SCREW
    Part Number: W10774183
      Special Order
    $49.39
  • 29
    BASE-CABNT – Part Number: W10804444
    BASE-CABNT
    Part Number: W10804444
      Special Order
    $112.95
  • 30
    SEALER – Part Number: W10780365
    SEALER
    Part Number: W10780365
      Special Order
    $23.05
  • 31
    SHIM-HINGE – Part Number: W10780357
    SHIM-HINGE
    Part Number: W10780357
      Special Order
    $16.75
  • 32
    GRILLE-FRT – Part Number: W10780356
    GRILLE-FRT
    Part Number: W10780356
      Special Order
    $60.13
  • 33
    SCREW – Part Number: W10780349
    SCREW
    Part Number: W10780349
      In Stock
    $49.39
  • 34
    COVER – Part Number: W10788689
    COVER
    Part Number: W10788689
      Special Order
    $59.11
  • 35
    SWITCH – Part Number: W10721454
    SWITCH
    Part Number: W10721454
      In Stock
    $33.94
  • 36
    BAFFLE – Part Number: W10204674
    BAFFLE
    Part Number: W10204674
      Special Order
    $66.25
  • 37
    COVER – Part Number: W10797391
    COVER
    Part Number: W10797391
      Special Order
    $55.03
  • 38
    SENSOR – Part Number: W10780359
    SENSOR
    Part Number: W10780359
      Special Order
    $64.21
  • 39
    COVER – Part Number: W10772869
    COVER
    Part Number: W10772869
      Special Order
    $56.05
  • 40
    SPEAKER – Part Number: W10780358
    SPEAKER
    Part Number: W10780358
      Special Order
    $76.47
  • 41
    CNTRL-ELEC – Part Number: W10808108
    CNTRL-ELEC
    Part Number: W10808108
      In Stock
    $189.27
  • 42
    THERMISTOR – Part Number: W11573590
    THERMISTOR
    Part Number: W11573590
      In Stock
    $49.39
  • 43
    BRACKET – Part Number: W10788699
    BRACKET
    Part Number: W10788699
      Special Order
    $49.39

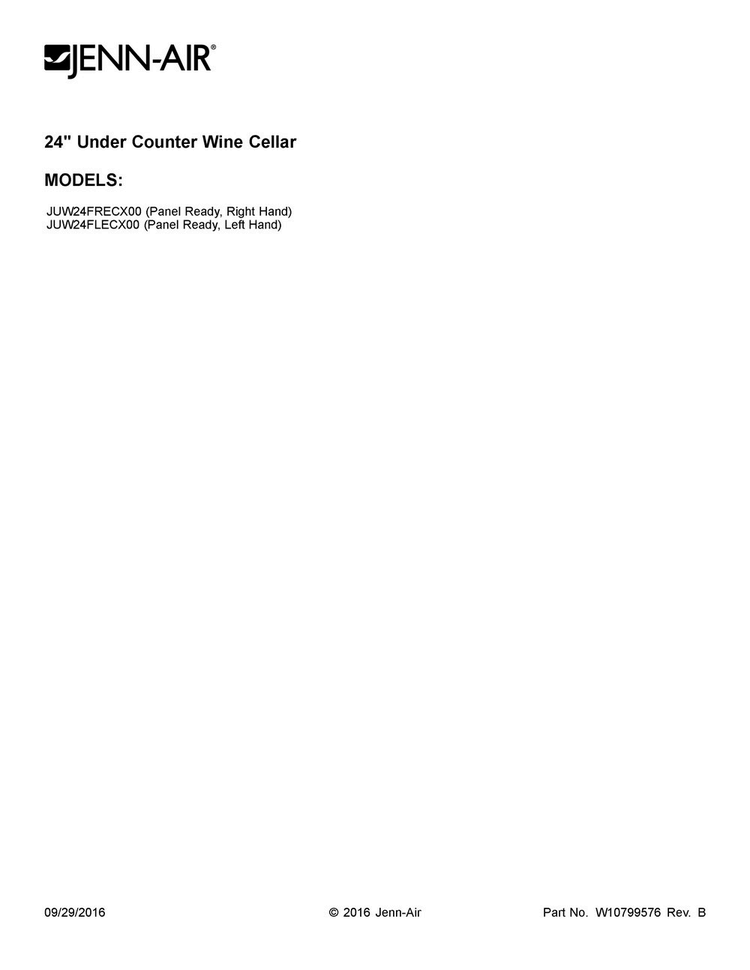

Cover Sheet
Cover Sheet Diagram and Parts List for Jenn-Air Wine and Beverage Cooler

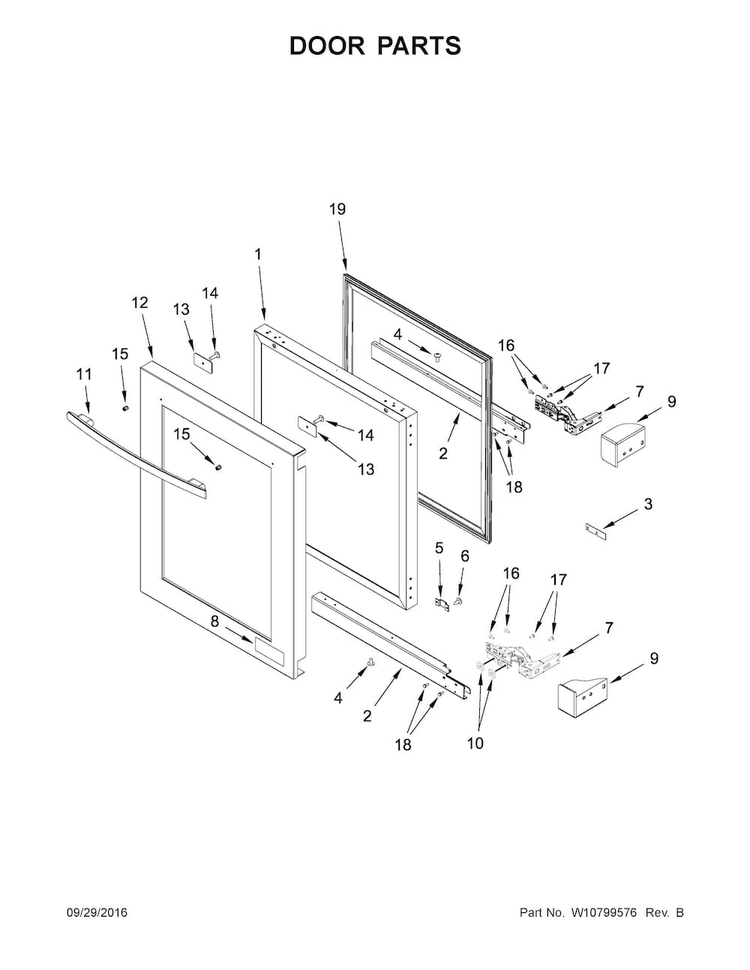

Door Parts
Door Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
  • 1
    DOOR – Part Number: W11432261
    DOOR
    Part Number: W11432261
      Special Order
    $542.02
  • 1A
    DOOR – Part Number: W11432261
    DOOR
    Part Number: W11432261
      Special Order
    $542.02
  • 2
    SPACER – Part Number: W10800045
    SPACER
    Part Number: W10800045
      Special Order
    $73.60
  • 2A
    SPACER – Part Number: W10800046
    SPACER
    Part Number: W10800046
      Special Order
    $73.60
  • 3
    SHIM-HINGE – Part Number: W10780350
    SHIM-HINGE
    Part Number: W10780350
      Special Order
    $47.33
  • 4
    SCREW – Part Number: W10319187
    SCREW
    Part Number: W10319187
      Special Order
    $45.27
  • 5
    BRACKET – Part Number: W10800047
    BRACKET
    Part Number: W10800047
      Special Order
    $51.45
  • 6
    SCREW – Part Number: W10319184
    SCREW
    Part Number: W10319184
      No Longer Available
  • 7
    HINGE-DOOR – Part Number: W10622809
    HINGE-DOOR
    Part Number: W10622809
      Special Order
    $200.77
  • 7A
    HINGE-DOOR – Part Number: W10622810
    HINGE-DOOR
    Part Number: W10622810
      Special Order
    $200.37
  • 8
    Nameplate – Part Number: WPW10214168
    Nameplate
    Part Number: WPW10214168
      In Stock
    $54.01
  • 9
    COVER – Part Number: W10622811
    COVER
    Part Number: W10622811
      Special Order
    $68.29
  • 9A
    COVER – Part Number: W10622812
    COVER
    Part Number: W10622812
      Special Order
    $68.29
  • 10
    SHIM-HINGE – Part Number: W10780347
    SHIM-HINGE
    Part Number: W10780347
      Special Order
    $47.33
  • 11
    HANDLE – Part Number: W10622019
    HANDLE
    Part Number: W10622019
      Special Order
    $225.36
  • 12
    DOOR-SKIN – Part Number: W10800032
    DOOR-SKIN
    Part Number: W10800032
      Special Order
    $175.95
  • 12A
    DOOR-SKIN – Part Number: W10800033
    DOOR-SKIN
    Part Number: W10800033
      Special Order
    $175.95
  • 13
    PLATE – Part Number: W11263339
    PLATE
    Part Number: W11263339
      Special Order
    $14.65
  • 14
    SCREW – Part Number: W10859467
    SCREW
    Part Number: W10859467
      In Stock
    $45.27
  • 15
    Handle Mounting Stud – Part Number: WP8564951
    Handle Mounting Stud
    Part Number: WP8564951
      Special Order
    $16.75
  • 16
    SCREW – Part Number: W10780349
    SCREW
    Part Number: W10780349
      In Stock
    $49.39
  • 17
    SCREW – Part Number: W10319189
    SCREW
    Part Number: W10319189
      Special Order
    $47.33
  • 18
    SCREW – Part Number: W10622817
    SCREW
    Part Number: W10622817
      Special Order
    $17.80
  • 19
    Gasket – Part Number: WPW10624183
    Gasket
    Part Number: WPW10624183
      In Stock
    $125.95

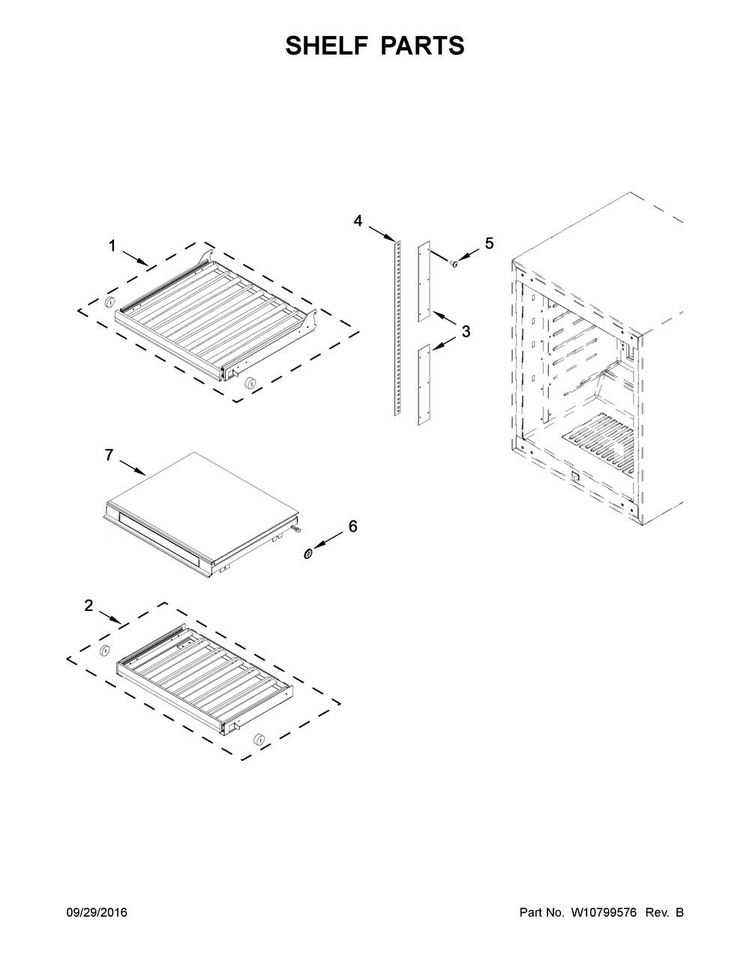

Shelf Parts
Shelf Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
  • 1
    SHELF-WINE – Part Number: W10802017
    SHELF-WINE
    Part Number: W10802017
      Special Order
    $244.63
  • 2
    SHELF-WINE – Part Number: W10804445
    SHELF-WINE
    Part Number: W10804445
      Special Order
    $252.71
  • 3
    LENS-LIGHT – Part Number: W10624137
    LENS-LIGHT
    Part Number: W10624137
      Special Order
    $27.76
  • 4
    LIGHT – Part Number: W10804436
    LIGHT
    Part Number: W10804436
      Special Order
    $77.95
  • 5
    SCREW – Part Number: W10622794
    SCREW
    Part Number: W10622794
      Special Order
    $19.90
  • 6
    PAD – Part Number: W10621514
    PAD
    Part Number: W10621514
      Special Order
    $22.00
  • 7
    CNTRL-ELEC – Part Number: W11250119
    CNTRL-ELEC
    Part Number: W11250119
      Special Order
    $197.41

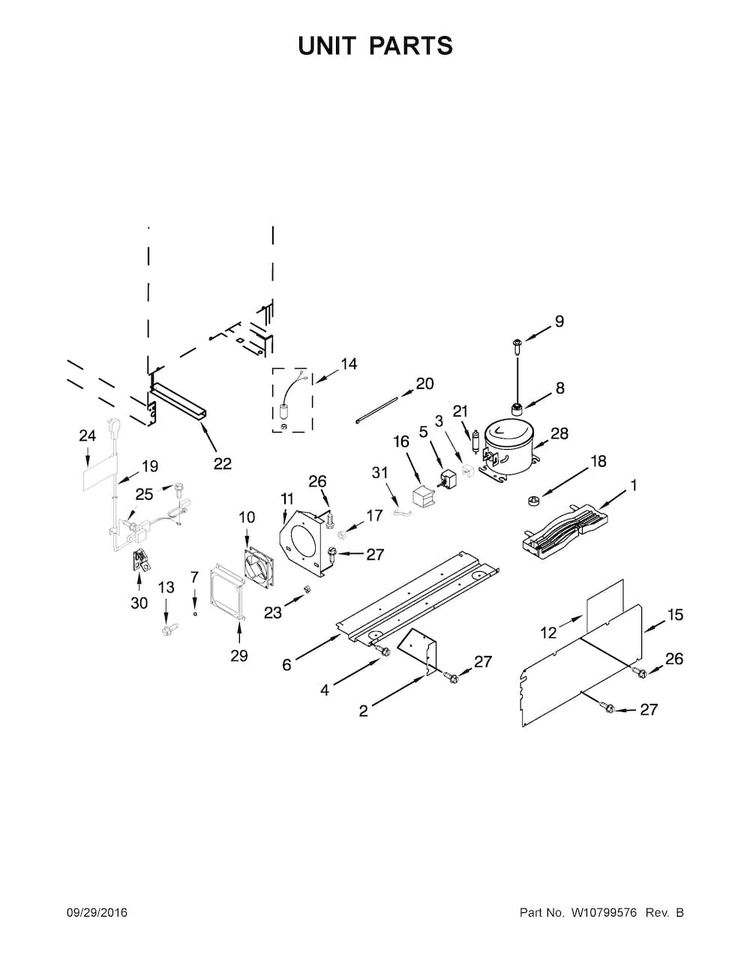

Unit Parts
Unit Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
  • 1
    PAN-DRIP – Part Number: W10316689
    PAN-DRIP
    Part Number: W10316689
      Special Order
    $82.98
  • 2
    Bracket, Defrost Timer – Part Number: 4344773
    Bracket, Defrost Timer
    Part Number: 4344773
      Special Order
    $82.95
  • 3
    OVERLOAD – Part Number: W10778965
    OVERLOAD
    Part Number: W10778965
      Special Order
    $66.25
  • 4
    Screw, Lower Hinge (Quantity 3 – Part Number: 4344797
    Screw, Lower Hinge (Quantity 3
    Part Number: 4344797
      Special Order
    $19.90
  • 5
    THERMISTOR – Part Number: W10778966
    THERMISTOR
    Part Number: W10778966
      Special Order
    $66.25
  • 6
    BASE-UNIT – Part Number: W10772877
    BASE-UNIT
    Part Number: W10772877
      Special Order
    $76.79
  • 7
    PLATE – Part Number: W10204688
    PLATE
    Part Number: W10204688
      Special Order
    $45.27
  • 8
    Grommet, Compressor – Part Number: WP4344779
    Grommet, Compressor
    Part Number: WP4344779
      Special Order
    $9.40
  • 9
    SCREW – Part Number: W10772873
    SCREW
    Part Number: W10772873
      Special Order
    $49.39
  • 10
    MOTOR-COND – Part Number: W10772882
    MOTOR-COND
    Part Number: W10772882
      In Stock
    $135.12
  • 11
    BAFFLE – Part Number: W10204674
    BAFFLE
    Part Number: W10204674
      Special Order
    $66.25
  • 12
    SEALER – Part Number: W10778963
    SEALER
    Part Number: W10778963
      Special Order
    $27.76
  • 13
    SCREW – Part Number: W10772886
    SCREW
    Part Number: W10772886
      Special Order
    $49.39
  • 14
    CAPACITOR – Part Number: W10778969
    CAPACITOR
    Part Number: W10778969
      Special Order
    $68.29
  • 15
    COVER-BACK – Part Number: W10796445
    COVER-BACK
    Part Number: W10796445
      Special Order
    $82.87
  • 16
    COVER-TERM – Part Number: W10778967
    COVER-TERM
    Part Number: W10778967
      Special Order
    $59.11
  • 17
    NUT – Part Number: W10772890
    NUT
    Part Number: W10772890
      Special Order
    $49.39
  • 18
    Tube, Drain – Part Number: W10163276
    Tube, Drain
    Part Number: W10163276
      Special Order
    $49.39
  • 19
    Refrigerator Power Cord – Part Number: WPW10204676
    Refrigerator Power Cord
    Part Number: WPW10204676
      Special Order
    $64.21
  • 20
    Cable Tie – Part Number: 4344829
    Cable Tie
    Part Number: 4344829
      Special Order
    $19.90
  • 21
    DRIER-TUBE – Part Number: W10163273
    DRIER-TUBE
    Part Number: W10163273
      In Stock
    $50.42
  • 22
    Trim, Edge – Part Number: 4344907
    Trim, Edge
    Part Number: 4344907
      Special Order
    $98.85
  • 23
    CLIP – Part Number: W10238022
    CLIP
    Part Number: W10238022
      Special Order
    $45.27
  • 24
    LABEL – Part Number: 4344913
    LABEL
    Part Number: 4344913
      Special Order
    $43.21
  • 25
    Screw – Part Number: 4344826
    Screw
    Part Number: 4344826
      In Stock
    $20.95
  • 26
    Screw – Part Number: 4344825
    Screw
    Part Number: 4344825
      Special Order
    $20.95
  • 27
    SCREW – Part Number: W11380570
    SCREW
    Part Number: W11380570
      In Stock
    $20.95
  • 28
    Compressor – Part Number: 8201787
    Compressor
    Part Number: 8201787
      No Longer Available
  • 29
    BRACKET – Part Number: W11506521
    BRACKET
    Part Number: W11506521
      Special Order
    $47.33
  • 30
    Service Cord Clamp – Part Number: 549193
    Service Cord Clamp
    Part Number: 549193
      Special Order
    $16.75
  • 31
    RETAINER – Part Number: W10778971
    RETAINER
    Part Number: W10778971
      Special Order
    $16.75

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
