Jenn-Air WINE CELLAR Wine and Beverage Cooler Replacement Parts For Model JUW24FLARS00

We Sell Only Genuine Jenn-Air Parts

Popular Parts for JUW24FLARS00

Dryer Screw – Part Number: WP90767 Dryer Screw
In Stock
$7.30
SCREW – Part Number: W11380570 SCREW
In Stock
$20.95
Motor Condenser – Part Number: WPW10299090 Motor Condenser
In Stock
$153.03
Defrost Timer – Part Number: W11609704 Defrost Timer
In Stock
$71.35
Plunger Switch – Part Number: WP4344767 Plunger Switch
On Order
$26.20
Wine Fridge Switch Light – Part Number: 4344858 Wine Fridge Switch Light
Special Order
$57.07
Start Device – Part Number: WP4344776 Start Device
In Stock
$77.60
Fan Blade – Part Number: WPW10299081 Fan Blade
In Stock
$52.99

Search Within Model

Questions & Answers for Jenn-Air JUW24FLARS00
Browse all Parts Search by Area
Cabinet Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Cabinet Parts
Cover Sheet Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Cover Sheet
Door Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Door Parts
Shelf Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Shelf Parts
Unit Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Unit Parts
Previous Showing All Parts Next

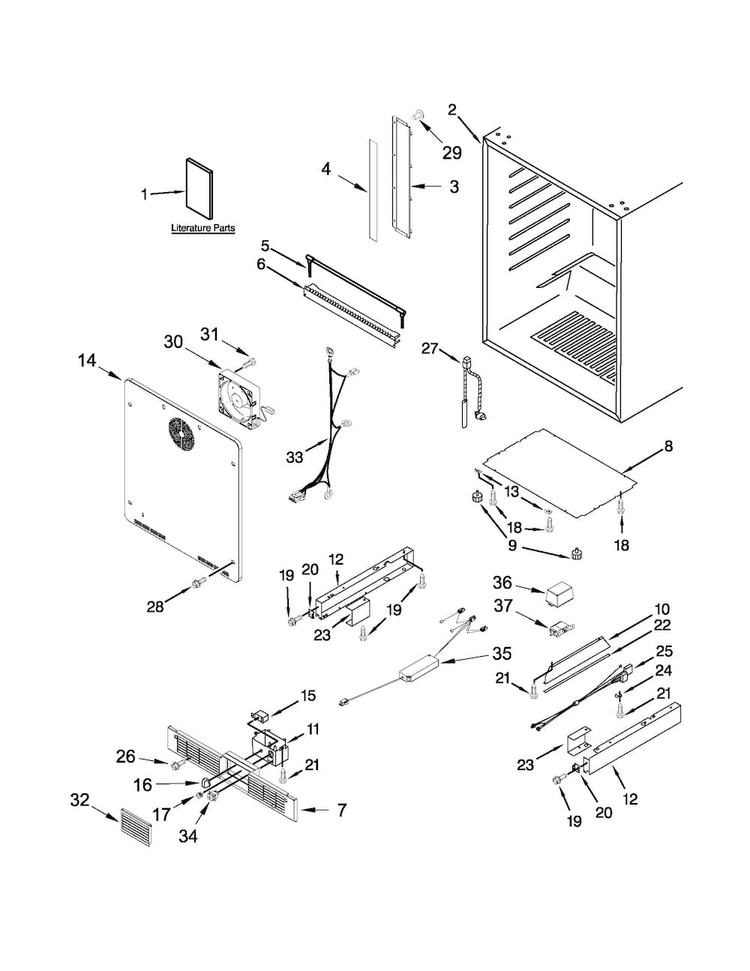

Cabinet Parts
Cabinet Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
  • 1
    Use & Care Guide – Part Number: 2300272
    Use & Care Guide
    Part Number: 2300272
      Special Order
    $22.00
  • 1A
    WIRING DIAGRAM – Part Number: W10624112
    WIRING DIAGRAM
    Part Number: W10624112
      No Longer Available
  • 1B
    ENERGY GUIDE – Part Number: W10624116
    ENERGY GUIDE
    Part Number: W10624116
      No Longer Available
  • 3
    LENS-LIGHT – Part Number: W10624137
    LENS-LIGHT
    Part Number: W10624137
      Special Order
    $27.76
  • 4
    LIGHT – Part Number: W10622775
    LIGHT
    Part Number: W10622775
      No Longer Available
  • 5
    HEATER – Part Number: W10622776
    HEATER
    Part Number: W10622776
      Special Order
    $128.94
  • 6
    SHIELD – Part Number: 4344747
    SHIELD
    Part Number: 4344747
      Special Order
    $45.27
  • 7
    GRILLE – Part Number: W10622777
    GRILLE
    Part Number: W10622777
      Special Order
    $60.13
  • 8
    BASE-CABNT – Part Number: 4344762
    BASE-CABNT
    Part Number: 4344762
      Special Order
    $141.79
  • 9
    LEVELER – Part Number: W11106296
    LEVELER
    Part Number: W11106296
      Special Order
    $15.70
  • 10
    BASE-CABNT – Part Number: W10204638
    BASE-CABNT
    Part Number: W10204638
      Special Order
    $111.95
  • 11
    CONTRL-BOX – Part Number: W10624141
    CONTRL-BOX
    Part Number: W10624141
      No Longer Available
  • 12
    SUPPORT – Part Number: W10621525
    SUPPORT
    Part Number: W10621525
      Special Order
    $57.07
  • 12A
    SUPPORT – Part Number: W10621526
    SUPPORT
    Part Number: W10621526
      Special Order
    $56.05
  • 13
    BRACE – Part Number: W10622786
    BRACE
    Part Number: W10622786
      No Longer Available
  • 14
    COVER-EVAP – Part Number: W10624146
    COVER-EVAP
    Part Number: W10624146
      No Longer Available
  • 15
    THERMOSTAT – Part Number: W10624145
    THERMOSTAT
    Part Number: W10624145
      No Longer Available
  • 16
    Control Knob - Black – Part Number: WP3402573
    Control Knob - Black
    Part Number: WP3402573
      Special Order
    $55.03
  • 17
    Plunger Switch – Part Number: WP4344767
    Plunger Switch
    Part Number: WP4344767
      On Order
    $26.20
  • 18
    Screw – Part Number: 4344826
    Screw
    Part Number: 4344826
      In Stock
    $20.95
  • 19
    SCREW – Part Number: W10243104
    SCREW
    Part Number: W10243104
      No Longer Available
  • 20
    CLIP – Part Number: W10622791
    CLIP
    Part Number: W10622791
      Special Order
    $20.95
  • 21
    Screw – Part Number: 4344825
    Screw
    Part Number: 4344825
      Special Order
    $20.95
  • 22
    Seal – Part Number: 4344823
    Seal
    Part Number: 4344823
      In Stock
    $48.36
  • 23
    Frame, Support (Right) – Part Number: 4344821
    Frame, Support (Right)
    Part Number: 4344821
      Special Order
    $62.17
  • 23A
    Frame, Support (Left) – Part Number: 4344820
    Frame, Support (Left)
    Part Number: 4344820
      Special Order
    $97.82
  • 24
    CLAMP-CORD – Part Number: W10270482
    CLAMP-CORD
    Part Number: W10270482
      Special Order
    $45.27
  • 25
    HARNS-WIRE – Part Number: W10622792
    HARNS-WIRE
    Part Number: W10622792
      Special Order
    $55.03
  • 26
    SCREW – Part Number: W10319184
    SCREW
    Part Number: W10319184
      No Longer Available
  • 27
    BIMETL-DEF – Part Number: W10244414
    BIMETL-DEF
    Part Number: W10244414
      Special Order
    $76.95
  • 28
    Screw – Part Number: 4344793
    Screw
    Part Number: 4344793
      Special Order
    $19.90
  • 29
    SCREW – Part Number: W10622794
    SCREW
    Part Number: W10622794
      Special Order
    $19.90
  • 30
    MOTOR-EVAP – Part Number: W10854409
    MOTOR-EVAP
    Part Number: W10854409
      In Stock
    $176.95
  • 31
    SCREW – Part Number: W10205061
    SCREW
    Part Number: W10205061
      Special Order
    $45.27
  • 32
    GRILLE-FRT – Part Number: W10622795
    GRILLE-FRT
    Part Number: W10622795
      Special Order
    $46.30
  • 33
    HARNS-WIRE – Part Number: W10622796
    HARNS-WIRE
    Part Number: W10622796
      Special Order
    $34.97
  • 34
    Wine Fridge Switch Light – Part Number: 4344858
    Wine Fridge Switch Light
    Part Number: 4344858
      Special Order
    $57.07
  • 35
    INVRTR-BOX – Part Number: W10646523
    INVRTR-BOX
    Part Number: W10646523
      Special Order
    $235.36
  • 36
    RELAY – Part Number: W10646526
    RELAY
    Part Number: W10646526
      Special Order
    $119.95
  • 37
    RELAY – Part Number: W10646528
    RELAY
    Part Number: W10646528
      Special Order
    $126.95

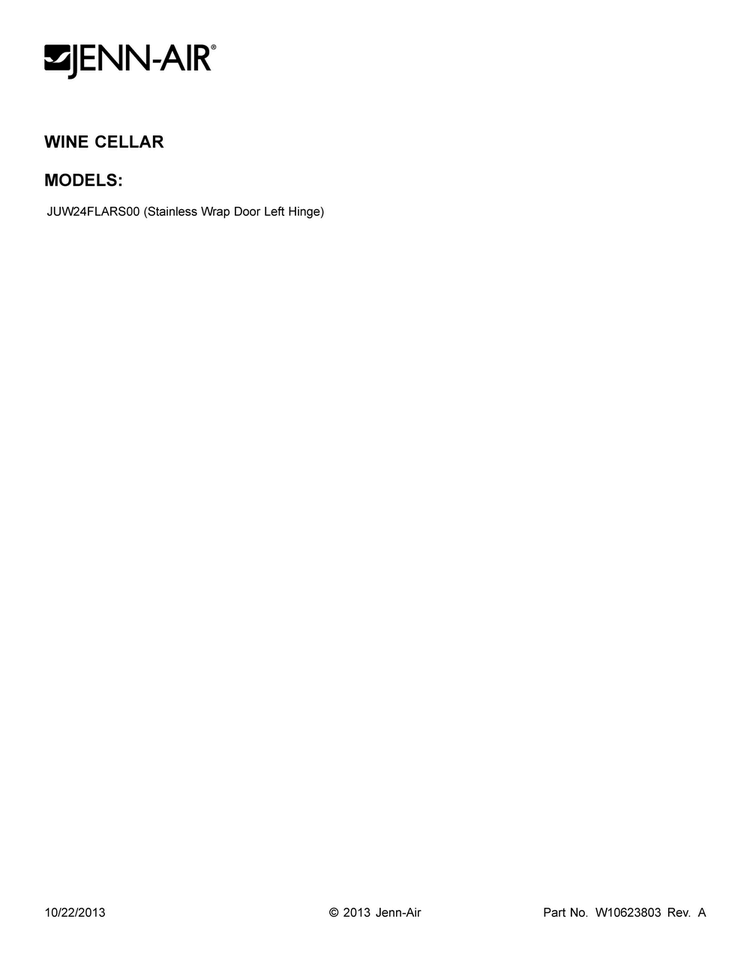

Cover Sheet
Cover Sheet Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
Door Parts
Door Parts Diagram and Parts List for Jenn-Air Wine and Beverage Cooler
  • Stainless Steel Cleaner – Part Number: 31462A
    Stainless Steel Cleaner
    Part Number: 31462A
      No Longer Available
  • 1
    DOOR – Part Number: W10624186
    DOOR
    Part Number: W10624186
      No Longer Available
  • 2
    SPACER – Part Number: W10623026
    SPACER
    Part Number: W10623026
      No Longer Available
  • 3
    SPACER – Part Number: W10623028
    SPACER
    Part Number: W10623028
      No Longer Available
  • 4
    SCREW – Part Number: W10319187
    SCREW
    Part Number: W10319187
      Special Order
    $45.27
  • 5
    BRACKET – Part Number: W10622808
    BRACKET
    Part Number: W10622808
      Special Order
    $25.15
  • 6
    SCREW – Part Number: W10319184
    SCREW
    Part Number: W10319184
      No Longer Available
  • 7
    HINGE-DOOR – Part Number: W10622810
    HINGE-DOOR
    Part Number: W10622810
      Special Order
    $200.37
  • 8
    HINGE-DOOR – Part Number: W10622809
    HINGE-DOOR
    Part Number: W10622809
      Special Order
    $200.77
  • 9
    COVER – Part Number: W10622812
    COVER
    Part Number: W10622812
      Special Order
    $68.29
  • 10
    COVER – Part Number: W10622811
    COVER
    Part Number: W10622811
      Special Order
    $68.29
  • 11
    HANDLE – Part Number: W10622019
    HANDLE
    Part Number: W10622019
      Special Order
    $225.36
  • 12
    DOOR-SKIN – Part Number: W10624187
    DOOR-SKIN
    Part Number: W10624187
      No Longer Available
  • 13
    PLATE – Part Number: W11263339
    PLATE
    Part Number: W11263339
      Special Order
    $14.65
  • 14
    SCREW – Part Number: W10859467
    SCREW
    Part Number: W10859467
      In Stock
    $45.27
  • 15
    Handle Mounting Stud – Part Number: WP8564951
    Handle Mounting Stud
    Part Number: WP8564951
      Special Order
    $16.75
  • 16
    SCREW – Part Number: W10780349
    SCREW
    Part Number: W10780349
      In Stock
    $49.39
  • 17
    SCREW – Part Number: W10319189
    SCREW
    Part Number: W10319189
      Special Order
    $47.33
  • 18
    SCREW – Part Number: W10622817
    SCREW
    Part Number: W10622817
      Special Order
    $17.80
  • 19
    Gasket – Part Number: WPW10624183
    Gasket
    Part Number: WPW10624183
      In Stock
    $125.95
  • 20
    Nameplate – Part Number: WPW10214168
    Nameplate
    Part Number: WPW10214168
      In Stock
    $54.01

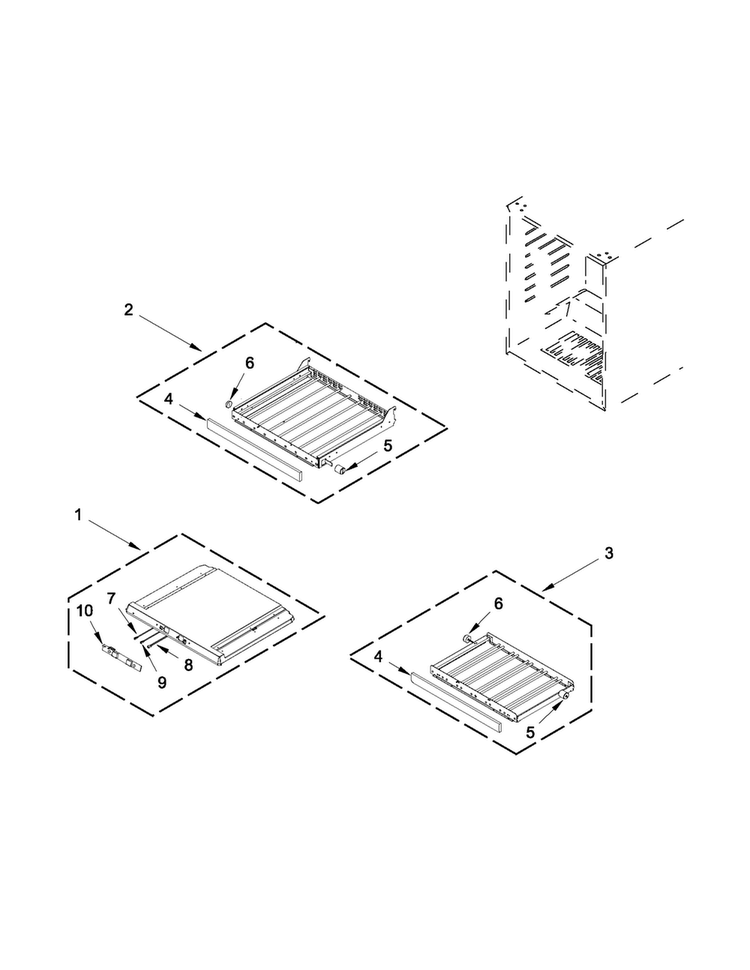

Shelf Parts
