General Electric Washer Replacement Parts For Model WSM27TCCWWB

We Sell Only Genuine General Electric Parts

Find General Electric WSM27TCCWWB Parts By Symptom

Noisy

43%

Drum Not Spinning

21%

Leaking

13%

Door won’t close

8%

Will not drain

7%

Won’t Start

3%

Will not agitate

2%

Burning smell

2%

Not Heating

1%

Will Not Start

0%

Spins slowly

0%

Door Pops Open

0%

Heat stays on after drum has stopped

0%
-  Show Fewer Symptoms

Popular Parts for WSM27TCCWWB

Door Strike – Part Number: 5303207102 Door Strike
In Stock
$29.82
Heater Assembly – Part Number: 131475320 Heater Assembly
In Stock
$81.25
IDLER ARM Assembly – Part Number: 5304507499 IDLER ARM Assembly
In Stock
$50.42
Remote Style Pump with Motor – Part Number: 131268401 Remote Style Pump with Motor
In Stock
$187.63
Drive Belt – Part Number: WE03X29897 Drive Belt
In Stock
$51.97
Rear Bearing Shaft Support – Part Number: WE13X10011 Rear Bearing Shaft Support
Special Order
$98.95
Hinge Grommet – Part Number: 5303208743 Hinge Grommet
In Stock
$13.60
SCREW – Part Number: 134178901 SCREW
In Stock
$23.05

Search Within Model

Questions & Answers for General Electric WSM27TCCWWB
Browse all Parts Search by Area
CONTROL PANEL Diagram and Parts List for General Electric Washer
CONTROL PANEL
LOWER CABINET / TOP Diagram and Parts List for General Electric Washer
LOWER CABINET / TOP
MOTOR / BLOWER /BELT Diagram and Parts List for General Electric Washer
MOTOR / BLOWER /BELT
MOTOR / TUB Diagram and Parts List for General Electric Washer
MOTOR / TUB
TRANSMISSION Diagram and Parts List for General Electric Washer
TRANSMISSION
UPPER CABINET Diagram and Parts List for General Electric Washer
UPPER CABINET
Previous Showing All Parts Next

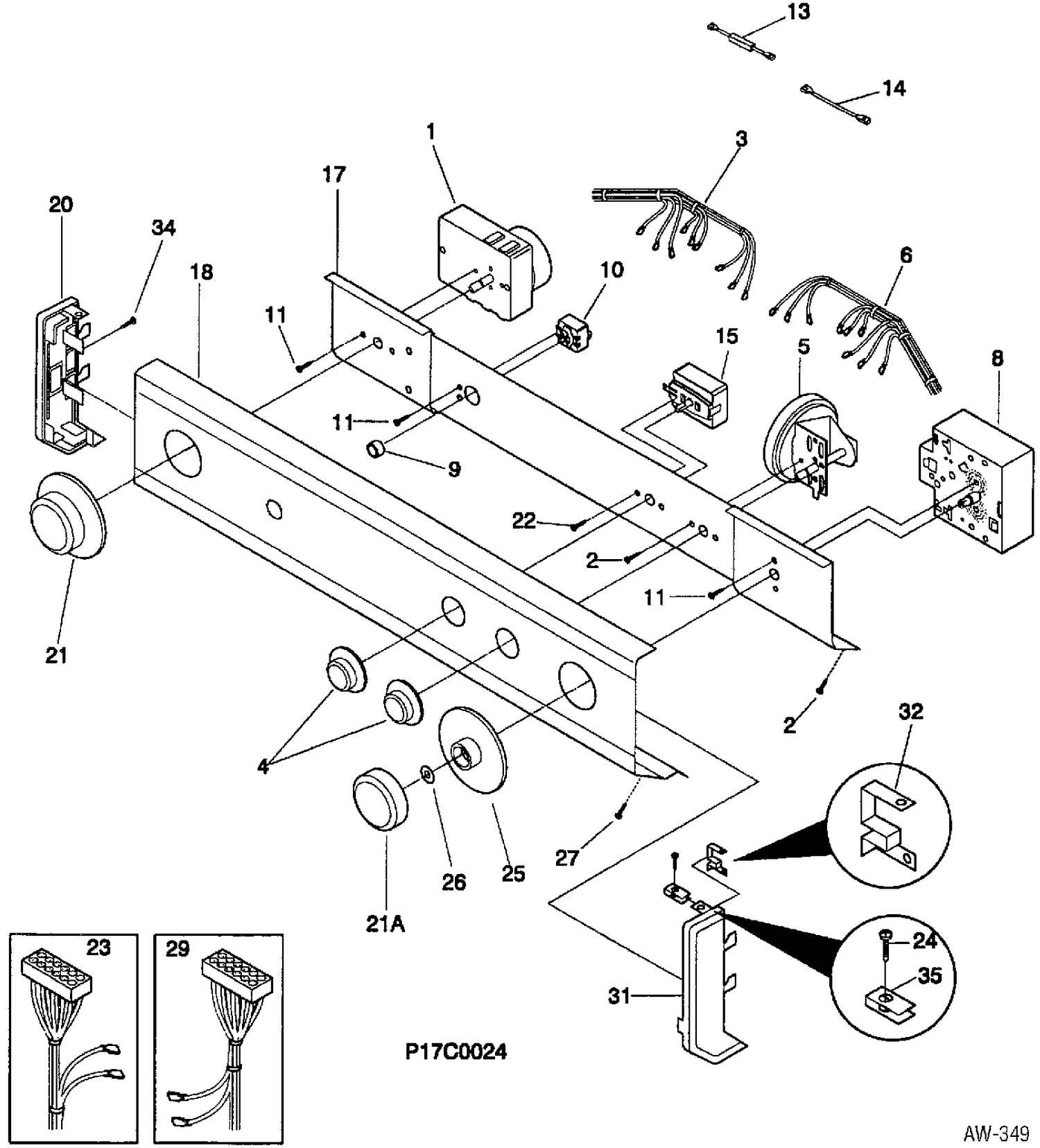

CONTROL PANEL
CONTROL PANEL Diagram and Parts List for General Electric Washer
  • 1
    Dryer Timer – Part Number: 131062300
    Dryer Timer
    Part Number: 131062300
      In Stock
    $184.71
  • 2
    LAMP – Part Number: PURCHLOC
    LAMP
    Part Number: PURCHLOC
      No Longer Available
  • 3
    WIRING HARNESS – Part Number: 131305700
    WIRING HARNESS
    Part Number: 131305700
      Special Order
    $60.13
  • 4
    KNOB – Part Number: WG04L04372
    KNOB
    Part Number: WG04L04372
      No Longer Available
  • 5
    SWITCH-PRESSURE – Part Number: 5303209894
    SWITCH-PRESSURE
    Part Number: 5303209894
      No Longer Available
  • 6
    HARNESS-WASHER CONT – Part Number: 131592700
    HARNESS-WASHER CONT
    Part Number: 131592700
      Special Order
    $113.25
  • 8
    TIMER WASHER – Part Number: WG04F01530
    TIMER WASHER
    Part Number: WG04F01530
      No Longer Available
  • 9
    KNOB START SW. BK – Part Number: WG04L04303
    KNOB START SW. BK
    Part Number: WG04L04303
      No Longer Available
  • 10
    SWITCH, PUSH START – Part Number: WW03F00067
    SWITCH, PUSH START
    Part Number: WW03F00067
      No Longer Available
  • 11
    SCREW – Part Number: WH2X1150
    SCREW
    Part Number: WH2X1150
      Special Order
    $20.95
  • 13
    RESISTOR, 3 KILOHM – Part Number: WW03F00065
    RESISTOR, 3 KILOHM
    Part Number: WW03F00065
      No Longer Available
  • 14
    RESISTOR – Part Number: WG02F09229
    RESISTOR
    Part Number: WG02F09229
      No Longer Available
  • 15
    SWITCH, TEMPERATURE, 3 P – Part Number: WG04F01075
    SWITCH, TEMPERATURE, 3 P
    Part Number: WG04F01075
      No Longer Available
  • 17
    DISCONTINUED – Part Number: 131622901
    DISCONTINUED
    Part Number: 131622901
      Special Order
    $28.79
  • 18
    PANEL-CONTROL – Part Number: 131465800
    PANEL-CONTROL
    Part Number: 131465800
      Special Order
    $71.35
  • 20
    END CAP – Part Number: 131288100
    END CAP
    Part Number: 131288100
      No Longer Available
  • 21
    Timer Knob – Part Number: 131859104
    Timer Knob
    Part Number: 131859104
      In Stock
    $52.50
  • 21A
    KNOB WASHER – Part Number: WG04L04373
    KNOB WASHER
    Part Number: WG04L04373
      No Longer Available
  • 22
    SCREW – Part Number: 3161259
    SCREW
    Part Number: 3161259
      No Longer Available
  • 23
    HARNESS-DRYER – Part Number: 131512700
    HARNESS-DRYER
    Part Number: 131512700
      Special Order
    $83.85
  • 24
    SCREW FLAT HEAD 8-18AB X 0.44 – Part Number: WG04F01507
    SCREW FLAT HEAD 8-18AB X 0.44
    Part Number: WG04F01507
      No Longer Available
  • 25
    INDICATOR – Part Number: 5303209901
    INDICATOR
    Part Number: 5303209901
      No Longer Available
  • 26
    SPACER – Part Number: WG02A01962
    SPACER
    Part Number: WG02A01962
      No Longer Available
  • 27
    LAMP – Part Number: PURCHLOC
    LAMP
    Part Number: PURCHLOC
      No Longer Available
  • 29
    HARNESS-WASHER – Part Number: 131520800
    HARNESS-WASHER
    Part Number: 131520800
      Special Order
    $154.95
  • 31
    END CAP – Part Number: 131288210
    END CAP
    Part Number: 131288210
      Special Order
    $39.09
  • 32
    CLIP, GROUNDING – Part Number: WG04A00923
    CLIP, GROUNDING
    Part Number: WG04A00923
      No Longer Available
  • 34
    SCREW BRACKET/DOOR – Part Number: WG04A00186
    SCREW BRACKET/DOOR
    Part Number: WG04A00186
      No Longer Available
  • 35
    CLIP – Part Number: WG04A02491
    CLIP
    Part Number: WG04A02491
      No Longer Available
  • A
    STRAP – Part Number: 5303161300
    STRAP
    Part Number: 5303161300
      Special Order
    $8.35

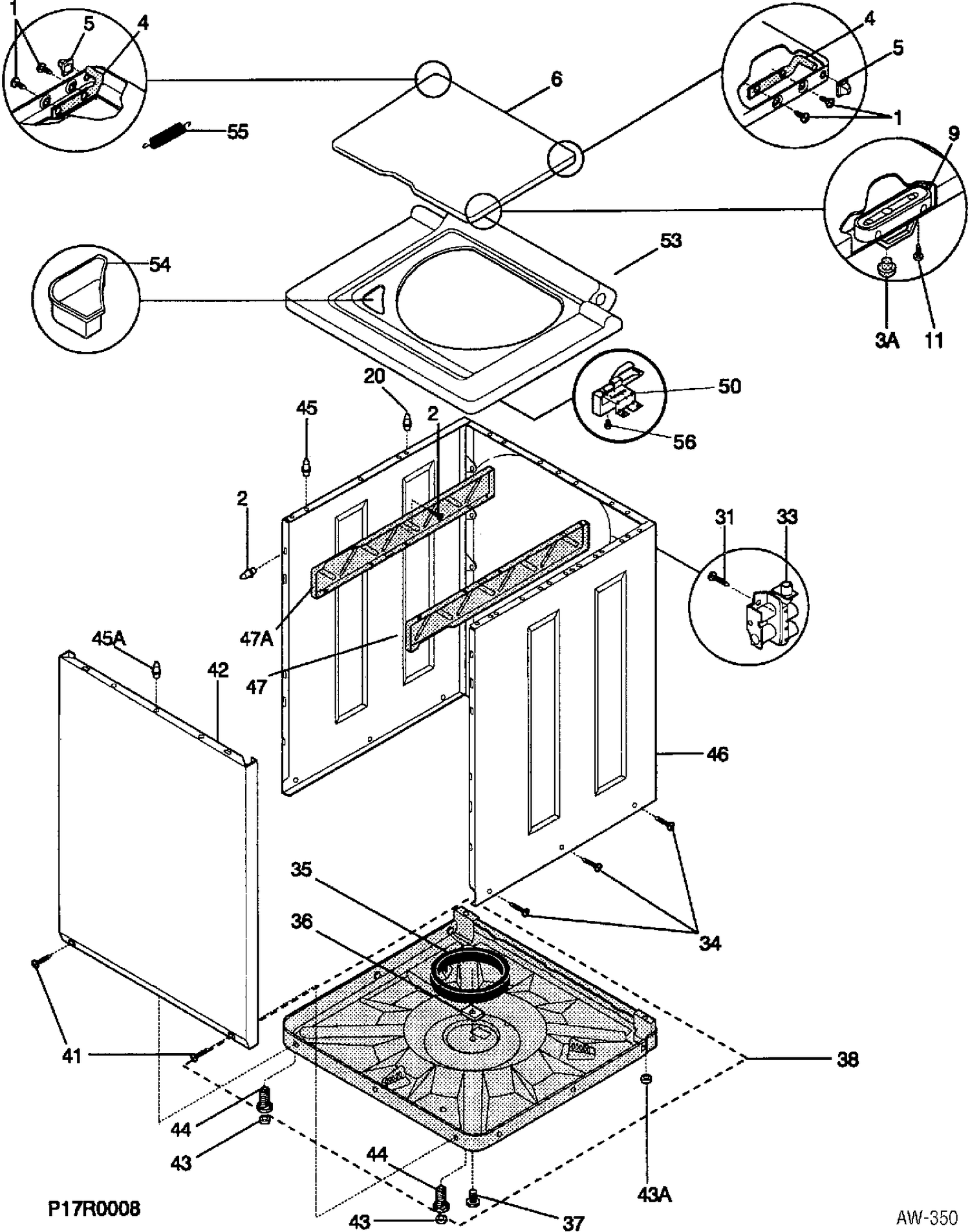

LOWER CABINET / TOP
LOWER CABINET / TOP Diagram and Parts List for General Electric Washer
MOTOR / BLOWER /BELT
MOTOR / BLOWER /BELT Diagram and Parts List for General Electric Washer

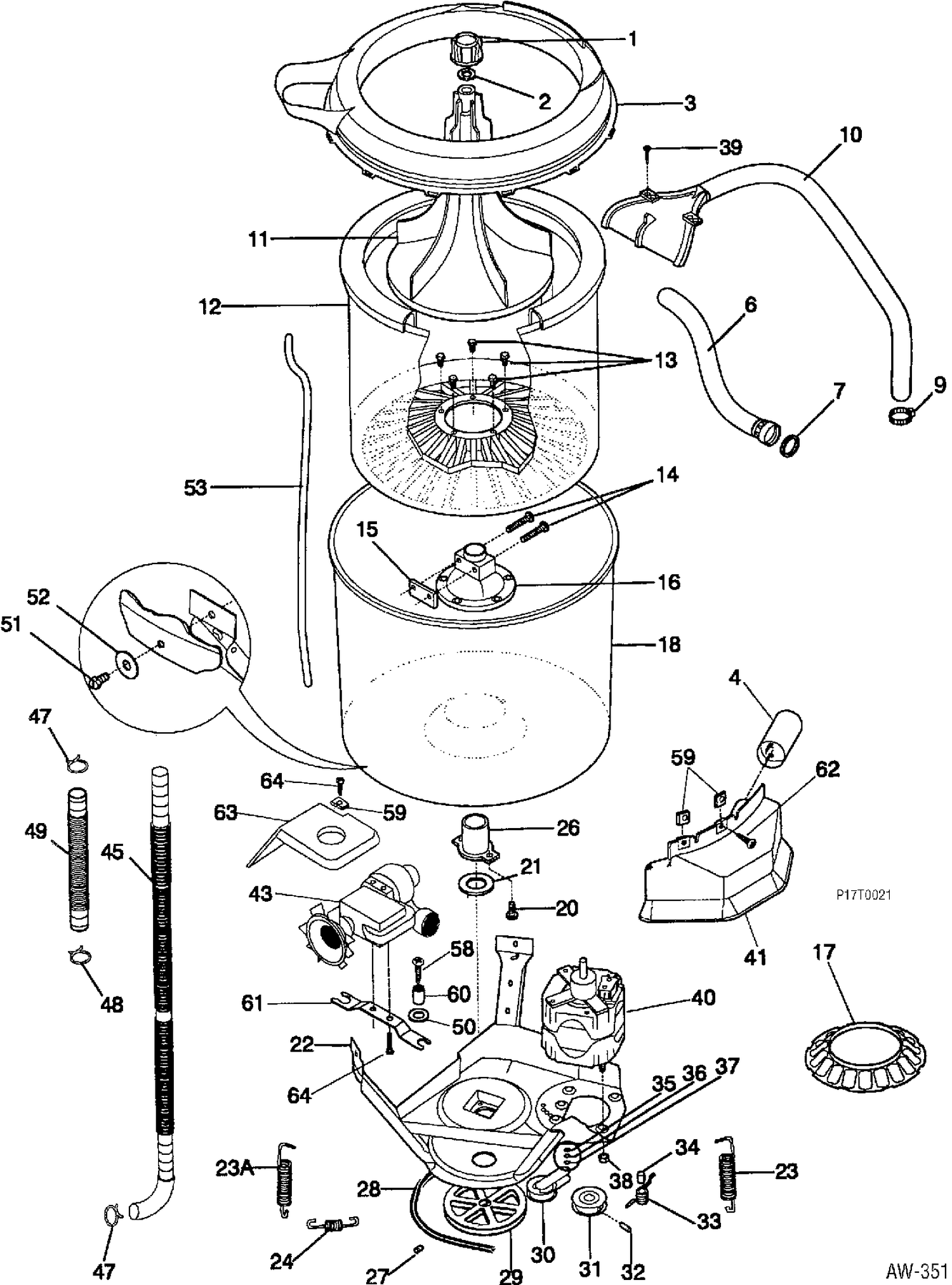

MOTOR / TUB
MOTOR / TUB Diagram and Parts List for General Electric Washer
TRANSMISSION
TRANSMISSION Diagram and Parts List for General Electric Washer
  • 1
    STUD, AGITATOR CAP – Part Number: WW03A00018
    STUD, AGITATOR CAP
    Part Number: WW03A00018
      No Longer Available
  • 2
    HUB – Part Number: WG04L04314
    HUB
    Part Number: WG04L04314
      No Longer Available
  • 3
    TRANSMISSION, SERVICE KI – Part Number: WG04F01189
    TRANSMISSION, SERVICE KI
    Part Number: WG04F01189
      No Longer Available
  • 4
    LAMP – Part Number: PURCHLOC
    LAMP
    Part Number: PURCHLOC
      No Longer Available
  • 5
    RING-RETAINING – Part Number: 5303161223
    RING-RETAINING
    Part Number: 5303161223
      No Longer Available
  • 6
    LAMP – Part Number: PURCHLOC
    LAMP
    Part Number: PURCHLOC
      No Longer Available
  • 7
    PLUG-PIPE – Part Number: 5303161224
    PLUG-PIPE
    Part Number: 5303161224
      Special Order
    $8.35
  • 8
    SCREW-TRANSM. – Part Number: 5308002804
    SCREW-TRANSM.
    Part Number: 5308002804
      Special Order
    $8.35
  • 9
    GASKET – Part Number: 5308015778
    GASKET
    Part Number: 5308015778
      Special Order
    $38.06
  • 10
    GEAR-SECTOR – Part Number: 5308011268
    GEAR-SECTOR
    Part Number: 5308011268
      Special Order
    $12.55
  • 11
    Rod and Gear Kit – Part Number: 5304471722
    Rod and Gear Kit
    Part Number: 5304471722
      Special Order
    $60.13
  • 12
    GEAR-CRANK – Part Number: 5308015496
    GEAR-CRANK
    Part Number: 5308015496
      Special Order
    $91.95
  • 13
    SHAFT-LOWER – Part Number: 5308014905
    SHAFT-LOWER
    Part Number: 5308014905
      Special Order
    $45.73
  • 14
    WASHER-THRUST – Part Number: 5303161226
    WASHER-THRUST
    Part Number: 5303161226
      No Longer Available
  • 15
    WASHER-THRUST – Part Number: 5303161232
    WASHER-THRUST
    Part Number: 5303161232
      No Longer Available
  • 16
    HOUSING-LOWER – Part Number: 131557800
    HOUSING-LOWER
    Part Number: 131557800
      No Longer Available
  • 18
    WASHER-SPACER – Part Number: 5308002475
    WASHER-SPACER
    Part Number: 5308002475
      Special Order
    $8.35
  • 21
    LAMP – Part Number: PURCHLOC
    LAMP
    Part Number: PURCHLOC
      No Longer Available
  • 22
    Spring – Part Number: 5303161174
    Spring
    Part Number: 5303161174
      Special Order
    $29.82
  • 23
    IDLER GEAR – Part Number: 5303161175
    IDLER GEAR
    Part Number: 5303161175
      No Longer Available
  • 24
    LAMP – Part Number: PURCHLOC
    LAMP
    Part Number: PURCHLOC
      No Longer Available
  • 25
    HOUSING – Part Number: 131878300
    HOUSING
    Part Number: 131878300
      Special Order
    $174.04
  • 26
    SEAL ASM, TUB TRANSMISSI – Part Number: WG03L00194
    SEAL ASM, TUB TRANSMISSI
    Part Number: WG03L00194
      No Longer Available

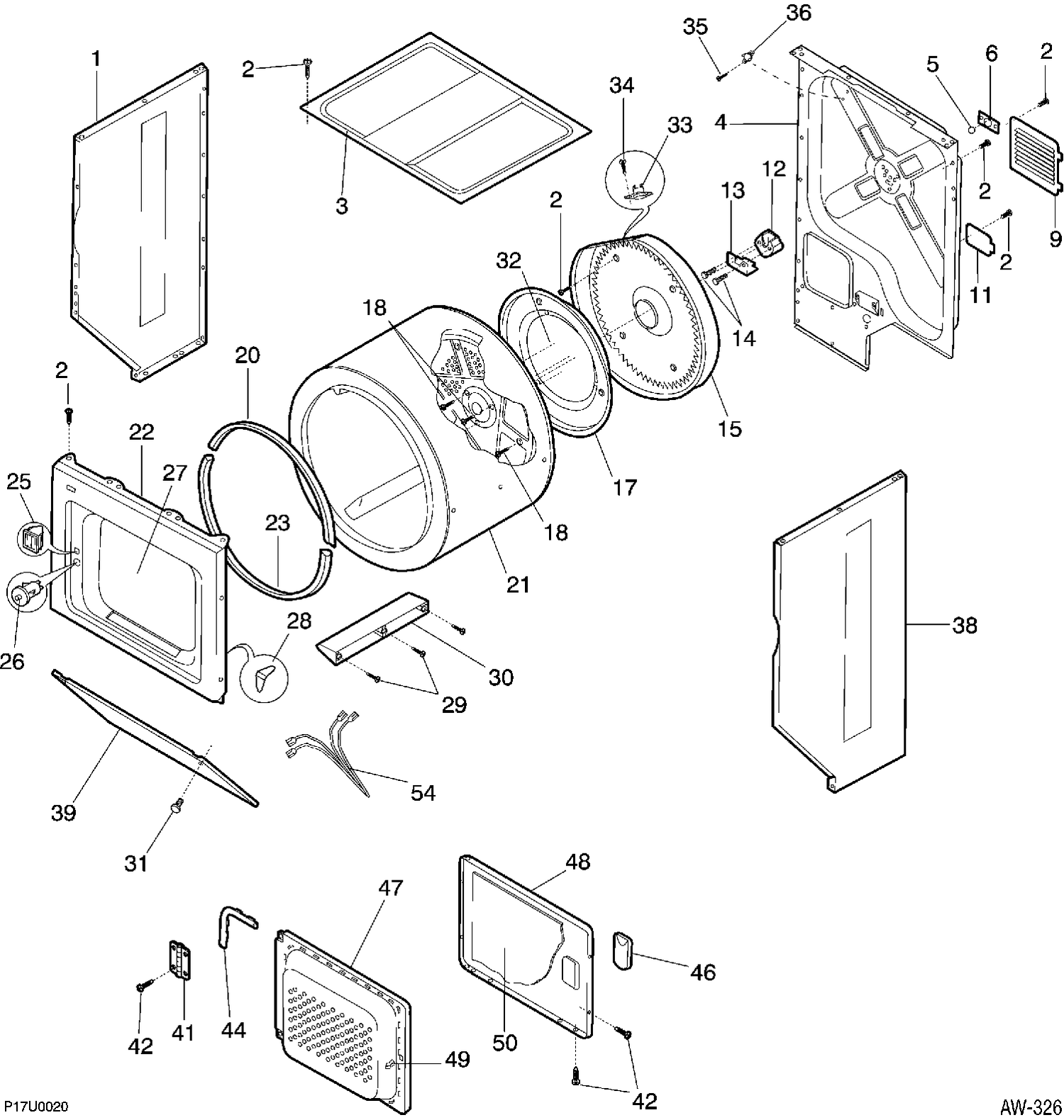

UPPER CABINET
UPPER CABINET Diagram and Parts List for General Electric Washer
