Page A Diagram and Parts List for Weed Eater Trimmer
Page A
Page B Diagram and Parts List for Weed Eater Trimmer
Page B
Page C Diagram and Parts List for Weed Eater Trimmer
Page C
Page D Diagram and Parts List for Weed Eater Trimmer
Page D
Previous Showing All Parts Next
Page A

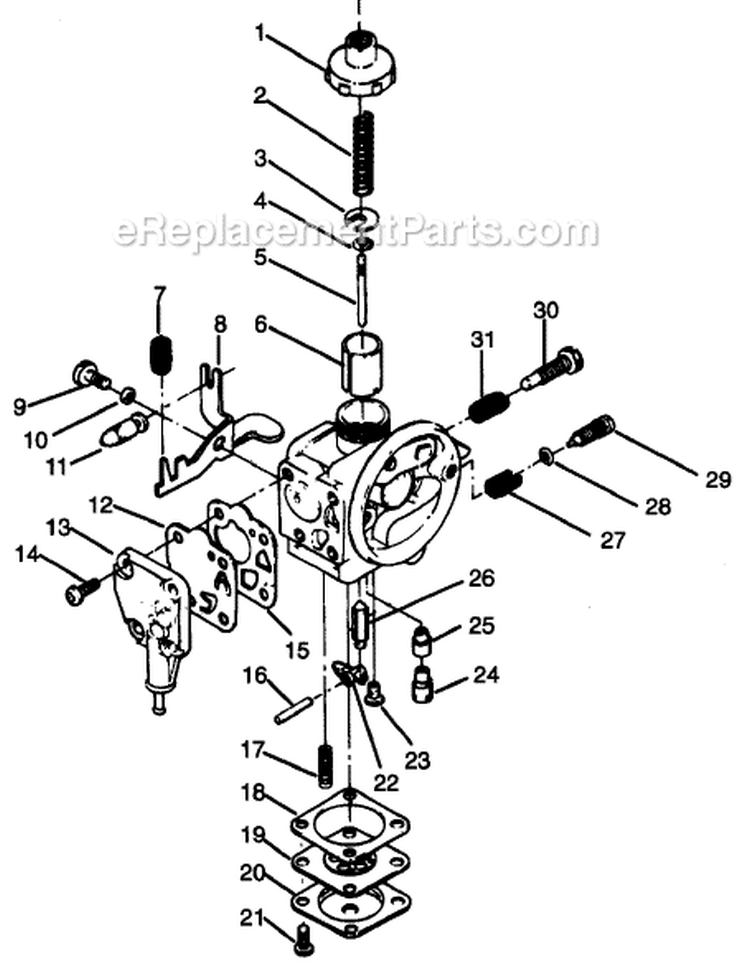

Page A Diagram and Parts List for Weed Eater Trimmer
  • A1
    Body Cap – Part Number: 530094093
    Body Cap
    Part Number: 530094093
      No Longer Available
  • A2
    Throttle Spring – Part Number: 530094094
    Throttle Spring
    Part Number: 530094094
      No Longer Available
  • A3
    Retainer – Part Number: 530094095
    Retainer
    Part Number: 530094095
      No Longer Available
  • A4
    Clip – Part Number: 530094097
    Clip
    Part Number: 530094097
      No Longer Available
  • A5
    Needle – Part Number: 530094096
    Needle
    Part Number: 530094096
      No Longer Available
  • A6
    Valve – Part Number: 530094098
    Valve
    Part Number: 530094098
      No Longer Available
  • A7
    Spring – Part Number: 530094120
    Spring
    Part Number: 530094120
      No Longer Available
  • A8
    Lever – Part Number: 530094121
    Lever
    Part Number: 530094121
      No Longer Available
  • A9
    Screw – Part Number: 530094123
    Screw
    Part Number: 530094123
      No Longer Available
  • A10
    Collar – Part Number: 530094122
    Collar
    Part Number: 530094122
      No Longer Available
  • A11
    Valve – Part Number: 530094119
    Valve
    Part Number: 530094119
      No Longer Available
  • A12
    Diaphragm – Part Number: 530094106
    Diaphragm
    Part Number: 530094106
      No Longer Available
  • A13
    Pump Cover – Part Number: 530094104
    Pump Cover
    Part Number: 530094104
      No Longer Available
  • A14
    Screw – Part Number: 530094107
    Screw
    Part Number: 530094107
      No Longer Available
  • A15
    Gasket – Part Number: 530094105
    Gasket
    Part Number: 530094105
      No Longer Available
  • A16
    Pin – Part Number: 530094112
    Pin
    Part Number: 530094112
      No Longer Available
  • A17
    Spring – Part Number: 530094114
    Spring
    Part Number: 530094114
      No Longer Available
  • A18
    Gasket – Part Number: 530094115
    Gasket
    Part Number: 530094115
      No Longer Available
  • A19
    Diaphragm Ass'y. – Part Number: 530094116
    Diaphragm Ass'y.
    Part Number: 530094116
      No Longer Available
  • A20
    Cover – Part Number: 530094117
    Cover
    Part Number: 530094117
      No Longer Available
  • A21
    Screw – Part Number: 530094118
    Screw
    Part Number: 530094118
      No Longer Available
  • A22
    Lever – Part Number: 530094111
    Lever
    Part Number: 530094111
      No Longer Available
  • A23
    Screw – Part Number: 530094113
    Screw
    Part Number: 530094113
      No Longer Available
  • A24
    Holder – Part Number: 530094109
    Holder
    Part Number: 530094109
      No Longer Available
  • A25
    Jet – Part Number: 530094108
    Jet
    Part Number: 530094108
      No Longer Available
  • A26
    Valve – Part Number: 530094110
    Valve
    Part Number: 530094110
      No Longer Available
  • A27
    Spring – Part Number: 530094101
    Spring
    Part Number: 530094101
      No Longer Available
  • A28
    O-Ring – Part Number: 530094100
    O-Ring
    Part Number: 530094100
      No Longer Available
  • A29
    Screw – Part Number: 530094099
    Screw
    Part Number: 530094099
      No Longer Available
  • A30
    Screw – Part Number: 530094102
    Screw
    Part Number: 530094102
      No Longer Available
  • A31
    Spring – Part Number: 530094103
    Spring
    Part Number: 530094103
      No Longer Available
Page B
Page B Diagram and Parts List for Weed Eater Trimmer

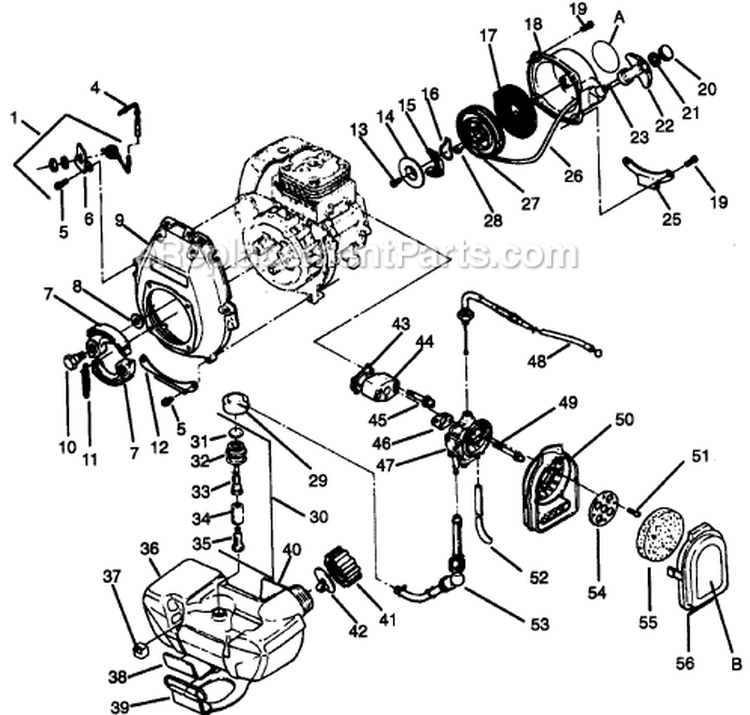

Page C
Page C Diagram and Parts List for Weed Eater Trimmer
  • C1
    Switch Stop – Part Number: 530094087
    Switch Stop
    Part Number: 530094087
      No Longer Available
  • C4
    Lead Wire Switch – Part Number: 530094089
    Lead Wire Switch
    Part Number: 530094089
      No Longer Available
  • C5
    Screw – Part Number: 530094047
    Screw
    Part Number: 530094047
      No Longer Available
  • C6
    Bracket – Part Number: 530094088
    Bracket
    Part Number: 530094088
      No Longer Available
  • C7
    Clutch Shoe – Part Number: 530094038
    Clutch Shoe
    Part Number: 530094038
      No Longer Available
  • C8
    Washer – Part Number: 530094040
    Washer
    Part Number: 530094040
      No Longer Available
  • C9
    Crankcase./Fan Hsg. Ass'y. – Part Number: 530094041
    Crankcase./Fan Hsg. Ass'y.
    Part Number: 530094041
      No Longer Available
  • C10
    Clutch Pin – Part Number: 530094037
    Clutch Pin
    Part Number: 530094037
      No Longer Available
  • C11
    Spring – Part Number: 530094039
    Spring
    Part Number: 530094039
      No Longer Available
  • C12
    Bracket – Part Number: 530094064
    Bracket
    Part Number: 530094064
      No Longer Available
  • C13
    Screw – Part Number: 530094128
    Screw
    Part Number: 530094128
      No Longer Available
  • C14
    Cover – Part Number: 530094129
    Cover
    Part Number: 530094129
      No Longer Available
  • C15
    Recoil Pawl – Part Number: 530094130
    Recoil Pawl
    Part Number: 530094130
      No Longer Available
  • C16
    Recoil Spring – Part Number: 530094131
    Recoil Spring
    Part Number: 530094131
      No Longer Available
  • C17
    Recoil Spring – Part Number: 530094134
    Recoil Spring
    Part Number: 530094134
      No Longer Available
  • C18
    Recoil Starter Ass'y. – Part Number: 490882166
    Recoil Starter Ass'y.
    Part Number: 490882166
      No Longer Available
  • C19
    Screw – Part Number: 530094034
    Screw
    Part Number: 530094034
      No Longer Available
  • C20
    Cap – Part Number: 530094138
    Cap
    Part Number: 530094138
      No Longer Available
  • C21
    Washer - 5mm - Flat - Gear Box - Index/Pinch Clamp – Part Number: 530094206
    Washer - 5mm - Flat - Gear Box - Index/Pinch Clamp
    Part Number: 530094206
      No Longer Available
  • C22
    Handle – Part Number: 530094136
    Handle
    Part Number: 530094136
      No Longer Available
  • C23
    Guide – Part Number: 530094139
    Guide
    Part Number: 530094139
      No Longer Available
  • C25
    Bracket – Part Number: 530094063
    Bracket
    Part Number: 530094063
      No Longer Available
  • C26
    Rope Kit – Part Number: 530069232
    Rope Kit
    Part Number: 530069232
    ★★★★★
    ★★★★★
    (14)
      In Stock
    $7.72
  • C27
    Recoil Reel – Part Number: 530094133
    Recoil Reel
    Part Number: 530094133
      No Longer Available
  • C28
    Spring – Part Number: 530094132
    Spring
    Part Number: 530094132
      No Longer Available
  • C29
    Tank Cap Strainer – Part Number: 530094183
    Tank Cap Strainer
    Part Number: 530094183
      No Longer Available
  • C30
    Fuel Strainer Ass'y. – Part Number: 530094061
    Fuel Strainer Ass'y.
    Part Number: 530094061
      No Longer Available
  • C31
    Filter – Part Number: 530094179
    Filter
    Part Number: 530094179
      No Longer Available
  • C32
    Tube – Part Number: 530094182
    Tube
    Part Number: 530094182
      No Longer Available
  • C33
    Clip – Part Number: 530094181
    Clip
    Part Number: 530094181
      No Longer Available
  • C34
    Element – Part Number: 490192063
    Element
    Part Number: 490192063
      No Longer Available
  • C35
    Weight – Part Number: 530094180
    Weight
    Part Number: 530094180
      No Longer Available
  • C36
    Fuel Tank Ass'y. – Part Number: 530094058
    Fuel Tank Ass'y.
    Part Number: 530094058
      No Longer Available
  • C37
    Fuel Tank Damper – Part Number: 530094065
    Fuel Tank Damper
    Part Number: 530094065
      No Longer Available
  • C38
    Fuel Tank Damper – Part Number: 530094067
    Fuel Tank Damper
    Part Number: 530094067
      No Longer Available
  • C39
    Fuel Tank Band – Part Number: 530094066
    Fuel Tank Band
    Part Number: 530094066
      No Longer Available
  • C40
    Fuel Tank Damper – Part Number: 530094068
    Fuel Tank Damper
    Part Number: 530094068
      No Longer Available
  • C41
    Tank Cap – Part Number: 530094059
    Tank Cap
    Part Number: 530094059
      No Longer Available
  • C42
    Valve – Part Number: 531003347
    Valve
    Part Number: 531003347
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $27.85
  • C43
    Gasket – Part Number: 530094055
    Gasket
    Part Number: 530094055
      No Longer Available
  • C44
    Insulator – Part Number: 530094054
    Insulator
    Part Number: 530094054
      No Longer Available
  • C45
    Screw – Part Number: 530094057
    Screw
    Part Number: 530094057
      No Longer Available
  • C46
    Gasket – Part Number: 530094056
    Gasket
    Part Number: 530094056
      No Longer Available
  • C47
    Carb. Ass'y. – Part Number: 530094053
    Carb. Ass'y.
    Part Number: 530094053
      No Longer Available
  • C48
    Throttle Cable – Part Number: 530094052
    Throttle Cable
    Part Number: 530094052
      No Longer Available
  • C49
    Screw – Part Number: 530094125
    Screw
    Part Number: 530094125
      No Longer Available
  • C50
    Air Cleaner Case – Part Number: 530094006
    Air Cleaner Case
    Part Number: 530094006
      No Longer Available
  • C51
    Screw – Part Number: 530094010
    Screw
    Part Number: 530094010
      No Longer Available
  • C52
    Line – Part Number: 530094126
    Line
    Part Number: 530094126
      No Longer Available
  • C53
    Pump – Part Number: 530094196
    Pump
    Part Number: 530094196
      No Longer Available
  • C54
    Plate – Part Number: 530094009
    Plate
    Part Number: 530094009
      No Longer Available
  • C55
    Air Cleaner – Part Number: 530094008
    Air Cleaner
    Part Number: 530094008
      No Longer Available
  • C56
    Cap – Part Number: 110122140
    Cap
    Part Number: 110122140
      No Longer Available
  • CA
    Decal – Part Number: 530027152
    Decal
    Part Number: 530027152
      No Longer Available
  • CB
    Decal – Part Number: 530026678
    Decal
    Part Number: 530026678
      No Longer Available
  • CB
    Decal – Part Number: 530027383
    Decal
    Part Number: 530027383
      No Longer Available
Page D

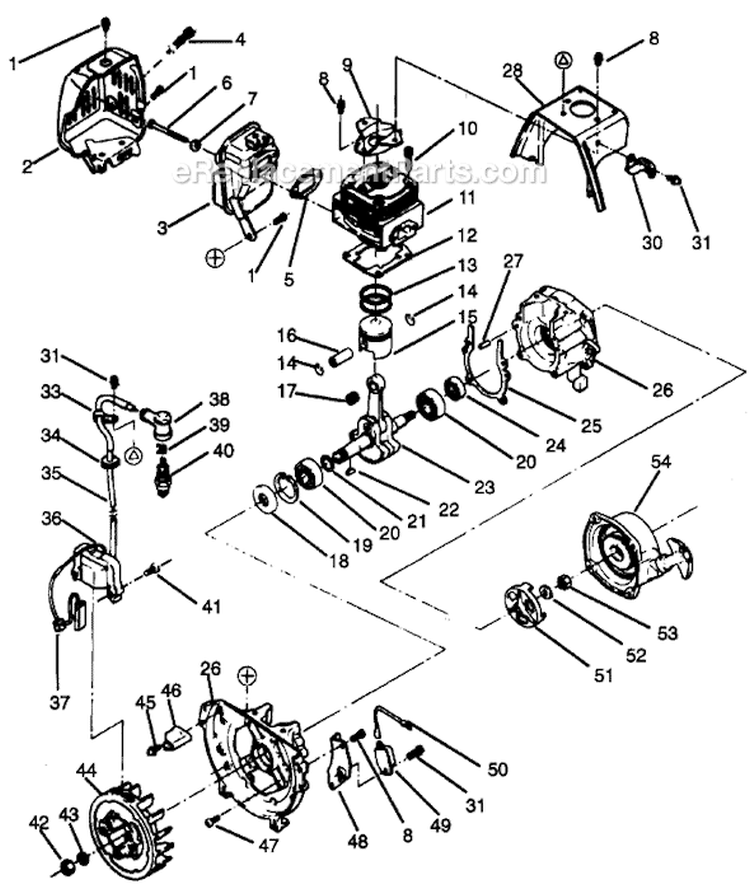

Page D Diagram and Parts List for Weed Eater Trimmer
  • D1
    Screw – Part Number: 530094014
    Screw
    Part Number: 530094014
      No Longer Available
  • D2
    Muffler Cover – Part Number: 530094124
    Muffler Cover
    Part Number: 530094124
      No Longer Available
  • D3
    Muffler Ass'y. – Part Number: 530094011
    Muffler Ass'y.
    Part Number: 530094011
      No Longer Available
  • D4
    Spark Arrestor – Part Number: 530094428
    Spark Arrestor
    Part Number: 530094428
      No Longer Available
  • D5
    Gasket – Part Number: 530094012
    Gasket
    Part Number: 530094012
      No Longer Available
  • D6
    Bolt – Part Number: 530094013
    Bolt
    Part Number: 530094013
      No Longer Available
  • D7
    Washer – Part Number: 530015181
    Washer
    Part Number: 530015181
      No Longer Available
  • D8
    Screw – Part Number: 530094014
    Screw
    Part Number: 530094014
      No Longer Available
  • D9
    Bracket – Part Number: 530094019
    Bracket
    Part Number: 530094019
      No Longer Available
  • D10
    Bolt – Part Number: 530094005
    Bolt
    Part Number: 530094005
      No Longer Available
  • D11
    Cylinder – Part Number: 530094003
    Cylinder
    Part Number: 530094003
      No Longer Available
  • D12
    Gasket – Part Number: 530094004
    Gasket
    Part Number: 530094004
      No Longer Available
  • D13
    Piston Ring Set – Part Number: 530094023
    Piston Ring Set
    Part Number: 530094023
      No Longer Available
  • D14
    Snap Ring – Part Number: 530094025
    Snap Ring
    Part Number: 530094025
      No Longer Available
  • D15
    Piston – Part Number: 530094022
    Piston
    Part Number: 530094022
      No Longer Available
  • D16
    Piston Pin – Part Number: 530094024
    Piston Pin
    Part Number: 530094024
      No Longer Available
  • D17
    Bearing – Part Number: 530094027
    Bearing
    Part Number: 530094027
      No Longer Available
  • D18
    Seal – Part Number: 530094045
    Seal
    Part Number: 530094045
      No Longer Available
  • D19
    Snap Ring – Part Number: 530094049
    Snap Ring
    Part Number: 530094049
      No Longer Available
  • D20
    Bearing – Part Number: 530094044
    Bearing
    Part Number: 530094044
      No Longer Available
  • D21
    Shim(0.1mm) – Part Number: 530094028
    Shim(0.1mm)
    Part Number: 530094028
      No Longer Available
  • D21
    Shim(0.2mm) – Part Number: 530094029
    Shim(0.2mm)
    Part Number: 530094029
      No Longer Available
  • D21
    Shim((0.4mm) – Part Number: 530094030
    Shim((0.4mm)
    Part Number: 530094030
      No Longer Available
  • D21
    Shim(0.6mm) – Part Number: 530094031
    Shim(0.6mm)
    Part Number: 530094031
      No Longer Available
  • D22
    Crankshaft Key – Part Number: 530094347
    Crankshaft Key
    Part Number: 530094347
      No Longer Available
  • D23
    Crankshaft Ass'y. – Part Number: 530094026
    Crankshaft Ass'y.
    Part Number: 530094026
      No Longer Available
  • D24
    Seal – Part Number: 530094337
    Seal
    Part Number: 530094337
      No Longer Available
  • D25
    Gasket – Part Number: 530094043
    Gasket
    Part Number: 530094043
      No Longer Available
  • D26
    Crankcase./Fan Hsg. Ass'y. – Part Number: 530094041
    Crankcase./Fan Hsg. Ass'y.
    Part Number: 530094041
      No Longer Available
  • D27
    Pin – Part Number: 530094042
    Pin
    Part Number: 530094042
      No Longer Available
  • D28
    Cylinder Cover – Part Number: 530094018
    Cylinder Cover
    Part Number: 530094018
      No Longer Available
  • D30
    Clamp – Part Number: 530094075
    Clamp
    Part Number: 530094075
      No Longer Available
  • D31
    Screw – Part Number: 530094081
    Screw
    Part Number: 530094081
      No Longer Available
  • D33
    Clamp – Part Number: 530094076
    Clamp
    Part Number: 530094076
      No Longer Available
  • D34
    Grommet – Part Number: 530094078
    Grommet
    Part Number: 530094078
      No Longer Available
  • D35
    High Tension Wire – Part Number: 530094079
    High Tension Wire
    Part Number: 530094079
      No Longer Available
  • D36
    Coil – Part Number: 530094072
    Coil
    Part Number: 530094072
      No Longer Available
  • D37
    Grommet – Part Number: 530094077
    Grommet
    Part Number: 530094077
      No Longer Available
  • D38
    Cap – Part Number: 530094085
    Cap
    Part Number: 530094085
      No Longer Available
  • D39
    Spring – Part Number: 530094086
    Spring
    Part Number: 530094086
      No Longer Available
  • D40
    Spark Plug – Part Number: 530094084
    Spark Plug
    Part Number: 530094084
      No Longer Available
  • D41
    Bolt – Part Number: 530094080
    Bolt
    Part Number: 530094080
      No Longer Available
  • D42
    Nut – Part Number: 530094082
    Nut
    Part Number: 530094082
      No Longer Available
  • D43
    Washer – Part Number: 530094074
    Washer
    Part Number: 530094074
      No Longer Available
  • D44
    Flywheel – Part Number: 530094071
    Flywheel
    Part Number: 530094071
      No Longer Available
  • D45
    Screw – Part Number: 530094081
    Screw
    Part Number: 530094081
      No Longer Available
  • D46
    Plate – Part Number: 530094017
    Plate
    Part Number: 530094017
      No Longer Available
  • D47
    Screw – Part Number: 530094048
    Screw
    Part Number: 530094048
      No Longer Available
  • D48
    Igniter Cover – Part Number: 530094016
    Igniter Cover
    Part Number: 530094016
      No Longer Available
  • D49
    Igniter – Part Number: 530094073
    Igniter
    Part Number: 530094073
      No Longer Available
  • D50
    Lead Wire Switch – Part Number: 530094359
    Lead Wire Switch
    Part Number: 530094359
      No Longer Available
  • D51
    Pulley – Part Number: 530094033
    Pulley
    Part Number: 530094033
      No Longer Available
  • D52
    Bolt – Part Number: 530094005
    Bolt
    Part Number: 530094005
      No Longer Available
  • D53
    Nut – Part Number: 530094035
    Nut
    Part Number: 530094035
      No Longer Available
  • D54
    Recoil Starter Ass'y. – Part Number: 490882166
    Recoil Starter Ass'y.
    Part Number: 490882166
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

We're sorry, but our Q&A experts are temporarily unavailable.
Please check back later if you still haven't found the answer you need.

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
