Toro Tc 5010 Gas Trimmer Replacement Parts For Model 51675 (39000001 - 39999999)

We Sell Only Genuine Toro Parts

Popular Parts for 51675

Nut-lock, Ni – Part Number: 3296-42 Nut-lock, Ni
In Stock
$5.95
Nut-lock, Ni – Part Number: 3296-2 Nut-lock, Ni
In Stock
$5.95
Fuel Tank Grommet – Part Number: 77-2030 Fuel Tank Grommet
In Stock
$20.60
Screw-Carr – Part Number: 3229-5 Screw-Carr
In Stock
Minimum Quantity of 2 required
$5.95
Fuel Tank Cap – Part Number: 77-1990 Fuel Tank Cap
Special Order
$59.64
Primer Pump – Part Number: 77-1670 Primer Pump
In Stock
$35.60
Cleaner Element – Part Number: 77-1730 Cleaner Element
Special Order
$39.18
Eyelet – Part Number: 57-5630 Eyelet
Special Order
$10.48

Search Within Model

Questions & Answers for Toro 51675
Browse all Parts Search by Area
Carburetor Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
Carburetor Assembly
Cutter Head & Gear Box Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
Cutter Head & Gear Box Assembly
Engine Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
Engine Assembly
Engine Assembly (Continued) Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
Engine Assembly (Continued)
Fuel Tank Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
Fuel Tank Assembly
Handle Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
Handle Assembly
Recoil Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
Recoil Assembly
Previous Showing All Parts Next

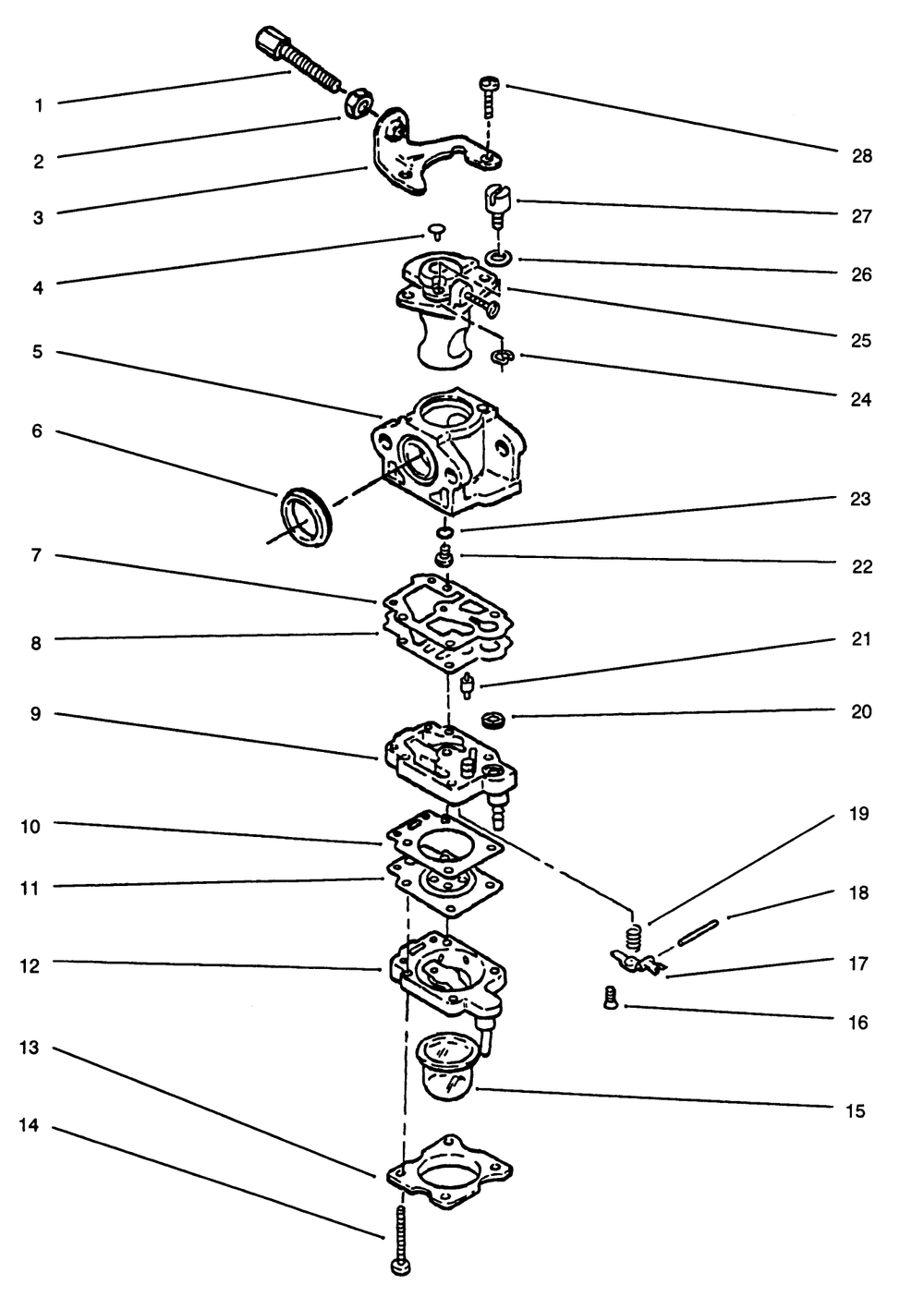

Carburetor Assembly
Carburetor Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
  • Jet-High Altitude #41 – Part Number: 82-2540
    Jet-High Altitude #41
    Part Number: 82-2540
      No Longer Available
  • Kit - Carburetor – Part Number: 88-0400
    Kit - Carburetor
    Part Number: 88-0400
      Special Order
    $329.45
  • Carburetor Assembly – Part Number: 88-0280
    Carburetor Assembly
    Part Number: 88-0280
      No Longer Available
  • 1
    Adjusting Screw – Part Number: 77-1470
    Adjusting Screw
    Part Number: 77-1470
      No Longer Available
  • 2
    Locknut – Part Number: 77-1480
    Locknut
    Part Number: 77-1480
      No Longer Available
  • 3
    Bracket – Part Number: 77-1490
    Bracket
    Part Number: 77-1490
      No Longer Available
  • 4
    Plug – Part Number: 77-1530
    Plug
    Part Number: 77-1530
      No Longer Available
  • 6
    Rubber Carb Gasket – Part Number: 77-1550
    Rubber Carb Gasket
    Part Number: 77-1550
      No Longer Available
  • 7
    Diaphram Gasket – Part Number: 77-1580
    Diaphram Gasket
    Part Number: 77-1580
      No Longer Available
  • 8
    Diaphragm – Part Number: 77-1590
    Diaphragm
    Part Number: 77-1590
      No Longer Available
  • 9
    Body Ass-Y-Fuel Pump – Part Number: 88-0290
    Body Ass-Y-Fuel Pump
    Part Number: 88-0290
      No Longer Available
  • 10
    Diaphragm Gasket – Part Number: 88-0300
    Diaphragm Gasket
    Part Number: 88-0300
      No Longer Available
  • 11
    Diaphragm – Part Number: 77-1650
    Diaphragm
    Part Number: 77-1650
      No Longer Available
  • 12
    Body-Primer – Part Number: 88-0310
    Body-Primer
    Part Number: 88-0310
      No Longer Available
  • 13
    Cover-Primer – Part Number: 88-0320
    Cover-Primer
    Part Number: 88-0320
      No Longer Available
  • 14
    Screw – Part Number: 88-0330
    Screw
    Part Number: 88-0330
      No Longer Available
  • 15
    Primer Pump – Part Number: 77-1670
    Primer Pump
    Part Number: 77-1670
      In Stock
    $35.60
  • 16
    Screw – Part Number: 88-0380
    Screw
    Part Number: 88-0380
      No Longer Available
  • 17
    Lever – Part Number: 88-0360
    Lever
    Part Number: 88-0360
      No Longer Available
  • 18
    Pin – Part Number: 88-0370
    Pin
    Part Number: 88-0370
      No Longer Available
  • 19
    Spring – Part Number: 88-0350
    Spring
    Part Number: 88-0350
      No Longer Available
  • 20
    Screen – Part Number: 77-1620
    Screen
    Part Number: 77-1620
      No Longer Available
  • 21
    Needle Valve – Part Number: 88-0340
    Needle Valve
    Part Number: 88-0340
      No Longer Available
  • 22
    Main Jet – Part Number: 77-1570
    Main Jet
    Part Number: 77-1570
      No Longer Available
  • 23
    Main Jet O-Ring – Part Number: 77-1560
    Main Jet O-Ring
    Part Number: 77-1560
      No Longer Available
  • 24
    Clip – Part Number: 77-1520
    Clip
    Part Number: 77-1520
      No Longer Available
  • 25
    Throttle Valve – Part Number: 77-1540
    Throttle Valve
    Part Number: 77-1540
      No Longer Available
  • 26
    Washer – Part Number: 77-9900
    Washer
    Part Number: 77-9900
      No Longer Available
  • 27
    Holder-Wire – Part Number: 77-1510
    Holder-Wire
    Part Number: 77-1510
      No Longer Available
  • 28
    Screw – Part Number: 77-1500
    Screw
    Part Number: 77-1500
      No Longer Available

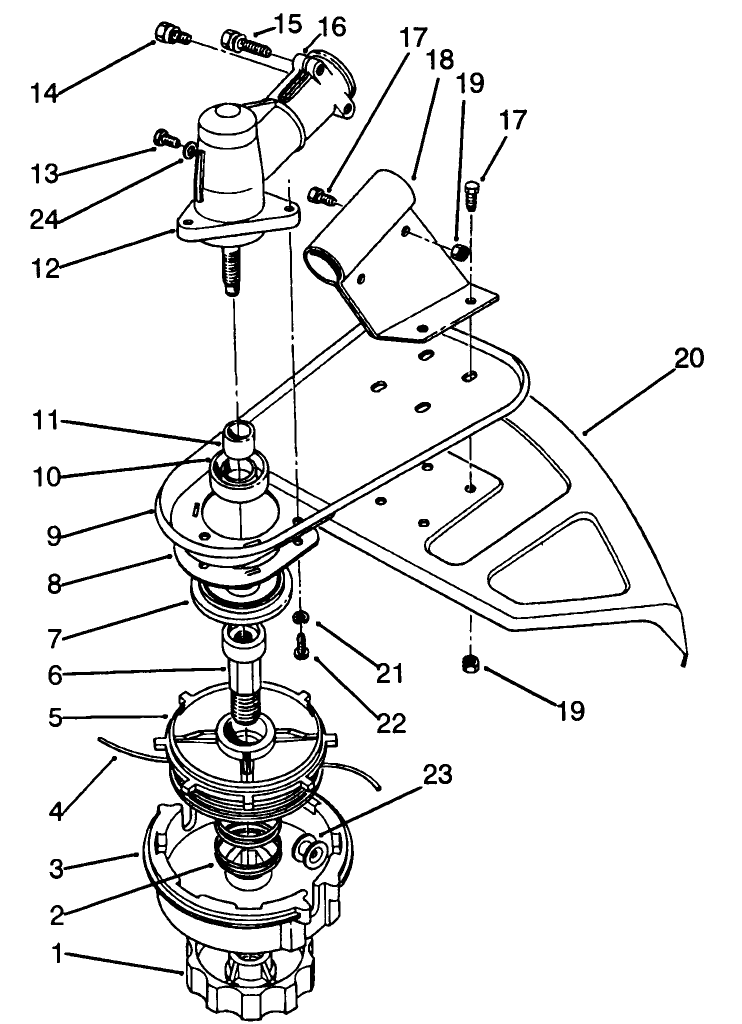

Cutter Head & Gear Box Assembly
Cutter Head & Gear Box Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer

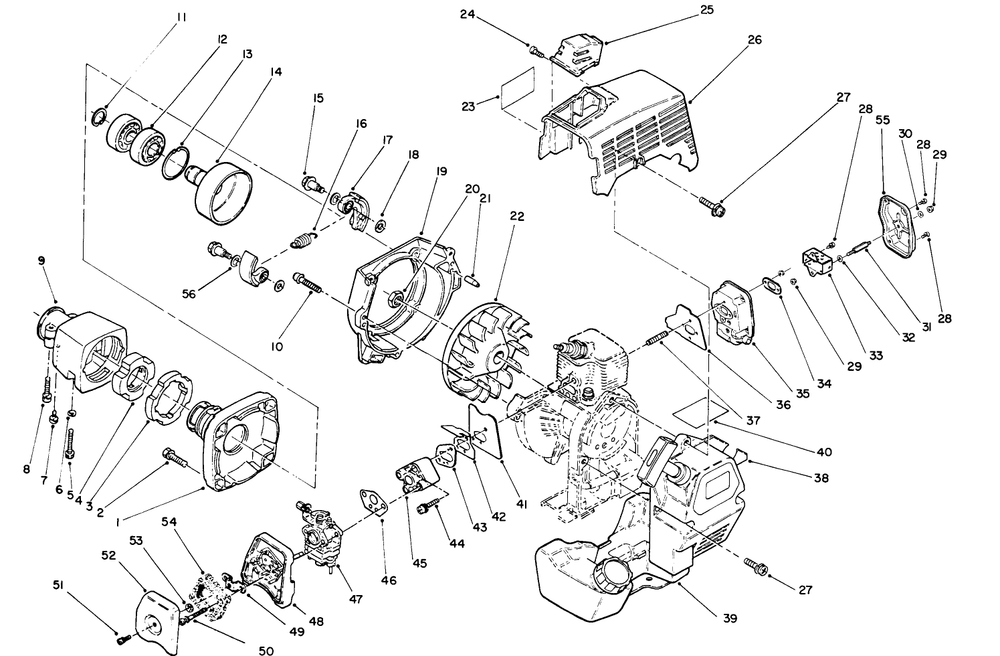

Engine Assembly
Engine Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer

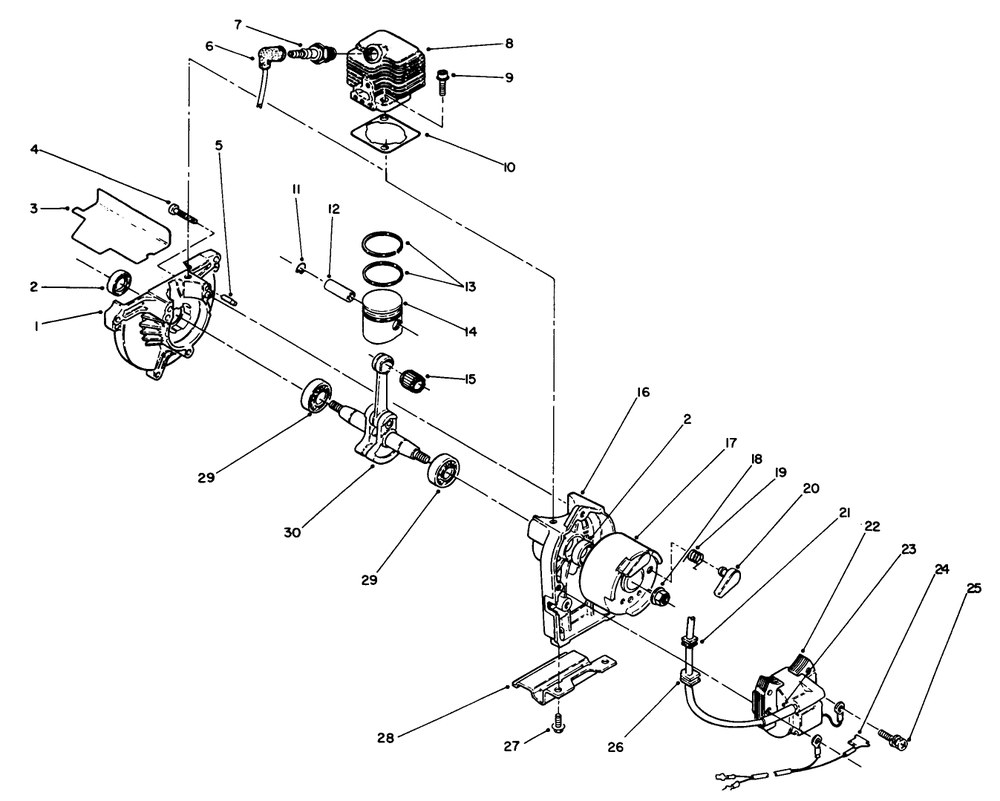

Engine Assembly (Continued)
Engine Assembly (Continued) Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
  • 1
    Drive Case – Part Number: 77-9730
    Drive Case
    Part Number: 77-9730
      Special Order
    $223.64
  • 2
    Oil Seal – Part Number: 54-4380
    Oil Seal
    Part Number: 54-4380
      No Longer Available
  • 3
    Baffle Gasket – Part Number: 77-9700
    Baffle Gasket
    Part Number: 77-9700
      Special Order
    $39.18
  • 4
    Screw – Part Number: 54-4330
    Screw
    Part Number: 54-4330
      No Longer Available
  • 5
    Pin – Part Number: 60-7590
    Pin
    Part Number: 60-7590
      No Longer Available
  • 6
    Plug Boot – Part Number: 77-1340
    Plug Boot
    Part Number: 77-1340
      No Longer Available
  • 7
    DISCONTINUED – Part Number: 77-1350
    DISCONTINUED
    Part Number: 77-1350
      No Longer Available
  • 8
    Cyclinder – Part Number: 77-9780
    Cyclinder
    Part Number: 77-9780
      Special Order
    $648.20
  • 9
    Bolt – Part Number: 54-6600
    Bolt
    Part Number: 54-6600
      No Longer Available
  • 10
    Gasket-Cylinder Head – Part Number: 77-9800
    Gasket-Cylinder Head
    Part Number: 77-9800
      No Longer Available
  • 11
    Clip, Piston Pin – Part Number: 54-6680
    Clip, Piston Pin
    Part Number: 54-6680
      No Longer Available
  • 12
    Pin, Piston – Part Number: 54-6670
    Pin, Piston
    Part Number: 54-6670
      No Longer Available
  • 13
    Ring,Piston – Part Number: 54-6640
    Ring,Piston
    Part Number: 54-6640
      No Longer Available
  • 14
    Piston Set – Part Number: 77-9810
    Piston Set
    Part Number: 77-9810
      No Longer Available
  • 15
    Bearing, Needle – Part Number: 54-6690
    Bearing, Needle
    Part Number: 54-6690
      No Longer Available
  • 16
    Starter Case – Part Number: 77-9710
    Starter Case
    Part Number: 77-9710
      No Longer Available
  • 17
    Flywheel – Part Number: 77-1360
    Flywheel
    Part Number: 77-1360
      No Longer Available
  • 18
    Nut – Part Number: 54-4670
    Nut
    Part Number: 54-4670
      No Longer Available
  • 19
    Return Spring – Part Number: 77-1370
    Return Spring
    Part Number: 77-1370
      No Longer Available
  • 20
    Ratchet – Part Number: 77-1380
    Ratchet
    Part Number: 77-1380
      No Longer Available
  • 21
    Grommet – Part Number: 77-9840
    Grommet
    Part Number: 77-9840
      No Longer Available
  • 22
    Ignition Coil – Part Number: 77-9850
    Ignition Coil
    Part Number: 77-9850
      No Longer Available
  • 23
    Tube – Part Number: 77-2180
    Tube
    Part Number: 77-2180
      No Longer Available
  • 24
    Lead Wire – Part Number: 84-8630
    Lead Wire
    Part Number: 84-8630
      No Longer Available
  • 25
    Bolt And Washer – Part Number: 54-4790
    Bolt And Washer
    Part Number: 54-4790
      No Longer Available
  • 26
    Grommet – Part Number: 60-7840
    Grommet
    Part Number: 60-7840
      No Longer Available
  • 27
    Screw and Washer – Part Number: 77-9760
    Screw and Washer
    Part Number: 77-9760
      No Longer Available
  • 28
    Stand – Part Number: 60-7660
    Stand
    Part Number: 60-7660
      No Longer Available
  • 29
    Bearing – Part Number: 54-4360
    Bearing
    Part Number: 54-4360
      No Longer Available
  • 30
    Crankshaft Assembly – Part Number: 77-9830
    Crankshaft Assembly
    Part Number: 77-9830
      No Longer Available

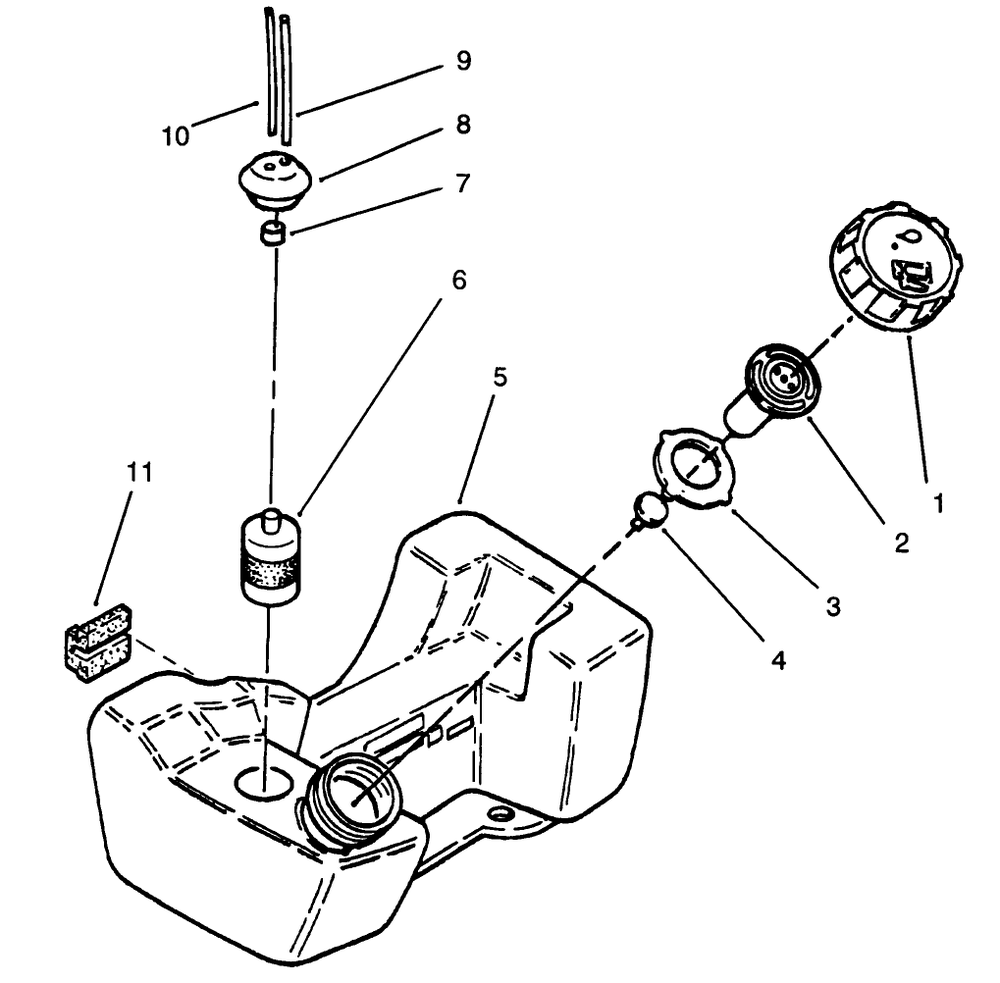

Fuel Tank Assembly
Fuel Tank Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
  • Tank Cap Assembly – Part Number: 77-1980
    Tank Cap Assembly
    Part Number: 77-1980
      No Longer Available
  • 1
    Fuel Tank Cap – Part Number: 77-1990
    Fuel Tank Cap
    Part Number: 77-1990
      Special Order
    $59.64
  • 2
    Breather Valve – Part Number: 77-2000
    Breather Valve
    Part Number: 77-2000
      Special Order
    $61.35
  • 3
    Packing – Part Number: 77-2010
    Packing
    Part Number: 77-2010
      Special Order
    $24.36
  • 4
    Cap – Part Number: 77-2020
    Cap
    Part Number: 77-2020
      No Longer Available
  • 5
    Fuel Tank Assembly – Part Number: 88-0240
    Fuel Tank Assembly
    Part Number: 88-0240
      No Longer Available
  • 6
    Fuel Filter – Part Number: 88-0250
    Fuel Filter
    Part Number: 88-0250
      No Longer Available
  • 7
    Collar – Part Number: 77-1970
    Collar
    Part Number: 77-1970
      No Longer Available
  • 8
    Fuel Tank Grommet – Part Number: 77-2030
    Fuel Tank Grommet
    Part Number: 77-2030
      In Stock
    $20.60
  • 9
    Fuel Tube – Part Number: 88-0390
    Fuel Tube
    Part Number: 88-0390
      No Longer Available
  • 10
    Return Fuel Hose – Part Number: 77-1960
    Return Fuel Hose
    Part Number: 77-1960
      No Longer Available
  • 11
    Pad – Part Number: 60-8280
    Pad
    Part Number: 60-8280
      No Longer Available

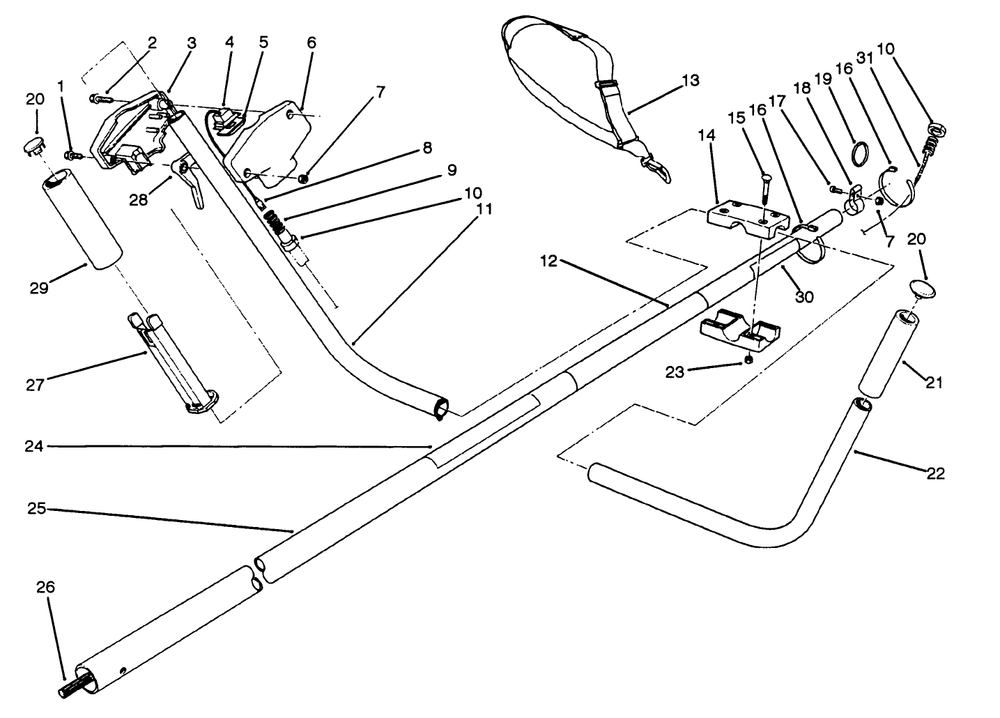

Handle Assembly
Handle Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer

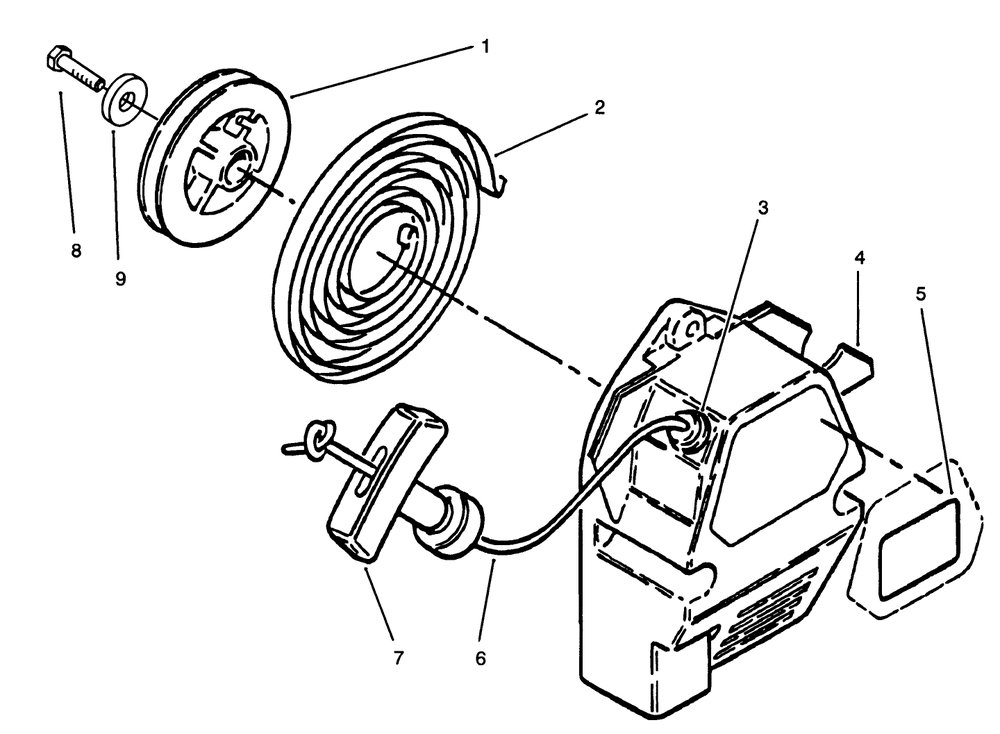

Recoil Assembly
Recoil Assembly Diagram and Parts List for 39000001 - 39999999 Toro Trimmer
  • Recoil Assembly – Part Number: 82-6180
    Recoil Assembly
    Part Number: 82-6180
      No Longer Available
  • 1
    Reel – Part Number: 60-8230
    Reel
    Part Number: 60-8230
      No Longer Available
  • 2
    Spring – Part Number: 54-5420
    Spring
    Part Number: 54-5420
      No Longer Available
  • 3
    Guide – Part Number: 77-1930
    Guide
    Part Number: 77-1930
      No Longer Available
  • 4
    Recoil Case – Part Number: 82-6170
    Recoil Case
    Part Number: 82-6170
      Special Order
    $353.56
  • 5
    Decal-Toro – Part Number: 76-0790
    Decal-Toro
    Part Number: 76-0790
      No Longer Available
  • 6
    DISCONTINUED – Part Number: 54-6370
    DISCONTINUED
    Part Number: 54-6370
      No Longer Available
  • 7
    Starter Knob – Part Number: 56-8970
    Starter Knob
    Part Number: 56-8970
      Special Order
    $40.89
  • 8
    Screw – Part Number: 60-8220
    Screw
    Part Number: 60-8220
      No Longer Available
  • 9
    Washer – Part Number: 54-5400
    Washer
    Part Number: 54-5400
      No Longer Available
