Husqvarna Trimmer Replacement Parts For Model 325LX (325 LX 2001-01)

We Sell Only Genuine Husqvarna Parts

Popular Parts for 325LX

Chainsaw Fuel Filter – Part Number: 591375401 Chainsaw Fuel Filter
In Stock
$13.42
Chainsaw Primer Bulb – Part Number: 503936601 Chainsaw Primer Bulb
In Stock
$11.92
Fuel Tank Bushing – Part Number: 580457501 Fuel Tank Bushing
In Stock
$5.95
Trimmer Hose – Part Number: 537042401 Trimmer Hose
In Stock
$5.95
Carburetor – Part Number: 588171156 Carburetor
In Stock
$62.27
Knob – Part Number: 502204001 Knob
In Stock
$7.45
Screw – Part Number: 503216220 Screw
In Stock
Minimum Quantity of 2 required
$5.95
Air Filter – Part Number: 537143101 Air Filter
In Stock
$8.95

Search Within Model

Questions & Answers for Husqvarna 325LX
Browse all Parts Search by Area
Page A Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page A
Page B Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page B
Page C Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page C
Page D Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page D
Page E Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page E
Page F Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page F
Page G Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page G
Page H Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page H
Page I Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page I
Page J Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page J
Page K Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page K
Page L Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page L
Page M Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page M

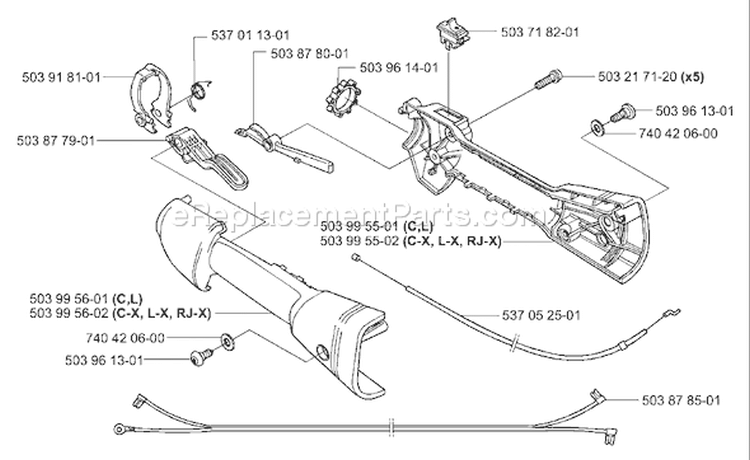

Page N Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page N
Previous Showing All Parts Next
Page A

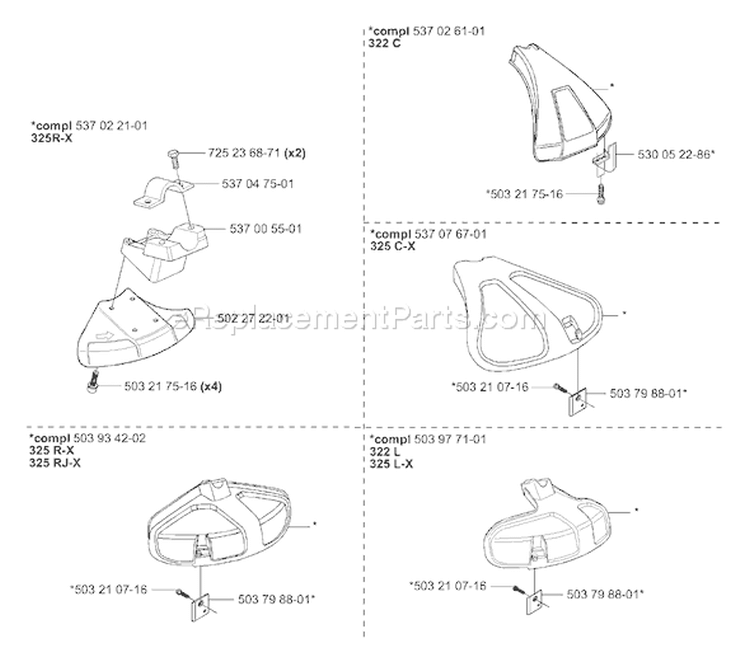

Page A Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page B

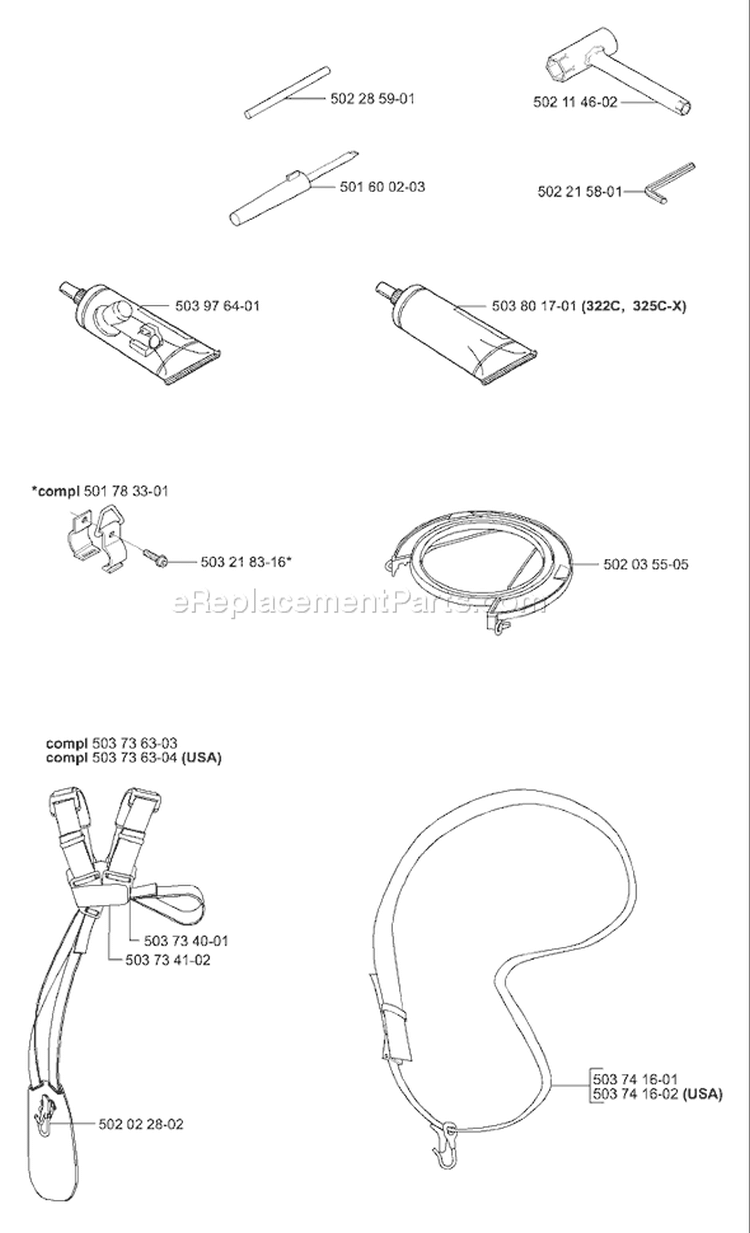

Page B Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page C

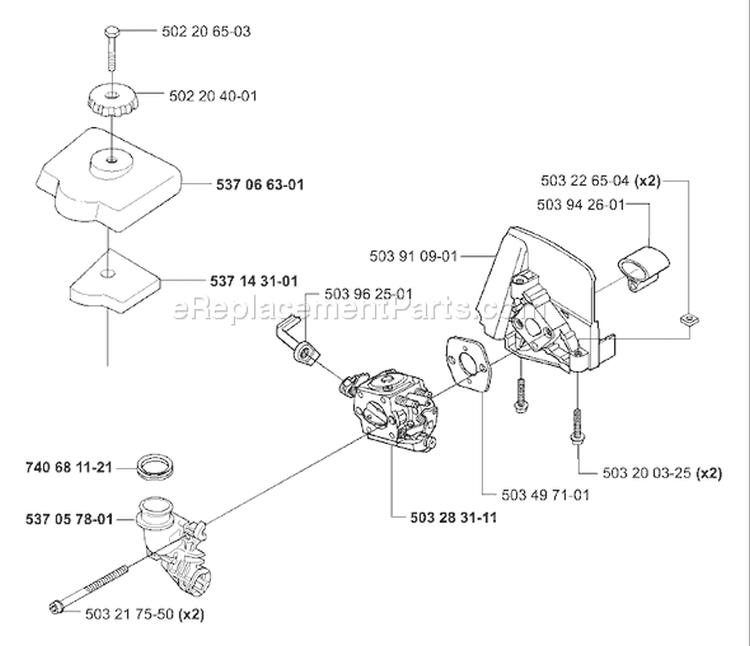

Page C Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page D

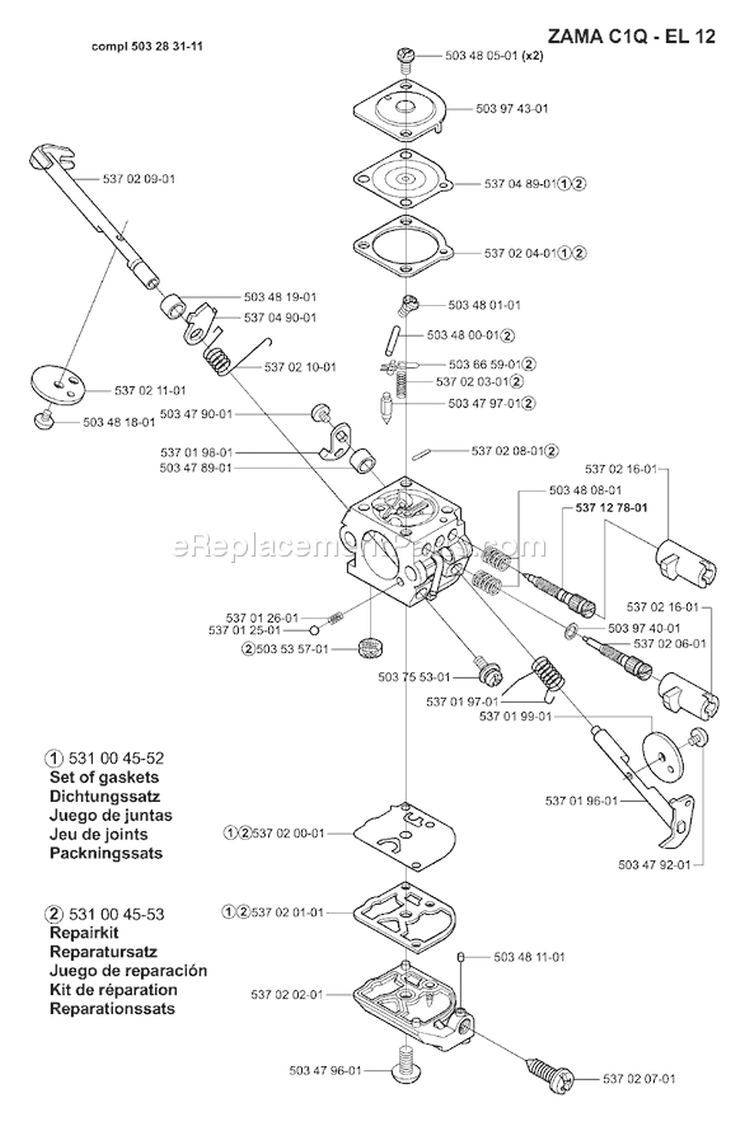

Page D Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
  • D-1
    Carburetor – Part Number: 588171156
    Carburetor
    Part Number: 588171156
    ★★★★★
    ★★★★★
    (6)
      In Stock
    $62.27
  • D-2
    Choke Shaft – Part Number: 537020901
    Choke Shaft
    Part Number: 537020901
      No Longer Available
  • D-3
    Choke Cap – Part Number: 537370301
    Choke Cap
    Part Number: 537370301
      Special Order
    $14.92
  • D-4
    Screw – Part Number: 503479001
    Screw
    Part Number: 503479001
      In Stock
    Minimum Quantity of 2 required
    $5.95
  • D-5
    Screw – Part Number: 503481801
    Screw
    Part Number: 503481801
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • D-6
    Lever – Part Number: 537019801
    Lever
    Part Number: 537019801
      Special Order
    $8.96
  • D-7
    Spacer – Part Number: 503478901
    Spacer
    Part Number: 503478901
      Special Order
    $5.96
  • D-8
    Spring – Part Number: 537012601
    Spring
    Part Number: 537012601
      Special Order
    $5.95
  • D-9
    Ball – Part Number: 537012501
    Ball
    Part Number: 537012501
      Special Order
    $5.96
  • D-10
    Dethatcher Gasket Kit (Zama Gnd39) – Part Number: 531004552
    Dethatcher Gasket Kit (Zama Gnd39)
    Part Number: 531004552
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $14.92
  • D-11
    Carburetor Kit (zama Rb69) – Part Number: 531004553
    Carburetor Kit (zama Rb69)
    Part Number: 531004553
      In Stock
    $29.87
  • D-12
    Screw – Part Number: 503479601
    Screw
    Part Number: 503479601
      Special Order
    $8.96
  • D-13
    Cover – Part Number: 537020201
    Cover
    Part Number: 537020201
      Special Order
    $44.84
  • D-14
    Gasket – Part Number: 537020101
    Gasket
    Part Number: 537020101
      In Stock
    Minimum Quantity of 2 required
    $5.96
  • D-15
    Pump Diaphragm – Part Number: 537020001
    Pump Diaphragm
    Part Number: 537020001
      In Stock
    $11.92
  • D-16
    Spring Throttle – Part Number: 537019701
    Spring Throttle
    Part Number: 537019701
      In Stock
    Minimum Quantity of 2 required
    $7.46
  • D-17
    Screw – Part Number: 503755301
    Screw
    Part Number: 503755301
      Special Order
    $5.96
  • D-18
    Strainer – Part Number: 503535701
    Strainer
    Part Number: 503535701
      In Stock
    $6.48
  • D-19
    Inlet Needle – Part Number: 503479701
    Inlet Needle
    Part Number: 503479701
      Special Order
    $14.92
  • D-20
    Spring – Part Number: 537273401
    Spring
    Part Number: 537273401
      No Longer Available
  • D-21
    Lever – Part Number: 503665901
    Lever
    Part Number: 503665901
      Special Order
    $5.96
  • D-22
    Chainsaw Pin – Part Number: 537020801
    Chainsaw Pin
    Part Number: 537020801
      In Stock
    $5.95
  • D-23
    Screw – Part Number: 503480101
    Screw
    Part Number: 503480101
      Special Order
    $5.95
  • D-24
    Spring – Part Number: 537021001
    Spring
    Part Number: 537021001
      Special Order
    $5.95
  • D-25
    Lever – Part Number: 537049001
    Lever
    Part Number: 537049001
      No Longer Available
  • D-26
    Bushing – Part Number: 503481901
    Bushing
    Part Number: 503481901
      Special Order
    $8.96
  • D-27
    Screw – Part Number: 503480501
    Screw
    Part Number: 503480501
      Special Order
    $5.95
  • D-28
    Cover – Part Number: 503974301
    Cover
    Part Number: 503974301
      Special Order
    $14.92
  • D-29
    Diaphragm – Part Number: 537048901
    Diaphragm
    Part Number: 537048901
      In Stock
    $17.92
  • D-30
    Gasket – Part Number: 537020401
    Gasket
    Part Number: 537020401
      Special Order
    $5.96
  • D-31
    Chainsaw Pin – Part Number: 537020801
    Chainsaw Pin
    Part Number: 537020801
      In Stock
    $5.95
  • D-32
    Cap – Part Number: 537021601
    Cap
    Part Number: 537021601
      In Stock
    $5.96
  • D-33
    Spring – Part Number: 503994301
    Spring
    Part Number: 503994301
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • D-34
    Low Speed Needle – Part Number: 537127801
    Low Speed Needle
    Part Number: 537127801
      Special Order
    $26.88
  • D-35
    Cap – Part Number: 537021601
    Cap
    Part Number: 537021601
      In Stock
    $5.96
  • D-36
    Washer – Part Number: 503974001
    Washer
    Part Number: 503974001
      Special Order
    $5.96
  • D-37
    Needle High Speed – Part Number: 537020601
    Needle High Speed
    Part Number: 537020601
      In Stock
    $7.46
  • D-38
    Throttle Flap – Part Number: 537019901
    Throttle Flap
    Part Number: 537019901
      No Longer Available
  • D-39
    Shaft – Part Number: 537019601
    Shaft
    Part Number: 537019601
      No Longer Available
  • D-40
    Screw – Part Number: 503479201
    Screw
    Part Number: 503479201
      Special Order
    $5.95
  • D-41
    Plug – Part Number: 503481101
    Plug
    Part Number: 503481101
      Special Order
    $5.96
  • D-42
    Screw – Part Number: 537020701
    Screw
    Part Number: 537020701
      Special Order
    $10.46
Page E

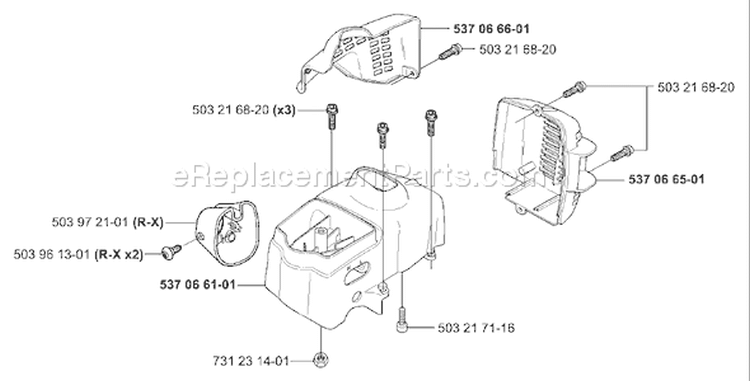

Page E Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page F

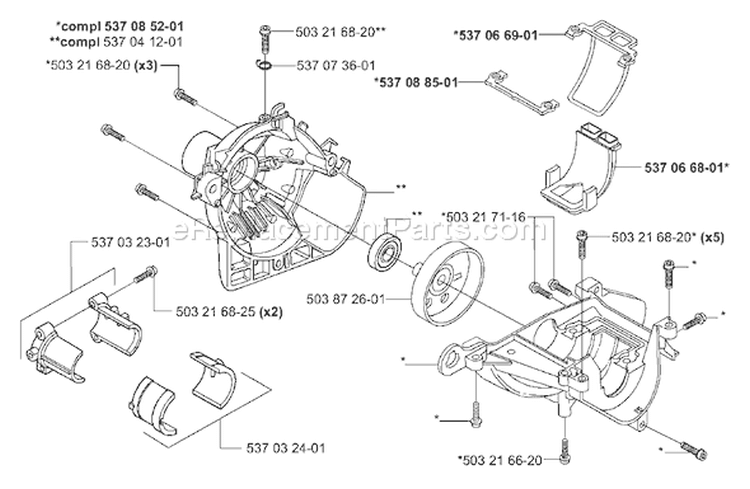

Page F Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page G

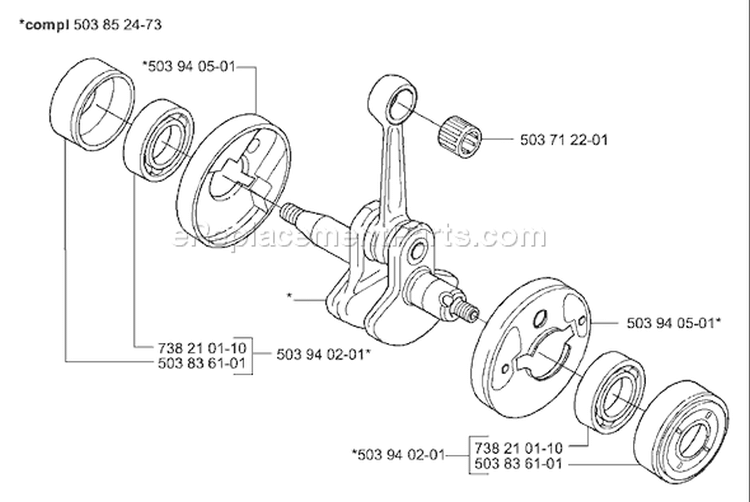

Page G Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
  • G-1
    Crankshaft – Part Number: 503852474
    Crankshaft
    Part Number: 503852474
      No Longer Available
  • G-2
    Cup – Part Number: 503940501
    Cup
    Part Number: 503940501
      Special Order
    $17.92
  • G-3
    Ball Bearing – Part Number: 738210110
    Ball Bearing
    Part Number: 738210110
      Special Order
    $17.92
  • G-4
    Bearing Cap – Part Number: 503940203
    Bearing Cap
    Part Number: 503940203
      Special Order
    $44.82
  • G-5
    Bearing Cap – Part Number: 503940203
    Bearing Cap
    Part Number: 503940203
      Special Order
    $44.82
  • G-6
    Bearing Cap – Part Number: 503940203
    Bearing Cap
    Part Number: 503940203
      Special Order
    $44.82
  • G-7
    Bearing Cap – Part Number: 503940203
    Bearing Cap
    Part Number: 503940203
      Special Order
    $44.82
  • G-8
    Ball Bearing – Part Number: 738210110
    Ball Bearing
    Part Number: 738210110
      Special Order
    $17.92
  • G-9
    Cup – Part Number: 503940501
    Cup
    Part Number: 503940501
      Special Order
    $17.92
  • G-10
    Bearing – Part Number: 503712201
    Bearing
    Part Number: 503712201
      Special Order
    $17.92
Page H

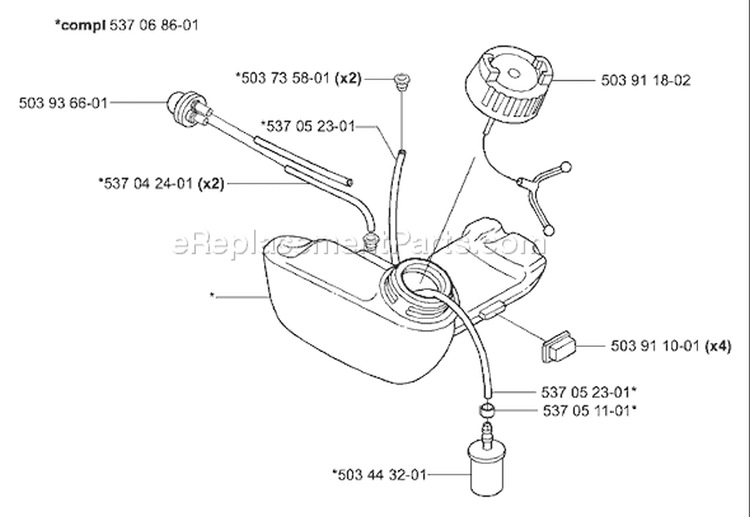

Page H Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page I

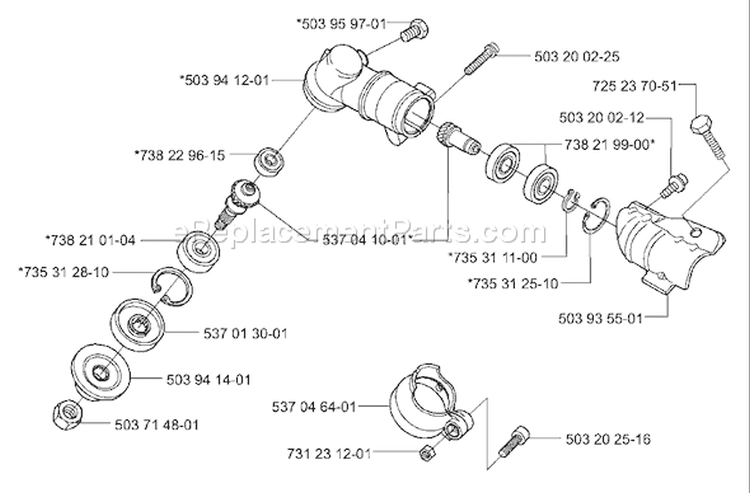

Page I Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page J

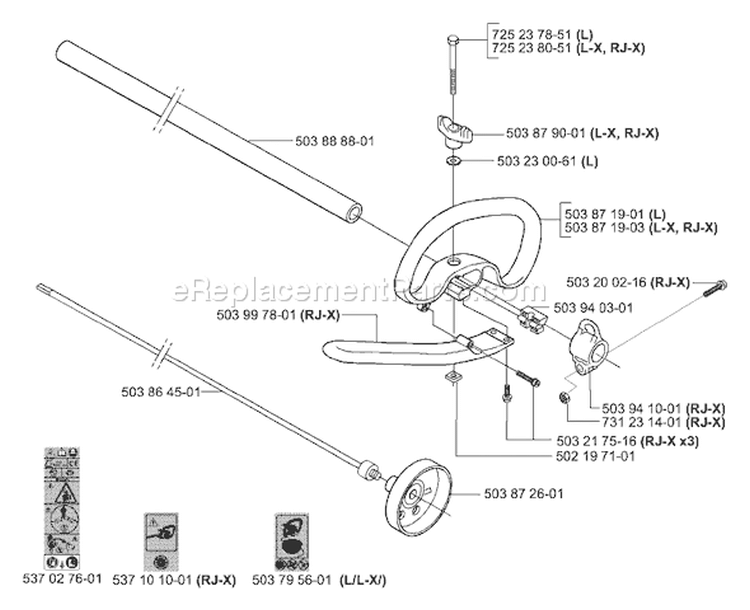

Page J Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page K

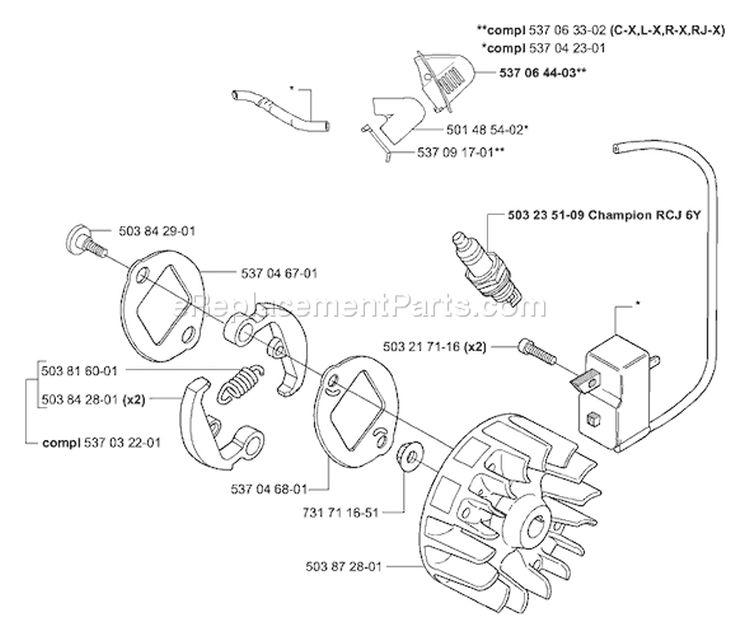

Page K Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page L

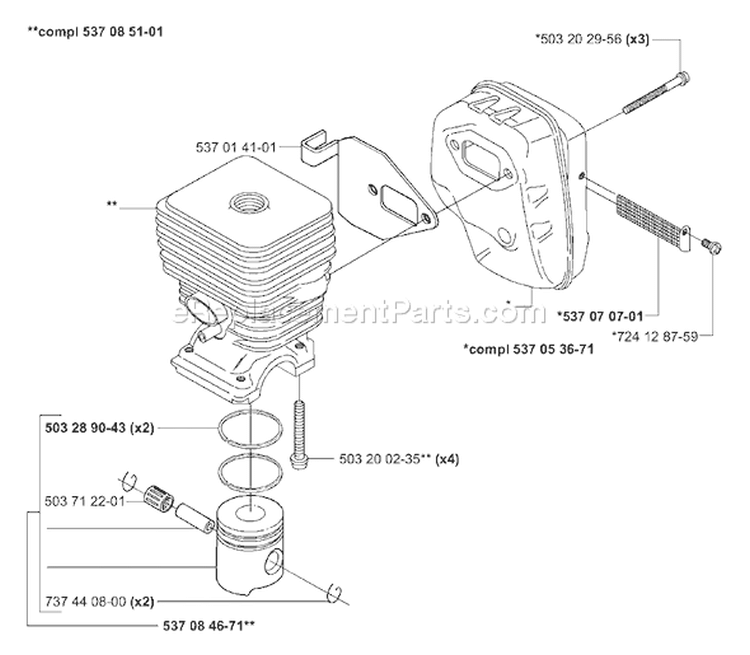

Page L Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
  • L-1
    Cylinder – Part Number: 537085103
    Cylinder
    Part Number: 537085103
      Special Order
    $225.55
  • L-2
    Gasket – Part Number: 537014101
    Gasket
    Part Number: 537014101
      In Stock
    $5.96
  • L-3
    Piston Ring – Part Number: 503289043
    Piston Ring
    Part Number: 503289043
      Special Order
    $17.92
  • L-4
    Bearing – Part Number: 503712201
    Bearing
    Part Number: 503712201
      Special Order
    $17.92
  • L-5
    Circlip – Part Number: 737440800
    Circlip
    Part Number: 737440800
      Special Order
    $5.95
  • L-6
    Piston – Part Number: 537405902
    Piston
    Part Number: 537405902
      Special Order
    $84.38
  • L-7
    Screw – Part Number: 725533755
    Screw
    Part Number: 725533755
      On Order
    $5.95
  • L-8
    Muffler – Part Number: 537221703
    Muffler
    Part Number: 537221703
    ★★★★★
    ★★★★★
    (1)
      Special Order
    $110.67
  • L-9
    Screw – Part Number: 724128759
    Screw
    Part Number: 724128759
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $5.95
  • L-10
    Screen – Part Number: 537070701
    Screen
    Part Number: 537070701
      In Stock
    $11.92
  • L-11
    Screw – Part Number: 503202956
    Screw
    Part Number: 503202956
      In Stock
    $7.46
Page M
Page M Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
Page N
Page N Diagram and Parts List for 325 LX 2001-01 Husqvarna Trimmer
