Husqvarna Line Trimmer Replacement Parts For Model 22R (22 R 1986-10)

We Sell Only Genuine Husqvarna Parts

Popular Parts for 22R

Spark Plug – Part Number: 503235111 Spark Plug
In Stock
$8.95
Screw – Part Number: 503212810 Screw
In Stock
Minimum Quantity of 2 required
$5.95
Screw – Part Number: 725537055 Screw
In Stock
$7.96
Combi-tool – Part Number: 531222001 Combi-tool
In Stock
$7.45
Hanging Bracket – Part Number: 537353601 Hanging Bracket
In Stock
$22.40
Dethatcher Locking Pin – Part Number: 502285901 Dethatcher Locking Pin
In Stock
$7.46
Trimmer Ball Bearing – Part Number: 738219900 Trimmer Ball Bearing
Special Order
$13.42
Eyelet – Part Number: 501911901 Eyelet
Special Order
$5.95

Search Within Model

Questions & Answers for Husqvarna 22R
Browse all Parts Search by Area
Page A Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page A
Page B Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page B
Page C Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page C
Page D Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page D
Page E Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page E
Page F Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page F
Page G Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page G
Page H Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page H
Page I Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page I
Page J Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page J
Page K Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page K
Page L Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page L
Page M Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page M
Page N Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page N
Previous Showing All Parts Next
Page A

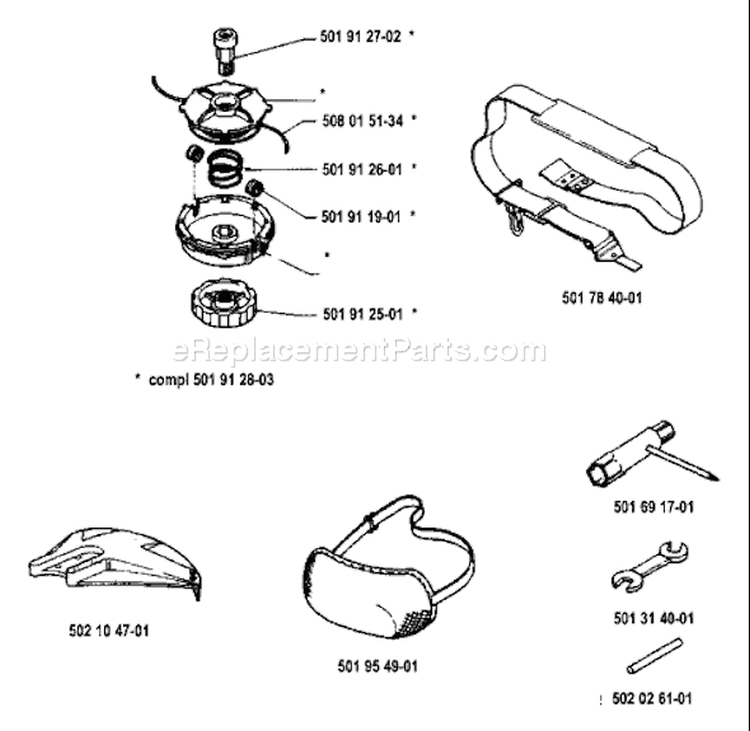

Page A Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page B
Page B Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
  • B-1
    Pipe – Part Number: 501787801
    Pipe
    Part Number: 501787801
      No Longer Available
  • B-2
    Screen – Part Number: 501788201
    Screen
    Part Number: 501788201
      No Longer Available
  • B-3
    Filter Element – Part Number: 501788301
    Filter Element
    Part Number: 501788301
      No Longer Available
  • B-4
    Filter Holder – Part Number: 501788401
    Filter Holder
    Part Number: 501788401
      No Longer Available
  • B-5
    Insulator – Part Number: 501950201
    Insulator
    Part Number: 501950201
      No Longer Available
  • B-6
    Gasket, Carburetor – Part Number: 501950401
    Gasket, Carburetor
    Part Number: 501950401
      No Longer Available
  • B-7
    Filter Cover – Part Number: 501953301
    Filter Cover
    Part Number: 501953301
      No Longer Available
  • B-8
    Screw 4x25 – Part Number: 503218306
    Screw 4x25
    Part Number: 503218306
      No Longer Available
  • B-9
    Screw – Part Number: 502169901
    Screw
    Part Number: 502169901
      No Longer Available
  • B-10
    Screw 5x48 – Part Number: 503218323
    Screw 5x48
    Part Number: 503218323
      No Longer Available
Page C

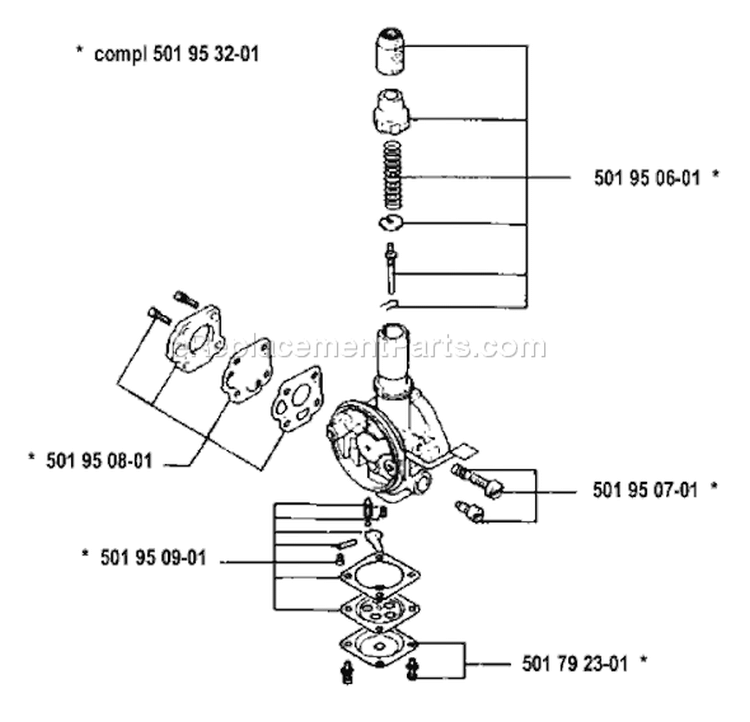

Page C Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page D

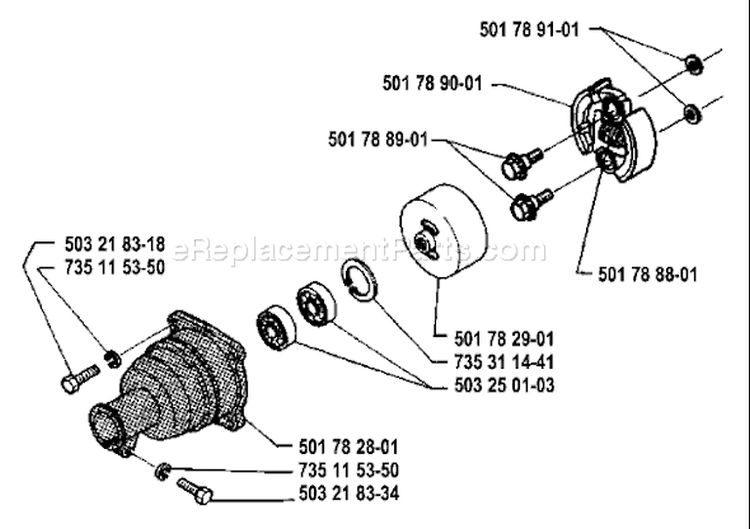

Page D Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
  • D-1
    Clutch Cover – Part Number: 501782801
    Clutch Cover
    Part Number: 501782801
      No Longer Available
  • D-2
    Clutch Drum – Part Number: 501782901
    Clutch Drum
    Part Number: 501782901
      Special Order
    $56.05
  • D-3
    Spring – Part Number: 501788801
    Spring
    Part Number: 501788801
      No Longer Available
  • D-4
    Bolt – Part Number: 501788901
    Bolt
    Part Number: 501788901
      No Longer Available
  • D-5
    Clutch Assy – Part Number: 502166201
    Clutch Assy
    Part Number: 502166201
      No Longer Available
  • D-6
    Washer – Part Number: 501789101
    Washer
    Part Number: 501789101
      No Longer Available
  • D-7
    Screw W/Washer 5x20 – Part Number: 503218318
    Screw W/Washer 5x20
    Part Number: 503218318
      No Longer Available
  • D-8
    Screw 6x22 – Part Number: 503218334
    Screw 6x22
    Part Number: 503218334
      No Longer Available
  • D-9
    Ball Bearing – Part Number: 503250103
    Ball Bearing
    Part Number: 503250103
      No Longer Available
  • D-10
    Spring Washer 6.4x11 – Part Number: 735115350
    Spring Washer 6.4x11
    Part Number: 735115350
      No Longer Available
  • D-11
    Lock Ring – Part Number: 735311441
    Lock Ring
    Part Number: 735311441
      No Longer Available
Page E

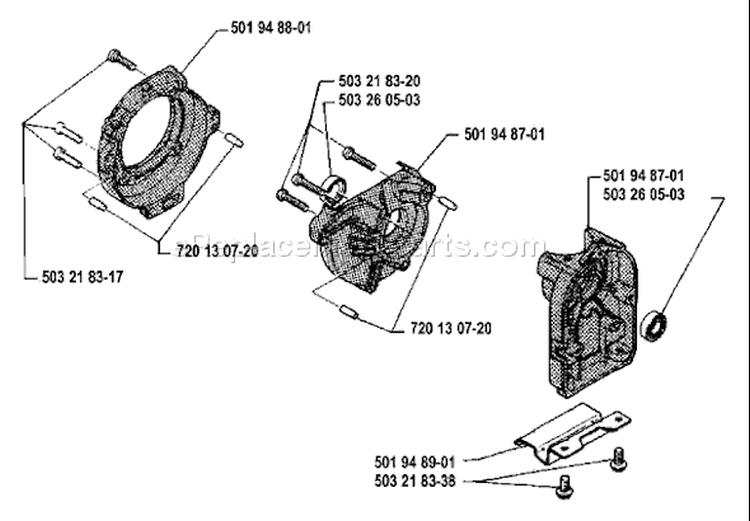

Page E Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
  • E-1
    Crankcase – Part Number: 501948701
    Crankcase
    Part Number: 501948701
      No Longer Available
  • E-2
    Fan Housing – Part Number: 501948801
    Fan Housing
    Part Number: 501948801
      No Longer Available
  • E-3
    Support – Part Number: 501948901
    Support
    Part Number: 501948901
      No Longer Available
  • E-4
    Screw – Part Number: 502185101
    Screw
    Part Number: 502185101
      No Longer Available
  • E-5
    Screw 5x25 – Part Number: 503218320
    Screw 5x25
    Part Number: 503218320
      No Longer Available
  • E-6
    Screw – Part Number: 503218338
    Screw
    Part Number: 503218338
      No Longer Available
  • E-7
    Sealing Ring – Part Number: 503260503
    Sealing Ring
    Part Number: 503260503
      No Longer Available
  • E-8
    Pin – Part Number: 720130720
    Pin
    Part Number: 720130720
      No Longer Available
Page F

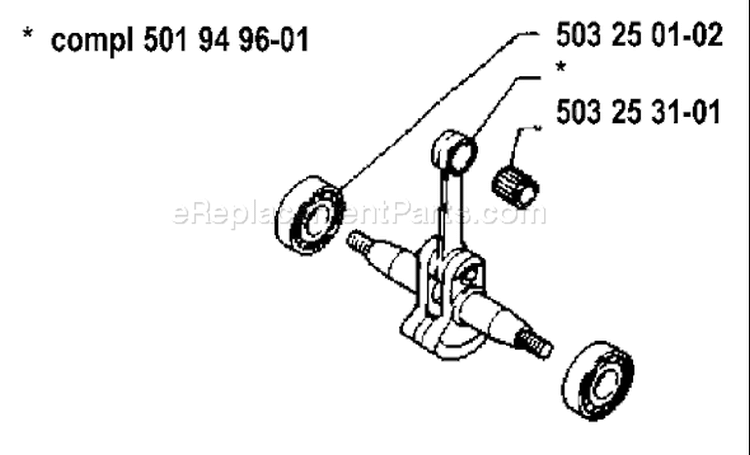

Page F Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page G
Page G Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
  • G-1
    Primer Pump – Part Number: 501790501
    Primer Pump
    Part Number: 501790501
      No Longer Available
  • G-2
    Tank Cap – Part Number: 502192101
    Tank Cap
    Part Number: 502192101
      No Longer Available
  • G-3
    Fuel Hose – Part Number: 501952001
    Fuel Hose
    Part Number: 501952001
      No Longer Available
  • G-4
    Fuel Filter – Part Number: 501952101
    Fuel Filter
    Part Number: 501952101
      No Longer Available
  • G-5
    Pad – Part Number: 501953501
    Pad
    Part Number: 501953501
      No Longer Available
  • G-6
    Fuel Tank Assy – Part Number: 501953601
    Fuel Tank Assy
    Part Number: 501953601
      No Longer Available
Page H

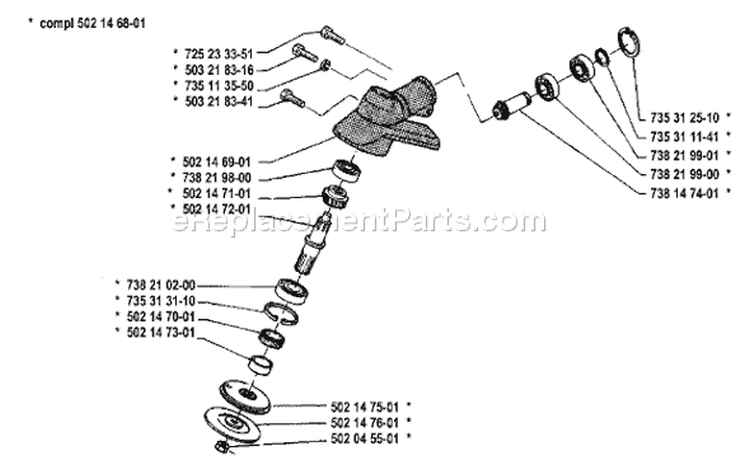

Page H Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page I
Page I Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page J
Page J Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
  • J-1
    Gasket Muffler – Part Number: 501951101
    Gasket Muffler
    Part Number: 501951101
      No Longer Available
  • J-2
    Gasket – Part Number: 502167001
    Gasket
    Part Number: 502167001
      No Longer Available
  • J-3
    Heat Protector – Part Number: 501951301
    Heat Protector
    Part Number: 501951301
      No Longer Available
  • J-4
    Silencer Cpl – Part Number: 501953401
    Silencer Cpl
    Part Number: 501953401
      No Longer Available
  • J-5
    Plate – Part Number: 502147701
    Plate
    Part Number: 502147701
      No Longer Available
  • J-6
    Plate – Part Number: 502148901
    Plate
    Part Number: 502148901
      No Longer Available
  • J-7
    Bolt Stud – Part Number: 727235700
    Bolt Stud
    Part Number: 727235700
      No Longer Available
Page K

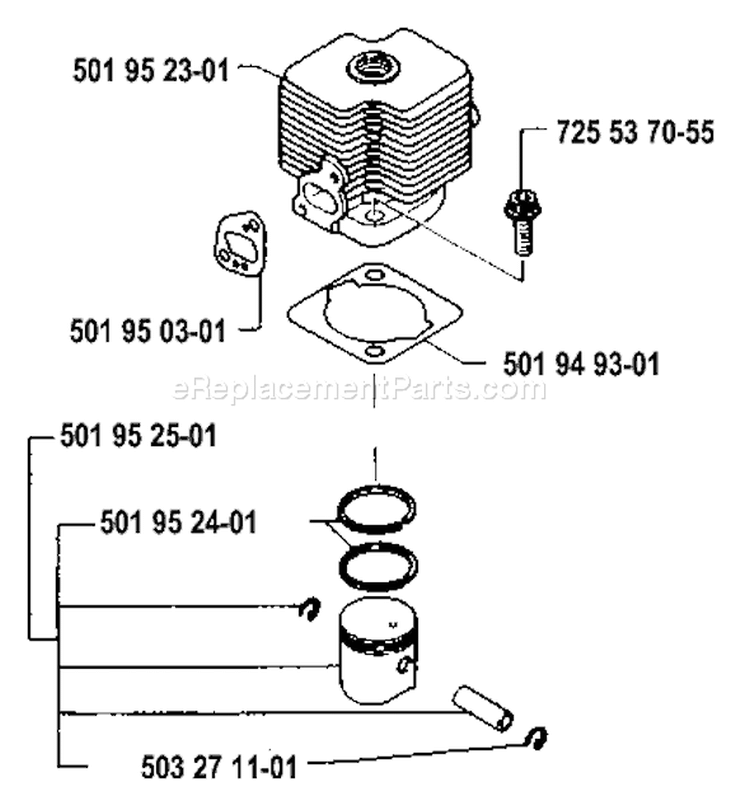

Page K Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
Page L

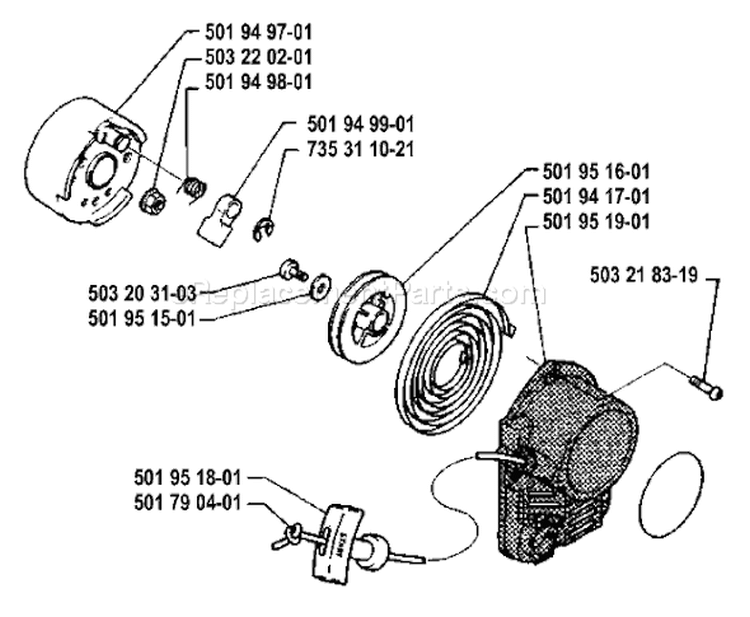

Page L Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
  • L-1
    Starter Rope – Part Number: 501790401
    Starter Rope
    Part Number: 501790401
      No Longer Available
  • L-2
    Cutter B – Part Number: 501941701
    Cutter B
    Part Number: 501941701
      No Longer Available
  • L-3
    Rotor – Part Number: 501949701
    Rotor
    Part Number: 501949701
      No Longer Available
  • L-4
    Recoil Spring – Part Number: 501949801
    Recoil Spring
    Part Number: 501949801
      No Longer Available
  • L-5
    Rachet – Part Number: 501949901
    Rachet
    Part Number: 501949901
      No Longer Available
  • L-6
    Washer – Part Number: 501951501
    Washer
    Part Number: 501951501
      No Longer Available
  • L-7
    Starter Pulley – Part Number: 501951601
    Starter Pulley
    Part Number: 501951601
      No Longer Available
  • L-8
    Starter Handle – Part Number: 501790301
    Starter Handle
    Part Number: 501790301
      No Longer Available
  • L-9
    Starter Housing – Part Number: 501951901
    Starter Housing
    Part Number: 501951901
      No Longer Available
  • L-10
    Screw – Part Number: 724132755
    Screw
    Part Number: 724132755
      No Longer Available
  • L-11
    Screw – Part Number: 502169901
    Screw
    Part Number: 502169901
      No Longer Available
  • L-12
    Flange Nut – Part Number: 503220201
    Flange Nut
    Part Number: 503220201
      No Longer Available
  • L-13
    Snap Ring – Part Number: 735311021
    Snap Ring
    Part Number: 735311021
      No Longer Available
Page M

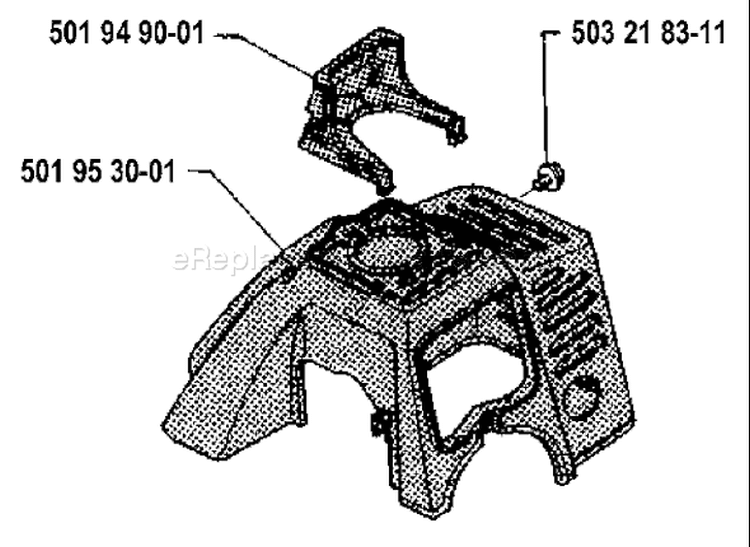

Page M Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
  • M-1
    Spark Plug Prot. – Part Number: 501949001
    Spark Plug Prot.
    Part Number: 501949001
      No Longer Available
  • M-2
    Topcover – Part Number: 501953001
    Topcover
    Part Number: 501953001
      No Longer Available
  • M-3
    Screw 5x8 – Part Number: 503218311
    Screw 5x8
    Part Number: 503218311
      No Longer Available
Page N
Page N Diagram and Parts List for 22 R 1986-10 Husqvarna Trimmer
