Page A
Page A Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
Page B
Page B Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
  • B-1
    Screw 4x16 – Part Number: 503218304
    Screw 4x16
    Part Number: 503218304
      No Longer Available
  • B-2
    Filter Cover – Part Number: 501891001
    Filter Cover
    Part Number: 501891001
      No Longer Available
  • B-3
    Filter – Part Number: 501890901
    Filter
    Part Number: 501890901
      No Longer Available
  • B-4
    Filter Holder – Part Number: 501890801
    Filter Holder
    Part Number: 501890801
      No Longer Available
  • B-5
    Nut – Part Number: 501890601
    Nut
    Part Number: 501890601
      No Longer Available
  • B-6
    Choke Flap – Part Number: 501889901
    Choke Flap
    Part Number: 501889901
      No Longer Available
  • B-7
    Filter Holder – Part Number: 501889701
    Filter Holder
    Part Number: 501889701
      No Longer Available
  • B-8
    Screw – Part Number: 503218324
    Screw
    Part Number: 503218324
      No Longer Available
  • B-9
    Washer – Part Number: 819070816
    Washer
    Part Number: 819070816
      Special Order
    $2.99
  • B-10
    Washer – Part Number: 819070816
    Washer
    Part Number: 819070816
      Special Order
    $2.99
  • B-11
    Choke Lever – Part Number: 501889801
    Choke Lever
    Part Number: 501889801
      No Longer Available
Page C
Page C Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
  • C-1
    Carburetor – Part Number: 501882001
    Carburetor
    Part Number: 501882001
      No Longer Available
  • C-2
    Spring – Part Number: 501781201
    Spring
    Part Number: 501781201
      No Longer Available
  • C-3
    Idle Screw – Part Number: 501883701
    Idle Screw
    Part Number: 501883701
      No Longer Available
  • C-4
    Throttle Flap – Part Number: 501884301
    Throttle Flap
    Part Number: 501884301
      No Longer Available
  • C-5
    Screw – Part Number: 501468701
    Screw
    Part Number: 501468701
    ★★★★★
    ★★★★★
    (1)
      In Stock
    $10.46
  • C-6
    RETAINING SET NLA – Part Number: 501884101
    RETAINING SET NLA
    Part Number: 501884101
      No Longer Available
  • C-7
    Throttle Shaft – Part Number: 501884001
    Throttle Shaft
    Part Number: 501884001
      No Longer Available
  • C-8
    Spring – Part Number: 530035023
    Spring
    Part Number: 530035023
      No Longer Available
  • C-9
    Needle, Lo Speed – Part Number: 501884501
    Needle, Lo Speed
    Part Number: 501884501
      No Longer Available
  • C-10
    H-Needle – Part Number: 501782201
    H-Needle
    Part Number: 501782201
      No Longer Available
  • C-11
    Pressure Spring – Part Number: 505316737
    Pressure Spring
    Part Number: 505316737
      Special Order
    $22.40
  • C-12
    Repair Kit – Part Number: 501883401
    Repair Kit
    Part Number: 501883401
      No Longer Available
  • C-13
    Spring – Part Number: 501883901
    Spring
    Part Number: 501883901
      No Longer Available
  • C-14
    Screw – Part Number: 505316758
    Screw
    Part Number: 505316758
      No Longer Available
  • C-15
    Fulcrum Pin – Part Number: 505520125
    Fulcrum Pin
    Part Number: 505520125
      In Stock
    $8.96
  • C-16
    Screw – Part Number: 503584601
    Screw
    Part Number: 503584601
      In Stock
    Minimum Quantity of 2 required
    $6.48
  • C-17
    Clip – Part Number: 501883801
    Clip
    Part Number: 501883801
      No Longer Available
  • C-18
    Valve/inlet – Part Number: 503117001
    Valve/inlet
    Part Number: 503117001
      On Order
    $31.24
  • C-19
    Lever Spring – Part Number: 505520121
    Lever Spring
    Part Number: 505520121
      No Longer Available
  • C-20
    Lever-metering – Part Number: 505520127
    Lever-metering
    Part Number: 505520127
      No Longer Available
  • C-21
    Screw – Part Number: 505316717
    Screw
    Part Number: 505316717
      Special Order
    $10.46
  • C-22
    PLATE – Part Number: 501884901
    PLATE
    Part Number: 501884901
      No Longer Available
  • C-23
    Gasket, Metering Side – Part Number: 505520110
    Gasket, Metering Side
    Part Number: 505520110
      No Longer Available
  • C-24
    Diaphragm – Part Number: 503896701
    Diaphragm
    Part Number: 503896701
    ★★★★★
    ★★★★★
    (4)
      In Stock
    $62.27
  • C-25
    Diaphragm Cover – Part Number: 505316754
    Diaphragm Cover
    Part Number: 505316754
      Special Order
    $7.46
  • C-26
    Screw – Part Number: 503584601
    Screw
    Part Number: 503584601
      In Stock
    Minimum Quantity of 2 required
    $6.48
  • C-27
    Screw – Part Number: 501466901
    Screw
    Part Number: 501466901
      In Stock
    $11.92
  • C-28
    Pump Cover – Part Number: 501883601
    Pump Cover
    Part Number: 501883601
      No Longer Available
  • C-29
    Fuel Inlet Screen – Part Number: 501666101
    Fuel Inlet Screen
    Part Number: 501666101
      In Stock
    $19.40
Page D
Page D Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
Page E
Page E Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
  • E-1
    Contact Breaker Assembly – Part Number: 501930901
    Contact Breaker Assembly
    Part Number: 501930901
      No Longer Available
  • E-2
    Joint Cable – Part Number: 501931001
    Joint Cable
    Part Number: 501931001
      No Longer Available
  • E-3
    Grommet – Part Number: 501786901
    Grommet
    Part Number: 501786901
      No Longer Available
  • E-4
    Felt – Part Number: 501931101
    Felt
    Part Number: 501931101
      No Longer Available
  • E-5
    Screw 4x10 – Part Number: 503218309
    Screw 4x10
    Part Number: 503218309
      No Longer Available
Page F

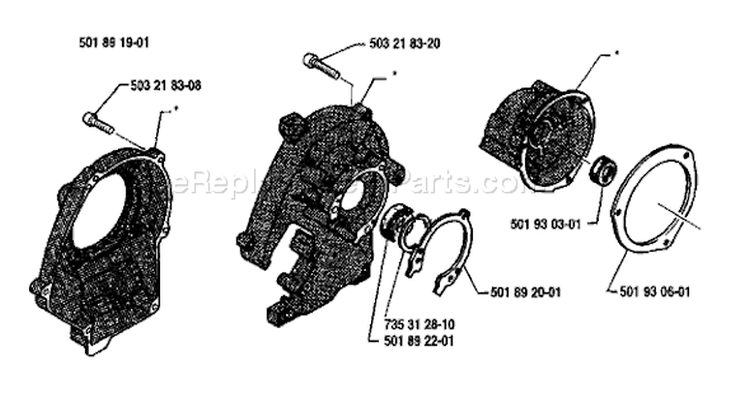

Page F Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
Page G

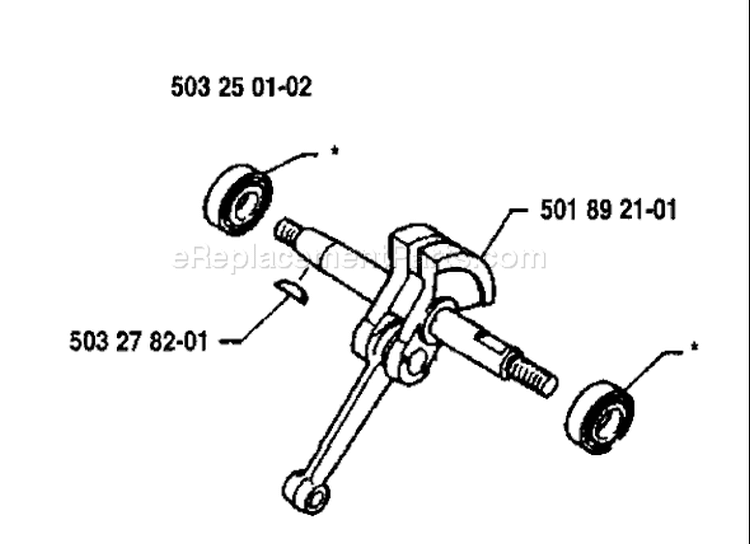

Page G Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
Page H

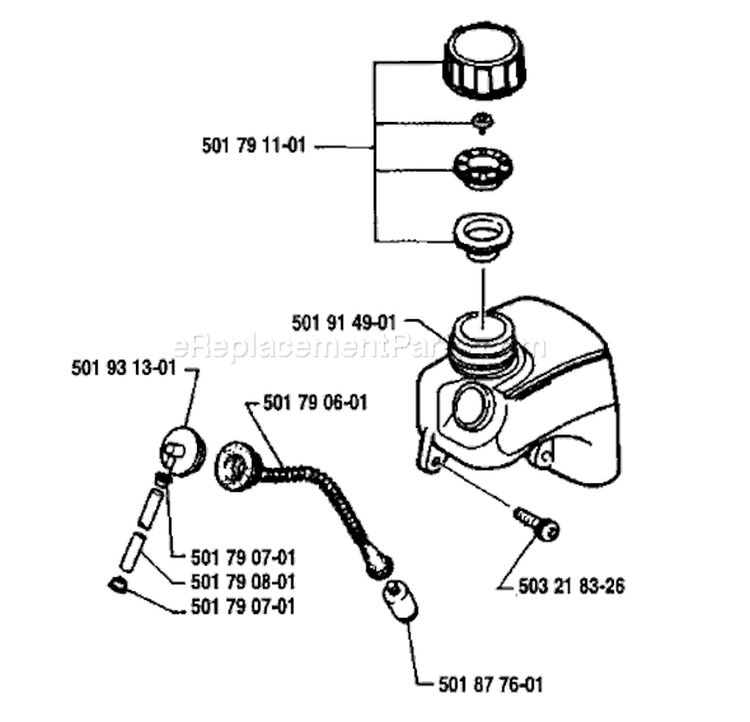

Page H Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
  • H-1
    Tank Cap – Part Number: 502192101
    Tank Cap
    Part Number: 502192101
      No Longer Available
  • H-2
    Fuel Tank – Part Number: 501914901
    Fuel Tank
    Part Number: 501914901
      No Longer Available
  • H-3
    Connection – Part Number: 501931301
    Connection
    Part Number: 501931301
      No Longer Available
  • H-4
    Fuel Hose – Part Number: 501790601
    Fuel Hose
    Part Number: 501790601
      No Longer Available
  • H-5
    Pipe Clip – Part Number: 501790701
    Pipe Clip
    Part Number: 501790701
      No Longer Available
  • H-6
    Pipe – Part Number: 501787801
    Pipe
    Part Number: 501787801
      No Longer Available
  • H-7
    Pipe Clip – Part Number: 501790701
    Pipe Clip
    Part Number: 501790701
      No Longer Available
  • H-8
    Screw – Part Number: 503218326
    Screw
    Part Number: 503218326
      No Longer Available
Page I

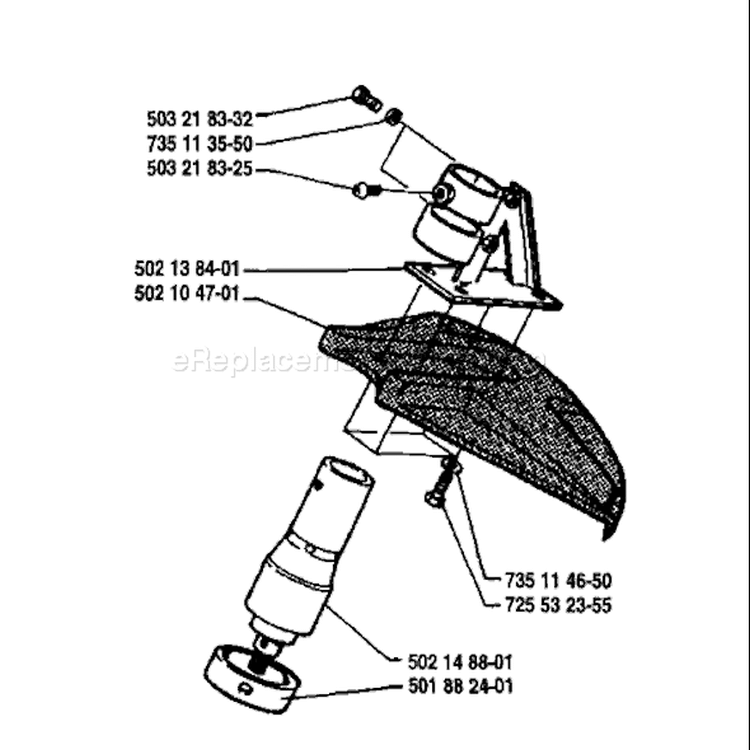

Page I Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
Page J
Page J Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
  • J-1
    Handle – Part Number: 501880701
    Handle
    Part Number: 501880701
      No Longer Available
  • J-2
    Throttle Lever – Part Number: 502148701
    Throttle Lever
    Part Number: 502148701
      No Longer Available
  • J-3
    Washer 6.4x14 – Part Number: 503230031
    Washer 6.4x14
    Part Number: 503230031
      No Longer Available
  • J-4
    Wing Nut – Part Number: 732411601
    Wing Nut
    Part Number: 732411601
      No Longer Available
  • J-5
    Screw M6x50 – Part Number: 725238051
    Screw M6x50
    Part Number: 725238051
      Special Order
    Minimum Quantity of 2 required
    $5.95
  • J-6
    Drive Tube – Part Number: 501881001
    Drive Tube
    Part Number: 501881001
      No Longer Available
  • J-7
    Lead – Part Number: 502149001
    Lead
    Part Number: 502149001
      No Longer Available
  • J-8
    Shaft Guide – Part Number: 501881101
    Shaft Guide
    Part Number: 501881101
      No Longer Available
  • J-9
    Drive Shaft – Part Number: 501881201
    Drive Shaft
    Part Number: 501881201
      No Longer Available
  • J-10
    Handle – Part Number: 502148601
    Handle
    Part Number: 502148601
      No Longer Available
Page K
Page K Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
  • K-2
    Screw – Part Number: 503214801
    Screw
    Part Number: 503214801
      No Longer Available
  • K-4
    Screw W/Washer 5x20 – Part Number: 503218318
    Screw W/Washer 5x20
    Part Number: 503218318
      No Longer Available
  • K-5
    Ignition Coil – Part Number: 501930801
    Ignition Coil
    Part Number: 501930801
      No Longer Available
  • K-6
    Grommet – Part Number: 501786901
    Grommet
    Part Number: 501786901
      No Longer Available
  • K-7
    Grommet – Part Number: 501787001
    Grommet
    Part Number: 501787001
      No Longer Available
  • K-8
    Flange Nut – Part Number: 503220201
    Flange Nut
    Part Number: 503220201
      No Longer Available
  • K-9
    Flywheel – Part Number: 501930701
    Flywheel
    Part Number: 501930701
      No Longer Available
Page L

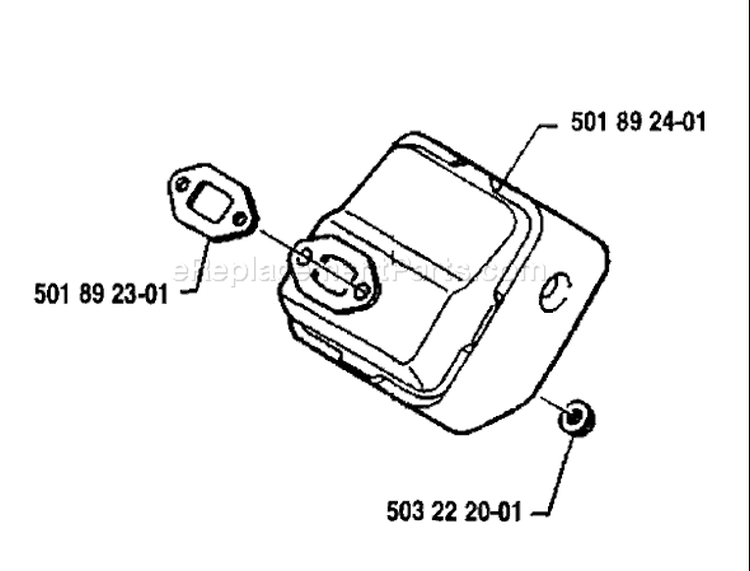

Page L Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
  • L-1
    Gasket – Part Number: 502165101
    Gasket
    Part Number: 502165101
      No Longer Available
  • L-2
    Silencer – Part Number: 501892401
    Silencer
    Part Number: 501892401
      No Longer Available
  • L-3
    Locknut – Part Number: 503222302
    Locknut
    Part Number: 503222302
      No Longer Available
Page M
Page M Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
  • M-1
    Gasket – Part Number: 501889601
    Gasket
    Part Number: 501889601
      No Longer Available
  • M-2
    Piston – Part Number: 501914301
    Piston
    Part Number: 501914301
      No Longer Available
  • M-3
    Retaining Ring – Part Number: 501914401
    Retaining Ring
    Part Number: 501914401
      No Longer Available
  • M-4
    Piston Ring – Part Number: 501914501
    Piston Ring
    Part Number: 501914501
      No Longer Available
  • M-5
    Gasket Cylinder – Part Number: 502162901
    Gasket Cylinder
    Part Number: 502162901
      No Longer Available
  • M-6
    Carburetor – Part Number: 501882001
    Carburetor
    Part Number: 501882001
      No Longer Available
  • M-7
    Gasket Carburetor – Part Number: 502163201
    Gasket Carburetor
    Part Number: 502163201
      No Longer Available
  • M-8
    Inlet Tube – Part Number: 501930101
    Inlet Tube
    Part Number: 501930101
      No Longer Available
  • M-9
    Gasket – Part Number: 502163401
    Gasket
    Part Number: 502163401
      No Longer Available
  • M-10
    Cylinder – Part Number: 501914701
    Cylinder
    Part Number: 501914701
      No Longer Available
  • M-11
    Cylinder Cover – Part Number: 501890701
    Cylinder Cover
    Part Number: 501890701
      No Longer Available
  • M-12
    Screw 5x8 – Part Number: 503218311
    Screw 5x8
    Part Number: 503218311
      No Longer Available
  • M-13
    Screw – Part Number: 503218337
    Screw
    Part Number: 503218337
      No Longer Available
  • M-14
    Stud – Part Number: 503208016
    Stud
    Part Number: 503208016
      No Longer Available
Page N
Page N Diagram and Parts List for 16 R 1986-10 Husqvarna Trimmer
  • N-1
    Driver – Part Number: 501891301
    Driver
    Part Number: 501891301
      No Longer Available
  • N-2
    Washer – Part Number: 501930401
    Washer
    Part Number: 501930401
      No Longer Available
  • N-3
    Nut – Part Number: 501930501
    Nut
    Part Number: 501930501
      No Longer Available
  • N-4
    Screw 5x11 – Part Number: 503218313
    Screw 5x11
    Part Number: 503218313
      No Longer Available
  • N-5
    Friction Plate – Part Number: 501790101
    Friction Plate
    Part Number: 501790101
      No Longer Available
  • N-6
    Spring – Part Number: 501891201
    Spring
    Part Number: 501891201
      No Longer Available
  • N-7
    Ratchet – Part Number: 501891101
    Ratchet
    Part Number: 501891101
      No Longer Available
  • N-8
    Friction Spring – Part Number: 501789701
    Friction Spring
    Part Number: 501789701
      No Longer Available
  • N-9
    Starter Pulley – Part Number: 501789601
    Starter Pulley
    Part Number: 501789601
      No Longer Available
  • N-10
    Starter Rope – Part Number: 501790401
    Starter Rope
    Part Number: 501790401
      No Longer Available
  • N-11
    Starter Handle – Part Number: 501790301
    Starter Handle
    Part Number: 501790301
      No Longer Available
  • N-12
    Screw 4x16 – Part Number: 503218304
    Screw 4x16
    Part Number: 503218304
      No Longer Available
  • N-13
    Holder – Part Number: 501891501
    Holder
    Part Number: 501891501
      No Longer Available
  • N-14
    Nut – Part Number: 501891701
    Nut
    Part Number: 501891701
      No Longer Available
  • N-15
    Adjusting Screw – Part Number: 501891601
    Adjusting Screw
    Part Number: 501891601
      No Longer Available
  • N-16
    Screw – Part Number: 503218303
    Screw
    Part Number: 503218303
      No Longer Available
  • N-17
    Throttle Wire – Part Number: 502149101
    Throttle Wire
    Part Number: 502149101
      No Longer Available
  • N-18
    Recoil Spring – Part Number: 501789501
    Recoil Spring
    Part Number: 501789501
      No Longer Available
  • N-19
    Crancase – Part Number: 501891901
    Crancase
    Part Number: 501891901
      No Longer Available

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
