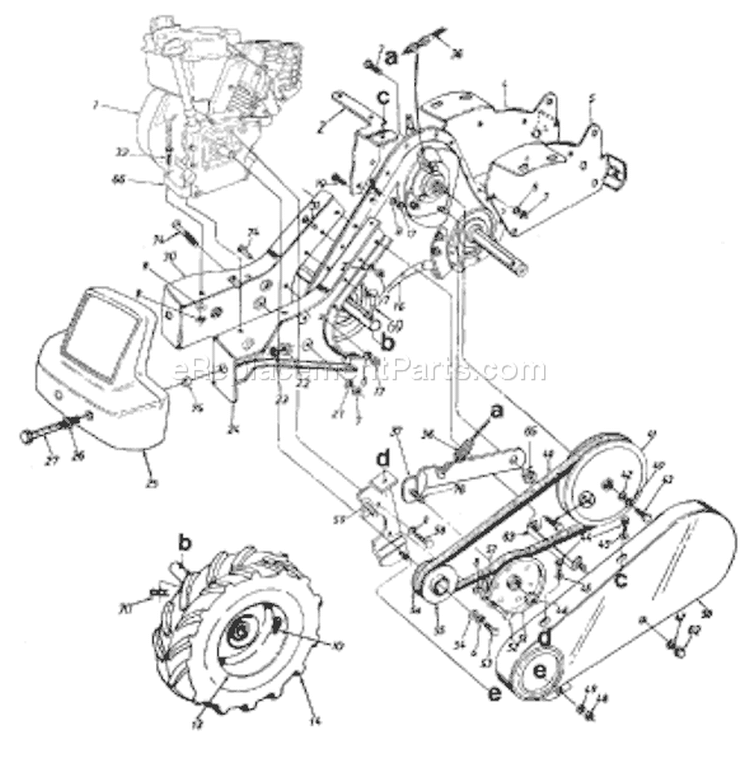

Yard Man Tiller Replacement Parts For Model 21A-448A401 (1998)

Shift Cover Mounting Brkt.

Lawn Mower Hex Screw

★★★★★

★★★★★

(1)

Minimum Quantity of 2 required

Tine Shield Mtg. Brkt. R.H.

HKY PART

Lock Washer 3/8" Minimum Quantity of 2 required

Nut

Washer-lock 5/16

★★★★★

★★★★★

(5)

Minimum Quantity of 2 required

Hex Nut 5/16-18

Lawn Mower Air Valve

Wheel Rim Assembly

Wheel Asm-complete

Wheel Asm-complete

Tire Only 16.2 x 4.6

Gear Case Ass'y. Comp.

Hex Bolt 5/16-18 X .1in. Lg. ( Minimum Quantity of 2 required

Nut-hex 1/2-20

Lock Washer 1/2

Engine Mounting Rail-L.H.

Counter Weight

DISCONTINUED

Screw-hex 1/2-20 X

Engine Mounting Rail-R.H.

Screw-hex 5/16-18

Cable-clutch Contr

★★★★★

★★★★★

(3)

Idler Bracket

Belt-v 1/2x58.160

★★★★★

★★★★★

(3)

Pulley

Washer-Fl Minimum Quantity of 2 required

HHCS:1/4-28:.75:GR5:STD

Lawn Mower Hex Washer Head Screw

★★★★★

★★★★★

(9)

Minimum Quantity of 2 required

Washer-fl

Tiller Jamlock Nut

Fl-Wash. .266-In. I.D. X .625-In. O.D.

Nut-hex 1/4-20

Washer-lock Minimum Quantity of 2 required

Cover

Fl.-IdlerPulley

Screw-hex 5/16-24

Mex Bolt 3/8-24 x 1.0" Lg. Minimum Quantity of 2 required

Inner Engine Pulley Half

Outer Engine Pulley Half

★★★★★

★★★★★

(1)

Nut-5/16x 24

Screw-Hex Minimum Quantity of 2 required

Belt Keeper Ass'y.

Nut

Belt Cover Brkt. Ass'y.

Hex Bolt 5/16-18 X .1in. Lg. ( Minimum Quantity of 2 required

Nut-shld

Engine Spacer Block (8 & 10 HP)

Clevis Pin

★★★★★

★★★★★

(1)

Use 914-0104

Screw-hex Wash Tap Minimum Quantity of 2 required

Spacer .63" I.D. X 1.0" 0.D. X .94" Lg.

SCREW-HEX Minimum Quantity of 2 required

Lawn Mower Grease Benalene (8 Oz)

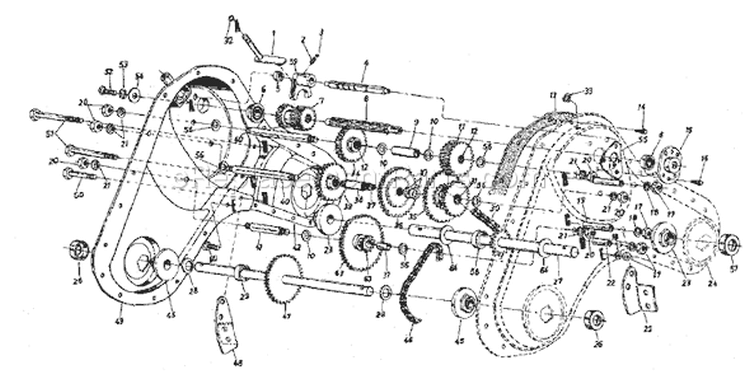

Gear Case Ass'y. Comp.

Shifting Bracket Ass'y.

Spring-compression Minimum Quantity of 2 required

Ball Detent .250

Shaft Detent, .5 DIA

Spacer.505" I.D. x .88" O.D.

Bearing

★★★★★

★★★★★

(3)

Spur Gear 16T

Input Spline Shaft 7/8

Spacer .657" I.D. x 718" O.D. x 2.85" Lg.

Washer-fl-.640id X

★★★★★

★★★★★

(2)

Minimum Quantity of 2 required

Spur Gear 30T 718" I.D. x 1-1/4" O.D.

Bearing-needle

Gasket

Lawn Mower Hex Washer Head Screw

★★★★★

★★★★★

(9)

Minimum Quantity of 2 required

1-3/8" Dia. Bearing Housing

Screw, 1/4-20 X .750 Minimum Quantity of 2 required

Hex Nut 5/16-18

Washer-lock 5/16

★★★★★

★★★★★

(5)

Minimum Quantity of 2 required

Spacer-1.560 1d

Nut, Hex, 7/16-20

Washer-bell Minimum Quantity of 2 required

Spacer 1.015" Lg.

Flange Bearing 1.0 x 2.5 x 1.38

Trans. Housing Ass'y.-L.H.

HKY PART

Dust Cover Ass'y..75" Shaft

Tine Shaft Ass'y. 1.00" O.D.

Washer-Thrust Minimum Quantity of 2 required

Spacer .75" I.D. x 2.0" O.D.

#50 Chain 5/8 Pitc

Needle Bearing 5/8" I.D.

Ring, Retaining

Tapered Cap Ring

Spur Gear 30T 12/16" I.D. x 1/2" W

30/44T Gear Ass'y. Comp.

Spur Gear 44T/11T

Bearing-sleeve .62

Gear Hub 3/4" I.D. x 3.0" Lg.

Spur Gear 30T 1.0" I.D. x 1/2" W

Jack Shaft 5/8" Dia. x 5.0"

Shaft, Jack, .625 x 2.385

Trans. Housing Ass'y.-R.H.

Spur Gear 44T

Flange Bearing .75 x 2.5 x 1.38

Endless Chain, #420 x 50 Links

Wheel Shaft Ass'y: 33T

Bracket Gear Case R.H.

R.H. Housing Ass'y.

Bolt-5/16-18 X 2.0

Hex Bolt 5/16-18 x 2.5" Lg.

Bolt - 1/4-28 X 5/ Minimum Quantity of 2 required

Washer-lock Minimum Quantity of 2 required

Washer-Fl Minimum Quantity of 2 required

Gear Positioner Bracket

Washer-fl

Shaft Seal, 1.0 Dia

Step Spacer

Clutch Collar

Hex Bolt 5/16-18 X .1in. Lg. ( Minimum Quantity of 2 required

Sprocket Assy-10t

Fl-Wash 1.00 Minimum Quantity of 2 required

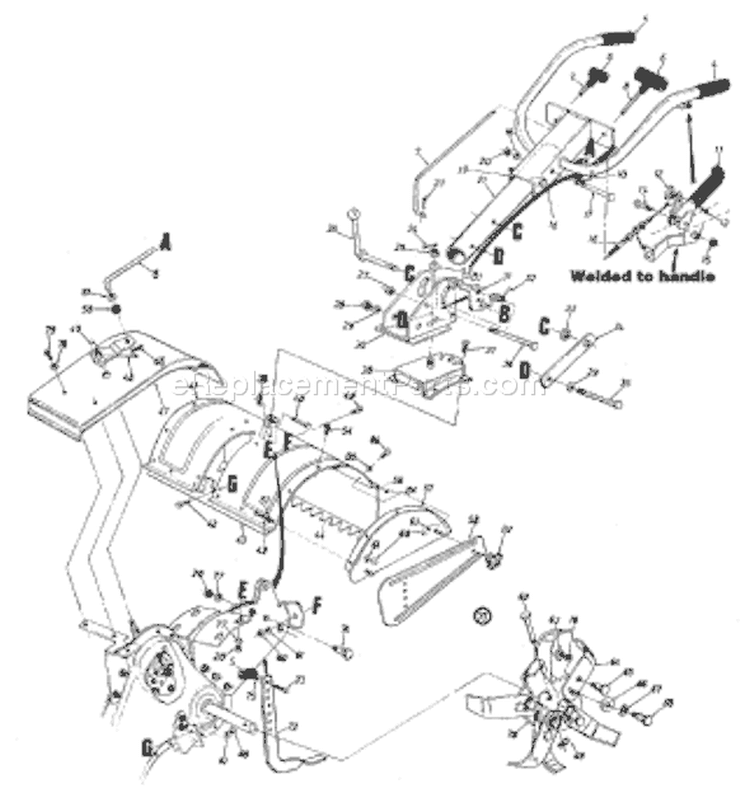

Grip-hand Blk

Use 720-0210a

Knob-t

Rod-clutch

Rod-control

Lawn Mower Cable Tie

★★★★★

★★★★★

(3)

Lever-clutch Asm

Hold Down-cable

★★★★★

★★★★★

(3)

Screw-tap Minimum Quantity of 2 required

Hex Head Screw, 3/8-24 x 2.25

Nut, Jam Lock, 3/8-24, Gr2

Cable-clutch Contr

★★★★★

★★★★★

(3)

Hex Bolt 3/8-16 x 3.00" Lg.

DISCONTINUED

★★★★★

★★★★★

(1)

Handle Ass'y.

Nut

Handle Tubing Ass'y.

Pin-cotter-3/32 Di

Cotter Pin 3/32" Dia. x 1.25" Lg.

Hex Slotted Nut 5/8-18 Thd.

Crank

Nut-hex Center

Washer.401 x.870 x.063

★★★★★

★★★★★

(1)

Minimum Quantity of 2 required

Handle Pivot Bracket

Handle Swing Link

Spring-hdl Adj

Hex Flange Nut.

Retainer Bracket

Bolt-hex Grade 8 3

Screw-hex 3/8-16 X Minimum Quantity of 2 required

Bolt-carr. 3/8-16x

Handle Positioner Brkt. Ass'y.

DISCONTINUED Minimum Quantity of 2 required

Clevis Pin 3/8-1.62

Tine Shield 18

Hex Bolt 5/16-18 X .1in. Lg. ( Minimum Quantity of 2 required

Bracket Reinforcement 18"

Tine Shield Hinge Flap

Use 914-0104

Shift Cover

PIN-SPRING 3/16 X

Shifting Crank Ass'y. D x 2.05

Washer, Rubber, .33 ID x .87 OD x .125

DISCONTINUED

Washer-bell

★★★★★

★★★★★

(1)

TT Screw, 5/16-18 x .500

Tiller Flap Rod

End Cover Ass'y.

Side Shield

Hex Nut 5/16-18

Washer-lock 5/16

★★★★★

★★★★★

(5)

Minimum Quantity of 2 required

Clevis Pin 3/8-1.62

Ball Bearing

Tine

★★★★★

★★★★★

(1)

Screw-shld 3/8-24

Fl-wash. .51 Minimum Quantity of 2 required

Bell-Wash. 1/2-In. I.D. X 1.0-In. O.D.

Screw-shld

DISCONTINUED Minimum Quantity of 2 required

Adapter Assy-tine

Tine Asm-articulat

Bar Assy-depth

Lawn Mower Hex Screw

★★★★★

★★★★★

(1)

Minimum Quantity of 2 required

Shld. Bolt 1/2" I.D. x .62" Lg.

Washer-fl

Lock Washer 3/8" Minimum Quantity of 2 required

Washer-fl

Lawn Mower Hex Washer Head Screw

★★★★★

★★★★★

(9)

Minimum Quantity of 2 required

Wing Nut, Plastic

★★★★★

★★★★★

(1)

DISCONTINUED

Push Nut

Fl-Wash..344" I.D.

★★★★★

★★★★★

(1)

Screw-shoulder 5/1
