Craftsman Tiller Replacement Parts For Model 917295653

We Sell Only Genuine Craftsman Parts

Popular Parts for 917295653

Nut Lock – Part Number: 596040501 Nut Lock
In Stock
$5.95
Clevis Pin – Part Number: 532132673 Clevis Pin
In Stock
Minimum Quantity of 2 required
$6.88
Belt, V – Part Number: 591372401 Belt, V
In Stock
$18.88
Tiller Chain (#35-50 Pitch) – Part Number: 532102134 Tiller Chain (#35-50 Pitch)
In Stock
$13.78
Clutch Cable – Part Number: 532110675 Clutch Cable
In Stock
$24.82
Snow Blower Rivet – Part Number: 532126875 Snow Blower Rivet
In Stock
$5.95
Washer Thrust 5/8 X 1.10 X 1/3 – Part Number: 532001370 Washer Thrust 5/8 X 1.10 X 1/3
In Stock
$6.88
Bearing – Part Number: 585695502 Bearing
In Stock
$8.26

Search Within Model

Questions & Answers for Craftsman 917295653
Browse all Parts Search by Area
Page A Diagram and Parts List for Craftsman Tiller
Page A
Page B Diagram and Parts List for Craftsman Tiller
Page B
Page C Diagram and Parts List for Craftsman Tiller
Page C
Page D Diagram and Parts List for Craftsman Tiller
Page D
Page E Diagram and Parts List for Craftsman Tiller
Page E
Page F Diagram and Parts List for Craftsman Tiller
Page F
Page G Diagram and Parts List for Craftsman Tiller
Page G
Previous Showing All Parts Next

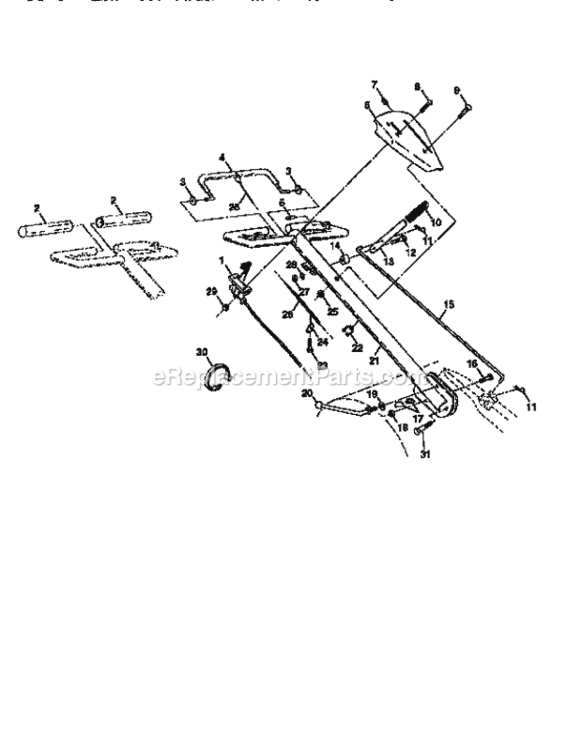

Page A
Page A Diagram and Parts List for Craftsman Tiller
Page B
Page B Diagram and Parts List for Craftsman Tiller

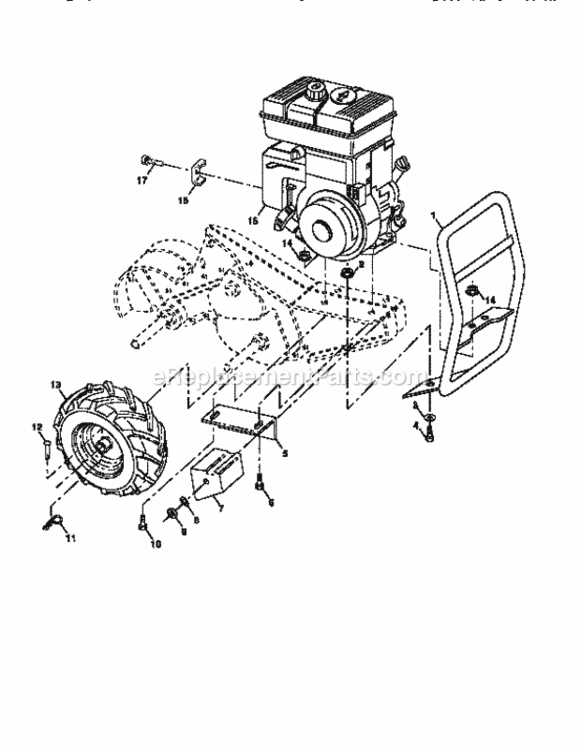

Page C
Page C Diagram and Parts List for Craftsman Tiller

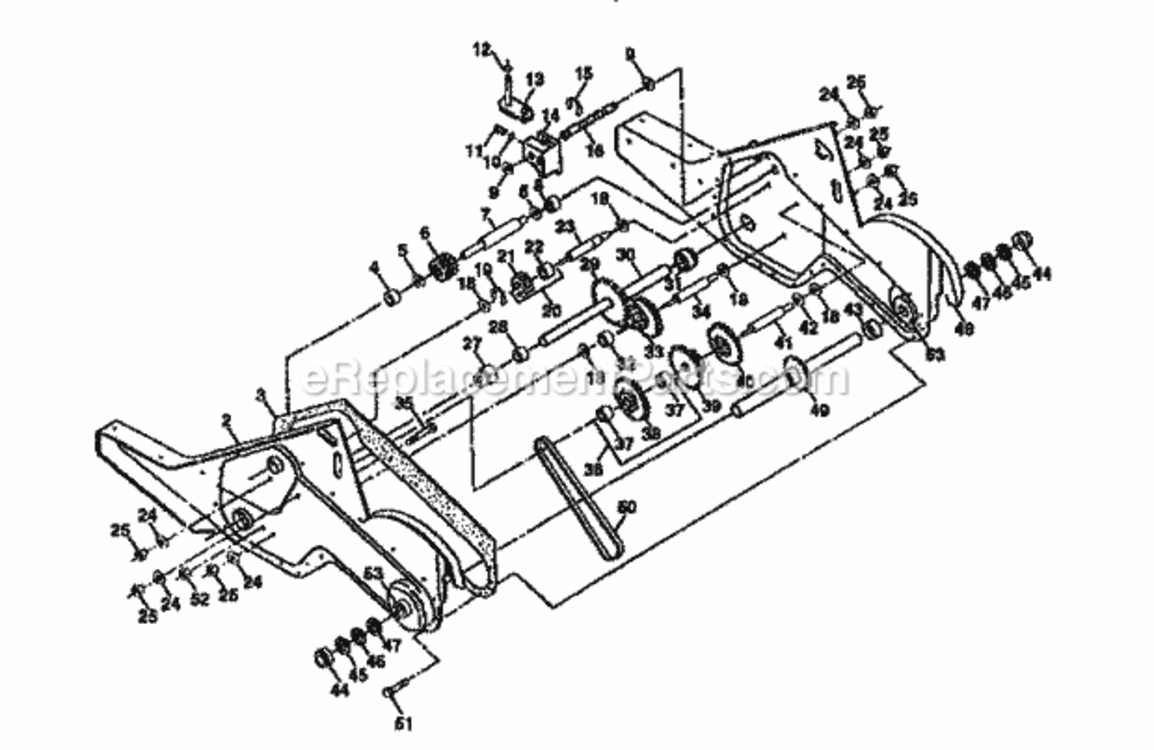

Page D
Page D Diagram and Parts List for Craftsman Tiller

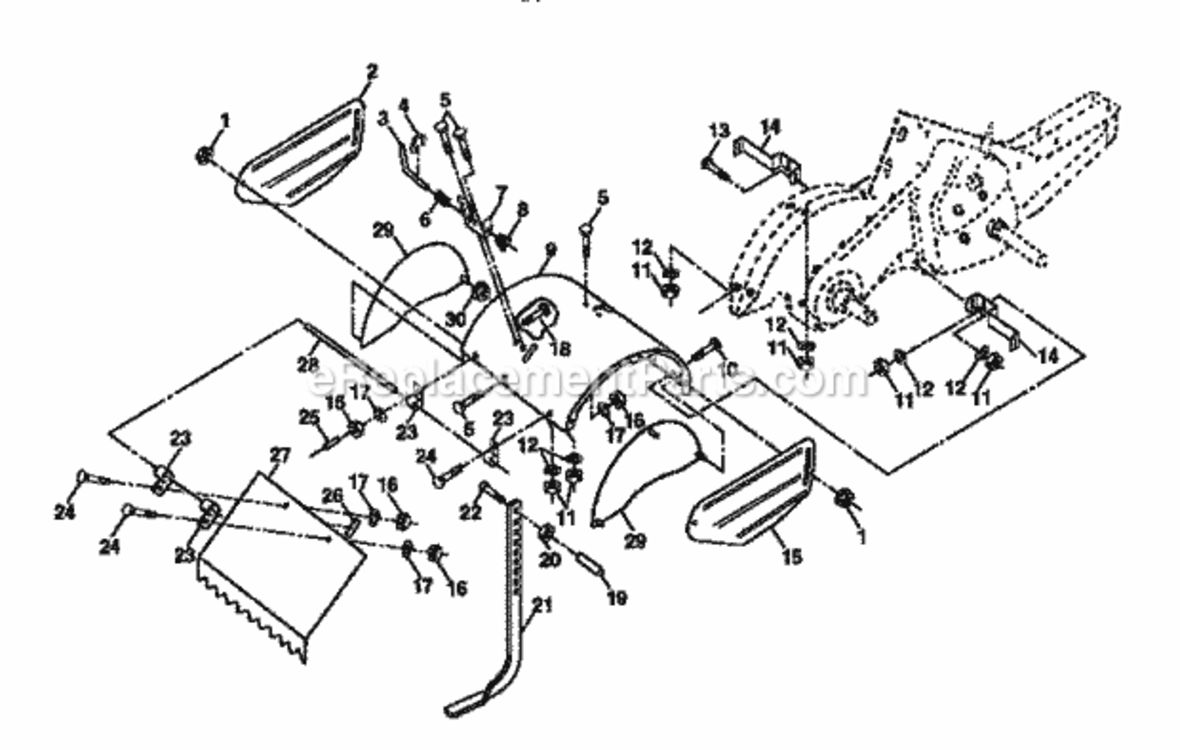

Page E
Page E Diagram and Parts List for Craftsman Tiller
  • E-1
    Flange Hex Nut – Part Number: 426589
    Flange Hex Nut
    Part Number: 426589
      No Longer Available
  • E-2
    Shield – Part Number: 104086X459
    Shield
    Part Number: 104086X459
      No Longer Available
  • E-3
    Pin, Stake, Depth – Part Number: 532008393
    Pin, Stake, Depth
    Part Number: 532008393
      Special Order
    $31.35
  • E-4
    Ring, Klip – Part Number: 812000036
    Ring, Klip
    Part Number: 812000036
      No Longer Available
  • E-5
    Carriage Bolt – Part Number: STD533107
    Carriage Bolt
    Part Number: STD533107
      No Longer Available
  • E-6
    Spring – Part Number: 532008394
    Spring
    Part Number: 532008394
      Special Order
    $16.52
  • E-7
    Bracket, Latch – Part Number: 532008392
    Bracket, Latch
    Part Number: 532008392
      Special Order
    $5.97
  • E-8
    Spring, Depth Stake – Part Number: 532109230
    Spring, Depth Stake
    Part Number: 532109230
      No Longer Available
  • E-9
    Shield Tine – Part Number: 124289X459
    Shield Tine
    Part Number: 124289X459
      No Longer Available
  • E-10
    Carriage Bolt – Part Number: STD533110
    Carriage Bolt
    Part Number: STD533110
      No Longer Available
  • E-11
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • E-12
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • E-13
    Carriage Bolt – Part Number: STD533112
    Carriage Bolt
    Part Number: STD533112
      No Longer Available
  • E-14
    Bracket – Part Number: 124311X
    Bracket
    Part Number: 124311X
      No Longer Available
  • E-15
    Shield – Part Number: 104101X459
    Shield
    Part Number: 104101X459
      No Longer Available
  • E-16
    Nut 8Pk – Part Number: STD541025
    Nut 8Pk
    Part Number: STD541025
      No Longer Available
  • E-17
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • E-18
    Carriage Bolt – Part Number: STD532512
    Carriage Bolt
    Part Number: STD532512
      No Longer Available
  • E-19
    Grip – Part Number: 532102701
    Grip
    Part Number: 532102701
      No Longer Available
  • E-20
    Nut 8Pk – Part Number: STD541037
    Nut 8Pk
    Part Number: STD541037
      No Longer Available
  • E-21
    Stake, Depth – Part Number: 532102156
    Stake, Depth
    Part Number: 532102156
      In Stock
    $35.11
  • E-22
    Bolt, Hex 3/8-16 X 2 – Part Number: 874930632
    Bolt, Hex 3/8-16 X 2
    Part Number: 874930632
      On Order
    $11.03
  • E-23
    Hinge – Part Number: 532004440
    Hinge
    Part Number: 532004440
      Special Order
    $5.95
  • E-26
    Idler Pad – Part Number: 109227X
    Idler Pad
    Part Number: 109227X
      No Longer Available
  • E-27
    Level Shield – Part Number: 102695X459
    Level Shield
    Part Number: 102695X459
      No Longer Available
  • E-28
    Pin, Hinge – Part Number: 532120588
    Pin, Hinge
    Part Number: 532120588
      In Stock
    $13.78
  • E-29
    Kit.Tiller.Side.Shield.Black – Part Number: 585414301
    Kit.Tiller.Side.Shield.Black
    Part Number: 585414301
      No Longer Available
  • E-30
    Nut Lock – Part Number: 596040501
    Nut Lock
    Part Number: 596040501
    ★★★★★
    ★★★★★
    (5)
      In Stock
    $5.95
  • E-800
    Manual O.295 – Part Number: 154735
    Manual O.295
    Part Number: 154735
      No Longer Available
  • E-800
    Manual.O.295 – Part Number: 154736
    Manual.O.295
    Part Number: 154736
      No Longer Available
  • E-800
    Grease – Part Number: 6066J
    Grease
    Part Number: 6066J
      No Longer Available

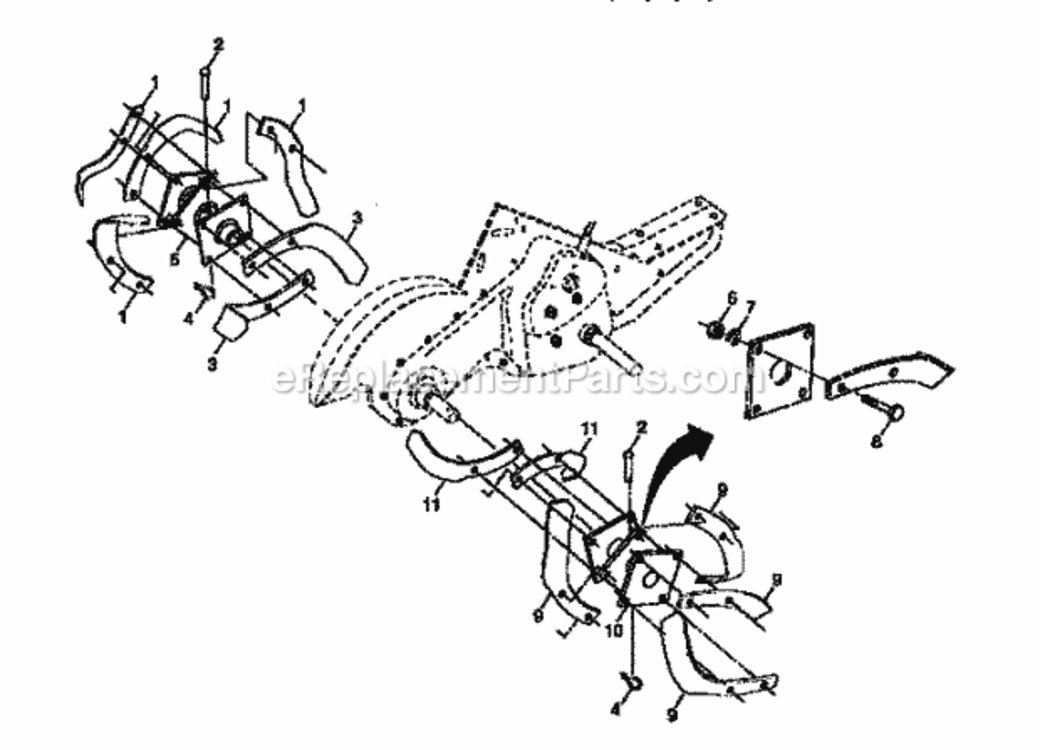

Page F
