Craftsman Parts

Craftsman Tiller Replacement Parts For Model 917298242

We Sell Only Genuine Craftsman Parts

Popular Parts for 917298242

Nut Lock – Part Number: 596040501 Nut Lock
In Stock
$5.95
Cable Clutch T – Part Number: 583731701 Cable Clutch T
In Stock
$13.77
Bolt, Shoulder – Part Number: 532121117 Bolt, Shoulder
In Stock
$8.37
Tiller engine pulley – Part Number: 592642101 Tiller engine pulley
In Stock
$16.52
Tine, Inner, R.H. – Part Number: 584971502 Tine, Inner, R.H.
Special Order
$118.75
TINE.ASM.OUTER.LH.12.PNT.BLACK – Part Number: 584971602 TINE.ASM.OUTER.LH.12.PNT.BLACK
No Longer Available
Clip – Part Number: 532009484 Clip
Special Order
$5.97
Nut-cap ti – Part Number: 583644101 Nut-cap ti
Special Order
$5.97

Search Within Model

Questions & Answers for Craftsman 917298242
Browse all Parts Search by Area

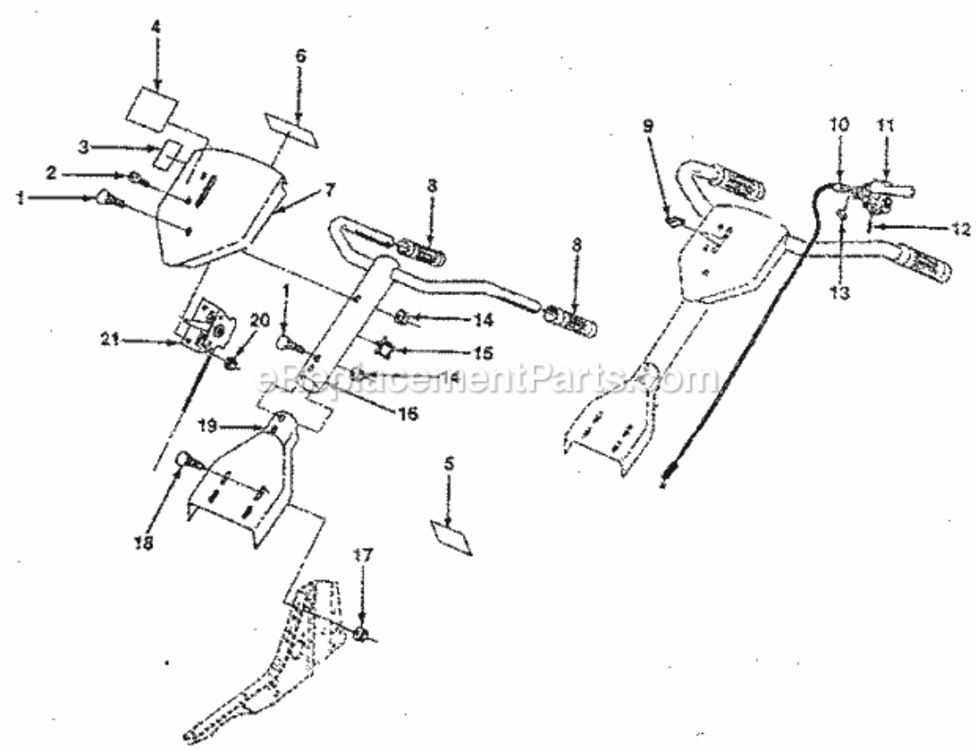

Page A Diagram and Parts List for Craftsman Tiller
Page A

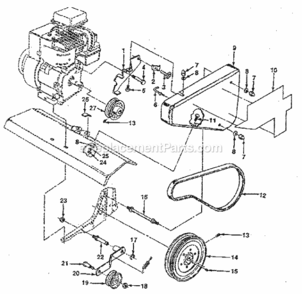

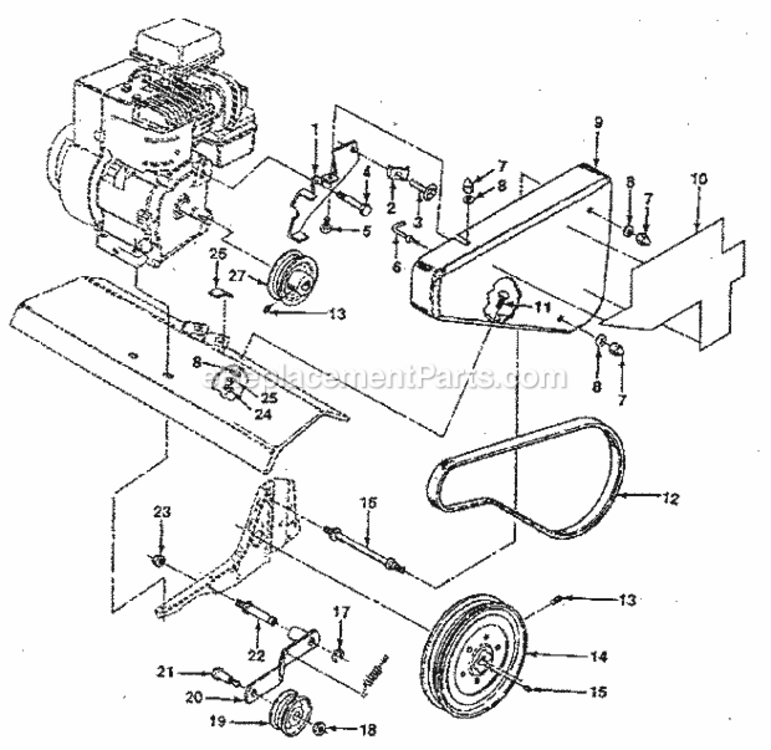

Page B Diagram and Parts List for Craftsman Tiller
Page B

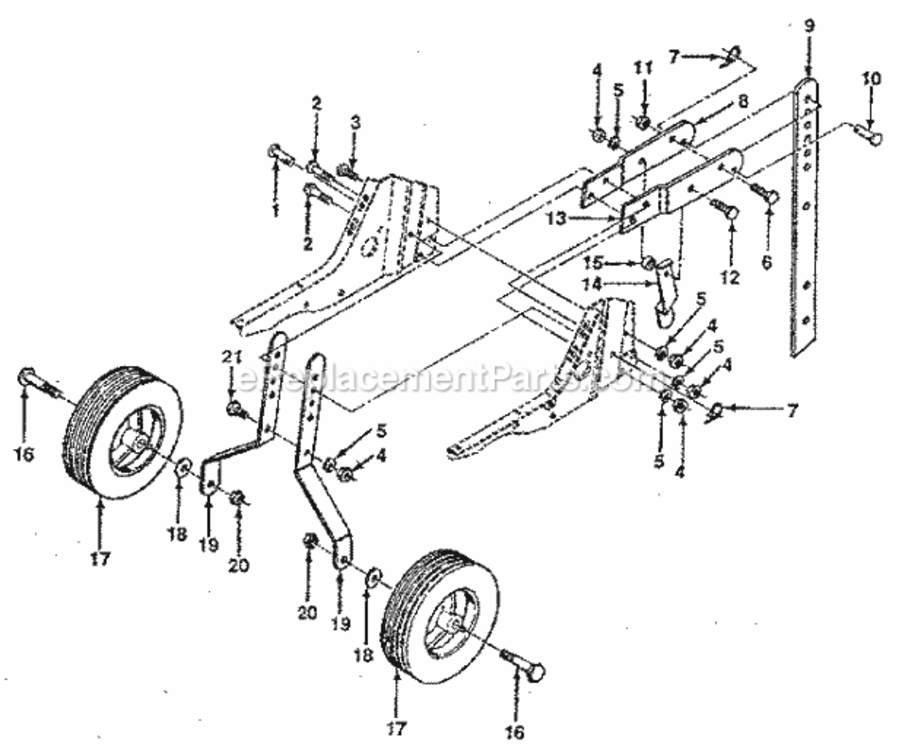

Page C Diagram and Parts List for Craftsman Tiller
Page C

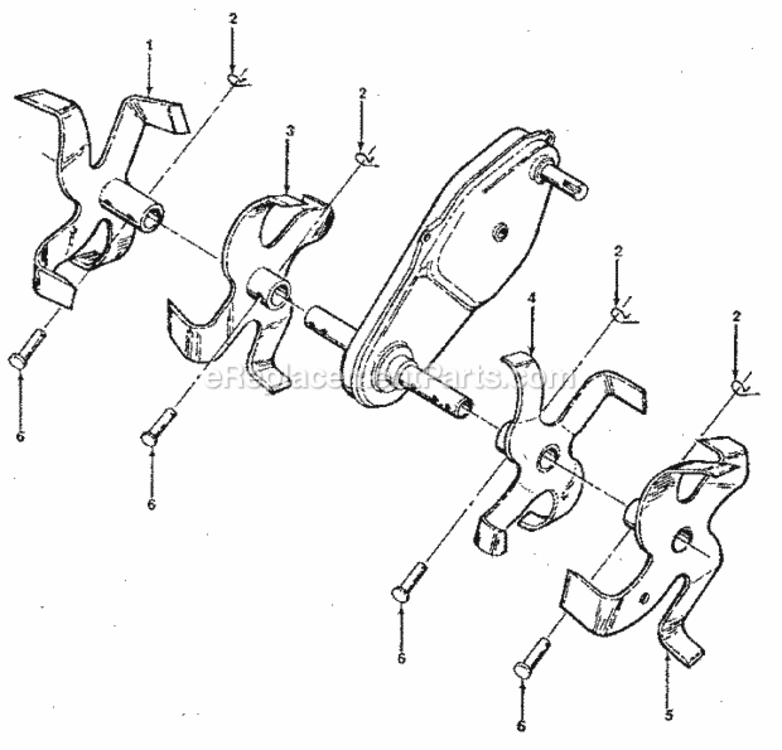

Page D Diagram and Parts List for Craftsman Tiller
Page D

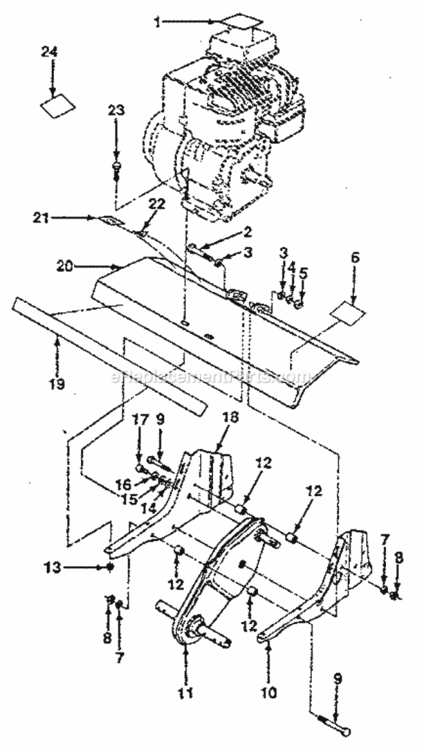

Page E Diagram and Parts List for Craftsman Tiller
Page E
Previous Showing All Parts Next
Page A
Page A Diagram and Parts List for Craftsman Tiller
Page B
Page B Diagram and Parts List for Craftsman Tiller
Page C
Page C Diagram and Parts List for Craftsman Tiller
Page D
Page D Diagram and Parts List for Craftsman Tiller
Page E
Page E Diagram and Parts List for Craftsman Tiller
  • E-1
    Decal – Part Number: 110719X
    Decal
    Part Number: 110719X
      No Longer Available
  • E-2
    Bolt – Part Number: STD623732
    Bolt
    Part Number: STD623732
      No Longer Available
  • E-3
    Washer 8Pk – Part Number: STD551037
    Washer 8Pk
    Part Number: STD551037
      No Longer Available
  • E-4
    Washer, Lock 3/8 – Part Number: STD551137
    Washer, Lock 3/8
    Part Number: STD551137
      No Longer Available
  • E-5
    Hex Lock Nut – Part Number: STD541537
    Hex Lock Nut
    Part Number: STD541537
      No Longer Available
  • E-6
    Decal – Part Number: 120045X
    Decal
    Part Number: 120045X
      No Longer Available
  • E-7
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • E-8
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • E-9
    Bolt, Hex 5/16-18 X 2-3/4 – Part Number: 596218601
    Bolt, Hex 5/16-18 X 2-3/4
    Part Number: 596218601
      Special Order
    $5.95
  • E-10
    Engine Bracket – Part Number: 110519X
    Engine Bracket
    Part Number: 110519X
      No Longer Available
  • E-11
    Transmission – Part Number: 582800901
    Transmission
    Part Number: 582800901
      Special Order
    $207.13
  • E-12
    Spacer, Split – Part Number: 583779801
    Spacer, Split
    Part Number: 583779801
      No Longer Available
  • E-13
    Locknut – Part Number: STD541431
    Locknut
    Part Number: STD541431
      No Longer Available
  • E-14
    Washer – Part Number: 19091412
    Washer
    Part Number: 19091412
      No Longer Available
  • E-15
    Washer – Part Number: 19092016
    Washer
    Part Number: 19092016
      No Longer Available
  • E-16
    Washer 8Pk – Part Number: STD551125
    Washer 8Pk
    Part Number: STD551125
      No Longer Available
  • E-17
    Bolt – Part Number: 74610412
    Bolt
    Part Number: 74610412
      No Longer Available
  • E-18
    Bracket, Engine, R.H. – Part Number: 165835
    Bracket, Engine, R.H.
    Part Number: 165835
      No Longer Available
  • E-19
    Decal – Part Number: 105332X
    Decal
    Part Number: 105332X
      No Longer Available
  • E-20
    Shield – Part Number: 9056R417
    Shield
    Part Number: 9056R417
      No Longer Available
  • E-21
    Decal, Warning, Rotating Tines – Part Number: 120075X
    Decal, Warning, Rotating Tines
    Part Number: 120075X
      No Longer Available
  • E-23
    Bolt – Part Number: 74930524
    Bolt
    Part Number: 74930524
      No Longer Available
  • E-24
    Decal – Part Number: 123081X
    Decal
    Part Number: 123081X
      No Longer Available
  • E-24A
    Manual – Part Number: 124336X
    Manual
    Part Number: 124336X
      No Longer Available
  • E-800
    Engine – Part Number: 130202-3130
    Engine
    Part Number: 130202-3130
      No Longer Available
