Craftsman Table Saw Replacement Parts For Model 315228310

We Sell Only Genuine Craftsman Parts

Popular Parts for 315228310

Arbor Wrench (15/16-inch) – Part Number: 0101010312 Arbor Wrench (15/16-inch)
In Stock
$7.22
Plate-baffle – Part Number: 221001 Plate-baffle
Special Order
$6.53
Washer 8Pk – Part Number: STD551231 Washer 8Pk
Special Order
$8.97

Search Within Model

Questions & Answers for Craftsman 315228310
Browse all Parts Search by Area
Page B Diagram and Parts List for Craftsman Table Saw
Page B
Page C Diagram and Parts List for Craftsman Table Saw
Page C
Page D Diagram and Parts List for Craftsman Table Saw
Page D
Page E Diagram and Parts List for Craftsman Table Saw
Page E
Page F Diagram and Parts List for Craftsman Table Saw
Page F
Page G Diagram and Parts List for Craftsman Table Saw
Page G
Page H Diagram and Parts List for Craftsman Table Saw
Page H
Page I Diagram and Parts List for Craftsman Table Saw
Page I

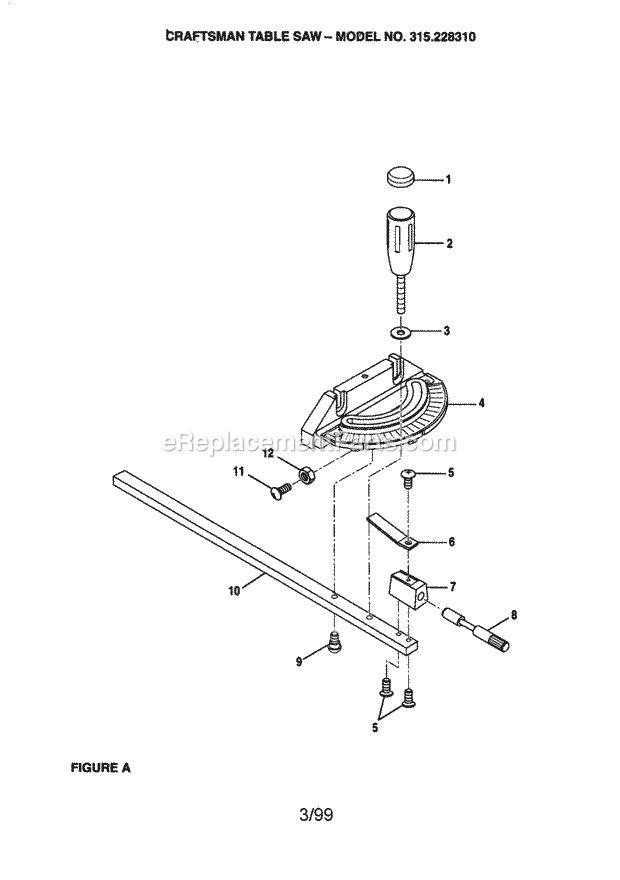

Table Saw Diagram and Parts List for Craftsman Table Saw
Table Saw
Previous Showing All Parts Next
Page B

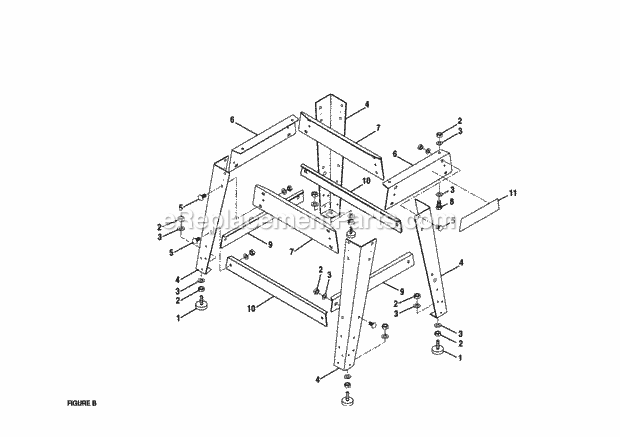

Page B Diagram and Parts List for Craftsman Table Saw
  • B-1
    Leveling Foot – Part Number: 979999-001
    Leveling Foot
    Part Number: 979999-001
      No Longer Available
  • B-2
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • B-3
    Flat Washer, 8Pk – Part Number: STD551031
    Flat Washer, 8Pk
    Part Number: STD551031
      No Longer Available
  • B-4
    Leg – Part Number: 979995-001
    Leg
    Part Number: 979995-001
      No Longer Available
  • B-5
    Carriage Bolt – Part Number: STD533107
    Carriage Bolt
    Part Number: STD533107
      No Longer Available
  • B-8
    Screw 5Pk – Part Number: STD523105
    Screw 5Pk
    Part Number: STD523105
      No Longer Available
  • B-9
    Leg Brace – Part Number: 979996-001
    Leg Brace
    Part Number: 979996-001
      No Longer Available
  • B-10
    Leg Brace – Part Number: 979998-001
    Leg Brace
    Part Number: 979998-001
      No Longer Available
  • B-800
    Plate-baffle – Part Number: 221001
    Plate-baffle
    Part Number: 221001
      Special Order
    $6.53
Page C

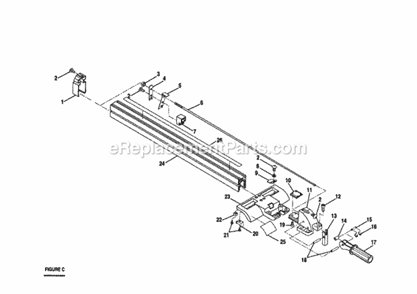

Page C Diagram and Parts List for Craftsman Table Saw
  • C-1
    End Cap – Part Number: 979973-001
    End Cap
    Part Number: 979973-001
      No Longer Available
  • C-2
    Screw 8Pk – Part Number: STD510805
    Screw 8Pk
    Part Number: STD510805
      No Longer Available
  • C-3
    1/4-20 Hex Lock Nut – Part Number: STD541425
    1/4-20 Hex Lock Nut
    Part Number: STD541425
      No Longer Available
  • C-4
    Lock Plate – Part Number: 979970-001
    Lock Plate
    Part Number: 979970-001
      No Longer Available
  • C-5
    Spring – Part Number: 979969-001
    Spring
    Part Number: 979969-001
      No Longer Available
  • C-6
    Lock Rod – Part Number: 979968-001
    Lock Rod
    Part Number: 979968-001
      No Longer Available
  • C-7
    Slide – Part Number: 979972-001
    Slide
    Part Number: 979972-001
      No Longer Available
  • C-8
    Washer 8Pk – Part Number: STD551008
    Washer 8Pk
    Part Number: STD551008
      No Longer Available
  • C-9
    Indicator – Part Number: 979961-001
    Indicator
    Part Number: 979961-001
      No Longer Available
  • C-11
    Cover – Part Number: 979963-001
    Cover
    Part Number: 979963-001
      No Longer Available
  • C-12
    Screw – Part Number: 979881-001
    Screw
    Part Number: 979881-001
      No Longer Available
  • C-14
    Cam Sleeve – Part Number: 980964-001
    Cam Sleeve
    Part Number: 980964-001
      No Longer Available
  • C-15
    Pin – Part Number: 980595-001
    Pin
    Part Number: 980595-001
      No Longer Available
  • C-16
    Ret Ring – Part Number: 980596-001
    Ret Ring
    Part Number: 980596-001
      No Longer Available
  • C-17
    Handle – Part Number: 979965-002
    Handle
    Part Number: 979965-002
      No Longer Available
  • C-18
    Roll Pin – Part Number: 979966-001
    Roll Pin
    Part Number: 979966-001
      No Longer Available
  • C-19
    Screw – Part Number: 979967-001
    Screw
    Part Number: 979967-001
      No Longer Available
  • C-20
    Rear Glide – Part Number: 980966-001
    Rear Glide
    Part Number: 980966-001
      No Longer Available
  • C-21
    Machine Screw, 8-pack – Part Number: STD510803
    Machine Screw, 8-pack
    Part Number: STD510803
      No Longer Available
  • C-22
    Fr Glide – Part Number: 980965-001
    Fr Glide
    Part Number: 980965-001
      No Longer Available
  • C-23
    Housing – Part Number: 979960-001
    Housing
    Part Number: 979960-001
      No Longer Available
  • C-24
    Rip Fence – Part Number: 979959-001
    Rip Fence
    Part Number: 979959-001
      No Longer Available
  • C-25
    Warn Label – Part Number: 980322-001
    Warn Label
    Part Number: 980322-001
      No Longer Available
  • C-800
    Plate-baffle – Part Number: 221001
    Plate-baffle
    Part Number: 221001
      Special Order
    $6.53
Page D
Page D Diagram and Parts List for Craftsman Table Saw
  • D-1
    Pushnut – Part Number: 979935-001
    Pushnut
    Part Number: 979935-001
      No Longer Available
  • D-2
    Pawl – Part Number: 979940-001
    Pawl
    Part Number: 979940-001
      No Longer Available
  • D-3
    Spacer – Part Number: 979944-001
    Spacer
    Part Number: 979944-001
      No Longer Available
  • D-4
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • D-5
    Screw – Part Number: 979942-001
    Screw
    Part Number: 979942-001
      No Longer Available
  • D-6
    Knife – Part Number: 979941-001
    Knife
    Part Number: 979941-001
      No Longer Available
  • D-7
    Guard Brkt – Part Number: 979937-001
    Guard Brkt
    Part Number: 979937-001
      No Longer Available
  • D-8
    Spring – Part Number: 979939-001
    Spring
    Part Number: 979939-001
      No Longer Available
  • D-10
    Guard – Part Number: 979934-001
    Guard
    Part Number: 979934-001
      No Longer Available
  • D-11
    Pin – Part Number: 979936-001
    Pin
    Part Number: 979936-001
      No Longer Available
  • D-13
    Warn Label – Part Number: 980400-001
    Warn Label
    Part Number: 980400-001
      No Longer Available
  • D-14
    Label – Part Number: 980324-001
    Label
    Part Number: 980324-001
      No Longer Available
  • D-800
    Plate-baffle – Part Number: 221001
    Plate-baffle
    Part Number: 221001
      Special Order
    $6.53
Page E

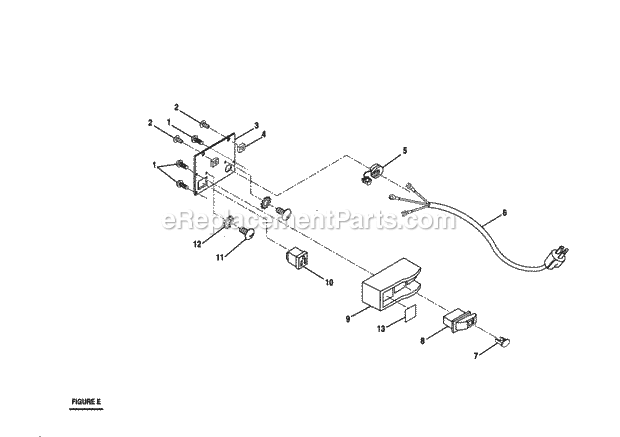

Page E Diagram and Parts List for Craftsman Table Saw
  • E-1
    Screw 8Pk – Part Number: STD510805
    Screw 8Pk
    Part Number: STD510805
      No Longer Available
  • E-2
    Screw 8Pk – Part Number: STD512503
    Screw 8Pk
    Part Number: STD512503
      No Longer Available
  • E-3
    Sw Plate – Part Number: 979985-001
    Sw Plate
    Part Number: 979985-001
      No Longer Available
  • E-4
    Square Nut – Part Number: 980594-001
    Square Nut
    Part Number: 980594-001
      No Longer Available
  • E-5
    Relief – Part Number: 979986-001
    Relief
    Part Number: 979986-001
      No Longer Available
  • E-6
    Power Cord – Part Number: 979991-001
    Power Cord
    Part Number: 979991-001
      No Longer Available
  • E-7
    Switch Only – Part Number: 089015001705
    Switch Only
    Part Number: 089015001705
      No Longer Available
  • E-9
    Sw Housing – Part Number: 979987-001
    Sw Housing
    Part Number: 979987-001
      No Longer Available
  • E-10
    Receptacle – Part Number: 980000-001
    Receptacle
    Part Number: 980000-001
      No Longer Available
  • E-11
    Screw 8Pk – Part Number: STD511003
    Screw 8Pk
    Part Number: STD511003
      No Longer Available
  • E-12
    Washer 8Pk – Part Number: STD551210
    Washer 8Pk
    Part Number: STD551210
      No Longer Available
  • E-13
    Label – Part Number: 980321-001
    Label
    Part Number: 980321-001
      No Longer Available
  • E-800
    Plate-baffle – Part Number: 221001
    Plate-baffle
    Part Number: 221001
      Special Order
    $6.53
Page F

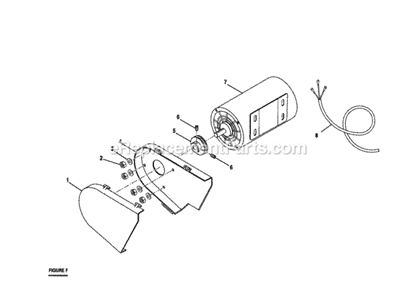

Page F Diagram and Parts List for Craftsman Table Saw
  • F-1
    Outer Belt Guard – Part Number: 979933-01
    Outer Belt Guard
    Part Number: 979933-01
      No Longer Available
  • F-2
    Nut 8Pk – Part Number: STD541010
    Nut 8Pk
    Part Number: STD541010
      No Longer Available
  • F-3
    Fan Washer – Part Number: STD551010
    Fan Washer
    Part Number: STD551010
      No Longer Available
  • F-4
    Beltguard – Part Number: 981382-001
    Beltguard
    Part Number: 981382-001
      No Longer Available
  • F-5
    Pulley – Part Number: 979900-001
    Pulley
    Part Number: 979900-001
      No Longer Available
  • F-6
    Screw 5pk – Part Number: STD502502
    Screw 5pk
    Part Number: STD502502
      No Longer Available
  • F-7
    Motor – Part Number: 979931-001
    Motor
    Part Number: 979931-001
      No Longer Available
  • F-8
    Power Cord – Part Number: 979988-001
    Power Cord
    Part Number: 979988-001
      No Longer Available
  • F-800
    Plate-baffle – Part Number: 221001
    Plate-baffle
    Part Number: 221001
      Special Order
    $6.53
Page G

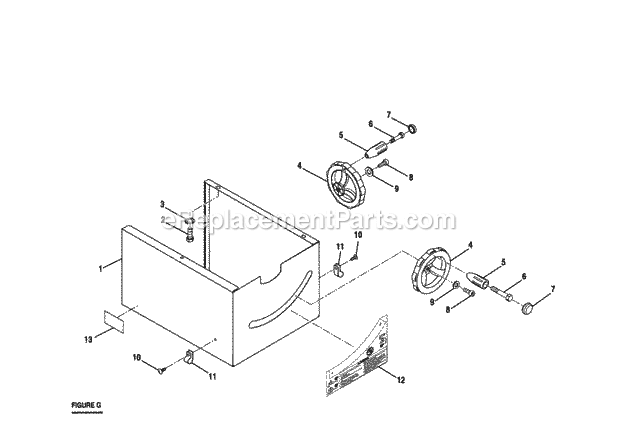

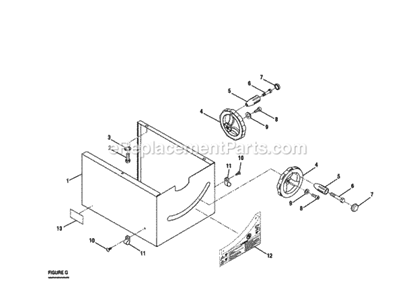

Page G Diagram and Parts List for Craftsman Table Saw
  • G-1
    Base – Part Number: 979992-001
    Base
    Part Number: 979992-001
      No Longer Available
  • G-2
    Screw 5Pk – Part Number: STD523105
    Screw 5Pk
    Part Number: STD523105
      No Longer Available
  • G-3
    Washer 8Pk – Part Number: STD551231
    Washer 8Pk
    Part Number: STD551231
      Special Order
    $8.97
  • G-4
    Handwheel – Part Number: 977227-001
    Handwheel
    Part Number: 977227-001
      No Longer Available
  • G-5
    Handle – Part Number: 977229-001
    Handle
    Part Number: 977229-001
      No Longer Available
  • G-8
    Spur Screw – Part Number: STD511005
    Spur Screw
    Part Number: STD511005
      No Longer Available
  • G-9
    Fan Washer – Part Number: STD551010
    Fan Washer
    Part Number: STD551010
      No Longer Available
  • G-10
    Spur Screw – Part Number: STD511005
    Spur Screw
    Part Number: STD511005
      No Longer Available
  • G-11
    Cord Clip – Part Number: 960599-001
    Cord Clip
    Part Number: 960599-001
      No Longer Available
  • G-800
    Plate-baffle – Part Number: 221001
    Plate-baffle
    Part Number: 221001
      Special Order
    $6.53
Page H

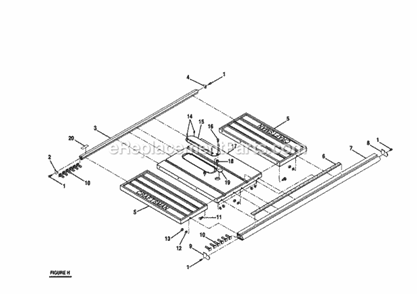

Page H Diagram and Parts List for Craftsman Table Saw
  • H-1
    Screw 8Pk – Part Number: STD510805
    Screw 8Pk
    Part Number: STD510805
      No Longer Available
  • H-2
    End Cap – Part Number: 979946-001
    End Cap
    Part Number: 979946-001
      No Longer Available
  • H-3
    Rear Rail – Part Number: 979947-001
    Rear Rail
    Part Number: 979947-001
      No Longer Available
  • H-4
    End Cap – Part Number: 979948-001
    End Cap
    Part Number: 979948-001
      No Longer Available
  • H-6
    Scale – Part Number: 979956-001
    Scale
    Part Number: 979956-001
      No Longer Available
  • H-7
    Front Rail – Part Number: 979950-001
    Front Rail
    Part Number: 979950-001
      No Longer Available
  • H-8
    End Cap – Part Number: 979951-001
    End Cap
    Part Number: 979951-001
      No Longer Available
  • H-9
    End Cap – Part Number: 979949-001
    End Cap
    Part Number: 979949-001
      No Longer Available
  • H-10
    Screw – Part Number: 979879-001
    Screw
    Part Number: 979879-001
      No Longer Available
  • H-11
    Screw 5Pk – Part Number: STD523112
    Screw 5Pk
    Part Number: STD523112
      No Longer Available
  • H-12
    Lock Washer – Part Number: STD551131
    Lock Washer
    Part Number: STD551131
      No Longer Available
  • H-13
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • H-14
    Set Screw – Part Number: 979873-001
    Set Screw
    Part Number: 979873-001
      No Longer Available
  • H-15
    Plate – Part Number: 979871-001
    Plate
    Part Number: 979871-001
      No Longer Available
  • H-16
    Screw – Part Number: 979872-001
    Screw
    Part Number: 979872-001
      No Longer Available
  • H-18
    Set Screw – Part Number: 979874-001
    Set Screw
    Part Number: 979874-001
      No Longer Available
  • H-19
    Extension, Table – Part Number: 979875-001
    Extension, Table
    Part Number: 979875-001
      No Longer Available
  • H-20
    Label – Part Number: 980323-001
    Label
    Part Number: 980323-001
      No Longer Available
  • H-800
    Plate-baffle – Part Number: 221001
    Plate-baffle
    Part Number: 221001
      Special Order
    $6.53
Page I
Page I Diagram and Parts List for Craftsman Table Saw
  • I-1
    Lock Washer – Part Number: STD51131
    Lock Washer
    Part Number: STD51131
      No Longer Available
  • I-2
    Screw 5Pk – Part Number: STD523105
    Screw 5Pk
    Part Number: STD523105
      No Longer Available
  • I-3
    Guard Brkt – Part Number: 979880-001
    Guard Brkt
    Part Number: 979880-001
      No Longer Available
  • I-6
    Washer 8Pk – Part Number: STD551025
    Washer 8Pk
    Part Number: STD551025
      No Longer Available
  • I-7
    Table Brkt – Part Number: 979886-001
    Table Brkt
    Part Number: 979886-001
      No Longer Available
  • I-8
    Washer 8Pk – Part Number: STD551231
    Washer 8Pk
    Part Number: STD551231
      Special Order
    $8.97
  • I-9
    Screw 5Pk – Part Number: STD523110
    Screw 5Pk
    Part Number: STD523110
      No Longer Available
  • I-10
    Ret Ring – Part Number: 979896-001
    Ret Ring
    Part Number: 979896-001
      No Longer Available
  • I-11
    Bearing 6202Vv5/8 – Part Number: STD315223
    Bearing 6202Vv5/8
    Part Number: STD315223
      No Longer Available
  • I-12
    Key – Part Number: 979894-001
    Key
    Part Number: 979894-001
      No Longer Available
  • I-13
    Arbor – Part Number: 979893-001
    Arbor
    Part Number: 979893-001
      No Longer Available
  • I-14
    Blade – Part Number: 9-26810
    Blade
    Part Number: 9-26810
      No Longer Available
  • I-15
    Washer – Part Number: 979891-001
    Washer
    Part Number: 979891-001
      No Longer Available
  • I-16
    Blade Nut – Part Number: 979890-001
    Blade Nut
    Part Number: 979890-001
      No Longer Available
  • I-17
    Arbor Wrench (15/16-inch) – Part Number: 0101010312
    Arbor Wrench (15/16-inch)
    Part Number: 0101010312
    ★★★★★
    ★★★★★
    (8)
      In Stock
    $7.22
  • I-18
    Shaft – Part Number: 979906-001
    Shaft
    Part Number: 979906-001
      No Longer Available
  • I-19
    Handle – Part Number: 979907-002
    Handle
    Part Number: 979907-002
      No Longer Available
  • I-20
    Washer 8Pk – Part Number: STD551008
    Washer 8Pk
    Part Number: STD551008
      No Longer Available
  • I-21
    Machine Screw, 8-pack – Part Number: STD510803
    Machine Screw, 8-pack
    Part Number: STD510803
      No Longer Available
  • I-22
    Rod – Part Number: 979917-001
    Rod
    Part Number: 979917-001
      No Longer Available
  • I-23
    Bracket – Part Number: 979915-001
    Bracket
    Part Number: 979915-001
      No Longer Available
  • I-24
    Spring – Part Number: 979905-001
    Spring
    Part Number: 979905-001
      No Longer Available
  • I-25
    Ret Ring – Part Number: 979904-001
    Ret Ring
    Part Number: 979904-001
      No Longer Available
  • I-26
    Washer – Part Number: 979885-001
    Washer
    Part Number: 979885-001
      No Longer Available
  • I-27
    Screw 8Pk – Part Number: STD511003
    Screw 8Pk
    Part Number: STD511003
      No Longer Available
  • I-28
    Fan Washer – Part Number: STD551010
    Fan Washer
    Part Number: STD551010
      No Longer Available
  • I-29
    Bracket – Part Number: 979908-001
    Bracket
    Part Number: 979908-001
      No Longer Available
  • I-30
    Indicator – Part Number: 979911-001
    Indicator
    Part Number: 979911-001
      No Longer Available
  • I-32
    Retaining Ring – Part Number: 960589-001
    Retaining Ring
    Part Number: 960589-001
      No Longer Available
  • I-33
    Adj Rod – Part Number: 979924-001
    Adj Rod
    Part Number: 979924-001
      No Longer Available
  • I-34
    Washer – Part Number: 979923-001
    Washer
    Part Number: 979923-001
      No Longer Available
  • I-35
    Washer – Part Number: 979922-001
    Washer
    Part Number: 979922-001
      No Longer Available
  • I-36
    Cradle – Part Number: 979897-001
    Cradle
    Part Number: 979897-001
      No Longer Available
  • I-37
    Housing – Part Number: 979898-001
    Housing
    Part Number: 979898-001
      No Longer Available
  • I-38
    Washer – Part Number: 979902-001
    Washer
    Part Number: 979902-001
      No Longer Available
  • I-39
    Ret Ring – Part Number: 979903-001
    Ret Ring
    Part Number: 979903-001
      No Longer Available
  • I-40
    V-belt – Part Number: 979901-001
    V-belt
    Part Number: 979901-001
      No Longer Available
  • I-41
    Pulley – Part Number: 979900-001
    Pulley
    Part Number: 979900-001
      No Longer Available
  • I-42
    Screw 5pk – Part Number: STD502502
    Screw 5pk
    Part Number: STD502502
      No Longer Available
  • I-43
    Ret Ring – Part Number: 980593-001
    Ret Ring
    Part Number: 980593-001
      No Longer Available
  • I-44
    Screw 5Pk – Part Number: STD523106
    Screw 5Pk
    Part Number: STD523106
      No Longer Available
  • I-45
    Motor Base – Part Number: 979925-001
    Motor Base
    Part Number: 979925-001
      No Longer Available
  • I-46
    Spring – Part Number: 979926-001
    Spring
    Part Number: 979926-001
      No Longer Available
  • I-47
    E Ring – Part Number: STD581043
    E Ring
    Part Number: STD581043
      No Longer Available
  • I-48
    Shaft – Part Number: 979927-001
    Shaft
    Part Number: 979927-001
      No Longer Available
  • I-49
    Screw – Part Number: 979928-001
    Screw
    Part Number: 979928-001
      No Longer Available
  • I-50
    Mtg Plate – Part Number: 979929-001
    Mtg Plate
    Part Number: 979929-001
      No Longer Available
  • I-51
    Nut 8Pk – Part Number: STD541031
    Nut 8Pk
    Part Number: STD541031
      No Longer Available
  • I-52
    Washer 5/16 In – Part Number: STD441031
    Washer 5/16 In
    Part Number: STD441031
      No Longer Available
  • I-800
    Plate-baffle – Part Number: 221001
    Plate-baffle
    Part Number: 221001
      Special Order
    $6.53
Table Saw
Table Saw Diagram and Parts List for Craftsman Table Saw
  • A-2
    Guage Knob – Part Number: 979974-001
    Guage Knob
    Part Number: 979974-001
      No Longer Available
  • A-3
    Flat Washer, 8Pk – Part Number: STD551031
    Flat Washer, 8Pk
    Part Number: STD551031
      No Longer Available
  • A-5
    Screw 8Pk – Part Number: STD511003
    Screw 8Pk
    Part Number: STD511003
      No Longer Available
  • A-6
    Indicator – Part Number: 979978-001
    Indicator
    Part Number: 979978-001
      No Longer Available
  • A-7
    Block – Part Number: 979979-001
    Block
    Part Number: 979979-001
      No Longer Available
  • A-8
    Stop Pin – Part Number: 979980-001
    Stop Pin
    Part Number: 979980-001
      No Longer Available
  • A-9
    Screw – Part Number: 979984-001
    Screw
    Part Number: 979984-001
      No Longer Available
  • A-11
    Screw 8Pk – Part Number: STD510807
    Screw 8Pk
    Part Number: STD510807
      No Longer Available
  • A-12
    Nut 8Pk – Part Number: STD541008
    Nut 8Pk
    Part Number: STD541008
      No Longer Available
  • A-800
    Plate-baffle – Part Number: 221001
    Plate-baffle
    Part Number: 221001
      Special Order
    $6.53

Questions & Answers

?

Our customer Service team is at the ready daily to answer your part and product questions.

Be the first to ask our experts a question about this part!

Ask our Team

We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.

✖

Our customer service team are at the ready daily to answer your part and product questions. We have a dedicated staff with decades of collective experience in helping customers just like you purchase parts to repair their products.
