Ariens SB 9369 9hp 36" Snow Brush Snow Blower Replacement Parts For Model 924504 (000101)
We Sell Only Genuine Ariens Parts
Find Ariens 924504 Parts By Symptom
Drive system does not work
73%
Drive wheels won't engage
27%
Popular Parts for 924504
Special Order
$39.97
In Stock
$6.16
On Order
$29.24
In Stock
Minimum Quantity of 2 required
$6.16
In Stock
$6.16
On Order
$34.89
In Stock
$6.16
In Stock
$10.62
Search Within Model
Browse all Parts
Search by Area
_WW_1.gif "Brush Drive Unit Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_2.gif "Brush Head Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_3.gif "Continuity Diagram Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_4.gif "Decals (Part 2) Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_5.gif "Engine And Belt Drive Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_6.gif "Friction Wheel Drive Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_7.gif "Handlebars And Controls Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_8.gif "Headlight Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_9.gif "Reduction Drive Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_10.gif "Speed Selector And Frame Diagram and Parts List for 000101 Ariens Snow Blower")
_WW_11.gif "Wheels And Axle Diagram and Parts List for 000101 Ariens Snow Blower")
Previous
Showing All Parts
Next

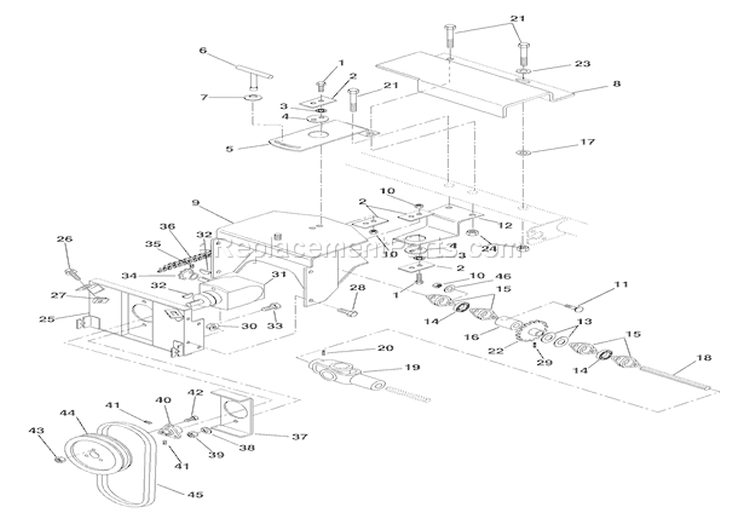

Brush Drive Unit
_WW_1.gif "Brush Drive Unit Diagram and Parts List for 000101 Ariens Snow Blower")
-
A-1
-
A-2
$27.68
-
A-3
-
A-4
$31.97
-
A-5
$106.44
-
A-6
$76.82
-
A-7
-
A-8
-
A-9
-
A-10
$6.16
-
A-11
-
A-12
$99.48
-
A-13
$7.77
-
A-14
$116.63
-
A-15
$7.77
-
A-16
$38.75
-
A-17
$6.16
-
A-18
$99.48
-
A-19
$312.81
-
A-20
$6.16
-
A-21
-
A-22
$128.38
-
A-23
$6.16
-
A-24
$6.16
-
A-25
-
A-26
$6.16
-
A-27
$12.05
-
A-28
$6.16
-
A-29
-
A-30
$6.16
-
A-31
-
A-32
$6.16
-
A-33
-
A-34
-
A-35
$6.16
-
A-36
$20.60
-
A-37
-
A-38
-
A-39
-
A-40
$103.78
-
A-41
$6.16
-
A-42
$7.77
-
A-43
-
A-44
$72.31
-
A-45
$52.78
-
A-46

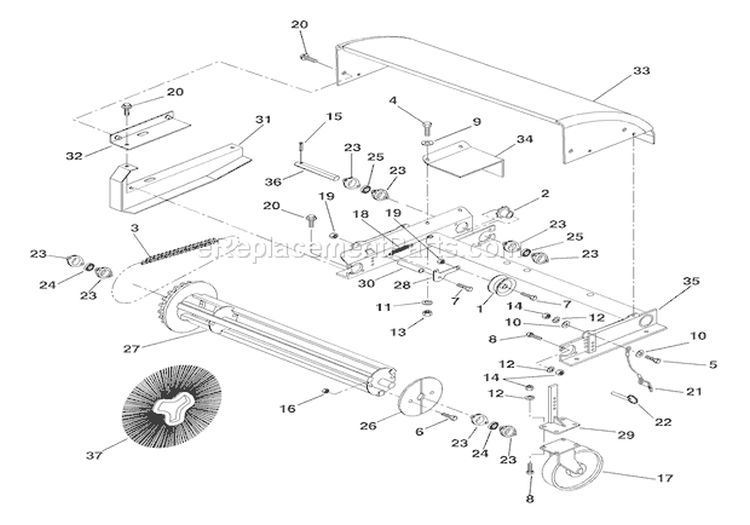

Brush Head
_WW_2.gif "Brush Head Diagram and Parts List for 000101 Ariens Snow Blower")
-
B-1
-
B-2
-
B-3
$113.79
-
B-4
-
B-5
-
B-6
-
B-7
$6.16
-
B-8
$6.16
-
B-9
-
B-10
-
B-11
-
B-12
-
B-13
-
B-14
-
B-15
-
B-16
-
B-17
$89.04
-
B-18
-
B-19
$6.16
-
B-20
-
B-21
-
B-22
$17.38
-
B-23
$10.63
-
B-24
-
B-25
$116.63
-
B-26
-
B-27
-
B-28
-
B-29
$212.21
-
B-30
-
B-31
-
B-32
-
B-33
-
B-34
-
B-35
-
B-36
-
B-37
$641.49

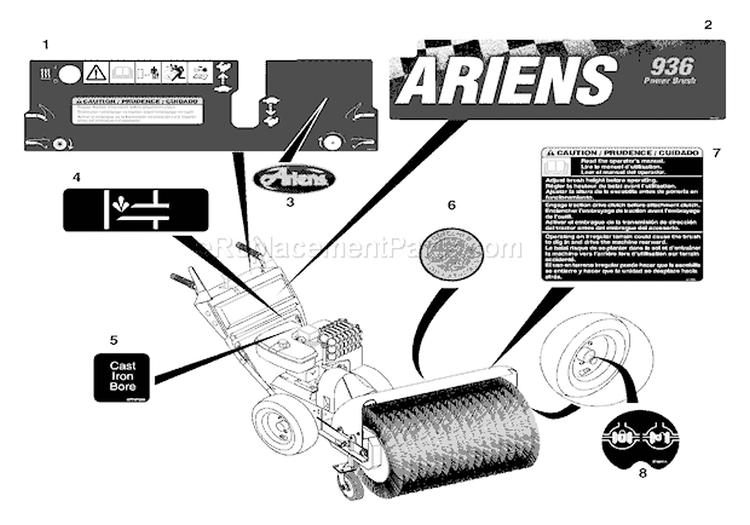

Decals (Part 2)
_WW_4.gif "Decals (Part 2) Diagram and Parts List for 000101 Ariens Snow Blower")
-
D-1
-
D-2
-
D-3
-
D-4
-
D-5
-
D-6
-
D-7
$17.59
-
D-8
$39.73

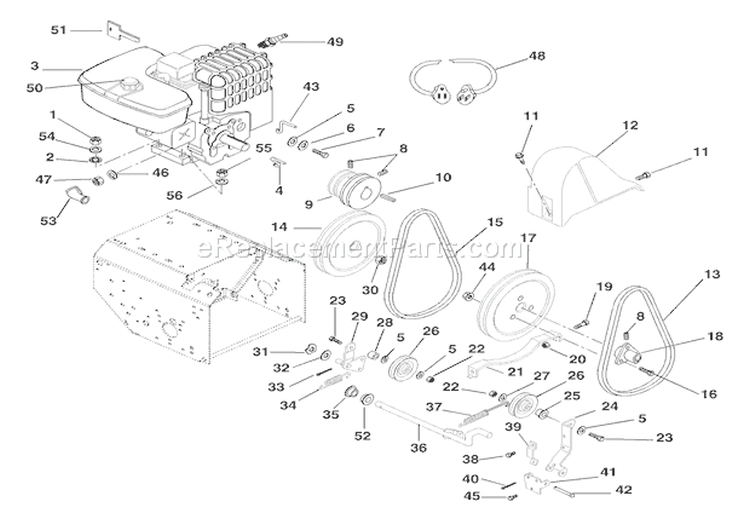

Engine And Belt Drive
_WW_5.gif "Engine And Belt Drive Diagram and Parts List for 000101 Ariens Snow Blower")
-
E-1
$6.16
-
E-2
$6.16
-
E-3
-
E-4
$39.74
-
E-5
-
E-6
-
E-7
-
E-8
$6.16
-
E-9
$165.49
-
E-10
$6.16
-
E-11
$6.16
-
E-12
-
E-13
$34.89
-
E-14
$66.25
-
E-15
$29.24
-
E-16
$7.77
-
E-17
$72.31
-
E-18
$134.10
-
E-19
-
E-20
-
E-21
$35.84
-
E-22
$6.16
-
E-23
-
E-24
$72.31
-
E-25
$6.16
-
E-26
$55.02
-
E-27
$6.16
-
E-28
$6.16
-
E-29
-
E-30
$6.16
-
E-31
$6.16
-
E-32
$6.16
-
E-33
$6.16
-
E-34
$40.65
-
E-35
$6.16
-
E-36
$87.33
-
E-37
$20.70
-
E-38
$6.16
-
E-39
$41.42
-
E-40
$6.16
-
E-41
$54.65
-
E-42
$6.16
-
E-43
$12.05
-
E-44
-
E-45
$6.16
-
E-46
-
E-47
-
E-48
$44.62
-
E-49
$10.62
-
E-50
$30.23
-
E-51
$12.54
-
E-52
$6.16
-
E-53
$6.16
-
E-54
-
E-55
-
E-56
$6.16
-
E-800
-
E-800
$41.37
-
E-800
$38.78
-
E-800
$32.30
-
E-800
$40.08
-
E-800
-
E-800
-
E-800
-
E-800
-
E-800
$127.60
Friction Wheel Drive
_WW_6.gif "Friction Wheel Drive Diagram and Parts List for 000101 Ariens Snow Blower")
-
F-1
-
F-2
$99.48
-
F-3
$39.97
-
F-4
$36.80
-
F-5
$7.77
-
F-6
$6.16
-
F-7
$6.16
-
F-8
$7.77
-
F-9
$9.20
-
F-10
$50.43
-
F-11
$215.18
-
F-12
$215.18
-
F-13
$60.37
-
F-14
$6.16
-
F-15
$188.46
-
F-16
$20.60
-
F-17
$92.25
-
F-18
$6.16
-
F-19
$113.28
-
F-20
$20.60
-
F-21
$6.35
-
F-22
$19.87
-
F-23
$6.16
-
F-24
-
F-25
-
F-26
$99.48
Handlebars And Controls
_WW_7.gif "Handlebars And Controls Diagram and Parts List for 000101 Ariens Snow Blower")
-
G-1
-
G-2
-
G-3
-
G-4
-
G-5
$28.42
-
G-6
$6.16
-
G-7
$72.31
-
G-8
-
G-9
$6.16
-
G-10
$37.79
-
G-11
$6.16
-
G-12
-
G-13
$178.73
-
G-14
$126.80
-
G-15
$20.60
-
G-16
$25.17
-
G-17
-
G-18
-
G-19
$7.77
-
G-20
$7.77
-
G-21
$6.16
-
G-22
$6.16
-
G-23
-
G-24
-
G-25
-
G-26
-
G-27
-
G-28
$13.38
-
G-29
$6.16
-
G-30
$13.47
-
G-31
-
G-32
-
G-33
$142.58
-
G-34
$71.48
-
G-35
-
G-36
-
G-37
-
G-38
$6.16
-
G-39
$54.65
-
G-40
$39.65
-
G-41
$6.16
-
G-42
$6.16
-
G-43
$34.90
-
G-44
$40.65
-
G-45
$79.19
-
G-46
$6.16
-
G-47
$72.88
-
G-48
$6.16
-
G-49
$6.16
-
G-50
$14.90
-
G-51
-
G-52
$75.19
-
G-53
$6.16
-
G-54
-
G-55
$6.16
-
G-56
$21.30
-
G-57
$6.16
-
G-58
$6.16
-
G-59
$18.44
-
G-60
$6.16
-
G-61
$20.31
-
G-62
$6.35
-
G-63
$6.16
-
G-64
$6.16
-
G-65
$6.16
-
G-66
-
G-67
$6.16
-
G-68
-
G-69
-
G-70
$6.16
-
G-71
-
G-72
$6.16
-
G-73
-
G-74
$6.16
-
G-75
$6.16
-
G-76
$6.16
-
G-77
$65.87
-
G-78
-
G-79
-
G-80
-
G-81
-
G-82
$6.16
-
G-83
$6.16
-
G-84
$6.16
-
G-800
$6.16
-
G-800
-
G-800
-
G-800
-
G-800
-
G-800
-
G-800
-
G-800
$6.16
Headlight
_WW_8.gif "Headlight Diagram and Parts List for 000101 Ariens Snow Blower")
-
H-1
$104.10
-
H-2
-
H-3
-
H-4
-
H-5
-
H-6
-
H-7
$27.12
-
H-8
-
H-9
$6.16
-
H-10
$6.16
Reduction Drive
_WW_9.gif "Reduction Drive Diagram and Parts List for 000101 Ariens Snow Blower")
-
I-1
$111.94
-
I-2
$6.16
-
I-3
$99.48
-
I-4
$17.74
-
I-5
-
I-6
$34.42
-
I-7
$12.74
-
I-8
$28.55
-
I-9
$6.16
-
I-10
-
I-11
$6.16
-
I-12
$6.16
-
I-13
$6.16
-
I-14
-
I-15
$55.02
-
I-16
$20.60
-
I-17
$15.59
-
I-18
$6.16
-
I-19
$6.16
-
I-20
-
I-21
-
I-22
$6.16
-
I-23
-
I-24
Speed Selector And Frame
_WW_10.gif "Speed Selector And Frame Diagram and Parts List for 000101 Ariens Snow Blower")
-
J-1
$6.16
-
J-2
$6.16
-
J-3
-
J-4
$104.10
-
J-5
$13.47
-
J-6
-
J-7
$6.16
-
J-8
-
J-9
-
J-10
$6.16
-
J-11
-
J-12
-
J-13
-
J-14
-
J-15
$6.16
-
J-16
$6.16
-
J-17
-
J-18
$98.66
-
J-19
-
J-20
$35.89
-
J-21
$20.95
-
J-22
-
J-23
$6.16
-
J-24
-
J-25
$110.57
-
J-26
$6.16
-
J-27
-
J-28
$6.16
-
J-29
$6.16
-
J-30
-
J-31
-
J-800
Wheels And Axle
_WW_11.gif "Wheels And Axle Diagram and Parts List for 000101 Ariens Snow Blower")
-
K-3
$89.04
-
K-14
$23.50
-
K-15
$75.57
-
K-16
$150.71
-
K-17
$390.51
-
K-18
$233.02
-
K-19
$233.02
-
K-20
$26.00
-
K-21
$6.16
-
K-22
$6.16
-
K-23
$20.95
-
K-24
$154.44
-
K-25
$26.00
-
K-26
$7.77
-
K-27
$105.67
-
K-28
$8.47
-
K-29
$6.16
-
K-30
$6.16
-
K-31
$66.56
-
K-32
$655.53
-
K-33
$6.16
-
K-34
$20.95
-
K-35
Bearing Retainer (124, 126, 127, 335, 336, 337, 516, 517, 518)Part Number: 02457859No Longer Available
-
K-36
$40.48
-
K-37
$6.45
-
K-38
$6.16
-
K-39
-
K-800
$217.08
-
K-800
-
K-800
-
K-800
$41.37
-
K-800
$91.11
-
K-800
$370.38
✖
