Ariens ST1336 13hp 36" Snowblower Snow Blower Replacement Parts For Model 924503 (000101)
We Sell Only Genuine Ariens Parts
Find Ariens 924503 (000101) Parts By Symptom
Drive system does not work
72%
Drive wheels won't engage
28%
Popular Parts for Ariens 924503 (000101)
In Stock
Minimum Quantity of 2 required
$6.66
Special Order
$44.50
In Stock
$25.66
In Stock
$6.16
In Stock
$25.42
In Stock
Minimum Quantity of 2 required
$6.16
In Stock
$6.16
In Stock
$36.25
Search Within Model
Browse all Parts
Search by Area
_WW_1.gif "Auger And Battery Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_2.gif "Continuity Diagram Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_3.gif "Decals (Part 1) Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_4.gif "Electric Discharge Chute Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_5.gif "Engine And Belt Drive Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_6.gif "Friction Wheel Drive Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_7.gif "Gear Case - Cast Iron Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_7.gif "Handlebars And Controls Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_8.gif "Headlight Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_9.gif "Reduction Drive Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_10.gif "Speed Selector And Frame Diagram and Parts List for 924503 000101 Ariens Snow Blower")
_WW_11.gif "Wheels And Axle Diagram and Parts List for 924503 000101 Ariens Snow Blower")
Previous
Showing All Parts
Next
Auger And Battery
_WW_1.gif "Auger And Battery Diagram and Parts List for 924503 000101 Ariens Snow Blower")
-
A-1
$17.69 -
A-3
-
A-4
-
A-5
-
A-6
-
A-7
$5.95
-
A-8
$80.45
-
A-9
-
A-10
-
A-11
$24.33
-
A-12
$39.77
-
A-13
-
A-14
$25.38
-
A-15
-
A-16
$6.16
-
A-17
$6.55
-
A-18
$6.16
-
A-19
$6.16
-
A-20
-
A-21
$43.97
-
A-22
$6.16
-
A-23
-
A-24
$47.84
-
A-24
$81.89
-
A-25
$6.16
-
A-26
$6.54
-
A-27
-
A-28
$6.66
-
A-29
$26.13
-
A-30
-
A-31
-
A-32
$38.78
-
A-33
$6.16
-
A-34
-
A-35
-
A-36
-
A-37
$41.33
-
A-38
$16.42
-
A-39
-
A-40
-
A-41
$6.16
-
A-42
$20.63
-
A-43
-
A-44
$26.27
-
A-45
$6.16
-
A-46
$6.16
-
A-47
-
A-48
$40.56
-
A-49
$12.63
-
A-50
$6.16
-
A-51
$6.16
-
A-52
$12.63
-
A-53
$8.15
-
A-54
$6.16
-
A-55
$134.41
-
A-56
-
A-57
-
A-58
$8.15
-
A-59
$6.16
-
A-60
-
A-61
-
A-62
$6.16
-
A-800
-
A-800
$531.17
-
A-800
$295.23
-
A-800
$6.16
-
A-800
$820.23
-
A-800
-
A-800
$63.14
-
A-800
$546.02
-
A-800
$33.22
-
A-800
-
A-800
$52.22
-
A-800
$460.08
-
A-800
$460.08
-
A-800
-
A-800
$295.23
-
A-800
$32.38
-
A-800
$81.89
-
A-800
$6.16
-
A-800
$20.85
-
A-800
-
A-800
-
A-800
$25.66
-
A-800
$89.16
-
A-800
$397.58
-
A-800
-
A-800
-
A-800
$150.24
-
A-800

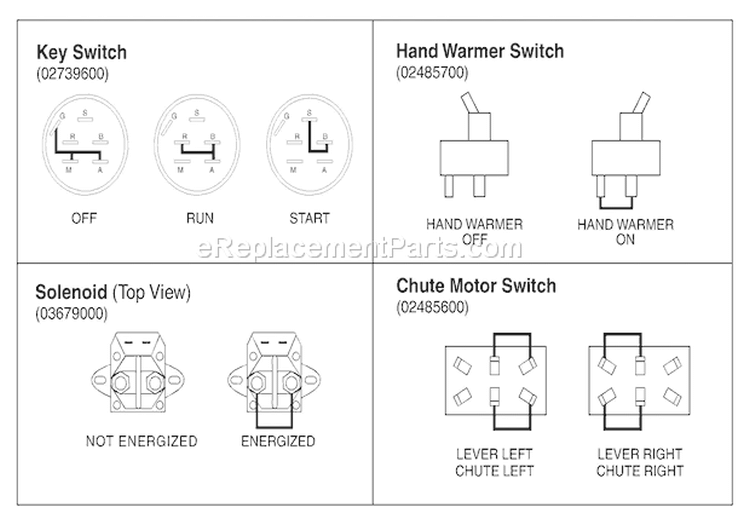

Continuity Diagram
_WW_2.gif "Continuity Diagram Diagram and Parts List for 924503 000101 Ariens Snow Blower")
-
B-02485600
$68.12
-
B-02485700
$21.42
-
B-02739600
$72.48
-
B-03679000
$80.45
Decals (Part 1)
_WW_3.gif "Decals (Part 1) Diagram and Parts List for 924503 000101 Ariens Snow Blower")
-
C-1
-
C-2
-
C-3
-
C-4
-
C-5
-
C-6
-
C-7
$76.93
-
C-8
$40.56
-
C-800
-
C-800
-
C-800
-
C-800
-
C-800
-
C-800
-
C-800
-
C-800

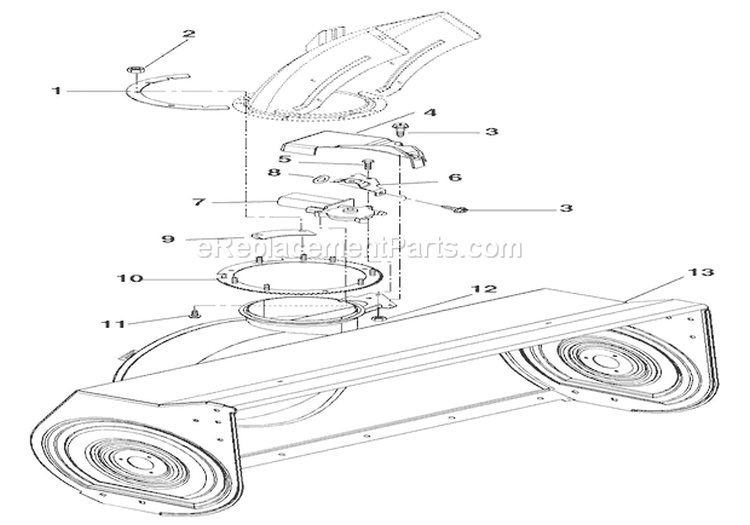

Electric Discharge Chute
